tesa® 64815 Bond & Detach®
150μm d/s White High Shock Stretch Release Tape
Product Features
- Thickness: 150 μm
- Outstanding shock resistance
- High tack
Product description
tesa® 64815 is a white stretch release tape with a special stretchable backing and a high shock adhesive
Product details and specifications
Product Features
- Thickness: 150 μm
- Outstanding shock resistance
- High tack
- Very high bonding strength
- High tear resistance

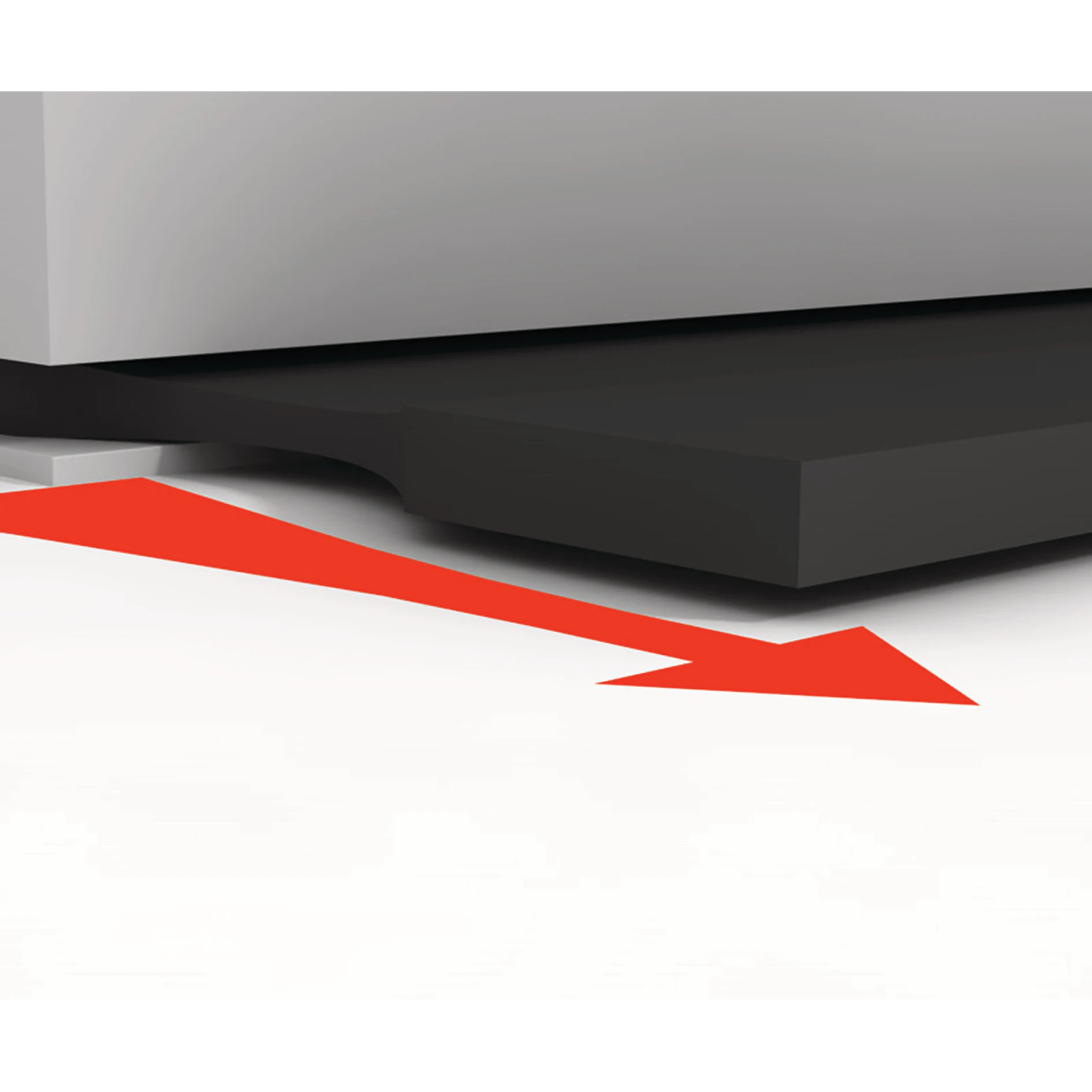

- Easy removability by stretching the adhesive even after a long bonding time
- Residue free removability
- IPX8
Application Fields
- Battery mounting
- Permanent mounting of components in electronic devices with the option to remove the parts for repairing or recycling
- Temporary fixation of components e.g. FPC

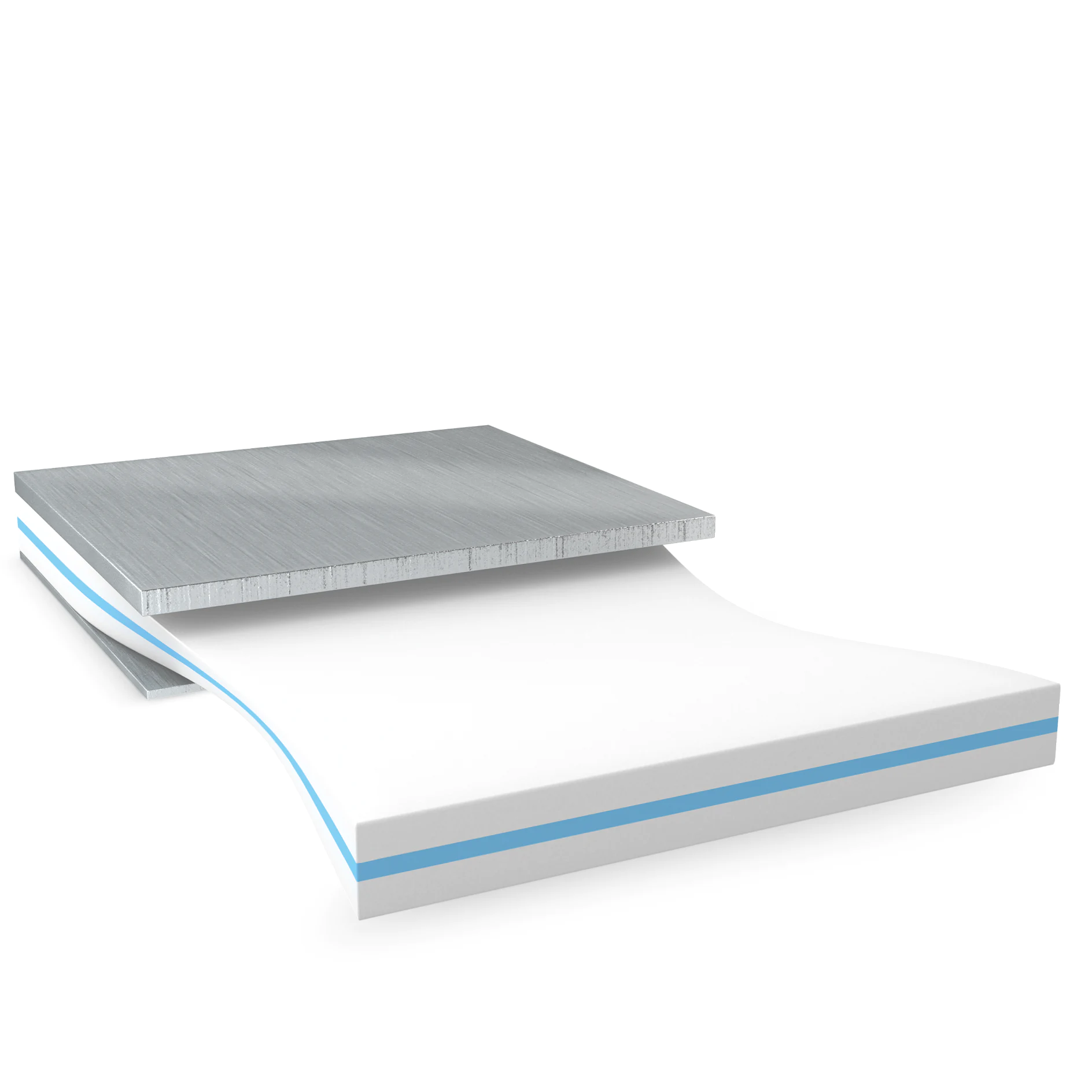

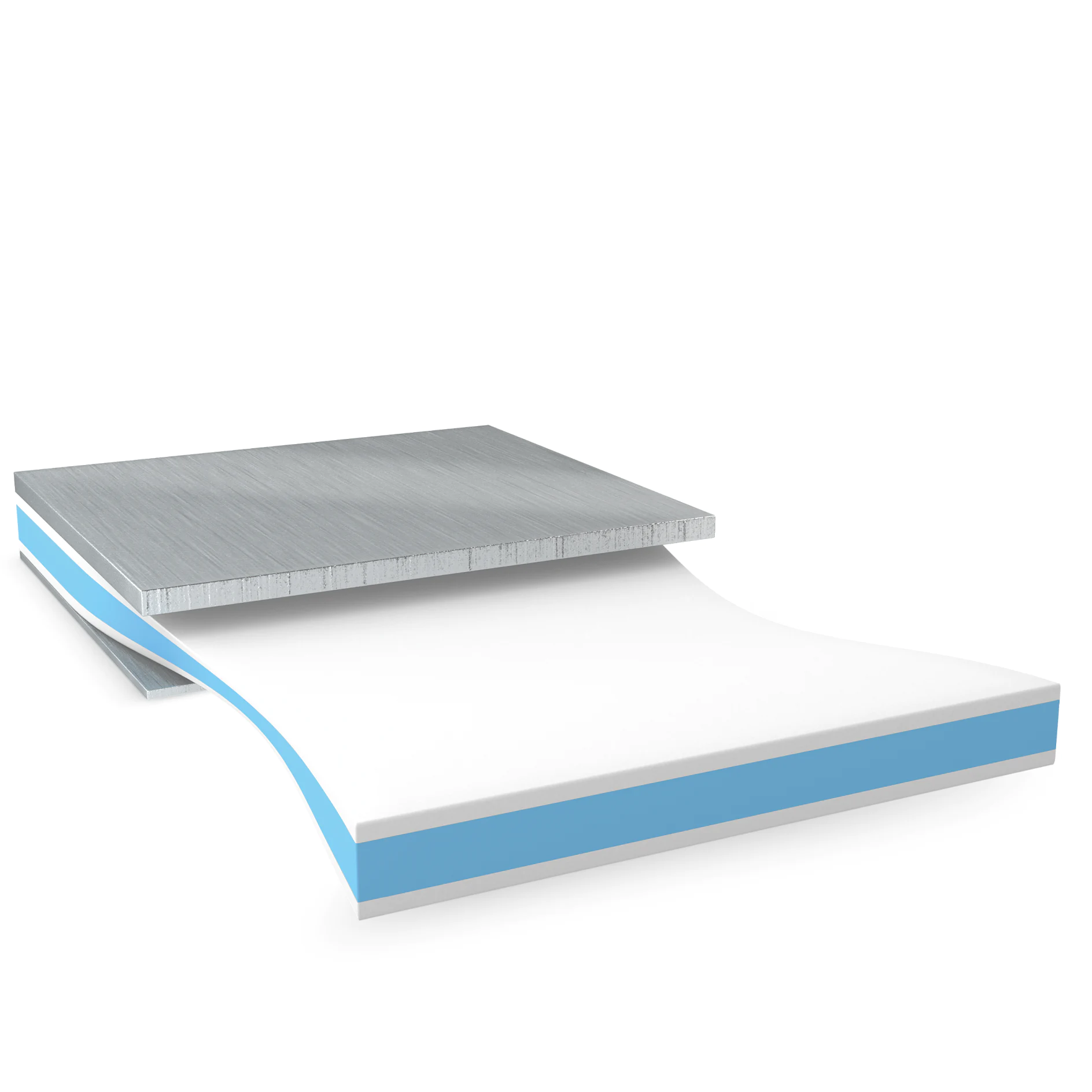

Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | stretchable specialty |
| Color | white |
| Color of liner | transparent |
| Liner Type | PET |
| Total thickness | 150 µm |
Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | stretchable specialty |
| Color | white |
| Color of liner | transparent |
| Liner Type | PET |
| Total thickness | 150 µm |
Properties / Performance Values
| Temperature resistance long term | 60 °C |
|---|---|
| Residue-free removability | yes |
| Temperature resistance short term | 90 °C |
| Static shear resistance at 40°C | very good |
| Removability after 14 days (23°C) | very good |
| Static shear resistance at 23°C | very good |
Properties / Performance Values
| Temperature resistance long term | 60 °C |
|---|---|
| Residue-free removability | yes |
| Temperature resistance short term | 90 °C |
| Static shear resistance at 40°C | very good |
| Removability after 14 days (23°C) | very good |
| Static shear resistance at 23°C | very good |
Adhesion to Values
| Adhesion to Aluminium (initial) | 10 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 10 N/cm |
| Adhesion to Magnesium (initial) | 10 N/cm |
| Adhesion to Magnesium (after 14 days) | 10 N/cm |
| Adhesion to PE (initial) | 10 N/cm |
| Adhesion to PE (after 14 days) | 10 N/cm |
| Adhesion to Steel (initial) | 12 N/cm |
| Adhesion to Steel (after 14 days) | 12 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 10 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 10 N/cm |
| Adhesion to Magnesium (initial) | 10 N/cm |
| Adhesion to Magnesium (after 14 days) | 10 N/cm |
| Adhesion to PE (initial) | 10 N/cm |
| Adhesion to PE (after 14 days) | 10 N/cm |
| Adhesion to Steel (initial) | 12 N/cm |
| Adhesion to Steel (after 14 days) | 12 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
