Additional Info
- Foam density 220 kg/m3 according to ASTM D792
- Foam 25% compression strength: 60 kPa according to ASTM D105

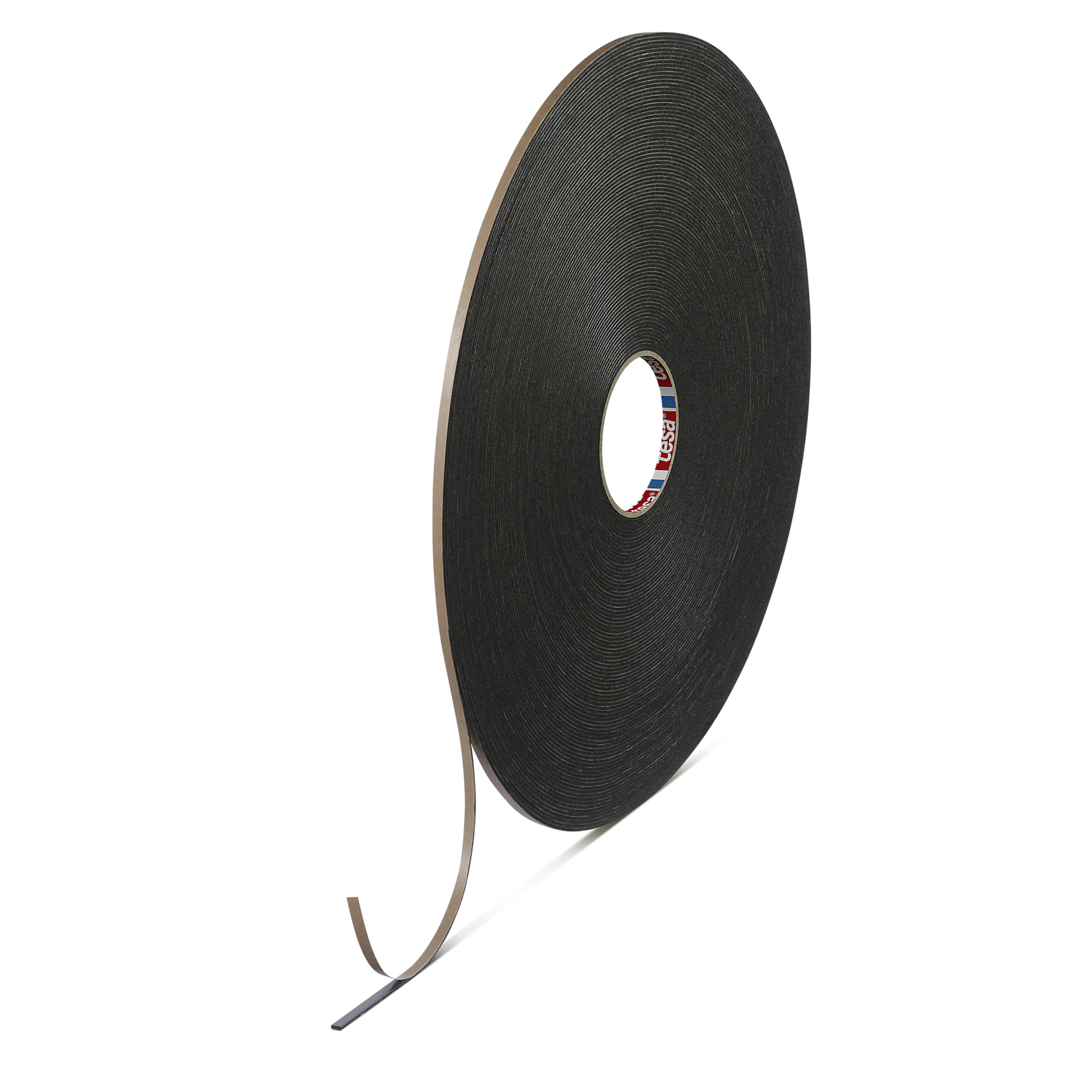

tesa® 64701
High density PVC closed cell single sided foam tape 1.6mm thick (black). Ideal for use in the glazing market
Product Features
- The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces.
- The higher density foam of tesa® 647 Series foam tapes has a great resistance to water penetration, making it the ideal choice for sealing applications in the glazing market.
- tesa® 647 series is resistant to UV.
Product description
tesa® 64701 is a double sided closed-cell PVC foam tape with an acrylic adhesive on both sides. The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces. The higher density foam of tesa® 647 Series foam tapes has a great resistance to water penetration, making it the ideal choice for sealing applications in the glazing market.
Product details and specifications
Product Features
- The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces.
- The higher density foam of tesa® 647 Series foam tapes has a great resistance to water penetration, making it the ideal choice for sealing applications in the glazing market.
- tesa® 647 series is resistant to UV.
- The product is available in customized die cuts.
Application Fields
tesa® 64701 foam tape is ideal for use in glazing, marine and transportation type applications, including bus, truck and caravan manufacuring.
Application ideas:
Application ideas:
- Sealing between glass and aluminum in windows.
- Sealing the corners of aluminum window frames.
- Seling between panels in trucks and buses.
- Sealing externally mounted air-conditioning fan units on walls and roofs.
- Sealing electrical access panels on industrial machinery.
- Sealing electrical housings, enclosures and cabinet doors.
- Sealing under glass stove-tops
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Color | black |
| Total thickness | 1,600 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Color | black |
| Total thickness | 1,600 µm |
Properties / Performance Values
| Elongation at break | 120 % |
|---|---|
| Tensile strength | 9 N/cm |
| Temperature resistance short term | 105 °C |
| Temperature resistance long term | 90 °C |
| Water resistance | very good |
| Ageing resistance (UV) | good |
Properties / Performance Values
| Elongation at break | 120 % |
|---|---|
| Tensile strength | 9 N/cm |
| Temperature resistance short term | 105 °C |
| Temperature resistance long term | 90 °C |
| Water resistance | very good |
| Ageing resistance (UV) | good |
Adhesion to Values
| Adhesion to Steel (initial) | 6.5 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 8 N/cm |
Adhesion to Values
| Adhesion to Steel (initial) | 6.5 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
