Product Construction
| Backing material | PET fleece, Recycled content of backing: 80 % |
| Total thickness | 250 µm |
| Type of adhesive | type: rubber based |

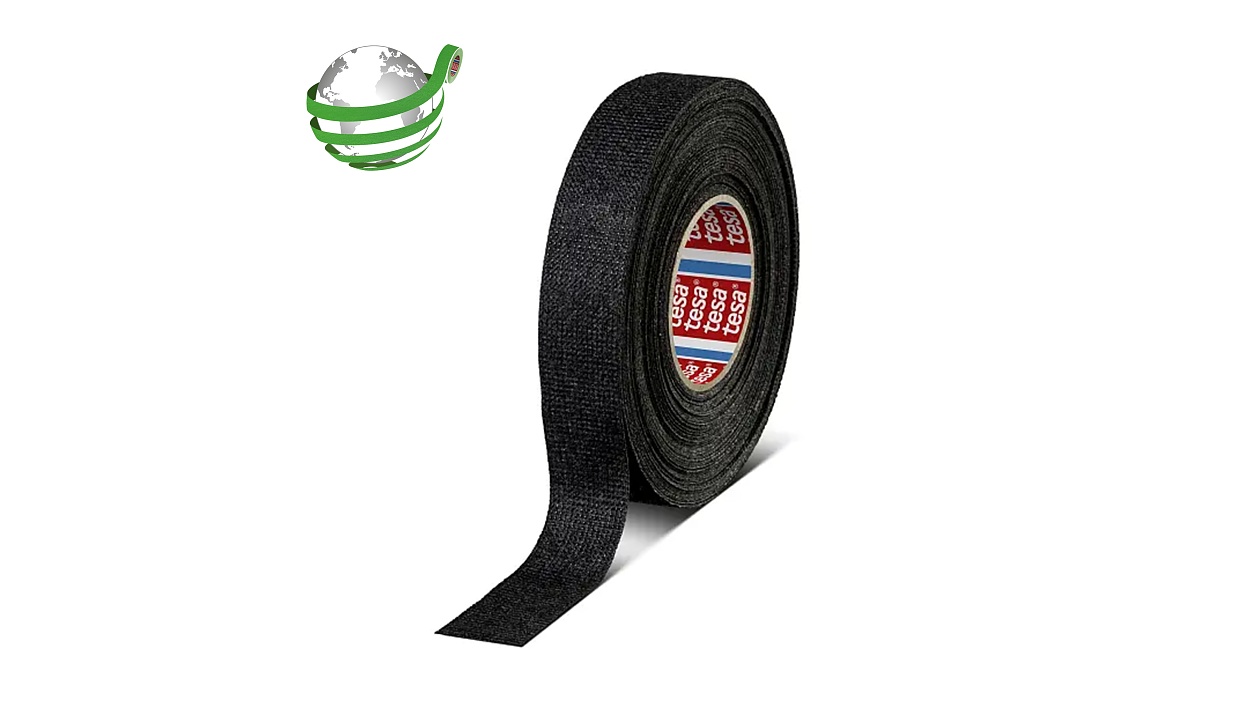

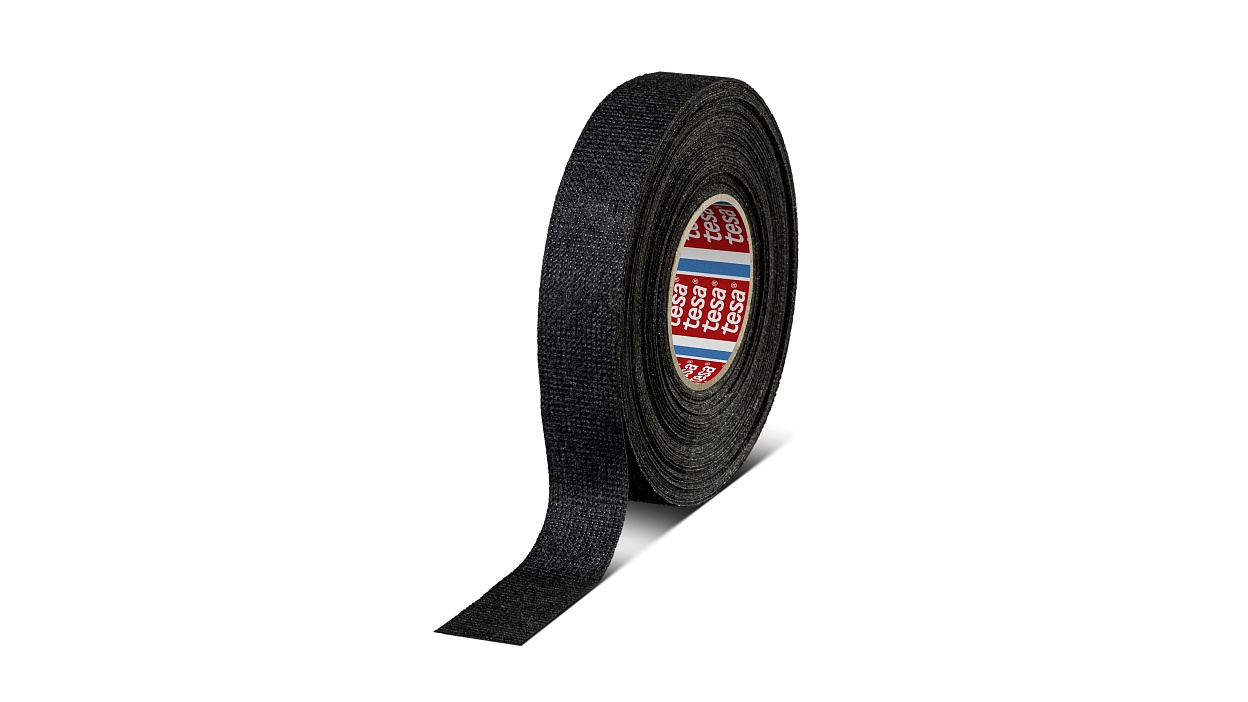

tesa® 61623
Basic Noise Damping Tape with PCR PET Backing
Product Features
- 80% Recycled Content in Backing
- Solvent-free production process
- Solid noise damping performance
Product description
tesa® 61623 is a rPET non-woven wire harness tape with a solvent-free rubber-based adhesive mainly used for wire harness covering in the passenger compartment. Thanks to its 80% PCR PET content in backing and solvent-free production process, tesa® 61623 is contributing to sustainability.
Product details and specifications
Product Features
- 80% Recycled Content in Backing
- Solvent-free production process
- Solid noise damping performance
- Stable unwind force
- Ageing resistant up to 3000 h
- Excellent cable compatibility
Application Fields
tesa® 61623 is designed to provide solid noise damping and secure bundling performances on the harness. The tape is mainly applied on harnesses for the passenger compartment. The harness remains flexible after applying the tape.
Product Construction
| Backing material | PET fleece, Recycled content of backing: 80 % |
| Total thickness | 250 µm |
| Type of adhesive | type: rubber based |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 45 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Temperature resistance max. | 105 °C |
| Hand tearability | yes |
| Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
| Noise damping (LV312) | Class C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 45 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Temperature resistance max. | 105 °C |
| Hand tearability | yes |
| Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
| Noise damping (LV312) | Class C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
Adhesion to Values
| Adhesion to Steel | 2 N/cm |
Adhesion to Values
| Adhesion to Steel | 2 N/cm |
Additional Info
- Standard width: 19 mm
- Standard lengths: 15, 25 m
- Standard core diameter: 38 mm
- Further dimensions only available upon request
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
