Additional Info
Liner variants:
PV20: brown/blue logo glassine paper (71μm; 82g/m²)
PV40: white/red logo glassine paper (71μm; 80g/m²)
PV20: brown/blue logo glassine paper (71μm; 82g/m²)
PV40: white/red logo glassine paper (71μm; 80g/m²)
tesa® 61305
50µm double sided transparent high performance filmic tape
Product Features
- Thickness: 50µm
- Very high bonding strength
- Superior push out resistance
Product description
tesa® 61305 is a double sided self-adhesive tape consisting of a transparent PET backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- Thickness: 50µm
- Very high bonding strength
- Superior push out resistance
- Quick bonding performance
- Excellent resistance to demanding environmental conditions
Application Fields
- Demanding mounting applications
- Components mounting

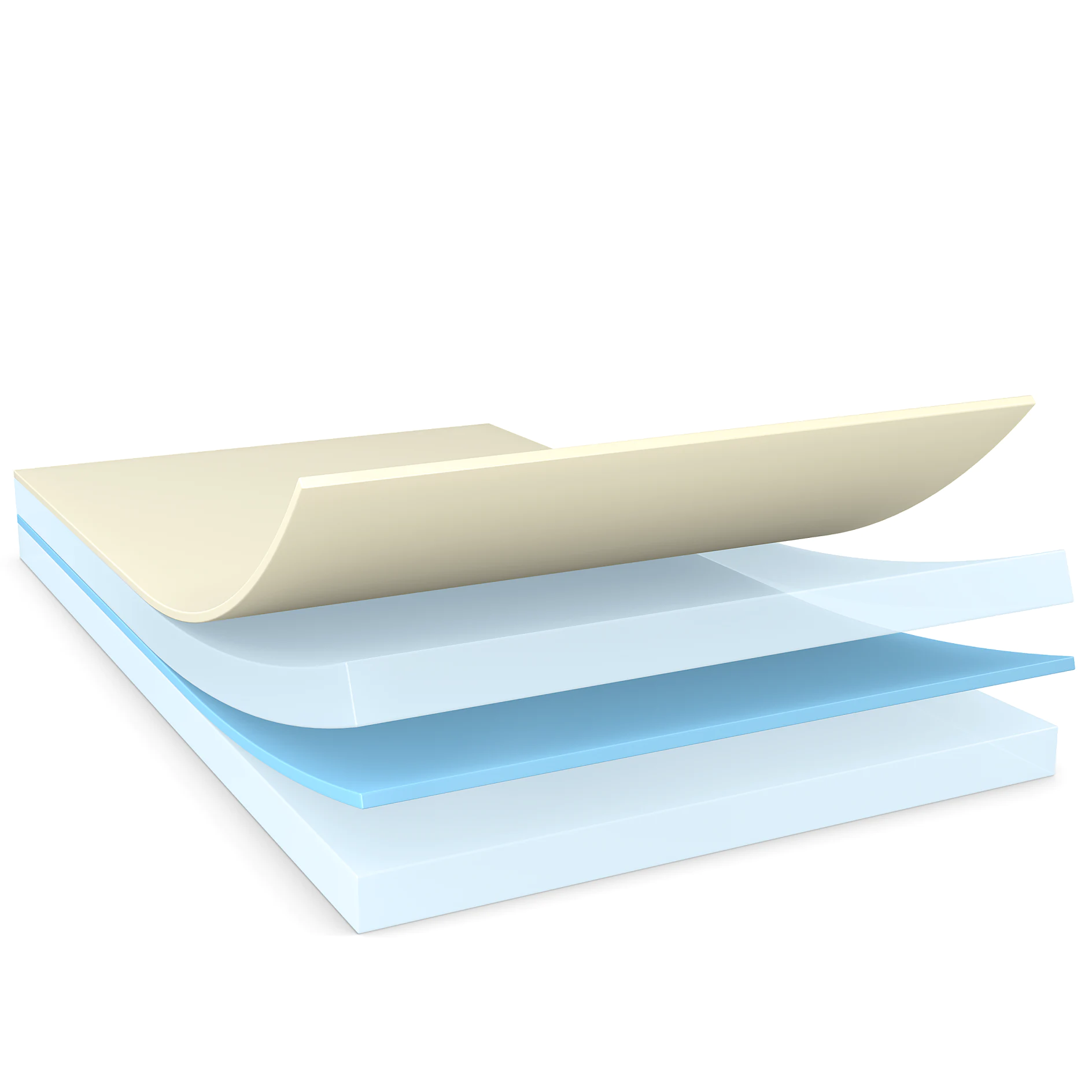

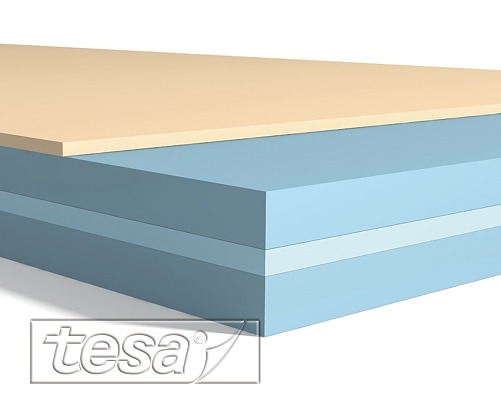

Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | transparent |
| Color of liner | white with tesa logo |
| Liner Type | glassine |
| Thickness of liner | 71 µm |
| Total thickness | 50 µm |
| Weight of liner | 80 g/m² |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | transparent |
| Color of liner | white with tesa logo |
| Liner Type | glassine |
| Thickness of liner | 71 µm |
| Total thickness | 50 µm |
| Weight of liner | 80 g/m² |
Properties / Performance Values
| Elongation at break | 60 % |
|---|---|
| Tensile strength | 8.7 N/cm |
| Temperature resistance short term | 200 °C |
| Temperature resistance long term | 100 °C |
| Tack | medium |
| Static shear resistance at 40°C | good |
| Static shear resistance at 23°C | good |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Properties / Performance Values
| Elongation at break | 60 % |
|---|---|
| Tensile strength | 8.7 N/cm |
| Temperature resistance short term | 200 °C |
| Temperature resistance long term | 100 °C |
| Tack | medium |
| Static shear resistance at 40°C | good |
| Static shear resistance at 23°C | good |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 8.5 N/cm |
| Adhesion to Glass (initial) | 12.4 N/cm |
| Adhesion to Glass (after 14 days) | 12.7 N/cm |
| Adhesion to PMMA (initial) | 11.5 N/cm |
| Adhesion to PMMA (after 14 days) | 12 N/cm |
| Adhesion to Steel (initial) | 10.3 N/cm |
| Adhesion to Steel (after 14 days) | 12.9 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 8.5 N/cm |
| Adhesion to Glass (initial) | 12.4 N/cm |
| Adhesion to Glass (after 14 days) | 12.7 N/cm |
| Adhesion to PMMA (initial) | 11.5 N/cm |
| Adhesion to PMMA (after 14 days) | 12 N/cm |
| Adhesion to Steel (initial) | 10.3 N/cm |
| Adhesion to Steel (after 14 days) | 12.9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
