tesa® 61390
200µm double-sided transparent mounting tape with superior push-out and bonding performance
Product Features
- Superior push-out resistance keeps your materials securely in place, even under pressure
- Excellent bonding strength ensures a secure and long-lasting hold
- Good shock resistance provides good durability and withstands shocks and vibrations
Product description
tesa® 61390 is a double-sided transparent self-adhesive tape with a PET backing and tackified acrylic adhesive. Ideal for cover lens and touch panel mounting, it provides superior bonding and push-out performance. Its special acrylic adhesive and versatility make it perfect for various surfaces.
Product details and specifications
Product Features
- Superior push-out resistance keeps your materials securely in place, even under pressure
- Excellent bonding strength ensures a secure and long-lasting hold
- Good shock resistance provides good durability and withstands shocks and vibrations
- Resistant to challenging environmental condition
Application Fields
- Ideal for cover lens mounting in mobile phones, providing a secure and reliable attachment
- Perfect for touch panel mounting, offering high bonding strength and good shock resistance

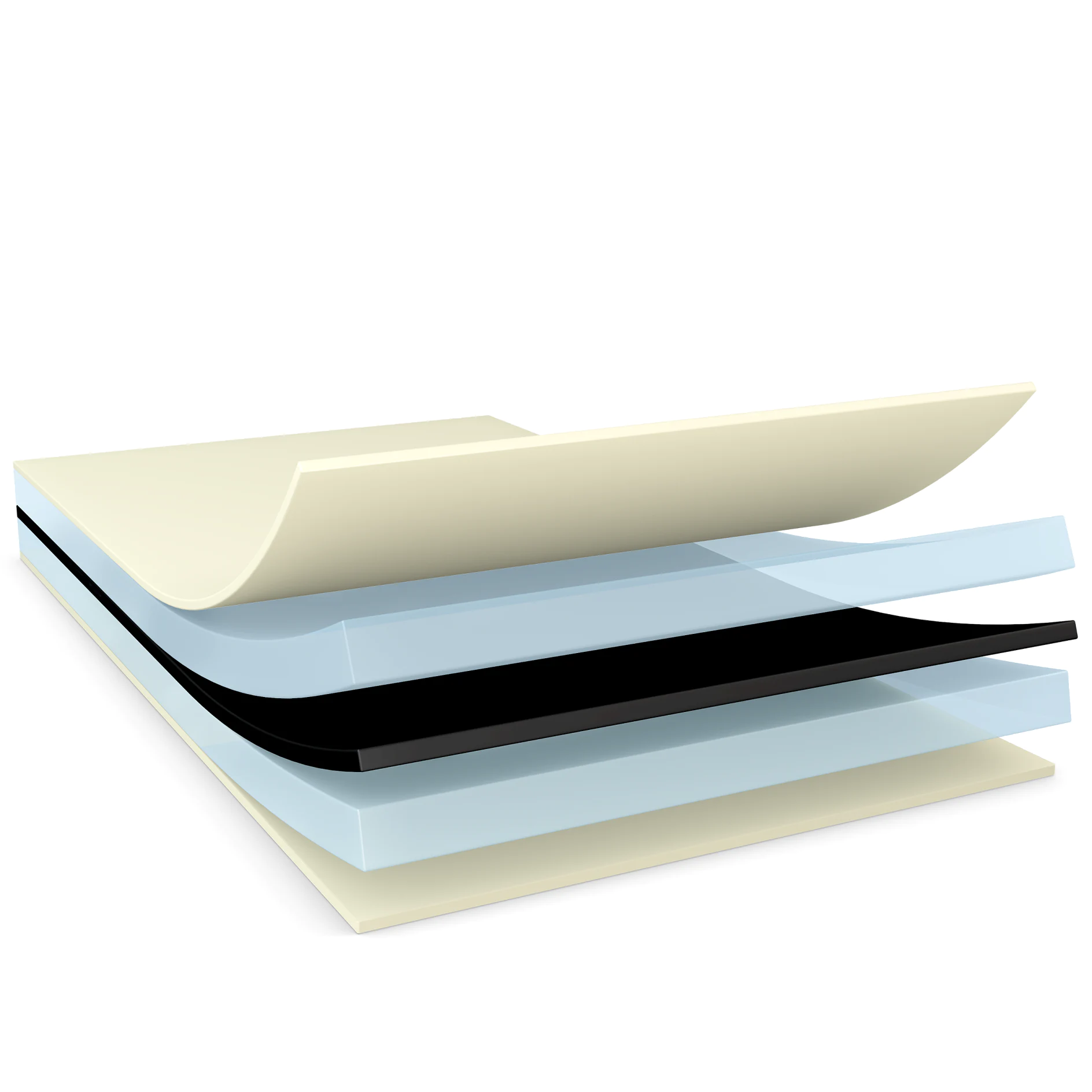

Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | transparent |
| Color of liner | white with tesa logo |
| Liner Type | glassine |
| Thickness of liner | 69 µm |
| Total thickness | 200 µm |
| Weight of liner | 80 g/m² |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | transparent |
| Color of liner | white with tesa logo |
| Liner Type | glassine |
| Thickness of liner | 69 µm |
| Total thickness | 200 µm |
| Weight of liner | 80 g/m² |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 20 N/cm |
| Temperature resistance long term | 100 °C |
| Temperature resistance short term | 200 °C |
| Ageing resistance (UV) | very good |
| Static shear resistance at 40°C | good |
| Static shear resistance at 23°C | good |
| Humidity resistance | very good |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 20 N/cm |
| Temperature resistance long term | 100 °C |
| Temperature resistance short term | 200 °C |
| Ageing resistance (UV) | very good |
| Static shear resistance at 40°C | good |
| Static shear resistance at 23°C | good |
| Humidity resistance | very good |
Adhesion to Values
| Adhesion to ABS (initial) | 10 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 13.3 N/cm |
| Adhesion to ABS (covered side, after 14 days) | 13.5 N/cm |
| Adhesion to ABS (covered side, initial) | 10.4 N/cm |
| Adhesion to Glass (initial) | 14.4 N/cm |
| Adhesion to Glass (after 14 days) | 16.7 N/cm |
| Adhesion to PC (initial) | 11.6 N/cm |
| Adhesion to PC (after 14 days) | 19.8 N/cm |
| Adhesion to PC (covered side, after 14 days) | 19.5 N/cm |
| Adhesion to PC (covered side, initial) | 11.6 N/cm |
| Adhesion to PMMA (initial) | 14.2 N/cm |
| Adhesion to PMMA (after 14 days) | 19.2 N/cm |
| Adhesion to Steel (initial) | 14.3 N/cm |
| Adhesion to Steel (after 14 days) | 17 N/cm |
| Adhesion to Steel (covered side, initial) | 14.8 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 17 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 10 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 13.3 N/cm |
| Adhesion to ABS (covered side, after 14 days) | 13.5 N/cm |
| Adhesion to ABS (covered side, initial) | 10.4 N/cm |
| Adhesion to Glass (initial) | 14.4 N/cm |
| Adhesion to Glass (after 14 days) | 16.7 N/cm |
| Adhesion to PC (initial) | 11.6 N/cm |
| Adhesion to PC (after 14 days) | 19.8 N/cm |
| Adhesion to PC (covered side, after 14 days) | 19.5 N/cm |
| Adhesion to PC (covered side, initial) | 11.6 N/cm |
| Adhesion to PMMA (initial) | 14.2 N/cm |
| Adhesion to PMMA (after 14 days) | 19.2 N/cm |
| Adhesion to Steel (initial) | 14.3 N/cm |
| Adhesion to Steel (after 14 days) | 17 N/cm |
| Adhesion to Steel (covered side, initial) | 14.8 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 17 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
