Additional Info
The values in this section should be considered representative or typical only and should not be used for specification
purposes.
tesa® 58398
tesa® 58398 400 µm thermal conductive tape
Product Features
- It is equipped with special acyrlic adhesive that provide certain thermal conductivity when it applies between heat source and heat sink.
- It has good performance on polar substrates.
Product description
tesa® 58398 is a 400um thermally conductive tape.
Product details and specifications
Product Features
- It is equipped with special acyrlic adhesive that provide certain thermal conductivity when it applies between heat source and heat sink.
- It has good performance on polar substrates.
Application Fields
Applied between heat source and heat sink to transfer the heat.
• Battery module cooling plate mounting
• Power electronics unit
• FPC and PCB

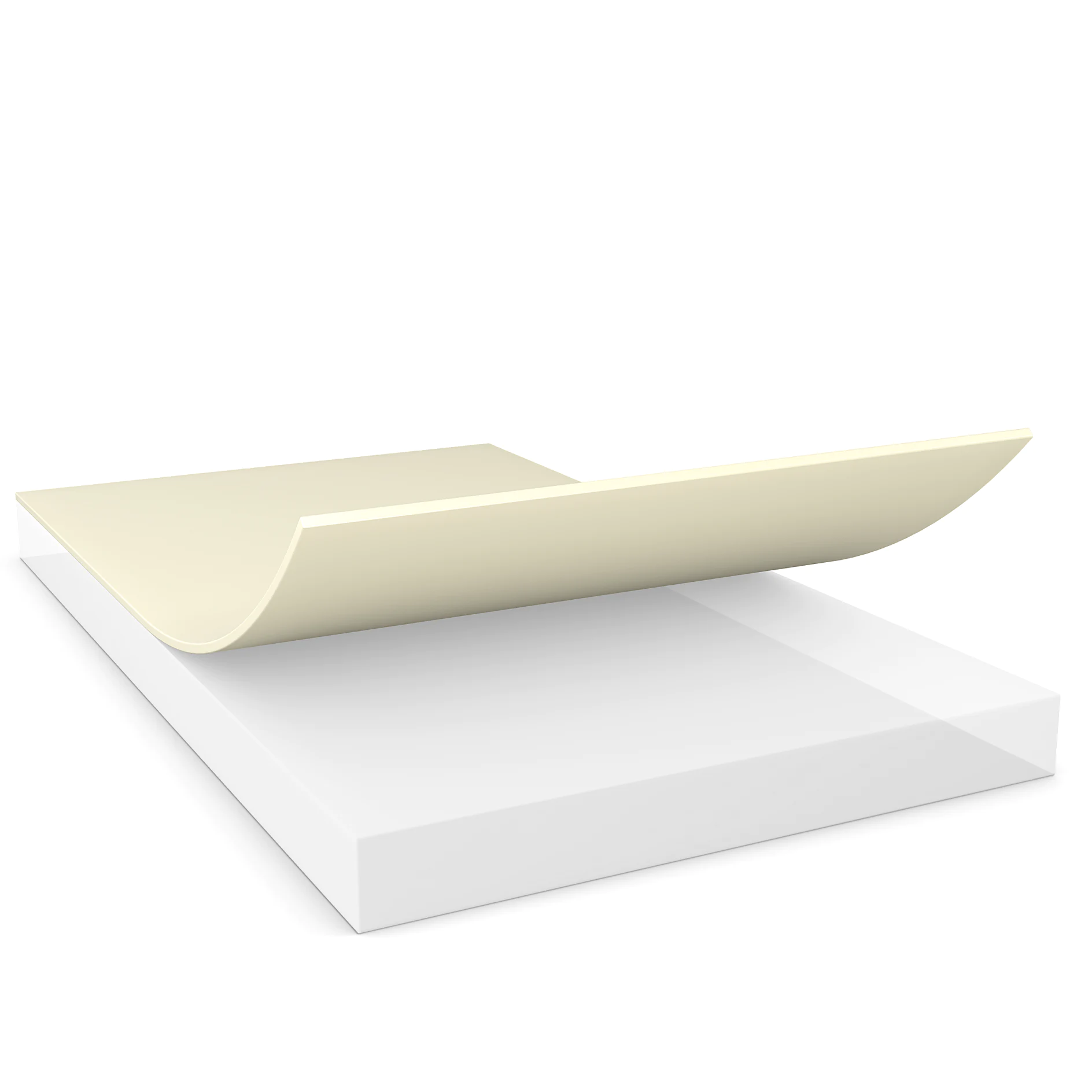

Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | none |
| Color | white |
| Color of liner | white |
| Liner Type | PE-coated paper |
| Thickness of liner | 127 µm |
| Total thickness | 400 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | none |
| Color | white |
| Color of liner | white |
| Liner Type | PE-coated paper |
| Thickness of liner | 127 µm |
| Total thickness | 400 µm |
Properties / Performance Values
| Flame retardancy | V2 |
|---|---|
| Release of liner | easy |
| Temperature resistance short term | 150 °C |
| Thermal conductivity z-direction | 0.65 W/mK |
| Temperature resistance (-40°C) | very good |
| Hardness - Shore 00 | 74 STK |
| Temperature resistance (125°C) | very good |
| Breakdown voltage | 6 KV |
| Density | 1.65 g/cm³ |
Properties / Performance Values
| Flame retardancy | V2 |
|---|---|
| Release of liner | easy |
| Temperature resistance short term | 150 °C |
| Thermal conductivity z-direction | 0.65 W/mK |
| Temperature resistance (-40°C) | very good |
| Hardness - Shore 00 | 74 STK |
| Temperature resistance (125°C) | very good |
| Breakdown voltage | 6 KV |
| Density | 1.65 g/cm³ |
Adhesion to Values
| Adhesion to Aluminium (after 3 days) | 6.7 N/cm |
|---|---|
| Adhesion to Steel (initial) | 3 N/cm |
| Adhesion to Steel (20min @ RT, 90°) | 3 N/cm |
Adhesion to Values
| Adhesion to Aluminium (after 3 days) | 6.7 N/cm |
|---|---|
| Adhesion to Steel (initial) | 3 N/cm |
| Adhesion to Steel (20min @ RT, 90°) | 3 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
