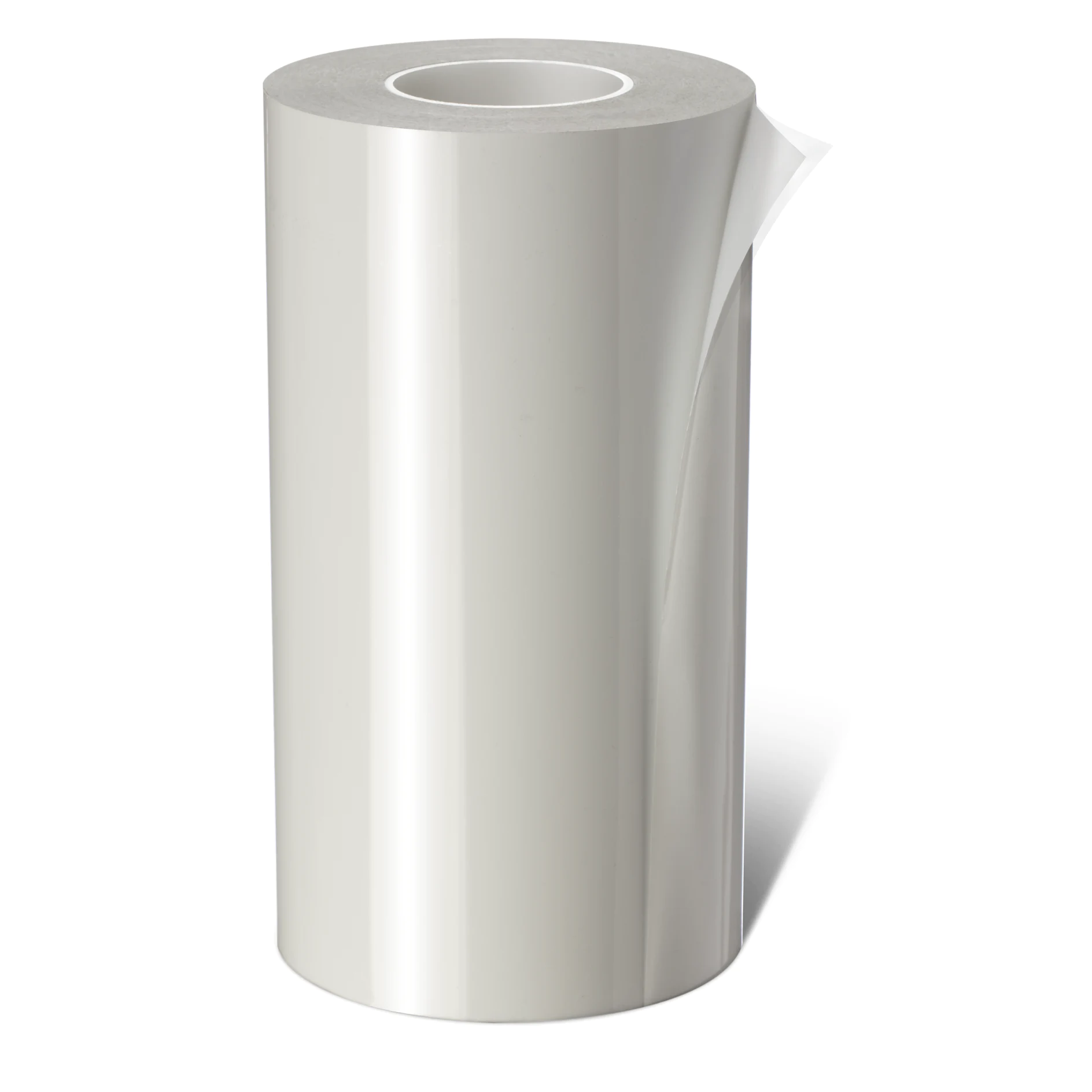

tesa® 58311 Fire Protection Tape
1150 µm glassfibre electrical insulation tape
Product Features
- High temperature resistance
- Electrical insulation
- Fire retardency
Product description
tesa® 58311 is a 1150 µm glassfibre tape with an acrylic adhesive. 58311® has been designed for electrical insulation applications at very high temperatures.
Product details and specifications
Product Features
- High temperature resistance
- Electrical insulation
- Fire retardency
Application Fields
Very high temperature electrical insulation of metal parts and battery housing against dielectric shock in automotive battery packs.
Example application areas are:
Example application areas are:
- Battery housing top lid
- Battery housing floor
- Bus bar
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | fibreglass |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 1150 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | fibreglass |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 1150 µm |
Properties / Performance Values
| Elongation at break | 1.5 % |
|---|---|
| Tensile strength | 200 N/cm |
| Dielectric strength | 6 kV/mm |
| Liner removal force | 25 cN/cm |
| Humidity resistance | yes |
Properties / Performance Values
| Elongation at break | 1.5 % |
|---|---|
| Tensile strength | 200 N/cm |
| Dielectric strength | 6 kV/mm |
| Liner removal force | 25 cN/cm |
| Humidity resistance | yes |
Adhesion to Values
| Adhesion to Steel (initial) | 4 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (initial) | 4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
