tesa® 51007

PET cloth tape for abrasion protection of automotive harnesses

Product Features
  • Resistant to abrasion
  • High initial tack and adhesion
  • Optimized for automatic wrapping
All product features
Product description

tesa® 51007 is a PET cloth tape with a rubber-based adhesive providing reliable abrasion protection of automotive harnesses. The unwind force is adapted for automatic bundling and allows high processing speeds.

The high adhesion and good flag resistance ensure secure harness bundling. The temperature resistance depends on the insulation material.

Product details and specifications

Product Features

  • Resistant to abrasion
  • High initial tack and adhesion
  • Optimized for automatic wrapping
  • Flag-resistant
  • Can withstand environmental influences
  • Constant unwind force – optimized for automatic application
  • Aging-resistant
  • Flame-retardant
  • Flexible and smooth

Application Fields

tesa® 51007 has been specially designed for bundling and wire protection against abrasion. The main application field is the engine compartment of a car, with demanding temperature-related and environmental conditions.
Adhesive Type rubber based
Backing material PET cloth
Total thickness 320 µm
Elongation at break 22 %
Tensile strength 175 N/cm
Abrasion resistance (5mm mandrel, LV312) Class B
Temperature resistance max. 150 °C
Temperature resistance min. -40 °C
Unwind force (roll width > 9mm) 6 N/roll (30 m/min)
Noise damping (LV312) Class A
Unwind force (roll width < 9mm) 6 N/roll (30 m/min)
Abrasion resistance (10mm mandrel, LV312) Class C
Adhesion to Steel 4.5 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 50 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 76 mm

  • Applicable for red ring assembly aid


1 On ETFE wires. Other insulation materials to be tested.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 51007_en 64.8 kB
Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product
roll of black tesa adhesive tape standing upright with a strip extended on a white background (This text has been generated by AI)

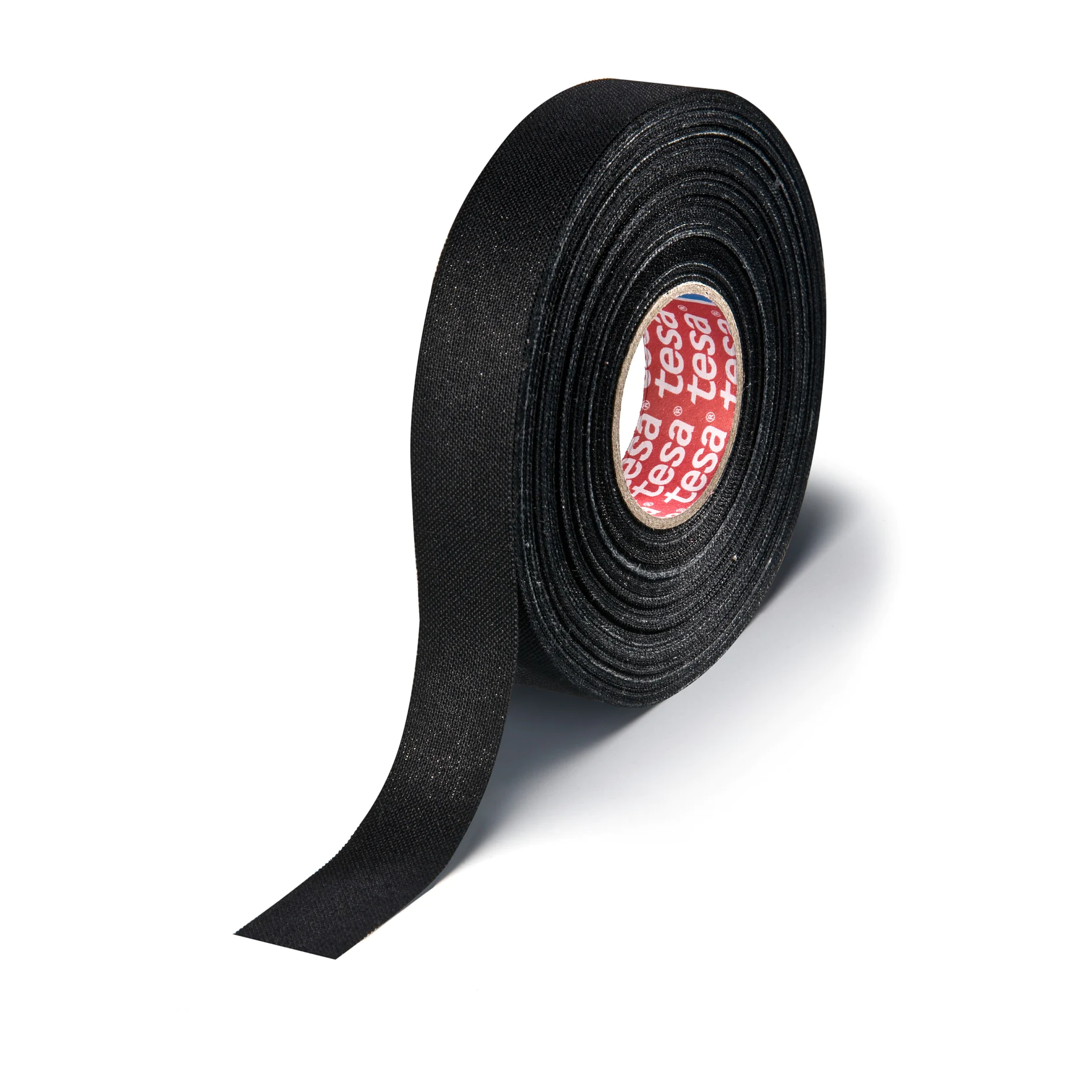

tesa® 51007
roll of black tesa adhesive tape standing upright with a portion unrolled on a white background (This text has been generated by AI)
tesa® 51035
a row of five rolls of colorful tesa tape in blue, purple, yellow, orange, and black, each displaying the tesa logo on the label. (This text has been generated by AI)
tesa® 51036 PV2
roll of black tesa adhesive tape with a partially unrolled strip on a white background (This text has been generated by AI)
tesa® 51036 PV77
roll of black tesa adhesive tape standing upright on a white background, partially unrolled to show texture and thickness (This text has been generated by AI)

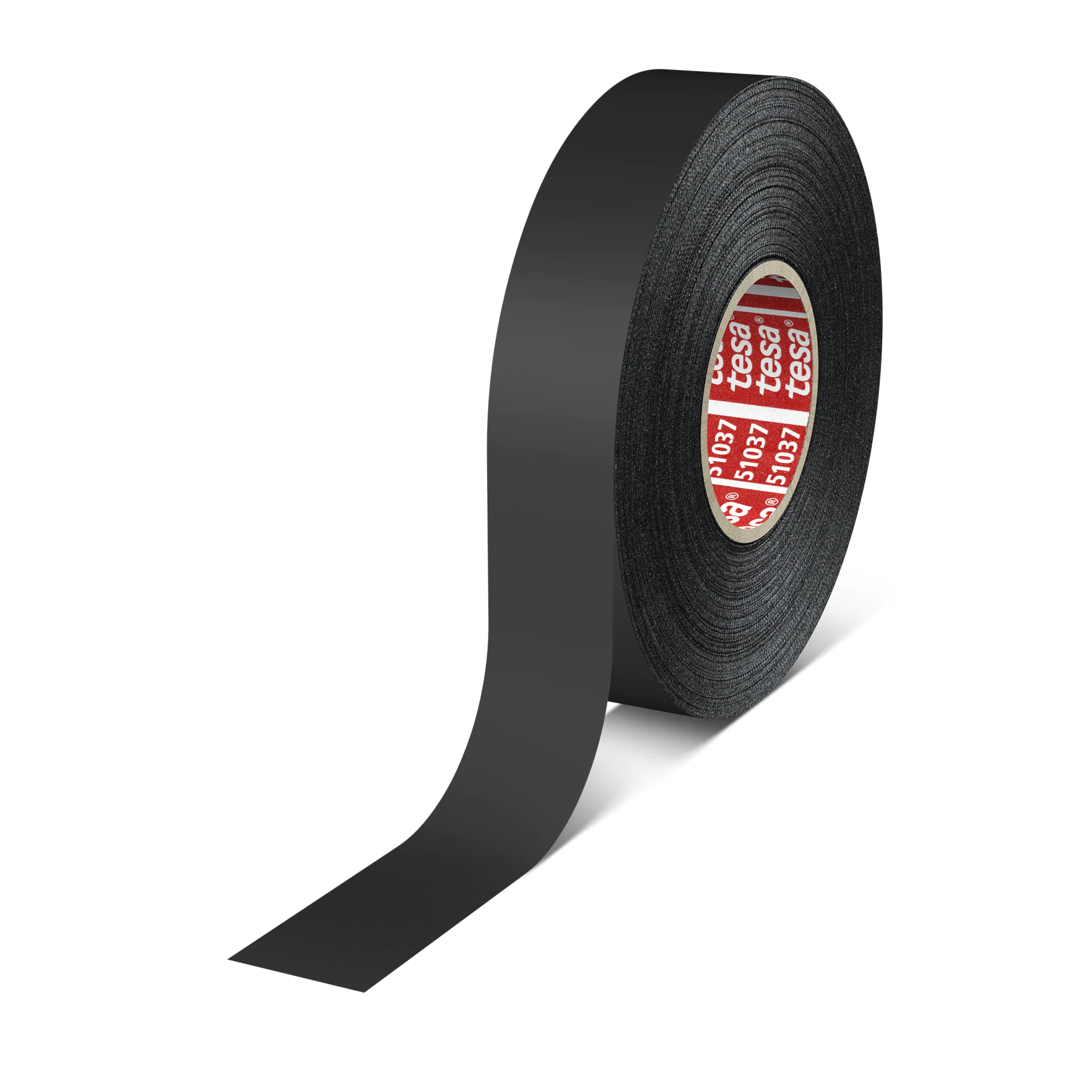

tesa® 51037
roll of black tesa adhesive tape standing upright with a strip extended on a white background (This text has been generated by AI)
tesa® 51006
roll of black tesa adhesive tape standing upright with a portion unrolled on a white background (This text has been generated by AI)
tesa® 51026
roll of black tesa duct tape partially unrolled on white background, showing adhesive side and branded core (This text has been generated by AI)
tesa® Sleeve 51036 PV9
tesa-51036-PV9-wire-harnessing-sleeve
tesa® Sleeve 51036 PV9 OR
roll of black tesa adhesive tape with a partially unrolled strip on a white background (This text has been generated by AI)
tesa® Supersleeve 51026 PV6
roll of black tesa adhesive tape with one end partially unrolled on a white background (This text has been generated by AI)
tesa® Spiralsleeve 51036 PV5
tesa_51036_PV9_pr_002_fullsize
tesa® Sleeve 51036 PV9 A
Total thickness
320 µm
240 µm
260 µm
1,006 µm
230 µm
320
260 µm
220 µm
220 µm
530 µm
530 µm
220 µm
Adhesive Type
rubber based
advanced acrylic
advanced acrylic
advanced acrylic
advanced acrylic
rubber based
acrylic
acrylic
acrylic
acrylic
advanced acrylic
acrylic
Backing material
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
Temperature resistance max.
150 °C
150 °C
150 °C
105 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
Adhesion to Steel
4.5 N/cm
4 N/cm
3 N/cm
5.5 N/cm
3 N/cm
4.5 N/cm
5.5 N/cm
5 N/cm
5 N/cm
5.5 N/cm
3 N/cm
5 N/cm
Temperature resistance min.
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
Last updated on Apr 16, 2024
