Product information

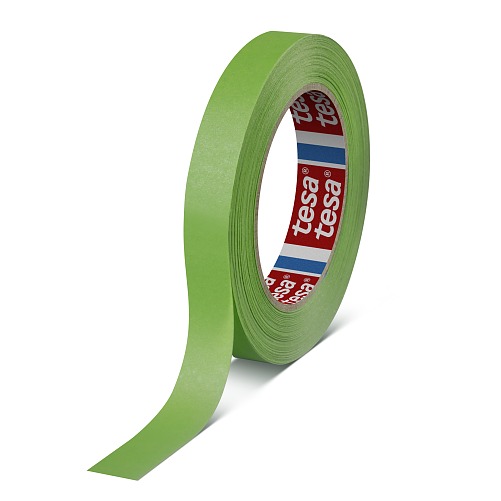

tesa® 4338 PV0

High Performance Masking Grade - up to 120 °C



Product description

tesa® 4338 PV0 is a green colored smooth masking tape for highly demanding paint masking applications, especially in transportation sectors such as marine, train, truck and various others where high conformability and clean paint edges are required. The aging resistant natural rubber adhesive has a good quick stick, provides outdoor usability for up to seven-days, temperature resistance up to 120 °C / 248 F and clean removal.

Main applications

  • High visibility due to vivid color
  • Excellent handling (easy and controlled unwinding, finger friendly, and high conformability)
  • For multiple drying cycles – up to six cycles at 120 °C/40 min
  • Excellent adherence of paints and fillers
  • Good quick stick for secure fixation of masks without peel-off
  • Clean paint edges
  • Seven-day UV resistance for short outdoor storing of masked objects
tesa 4338 High-Performance Masking Grade application video
00:00
tesa-4338-High-Performance-Masking-Grade-043380000000-pr
tesa-4338-High-Performance-Masking-Grade-043380000400-pr
tesa-4338-High-Performance-Masking-Grade-043380000300-pr
tesa-4338-High-Performance-Masking-Grade-043380000200-pr
tesa-4338-High-Performance-Masking-Grade-043380000100-pr
tesa-4338-High-Performance-Masking-Grade-043380000000-pr
tesa-4338-High-Performance-Masking-Grade-043380000100-pr
tesa-4338-High-Performance-Masking-Grade-043380000200-pr
tesa-4338-High-Performance-Masking-Grade-043380000300-pr
tesa-4338-High-Performance-Masking-Grade-043380000400-pr

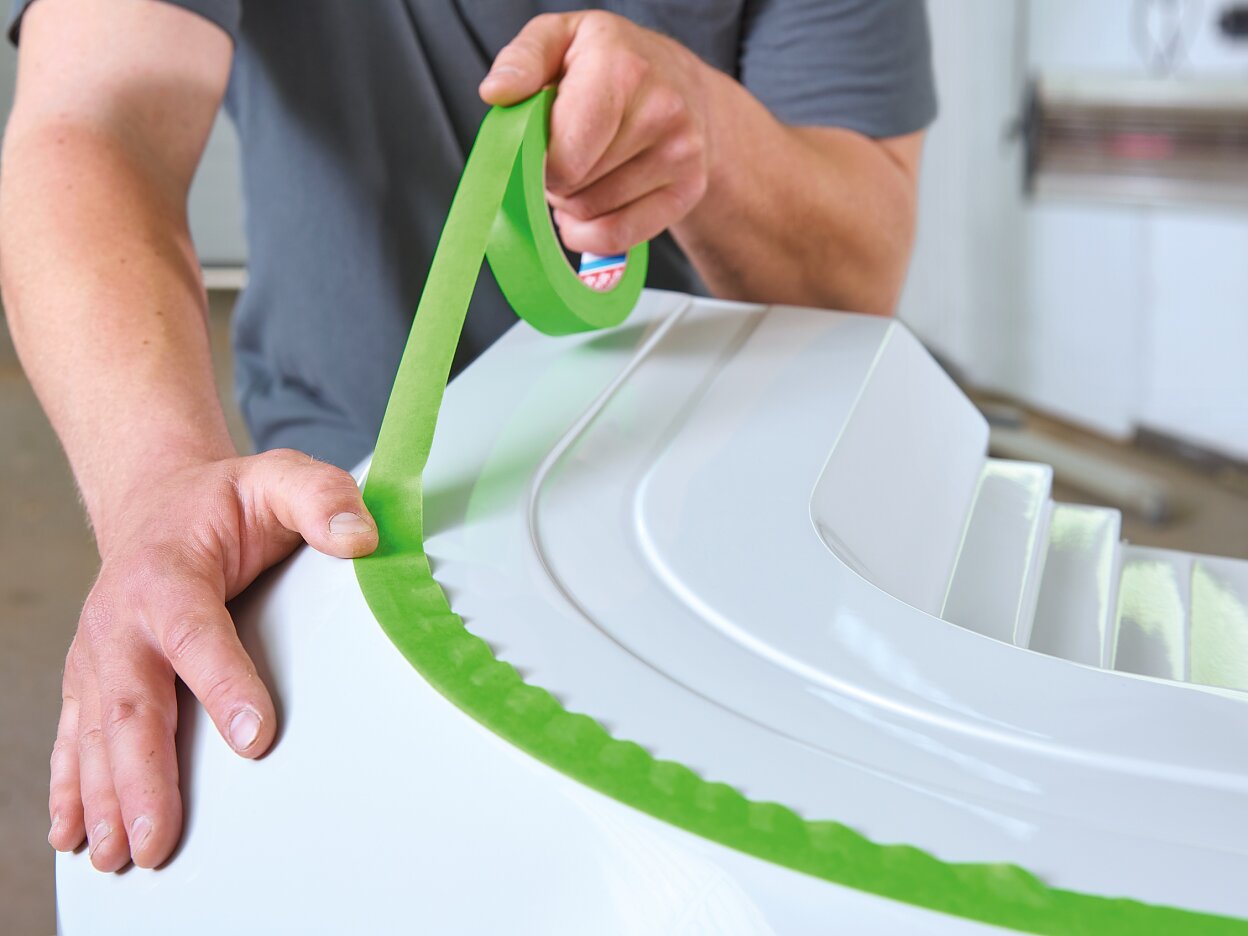

tesa-4338-High-Performance-Masking-Grade-edge-masking-4-app

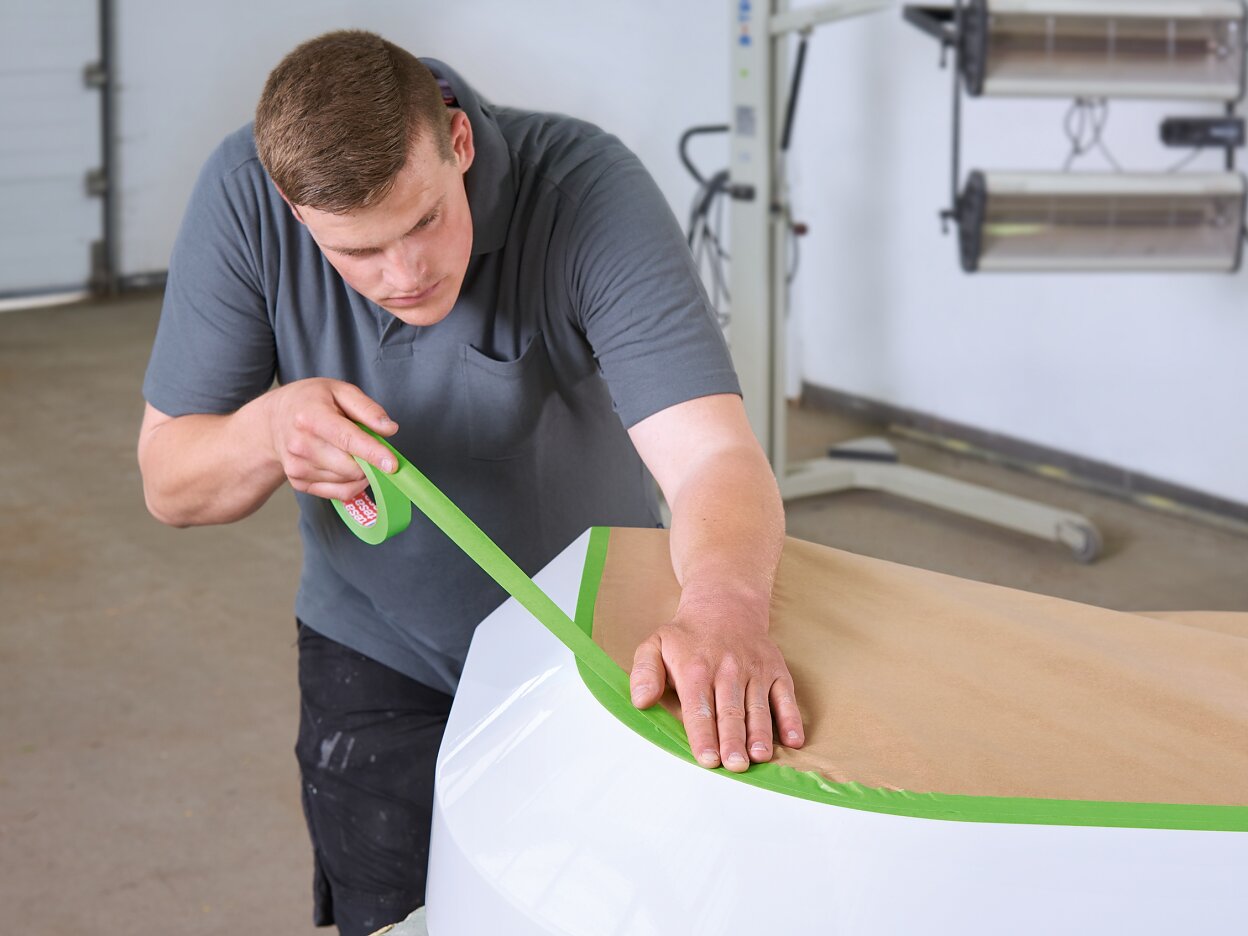

tesa-4338-High-Performance-Masking-Grade-curve-masking-5-app

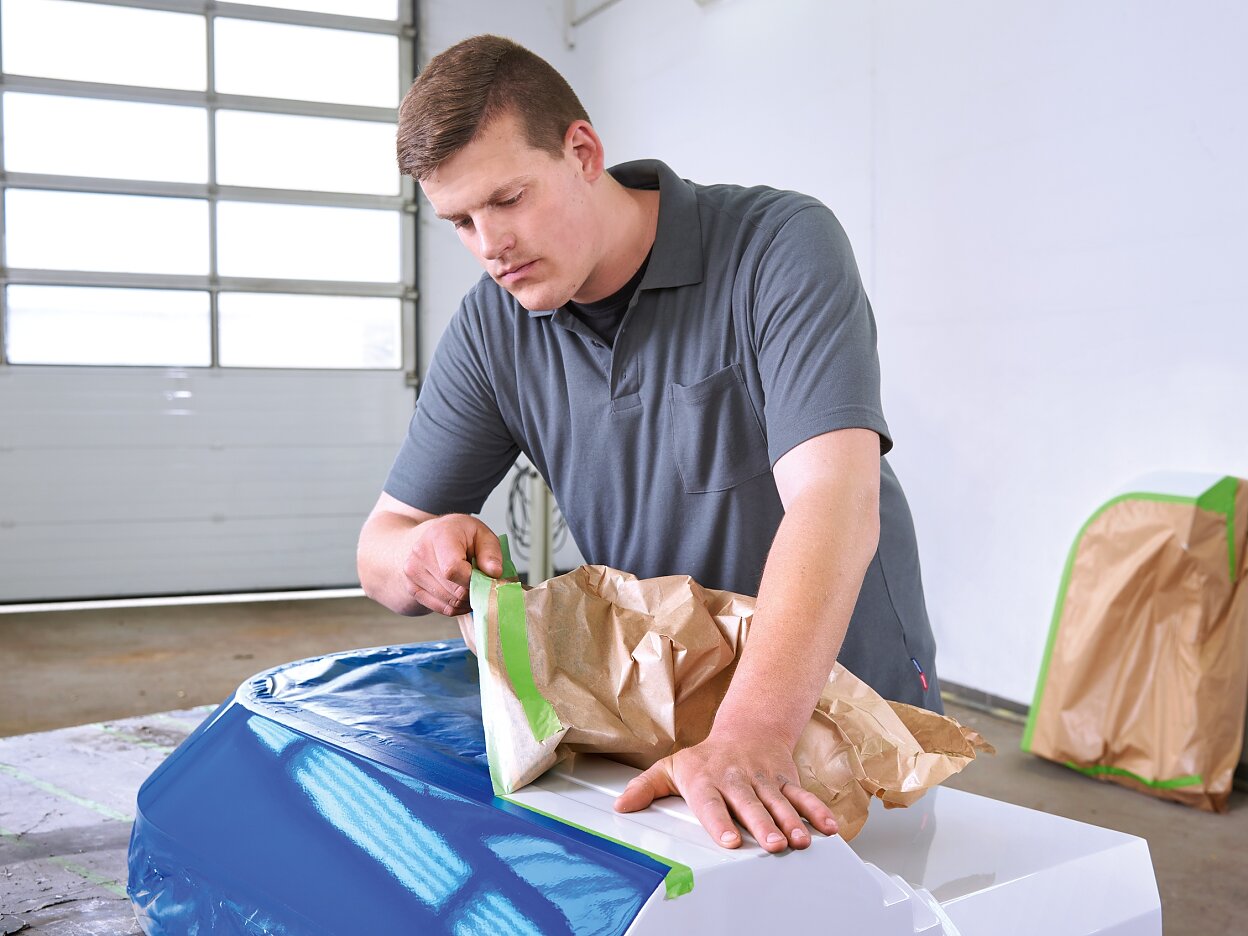

tesa-4338-High-Performance-Masking-Grade-mask-fixation-6-app
tesa-4338-High-Performance-Masking-Grade-spray-painting-10-app

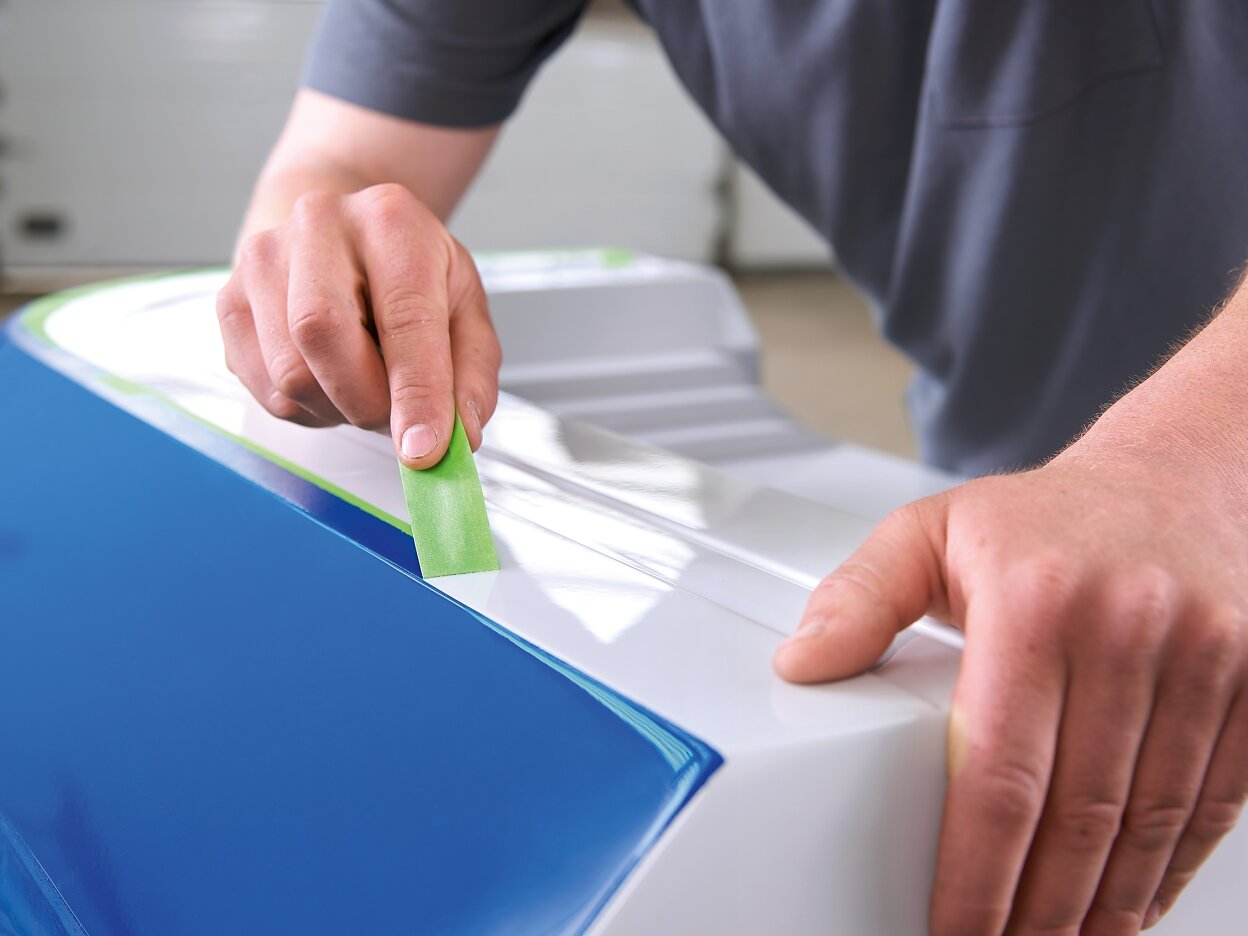

tesa-4338-High-Performance-Masking-Grade-mask-removal-7-app
tesa-4338-High-Performance-Masking-Grade-paint-edge-8-app
tesa-4338-High-Performance-Masking-Grade-final-result-12-app

tesa 4338 High-Performance Masking Grade application video

tesa-4338-High-Performance-Masking-Grade-043380000000-pr

tesa-4338-High-Performance-Masking-Grade-043380000400-pr

tesa-4338-High-Performance-Masking-Grade-043380000300-pr

tesa-4338-High-Performance-Masking-Grade-043380000200-pr

tesa-4338-High-Performance-Masking-Grade-043380000100-pr

tesa-4338-High-Performance-Masking-Grade-043380000000-pr

tesa-4338-High-Performance-Masking-Grade-043380000100-pr

tesa-4338-High-Performance-Masking-Grade-043380000200-pr

tesa-4338-High-Performance-Masking-Grade-043380000300-pr

tesa-4338-High-Performance-Masking-Grade-043380000400-pr

tesa-4338-High-Performance-Masking-Grade-edge-masking-4-app

tesa-4338-High-Performance-Masking-Grade-curve-masking-5-app

tesa-4338-High-Performance-Masking-Grade-mask-fixation-6-app

tesa-4338-High-Performance-Masking-Grade-spray-painting-10-app

tesa-4338-High-Performance-Masking-Grade-mask-removal-7-app

tesa-4338-High-Performance-Masking-Grade-paint-edge-8-app

tesa-4338-High-Performance-Masking-Grade-final-result-12-app

Technical properties

Elongation at break

13 %

Type of adhesive

natural rubber

Tensile strength

43 N/cm

Total thickness

145 µm

Adhesion to steel

3.5 N/cm

Temperature resistance

120 °C

Rating properties

Conformability

+

Sharp color edge

+

Hand tearability

++

Paint anchorage

++

Easy to remove

Yes

Additional Info

Masking during spray painting with oven drying up to 120°C.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
