tesa® Professional 53988 Soft PVC Insulation Tape

Product description

The electric insulation tape tesaflex 53988 is a reliable helper for electricians, mechanics and other handymen. It is characterized by its relatively thick base material, a high degree of flexibility and a very good adhesive performance (even on steel and at low temperatures). The PVC insulation tape is not only suited for insulating and marking wires but also for repairs and bundling. Since it is available in many colors – red, blue, brown, black, white, gray, green, yellow and yellow-green -, it can also be used as a marking adhesive tape. tesaflex 53988 is certified according to all relevant standards and can be used easily.

Main features

Ideally suited for electrical applications, e.g. insulating or marking wires
Certified according to IEC 60454-3-1 (VDE, IMQ, SEMKO), VOC-certified, RoHS 2.0 and REACH conform
Thick backing material (150 μm)
High dielectric breakdown voltage (7.000 V)
Heat-resistant up to +90° C
Available in many different colors and dimensions

tesa_4042448435149_53988-00066_LI404_left_pa

tesa_4042448434142_53988-00006_LI404_left_pa

tesa_4042448434371_53988-00022_LI404_left_pa

tesa_4042448435262_53988-00072_LI405_left_pa

tesa_4042448435033_53988-00058_LI405_left_pa

tesa_4042448435859_53988-00118_LI405_left_pa

tesa_4042448435071_53988-00061_LI491_left_pa

tesa_4042448435651_53988-00106_LI491_left_pa

tesa_4042448434784_53988-00046_LI491_left_pa

tesa_4042448434722_53988-00043_LI405_left_pa

tesa_4042448435989_53988-00129_LI404_left_pa

tesa_4042448434203_53988-00012_LI405_left_pa

tesa_4042448435392_53988-00084_LI404_left_pa

tesa_4042448435903_53988-00121_LI491_left_pa

tesa_4042448435545_53988-00096_LI404_left_pa

tesa_4042448434166_53988-00008_LI404_left_pa

tesa_4042448435446_53988-00089_LI405_left_pa

tesa_4042448435897_53988-00120_LI491_left_pa

tesa_4042448435378_53988-00082_LI404_left_pa

tesa_4042448435316_53988-00076_LI491_left_pa

tesa_4042448435965_53988-00127_LI404_left_pa

tesa_4042448435224_53988-00070_LI405_left_pa

tesa_4042448441317_53988-00141_LI491_left_pa

tesa_4042448435620_53988-00103_LI405_left_pa

tesa_4042448435514_53988-00093_LI491_left_pa

tesa_4042448436009_53988-00131_LI405_left_pa

tesa_4042448434289_53988-00017_LI491_left_pa

tesa_4042448435170_53988-00067_LI404_left_pa

tesa_4042448435811_53988-00116_LI405_left_pa

tesa_4042448435330_53988-00078_LI491_left_pa

tesa_4042448435958_53988-00126_LI404_left_pa

tesa_4042448434487_53988-00029_LI405_left_pa

tesa_4042448441287_53988-00138_LI491_left_pa

tesa_4042448434197_53988-00011_LI405_left_pa

tesa_4042448435057_53988-00060_LI491_left_pa

tesa_4042448434852_53988-00049_LI491_left_pa

tesa_4042448445346_53988-00143_LI491_left_pa

tesa_4042448435538_53988-00095_LI404_left_pa

tesa_4042448434715_53988-00042_LI405_left_pa

tesa_4042448435187_53988-00069_LI404_left_pa

tesa_4042448434500_53988-00030_LI491_left_pa

tesa_4042448433985_53988-00000_LI491_left_pa

tesa_4042448434951_53988-00054_LI404_left_pa

tesa_4042448435118_53988-00064_LI491_left_pa

tesa_4042448436023_53988-00133_LI405_left_pa

tesa_4042448435460_53988-00090_LI491_left_pa

tesa_4042448434593_53988-00034_LI491_left_pa

tesa_4042448435019_53988-00057_LI405_left_pa

tesa_4042448435972_53988-00128_LI404_left_pa

tesa_4042448435286_53988-00073_LI405_left_pa

tesa_4042448435385_53988-00083_LI404_left_pa

tesa_4042448434388_53988-00023_LI404_left_pa

tesa_4042448435910_53988-00122_LI491_left_pa

tesa_4042448434777_53988-00045_LI491_left_pa

tesa_4042448435521_53988-00094_LI491_left_pa

tesa_4042448435835_53988-00117_LI405_left_pa

tesa_4042448434159_53988-00007_LI404_left_pa

tesa_4042448435644_53988-00105_LI491_left_pa

tesa_4042448434326_53988-00019_LI491_left_pa

tesa_4042448436016_53988-00132_LI405_left_pa

tesa_4042448434753_53988-00044_LI405_left_pa

tesa_4042448434180_53988-00009_LI404_left_pa

tesa_4042448434401_53988-00024_LI404_left_pa

tesa_4042448434302_53988-00018_LI491_left_pa

tesa_4042448434555_53988-00032_LI491_left_pa

tesa_4042448434470_53988-00028_LI405_left_pa

tesa_4042448434173_53988-00010_LI405_left_pa

tesa_4042448434838_53988-00048_LI491_left_pa

tesa_4042448435583_53988-00100_LI405_left_pa

tesa_4042448434579_53988-00033_LI491_left_pa

tesa_4042448435347_53988-00079_LI491_left_pa

tesa_4042448434890_53988-00051_LI404_left_pa

tesa_4042448434975_53988-00055_LI405_left_pa

tesa_4042448435415_53988-00086_LI405_left_pa

tesa_4042448434814_53988-00047_LI491_left_pa

tesa_4042448435552_53988-00097_LI404_left_pa

tesa_4042448435040_53988-00059_LI405_left_pa

tesa_4042448435101_53988-00063_LI491_left_pa

tesa_4042448435668_53988-00107_LI491_left_pa

tesa_4042448435675_53988-00108_LI491_left_pa

tesa_4042448435569_53988-00098_LI404_left_pa

tesa_4042448435309_53988-00075_LI491_left_pa

tesa_4042448434623_53988-00037_LI404_left_pa

tesa_53988_LI491_20mx19mm_as_01

tesa_4042448435712_53988-00110_LI404_left_pa

tesa_4042448435217_53988-00068_LI404_left_pa

tesa_4042448434364_53988-00021_LI404_left_pa

tesa_4042448441294_53988-00139_LI491_left_pa

tesa_4042448435736_53988-00111_LI404_left_pa

tesa_4042448441300_53988-00140_LI491_left_pa

tesa_4042448435798_53988-00115_LI405_left_pa

tesa_4042448435408_53988-00085_LI405_left_pa

tesa_4042448434661_53988-00040_LI405_left_pa

tesa_4042448435927_53988-00123_LI491_left_pa

tesa_4042448434425_53988-00025_LI405_left_pa

tesa_4042448434210_53988-00013_LI405_left_pa

tesa_4042448460950_53988-00005_LI404_left_pa

tesa_4042448434340_53988-00020_LI404_left_pa

tesa_4042448435361_53988-00081_LI404_left_pa

tesa_4042448434876_53988-00050_LI404_left_pa

tesa_4042448435941_53988-00125_LI404_left_pa

tesa_4042448435354_539880008000_LI404_left_pa

tesa_4042448435996_53988-00130_LI405_left_pa

tesa_4042448434609_53988-00035_LI404_left_pa

tesa_4042448435293_53988-00074_LI405_left_pa

tesa_4042448435750_53988-00112_LI404_left_pa

tesa_4042448435637_53988-00104_LI405_left_pa

tesa_4042448434630_53988-00038_LI404_left_pa

tesa_4042448435781_53988-00114_LI404_left_pa

tesa_4042448435873_53988-00119_LI405_left_pa

tesa_4042448435491_53988-00092_LI491_left_pa

tesa_4042448434937_53988-00053_LI404_left_pa

tesa_4042448435699_53988-00109_LI491_left_pa

tesa_4042448434999_53988-00056_LI405_left_pa

tesa_4042448435248_53988-00071_LI405_left_pa

tesa_4042448435125_53988-00065_LI404_left_pa

tesa_4042448434036_53988-00003_LI491_left_pa

tesa_4042448434449_53988-00026_LI405_left_pa

tesa_4042448435576_53988-00099_LI404_left_pa

tesa_4042448434692_53988-00041_LI405_left_pa

tesa_4042448445339_53988-00142_LI491_left_pa

tesa_4042448435767_53988-00113_LI404_left_pa

tesa_4042448435484_53988-00091_LI491_left_pa

tesa_4042448435323_53988-00077_LI491_left_pa

tesa_4042448434913_53988-00052_LI404_left_pa

tesa_4042448435095_53988-00062_LI491_left_pa

tesa_4042448434005_53988-00001_LI491_left_pa

tesa_4042448436047_53988-00134_LI405_left_pa

tesa_4042448434029_53988-00002_LI491_left_pa

tesa_4042448434616_53988-00036_LI404_left_pa

tesa_4042448435613_53988-00102_LI405_left_pa

tesa_4042448434043_53988-00004_LI491_left_pa

tesa_4042448435934_53988-00124_LI491_left_pa

tesa_4042448435606_53988-00101_LI405_left_pa

tesa_4042448434524_53988-00031_LI491_left_pa

tesa_4042448434463_53988-00027_LI405_left_pa

tesa_4042448434241_53988-00015_LI491_left_pa

tesa_4042448434647_53988-00039_LI404_left_pa

tesa_4042448434265_53988-00016_LI491_left_pa

tesa_4042448435439_53988-00088_LI405_left_pa

tesa_4042448435422_53988-00087_LI405_left_pa

Technical properties

Elongation at break

240 %

Type of adhesive

natural rubber

Tensile strength

25 N/cm

Total thickness

150 µm

Backing material

soft PVC

Adhesion to steel

2.5 N/cm

Temperature resistance

90 °C

Dielectric breakdown voltage

7000 volt

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

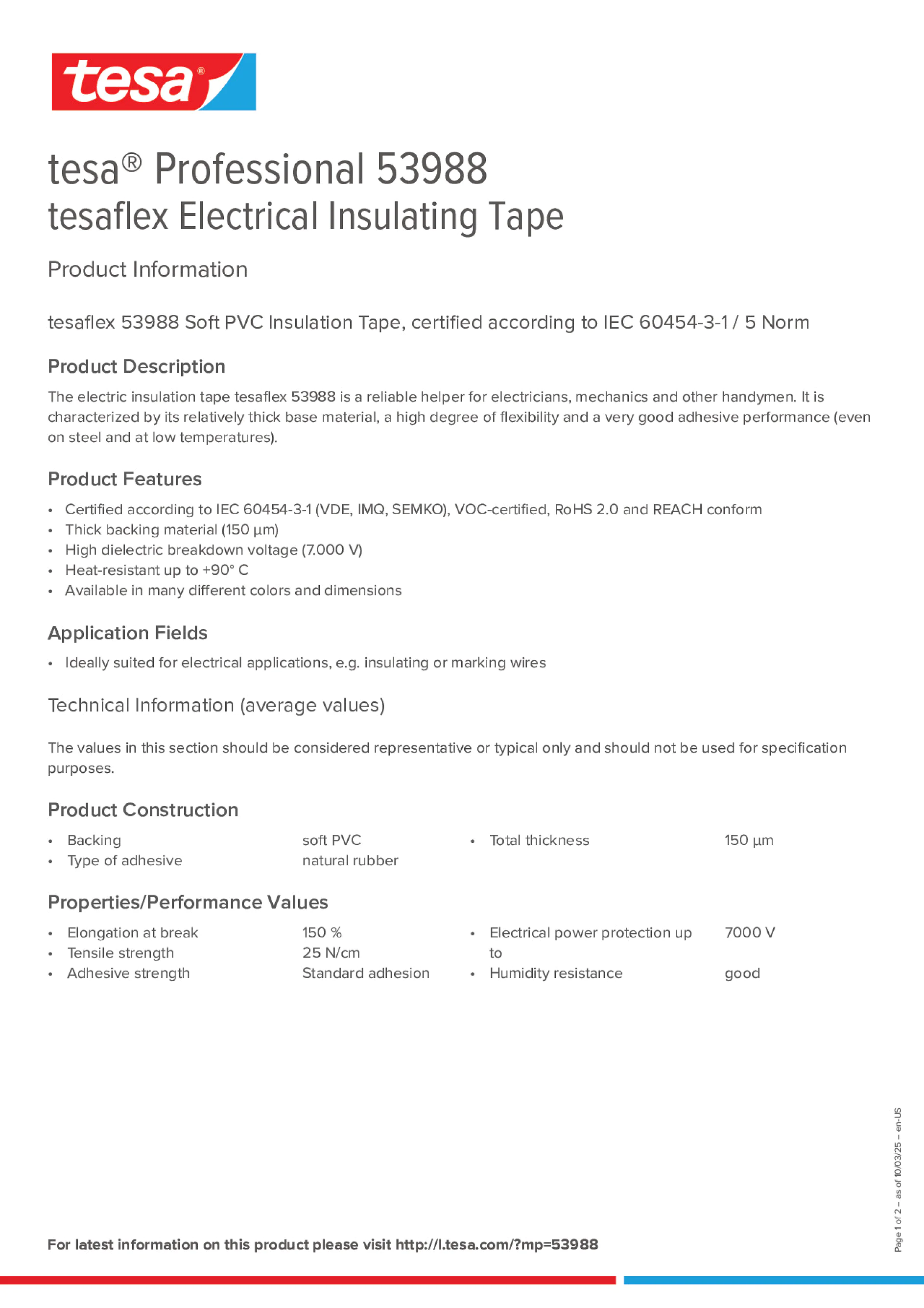

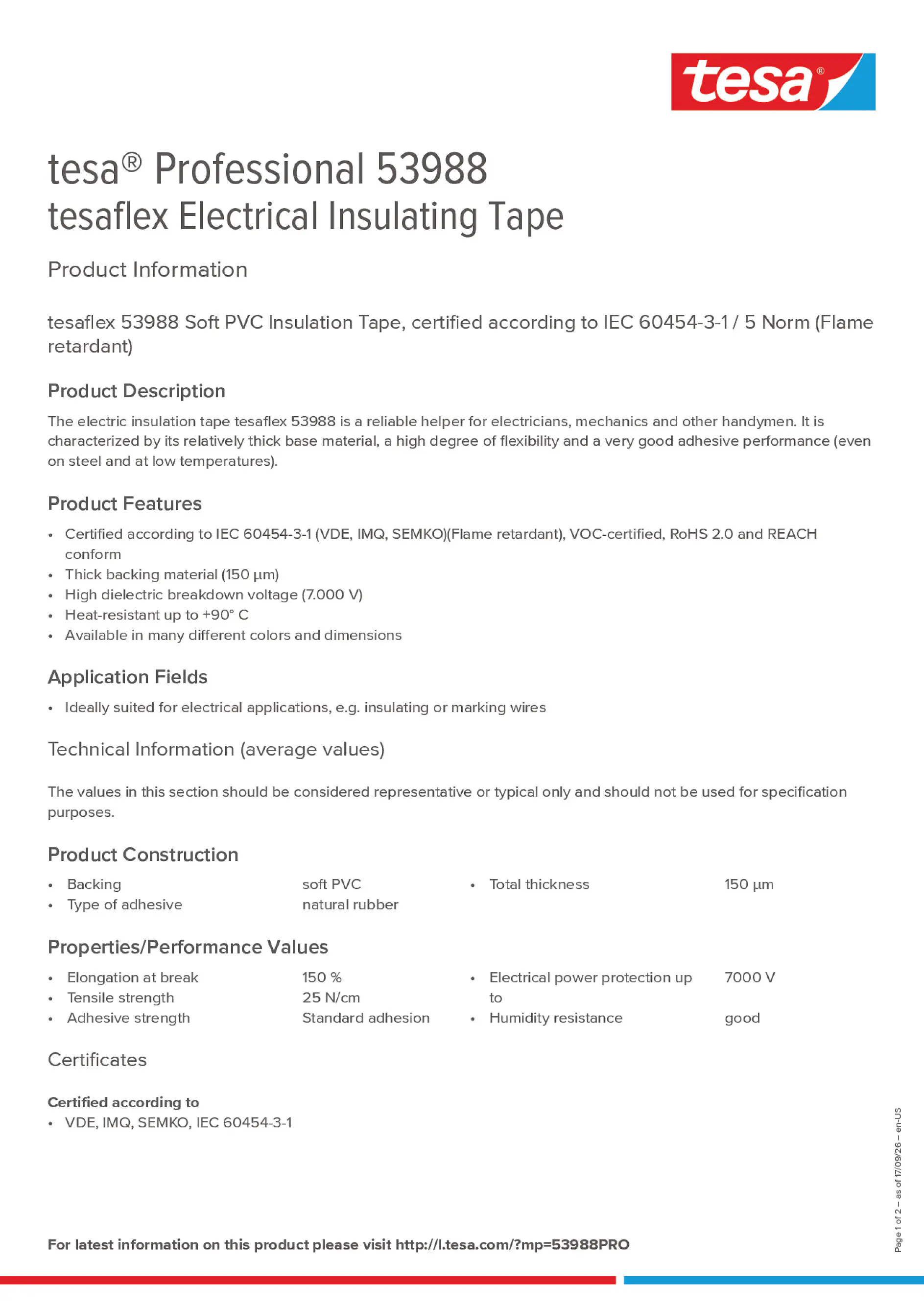

tesa_Professional_53988_Soft_PVC_Insulation_Tape_en-US

PDF – 36.4 kB

tesa_53988_Soft_PVC_Insulation_Tape_en-US

PDF – 36.3 kB
