Product information

tesa^® 4174

Name: tesa® 4174 pastellgrün 3 mm
Brand: tesa®

Fineline tape for design painting in the automotive industry

Product description

tesa^® 4174 is a flexible, temperature resistant PVC fineline masking tape with a rubber adhesive for a wide range of automotive design painting requirements. The 110 µm thickness helps to implement good and sharp paint edges and still offers good conformability.

With a temperature resistance of 150°C/1h, tesa^® 4174 withstands most masking applications in the automotive paint shop.

Standardized and customized applicators for tesa^® 4174 are available to ensure efficient tape application and yet reproducible masking design.

Main features:

Excellent masking performance on painted and non-painted substrates
No ghosting or residues until 150°C/1h
Good conformability with multidimensional surfaces
Edge does not lift off and residue-free removal

Main applications

tesa^® 4174 is suitable for various types of masking applications.

Example applications are:

Masking of painted and non-painted substrates (e.g. automotive plastic parts) that require sharp and flat paint edges
Two-tone car body masking

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

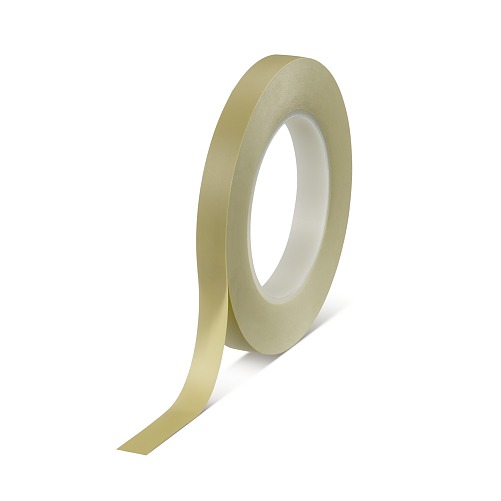

tesa-4174-fineline-design-painting-tape-pastel-green-041740010900-pr

tesa_04174_ap_001_fullsize

Technical properties

Backing material

PVC film

Total thickness

110 µm

Type of adhesive

natural rubber

Adhesion to steel

3.7 N/cm

Elongation at break

200 %

Tensile strength

25 N/cm

Temperature resistance

150 °C

Temperature resistance (PP-EPDM)

150 °C

Temperature resistance (paint)

150 °C

Rating properties

Hand tearability

Easy to remove

yes

Suitable for die cutting

yes

Paint anchorage

Sharp colour edge

Powerwash resistance

Conformability

Flame retardant

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
