tesa_Softprint_52222_pr_001

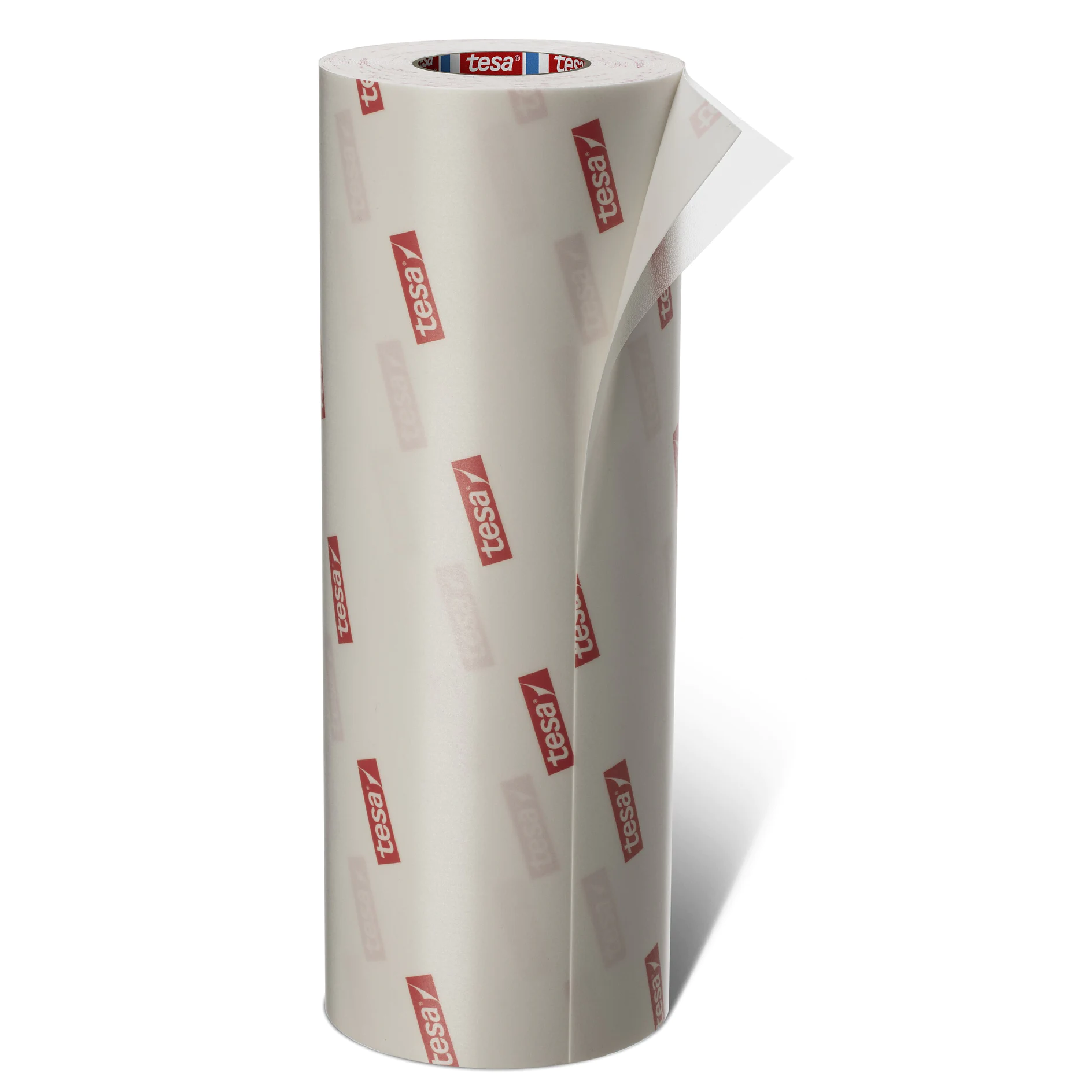

tesa® Softprint 72522 FE-X

Foam plate mounting tape

Product description

Double-sided foam tape

Foam properties
  • Low thickness tolerance
  • Long lasting, constant recovery characteristics

Adhesive properties
  • Low tack surface characteristics
  • Best plate bonding
  • Easy plate demounting
  • Excellent tape bonding towards sleeve side

Additional property
  • Structured PP-liner to prevent formation of air pockets when the plate is mounted

Application Fields

Mounting of 1,14 mm (0,45'') and 1,70 mm (0,67'') flexographic printing plates onto steel /alu /PU and glassine cylinders

Product Construction

Type of adhesive tackified acrylic
Type of liner PP
Total thickness 550 µm
Backing material PE foam with film lamination

Properties / Performance Values

Hardness soft
Thickness category 500
Logo colour red
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
