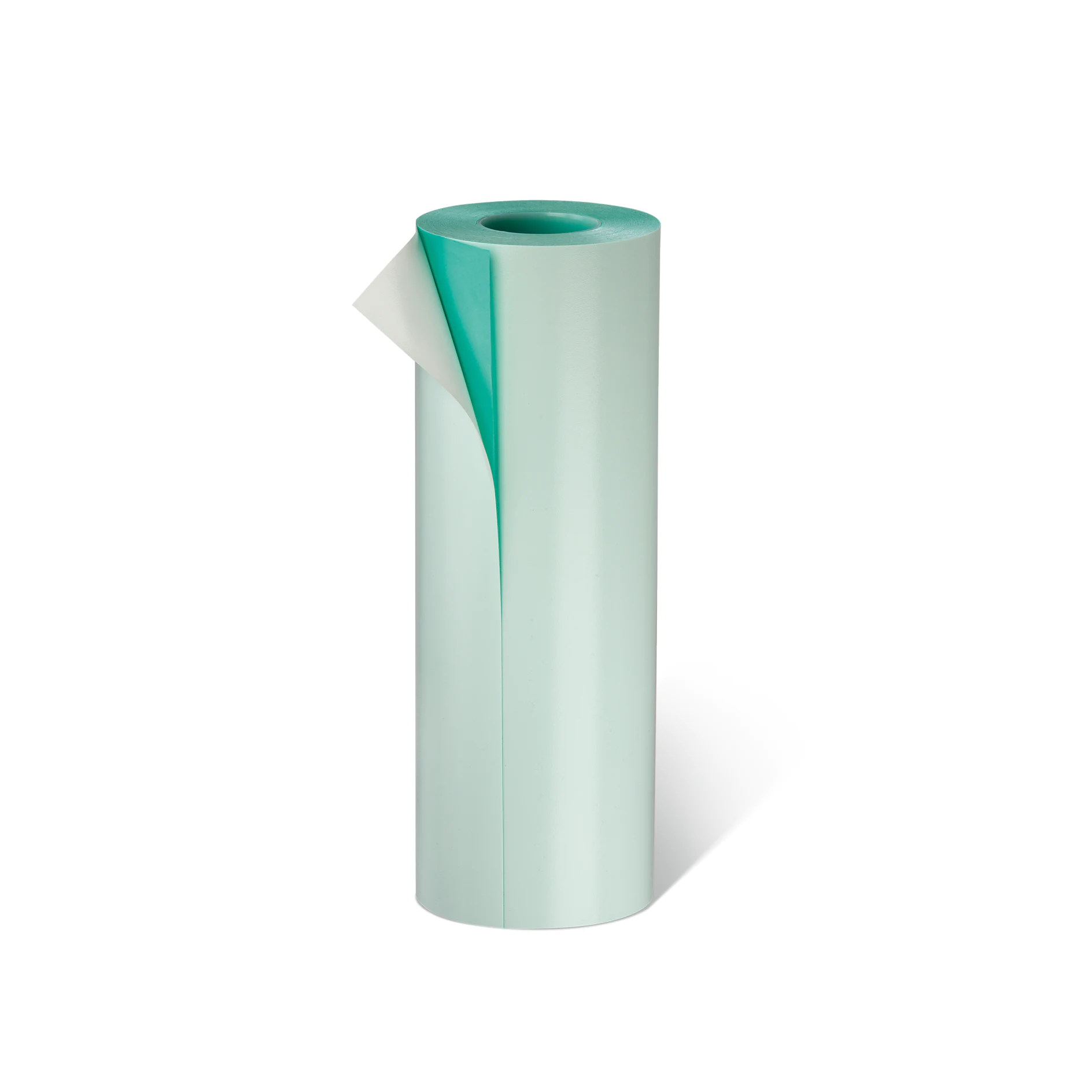

tesa® Softprint 53414 FE
Plate mounting tape for photopolymer plates in flexographic printing
Product description
Double-sided foam tape
The hard foam makes this the ideal solution for printing solids.
Foam Properties
- Low thickness tolerance
- Long lasting, constant recovery characteristics
Adhesive Properties
- Low tack surface characteristics
- Secure plate bonding with excellent resistance to edge lifting
- Excellent tape bonding towards cylinder/sleeve side
- Solvent resistance
Additional Properties
- Compensating product design for demanding sleeve/cylinder surfaces.
- Structured PP liner
- Colour indicates foam hardness
Product details and specifications
Application Fields
Mounting of 1.14 mm (0.45‘‘) and 1.70 mm (0.067‘‘) flexographic printing plates onto steel / aluminium / PU cylinders and sleeves.
| Backing material | PE foam with film lamination |
|---|---|
| Colour | green |
| Total thickness | 430 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |
| Logo colour | green |
|---|---|
| Thickness category | 380 |
| Hardness | hard |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
