Additional Info
PV24 = Blue filmic liner
tesa® ACXplus 70725
ACXplus High Resistance 2.400µm
Product Features
- Due to its thickness ideal for gap filling requirements
- Compensation of thermal elongation of different materials
Product description

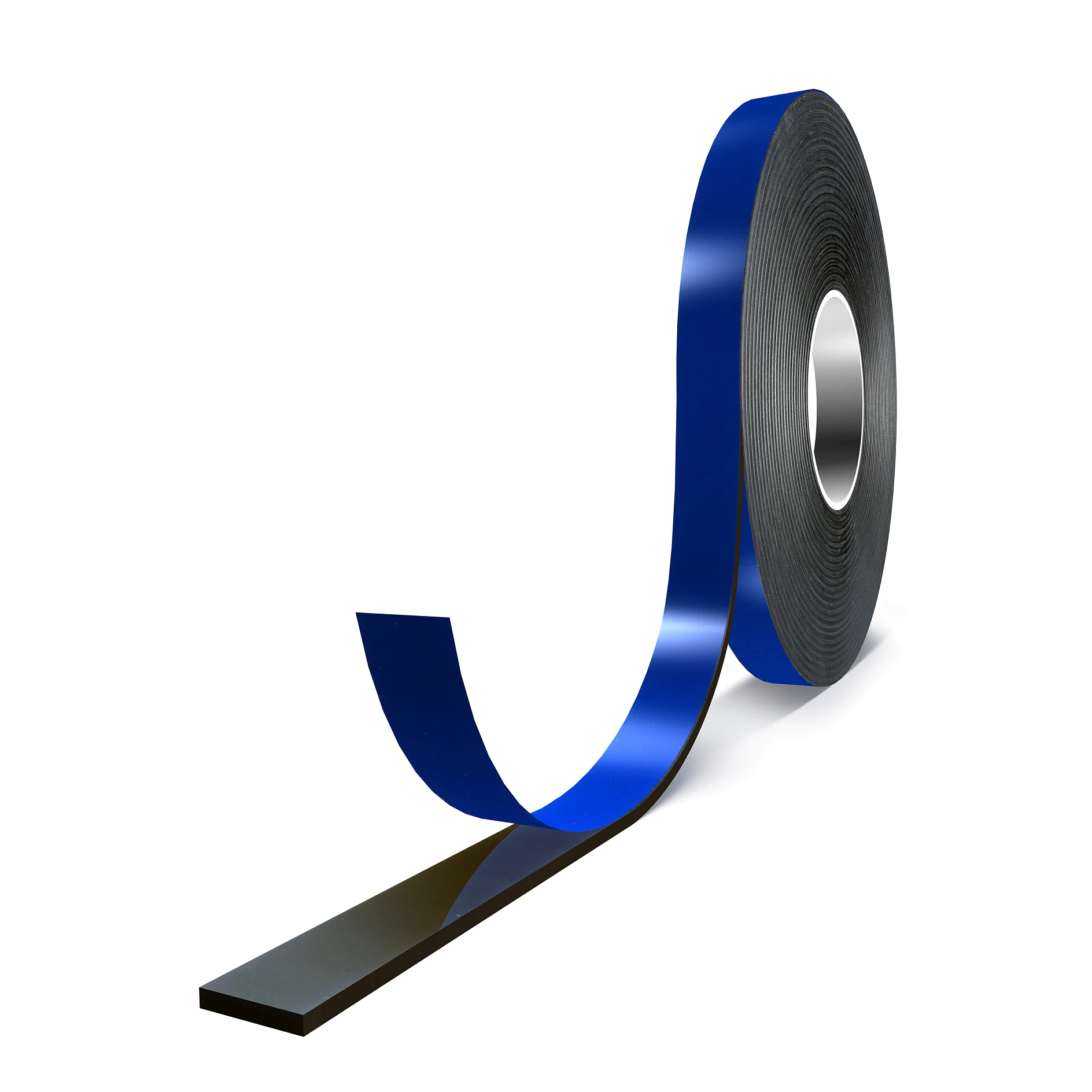

tesa® ACXplus 70725 is a black acrylic foam tape. It consist of a high-performance acrylic system and due to its unique components it combines a very good temperature resistance with an outstanding cold shock resistance. It is designed for permanent bonding applications especially in combination with the tesa Adhesion Promoters. The visco-elastic, foamed acrylic core compensates different thermal elongation of bonded parts.
Product details and specifications
Product Features
- Due to its thickness ideal for gap filling requirements
- Compensation of thermal elongation of different materials
Application Fields
Bonding of panels and decorative elements in the following Industries:
- Appliance
- Production Equipment
- Elevator
- Solar
- Transportation
- Automotive
Product Construction
| Backing material | foamed acrylic |
|---|---|
| Colour | black |
| Total thickness | 2,400 µm |
| Type of adhesive | pure acrylic |
Product Construction
| Backing material | foamed acrylic |
|---|---|
| Colour | black |
| Total thickness | 2,400 µm |
| Type of adhesive | pure acrylic |
Properties / Performance Values
| Temperature resistance short term duration | 220 °C |
|---|---|
| Temperature resistance long term duration | 120 °C |
Properties / Performance Values
| Temperature resistance short term duration | 220 °C |
|---|---|
| Temperature resistance long term duration | 120 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 4 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 5 N/cm |
| Adhesion to Steel (initial) | 20 N/cm |
| Adhesion to Steel (after 14 days) | 37 N/cm |
| Adhesion to Steel (after 3 days) | 37 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 4 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 5 N/cm |
| Adhesion to Steel (initial) | 20 N/cm |
| Adhesion to Steel (after 14 days) | 37 N/cm |
| Adhesion to Steel (after 3 days) | 37 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
