tesa® 60248
500µm single sided grey electrically conductive foam tape
Product Features
- Thickness: 500µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- High adhesion level even at harsh environmental conditions
Product description
tesa® 60248 is a grey single sided electrically conductive self adhesive foam tape. It consist of a perforated foam with electrically conductive coating and an electrically conductive adhesive.
Product details and specifications
Product Features
- Thickness: 500µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- High adhesion level even at harsh environmental conditions
- Very good shock absorbing and cushioning properties
- High stability of the foam to avoid flaking of particles
Application Fields
- EMI shielding and grounding applications
- Electrostatic discharge applications

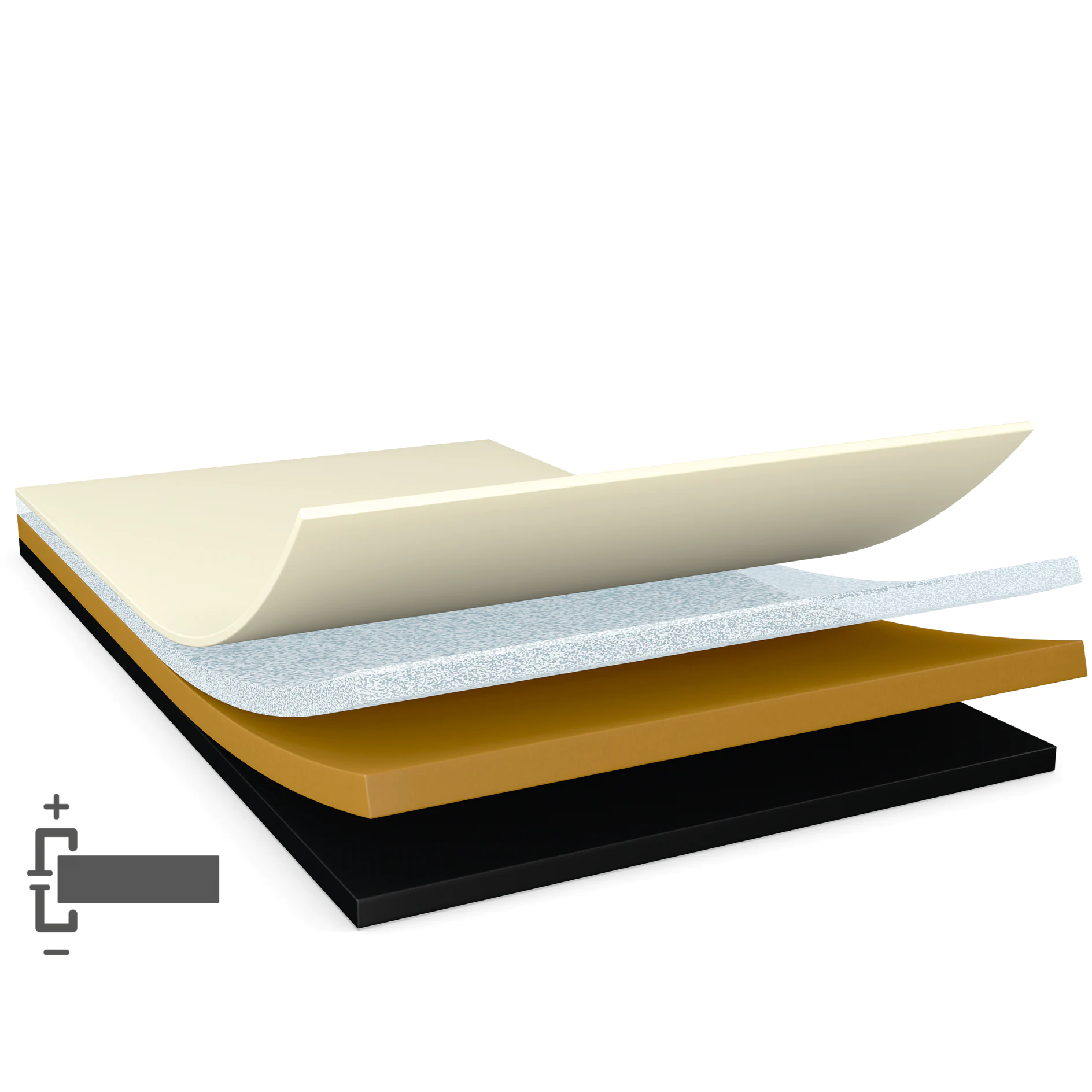

Product Construction
| Backing material | conductive foam |
|---|---|
| Colour | grey |
| Colour of liner | white/blue logo |
| Thickness of liner | 120 µm |
| Total thickness | 500 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PE-coated paper |
Product Construction
| Backing material | conductive foam |
|---|---|
| Colour | grey |
| Colour of liner | white/blue logo |
| Thickness of liner | 120 µm |
| Total thickness | 500 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PE-coated paper |
Properties / Performance Values
| Temperature resistance short term duration | 160 °C |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Contact resistance z-direction (initial) | 0.03 Ohm / square inch |
| Release of liner | easy |
Properties / Performance Values
| Temperature resistance short term duration | 160 °C |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Contact resistance z-direction (initial) | 0.03 Ohm / square inch |
| Release of liner | easy |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 6.3 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (after 14 days) | 6.3 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
