Sunroof seals.
Bond with confidence.

Performance is everything when you supply sunroofs. Our adhesive solutions for sunroof seal mounting excel under stress and stand the test of time. The high performance of tesa® ACXplus Seal Line, combined with our technical support that can tailor adhesive tapes for your needs, provides a bonding solution you can have confidence in.

Performance tests

See how tesa® 74508 performs in dynamic shear and floating roller peel tests.

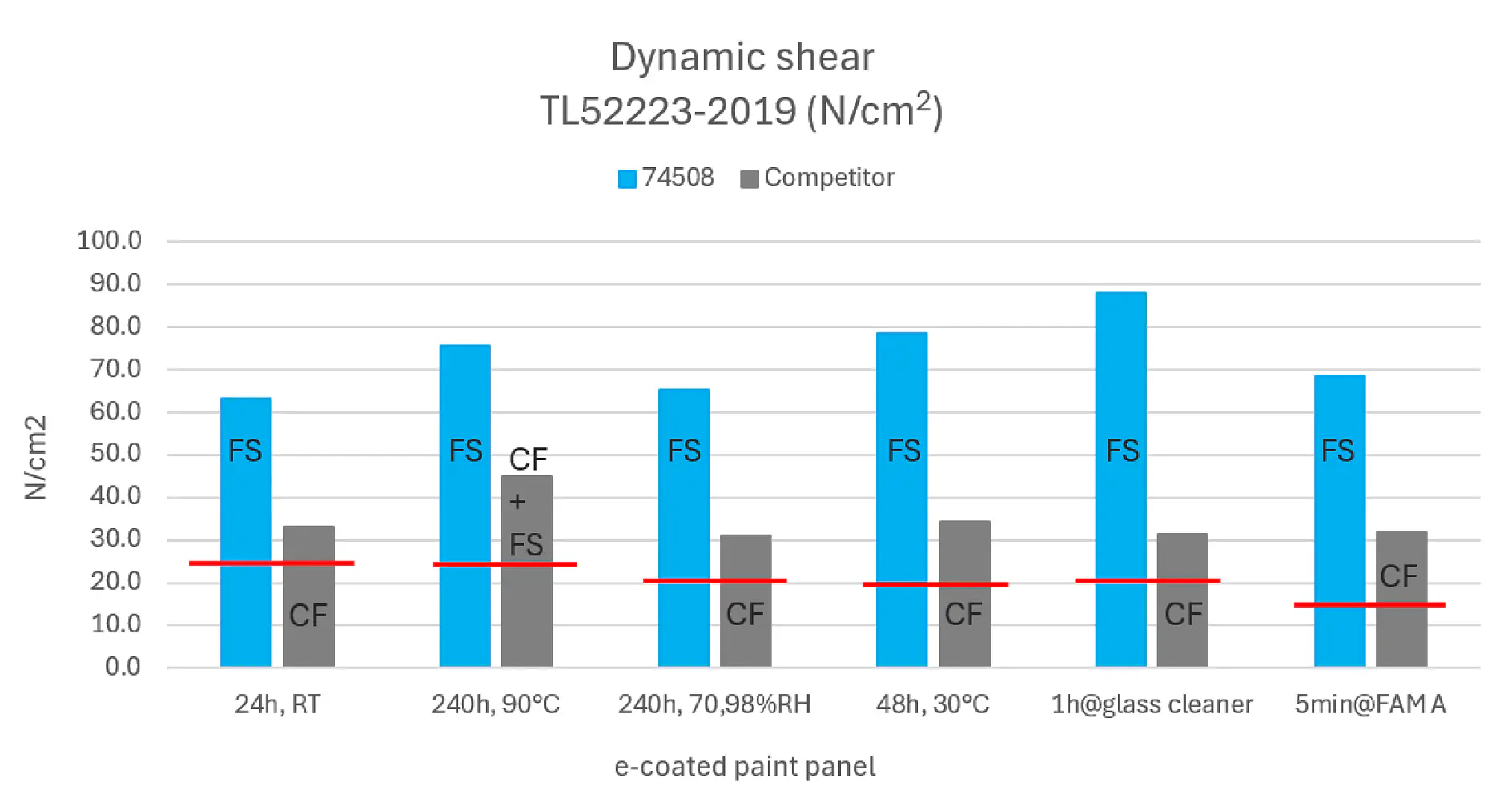

Bar graph comparing dynamic shear of tesa tape (blue) and competitor (gray) on e-coated panels; tesa tape exceeds CF threshold.

tesa®  745xx shows high shear resistance because of the strong acrylic foam core, reaching dynamic shear values above the required standard for TL 52223-2019.

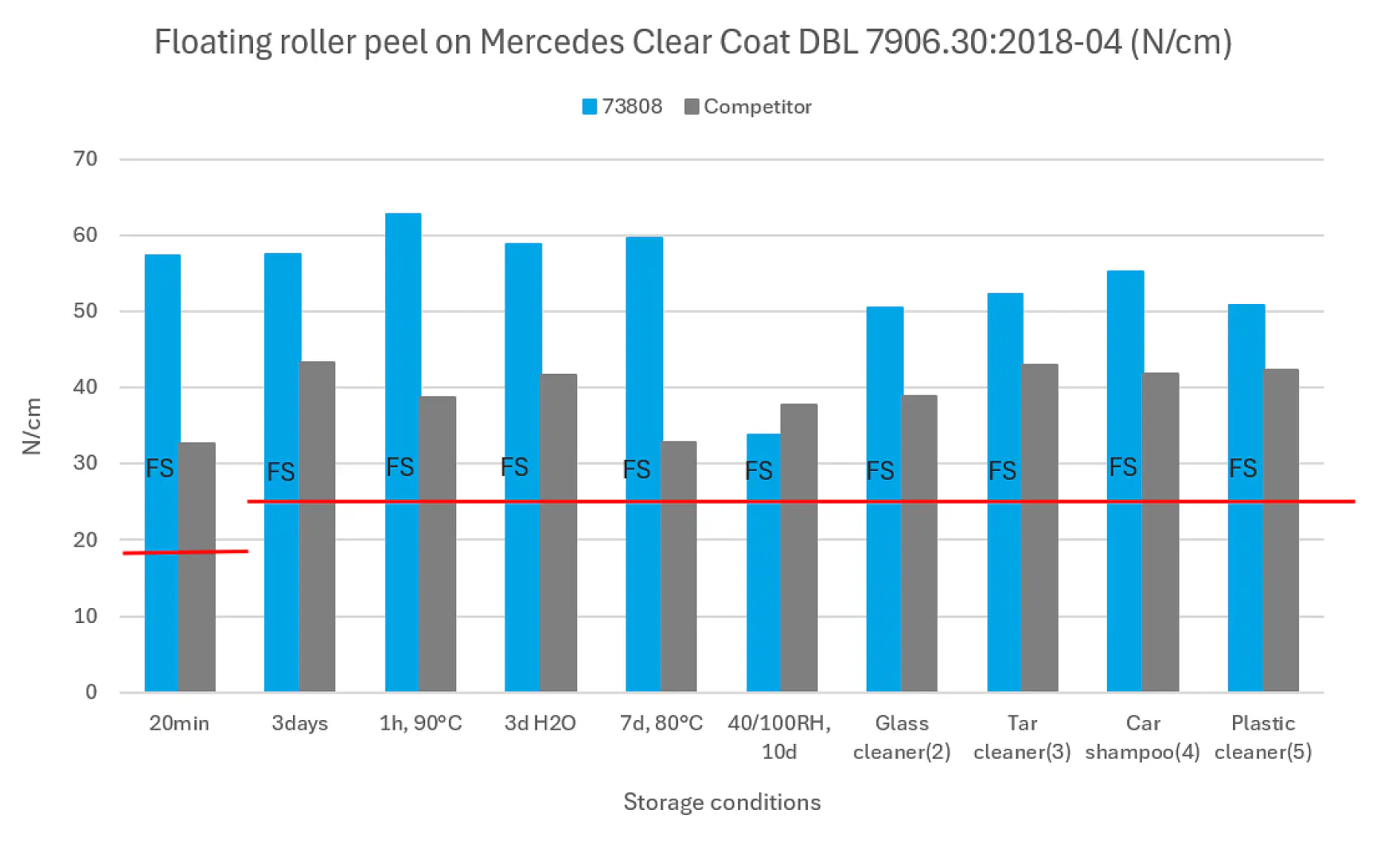

Bar chart comparing floating roller peel strength (N/cm) of tesa tape 73080 and another product under various storage conditions; a red FS threshold line is shown.

tesa®  738xx shows immediate foam split with high bonding strength (up to 60 N/cm) as well as after ageing. Foam split or cohesion failure mode shows that the anchorage of the tape to both substrates is very reliable.

Providing responsive support to drive business growth

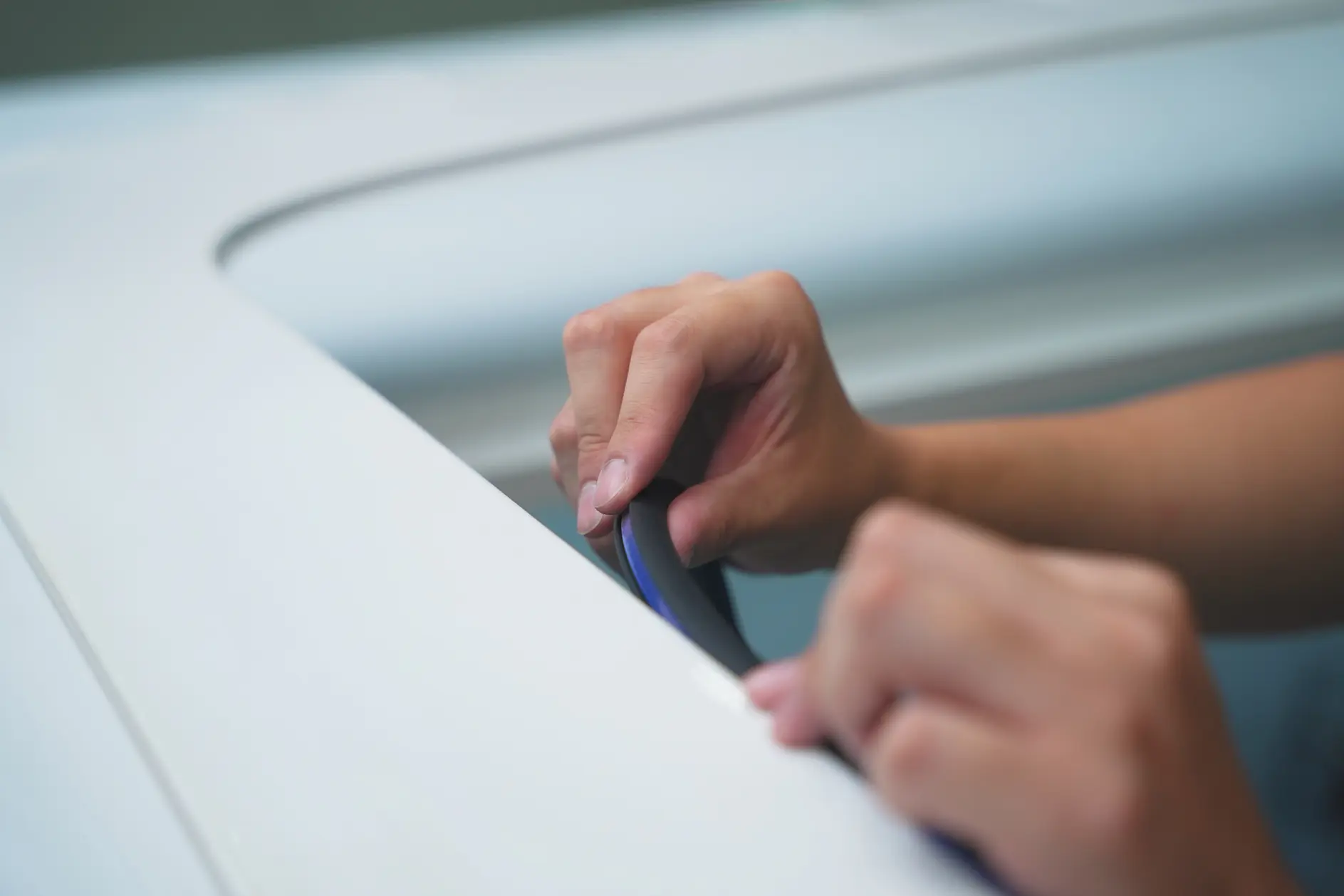

Close-up of two hands applying or smoothing a strip of tesa tape onto a flat, white surface, likely during installation or repair.

A sunroof seal manufacturer, enjoying success in its home market, was looking to expand into new territories.

This meant it needed to find suppliers that could help it meet material approvals for new OEMs. Looking for a high-performance adhesive partner, they asked tesa, because they knew that as well as offering a proven product, we offer on-site support through our 11 customer solution centers globally.

We were able to help the sunroof seal manufacturer meet the high specification standards of a European OEM, and prove it in testing, at each stage of the value chain. We tailored our product design as necessary, ultimately to get the sunroof seal and our tape into production. This level of support is available to all of tesa’s customers, including you.

Enduring quality & performance

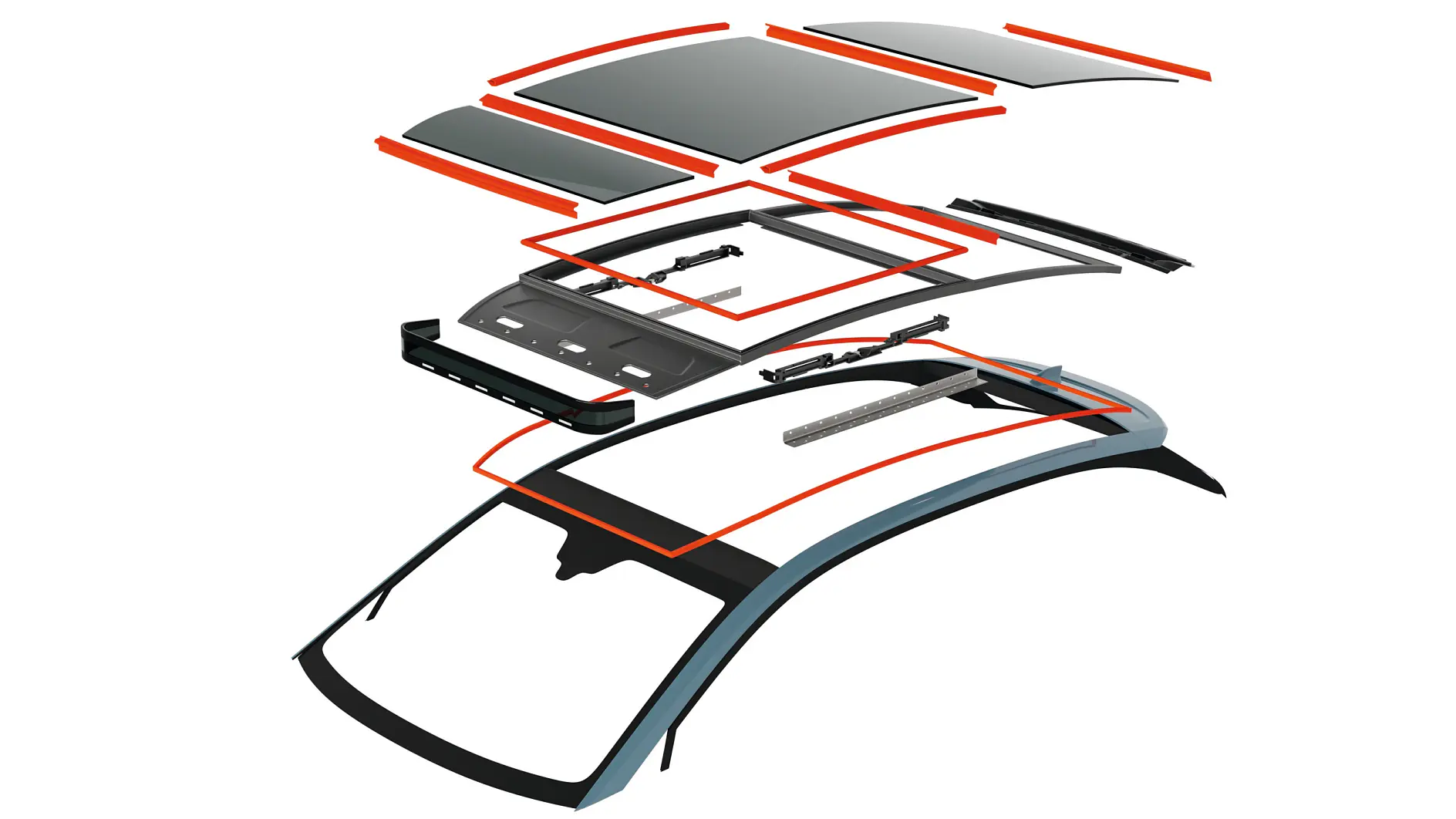

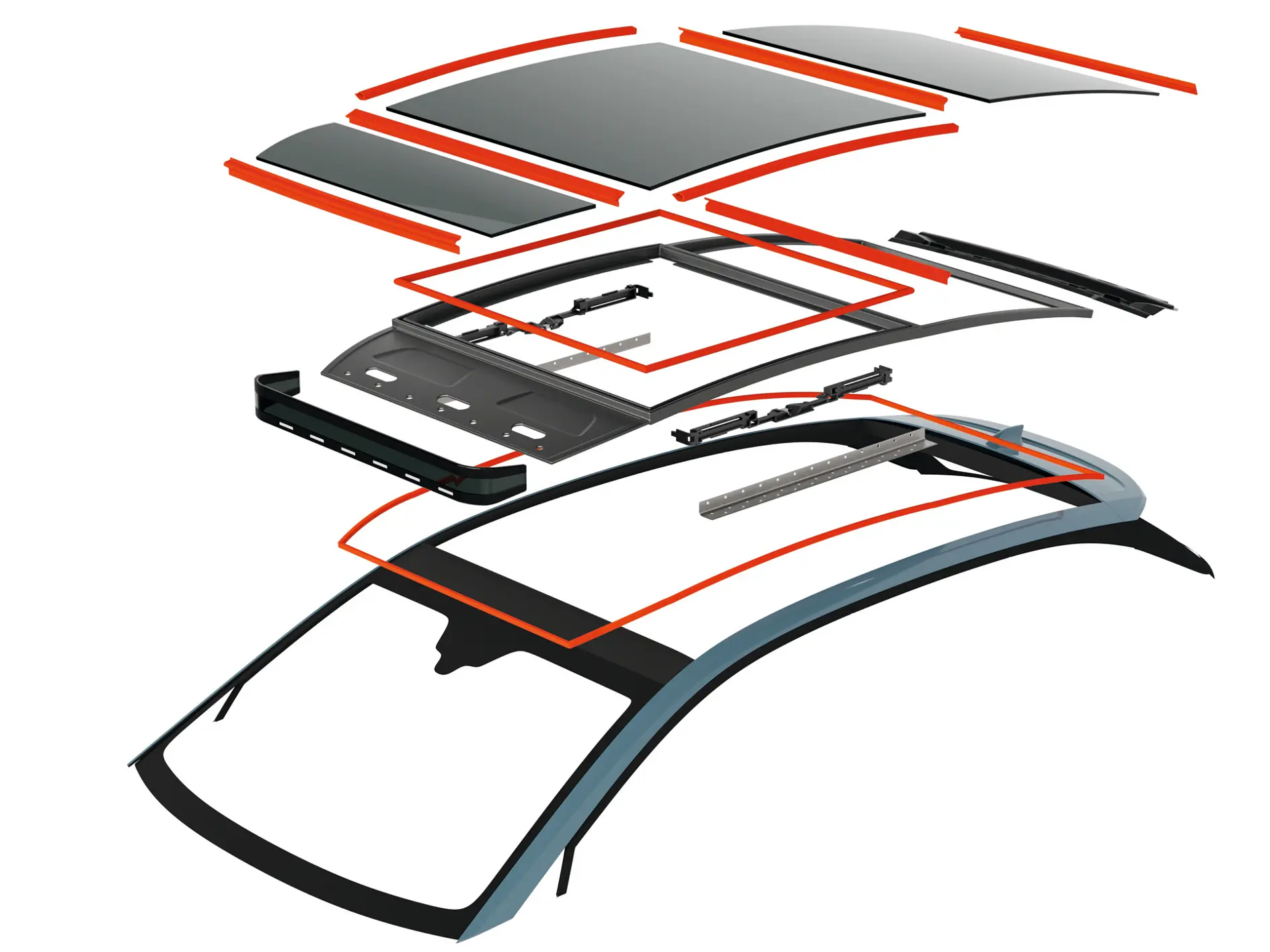

An exploded view of a car roof assembly highlighting components like glass panels and structural supports, with tesa tape visible.

For reliable performance, we never compromise on quality: tesa® ACXplus Seal Line tapes are compatible with multiple substrates, including

  • inked glass,
  • e-coating,
  • and UV powder



They’re resistant to temperature variations, humidity, and UV, and they maintain a reliable bond within a temperature range of -40 °C to 90 °C.

Downloads

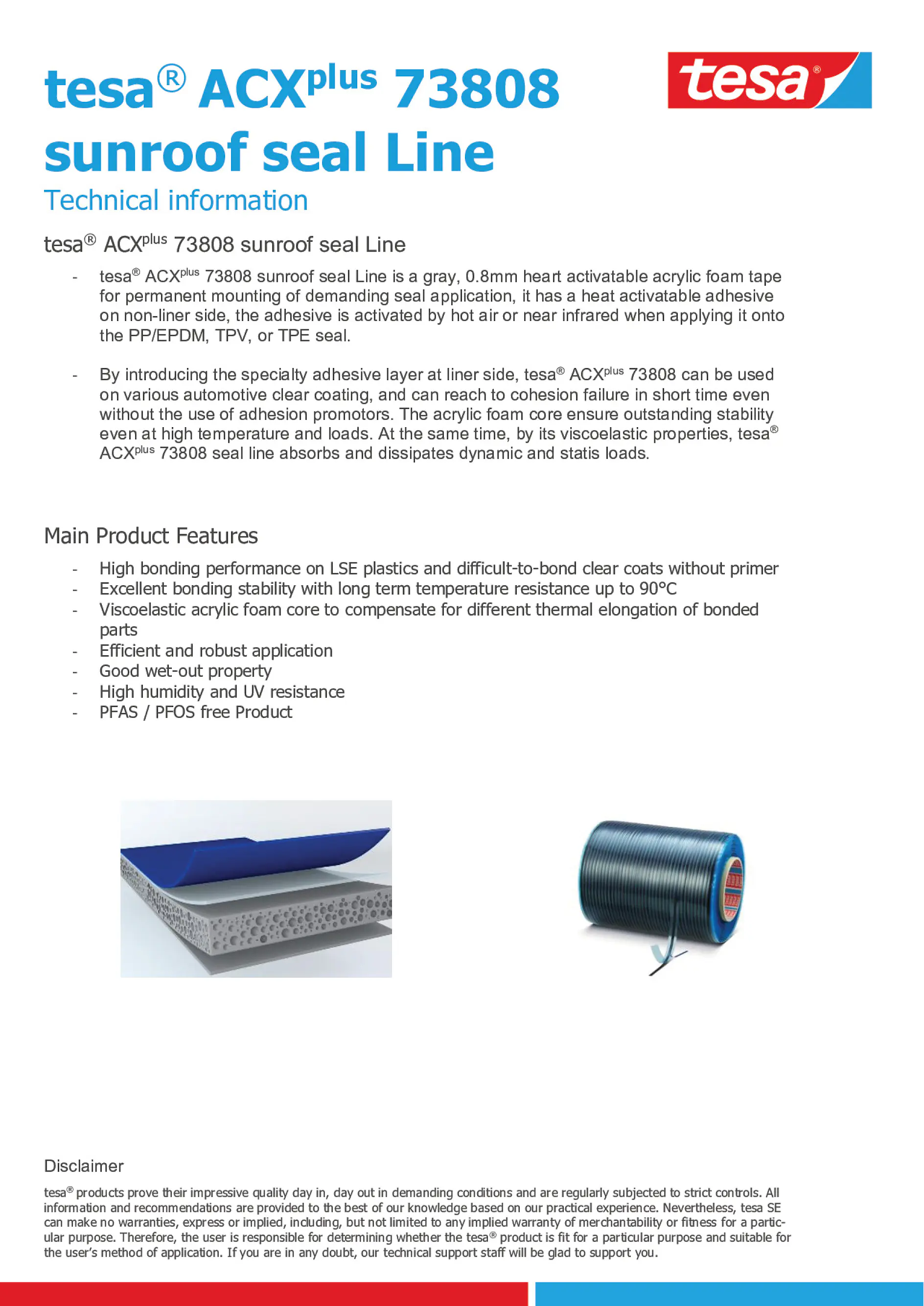

Sunroof seal TI sheet
TI 73808 Sunroof seal TI sheet PDF 202.5 kB
A woman with a headset and light shirt sits indoors, smiling off-camera, as if discussing tesa tape or assisting customers. (This text has been generated by AI)

Contact us

Have a question or need support? Fill out the form below and we’ll get back to you shortly. We’re here to help.

Thank you for your request.

We will get back to you shortly.

Something went wrong. Please try again later.

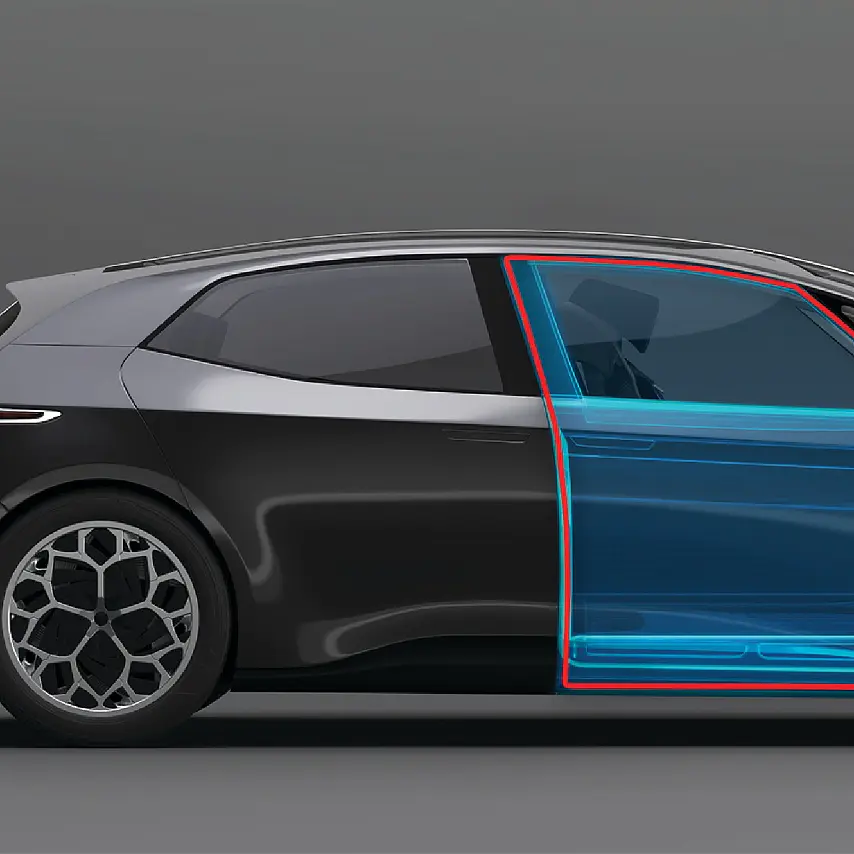

A side view of a black hatchback car with tesa tape overlays highlighting the front door and interior in blue and red on gray. (This text has been generated by AI)
Read more

Door seals

Withstanding 100,000+ slams in door seal testing, tesa® ACXplus Seal Line 74712 provides an ideal adhesive solution for the seal application that’s in constant use. See the performance details, such as achievement of TL52223, view a comparison chart, and hear from our experts.

Read more

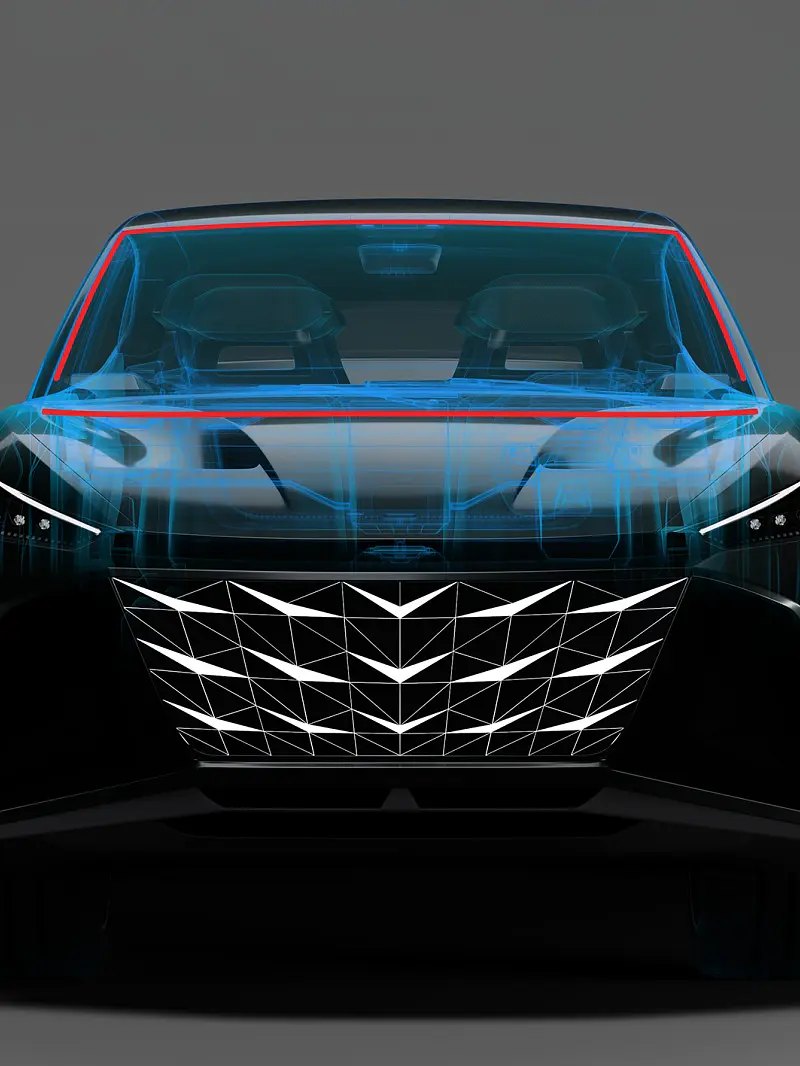

Front view of a semi-transparent car revealing interior seats and parts, with blue and red lines depicting tesa tape, on gray background. (This text has been generated by AI)
