Product description

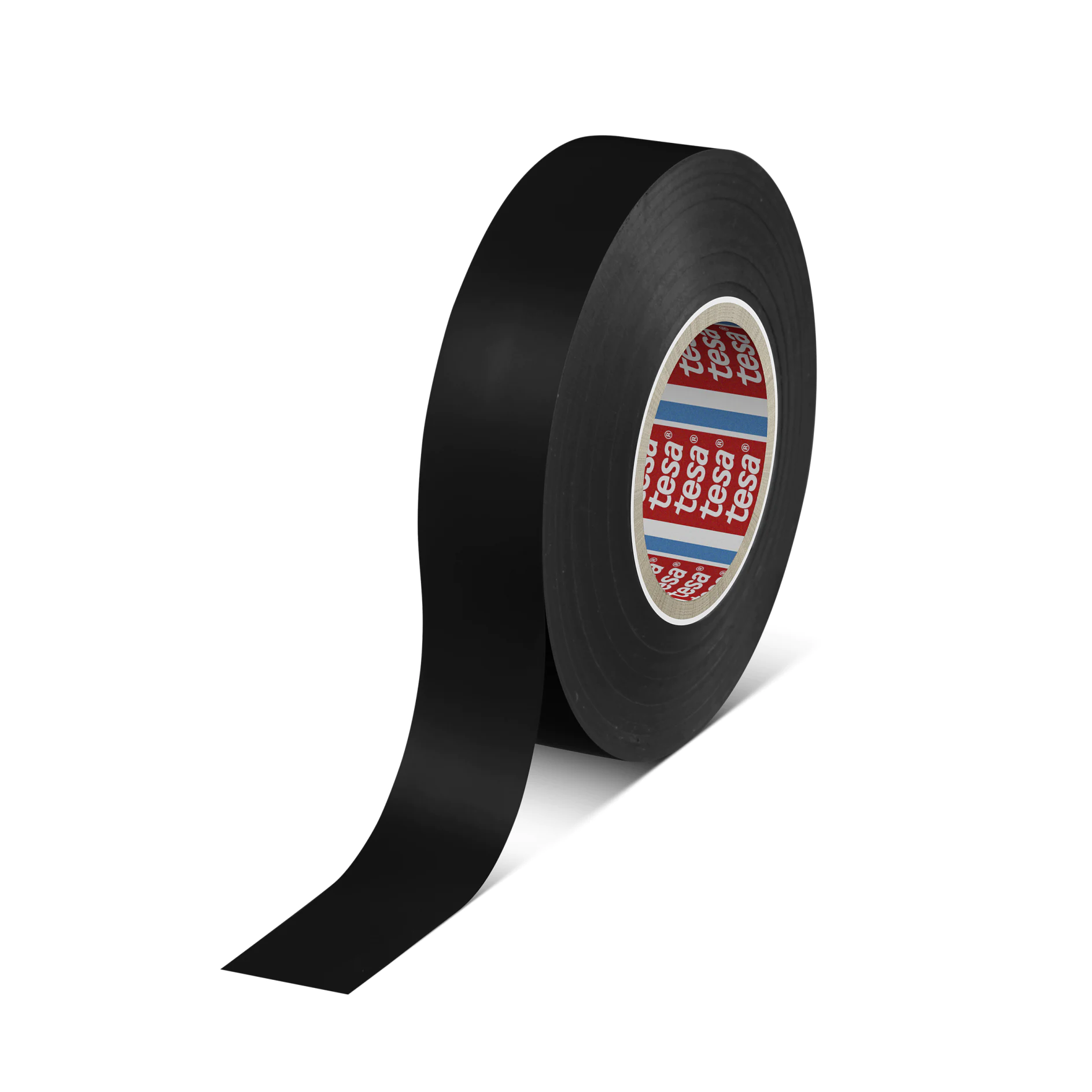

tesaflex® 4163 is a specially formulated electrical tape with good film flexibility and an acrylic adhesive. Due to the UV- and weathering-stable acrylic adhesive, the tape is perfectly suitable for permanent and outdoor applications. The soft PVC insulation tape is resistant to solvents and acids and features good electrical insulation and printability. tesaflex® 4163 is universally applicable, though it is exceptionally qualified for applications in repairing, masking, and electrical insulation. The PVC-backing makes for high durability strength, and the acrylic adhesive ensures a high adhesion to polar surfaces. Furthermore, the tape conforms to US safety standard 302. tesaflex® 4163 is available in many colors: black, white, grey, blue, yellow, red and green. The grey color is perfect for the installation of water pipes. Typical widths are 12 mm and 19 mm (more available) and are offered in 33 meter length.
Main applications
1 tesaflex® 4163 is used for electrical insulation
1 Suitable for installing, repairing, splicing, or bundling
1 Available in multiple bright colors, the insulation tape can also be used for marking and color-coding
1 The high electrical insulation makes the tape ideal for the installation and insulation of electrical cables
1 Its resistance against environmental factors makes the tape suitable for permanent outdoor usage
Technical properties
Backing material
soft PVC
Total thickness
130 µm
Type of adhesive
acrylic
Adhesion to steel
1.8 N/cm
Elongation at break
250 %
Tensile strength
30 N/cm
Type of liner
repulpable siliconised paper
Temperature resistance
105 °C
UV-resistance
104 weeks
Dielectric breakdown voltage
7000 volt
Rating properties
Certified according to
US 302
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
