tesa® Softprint 73322 TP-X, Soft

Foam plate mounting tape: FLEX Product Design

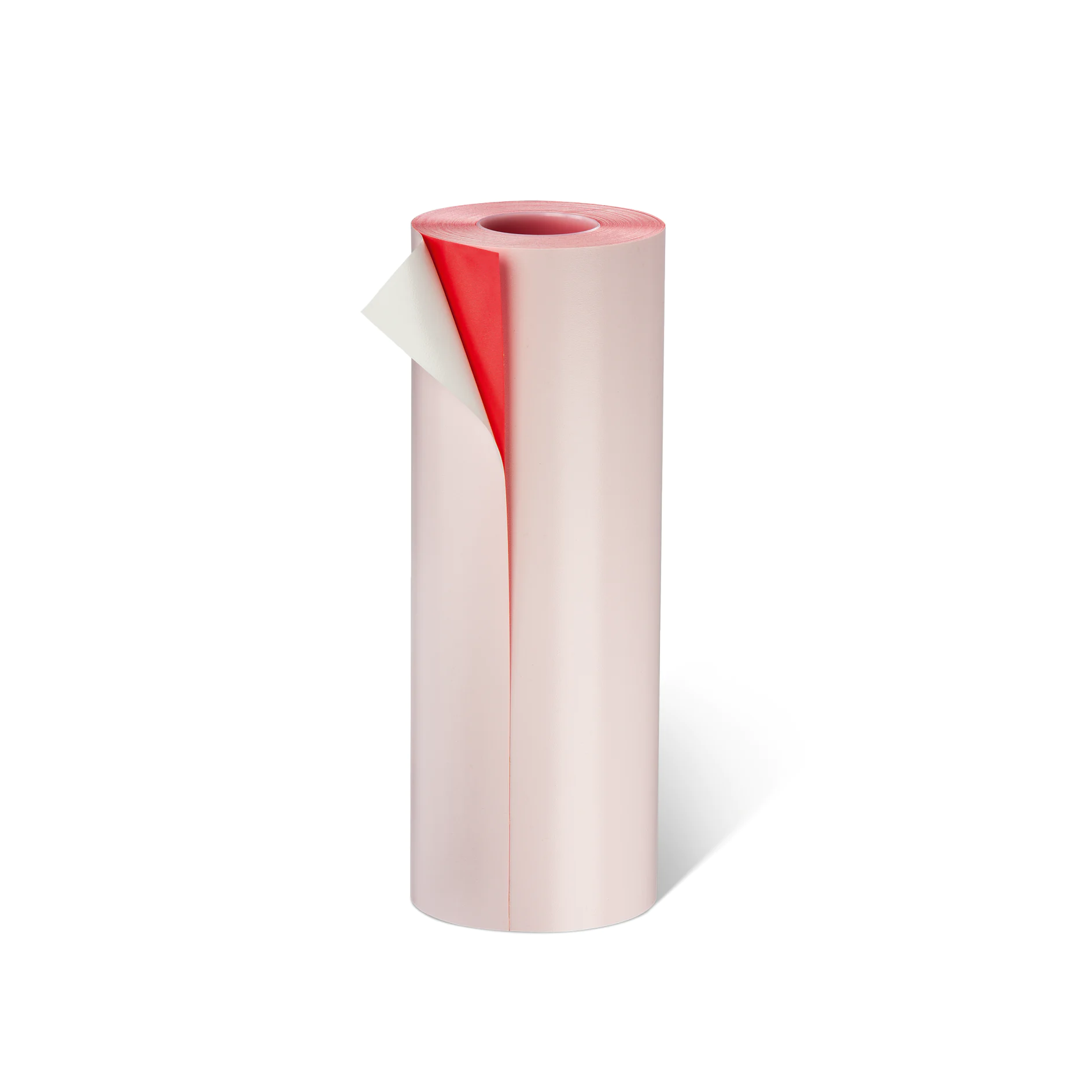

tesa® Softprint PP Flex Soft red

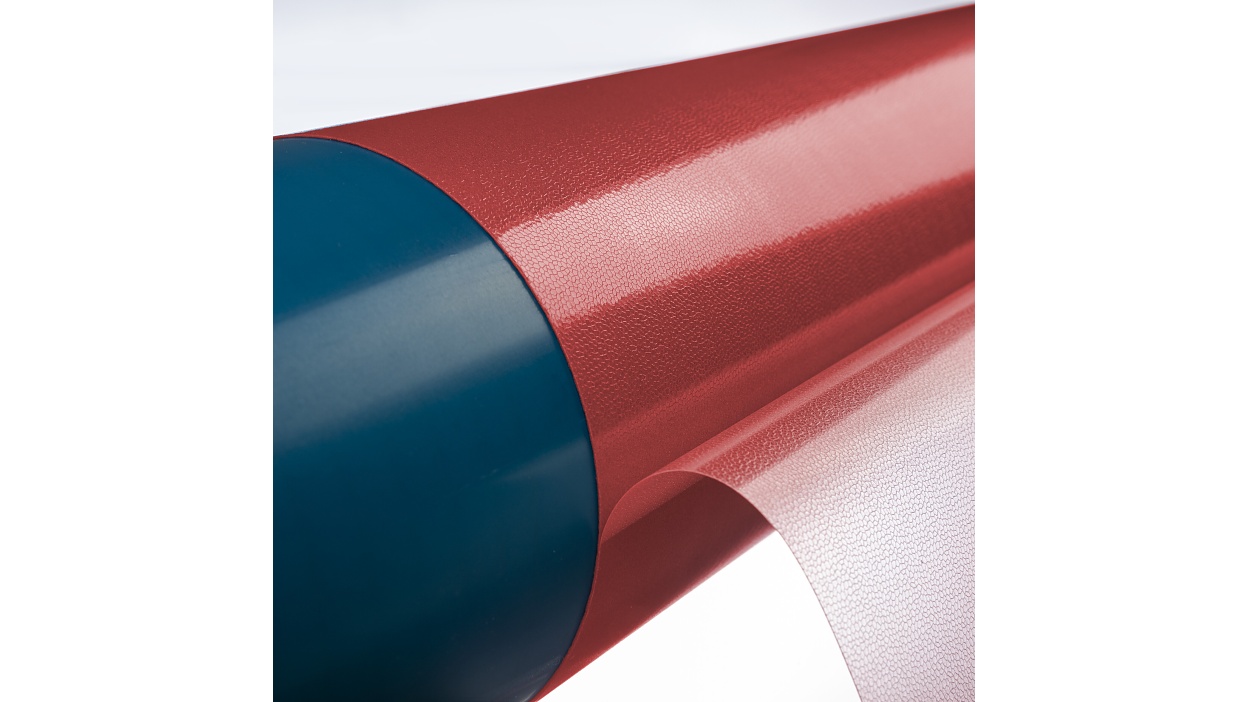

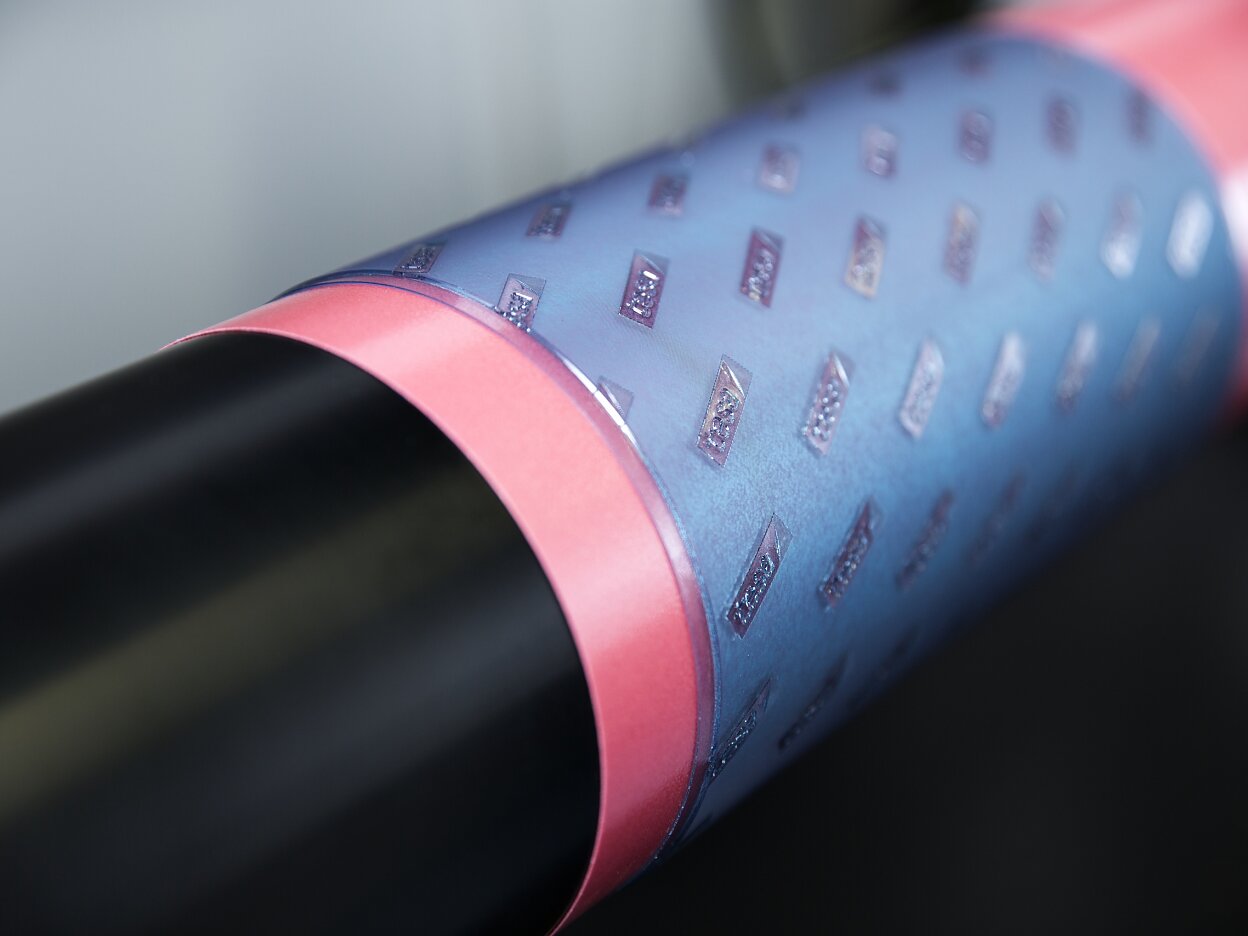

tesa® Softprint EA Flex Soft red on sleeve with open liner
FP&P_Flexographic-Printing_Plate-Mounting-104

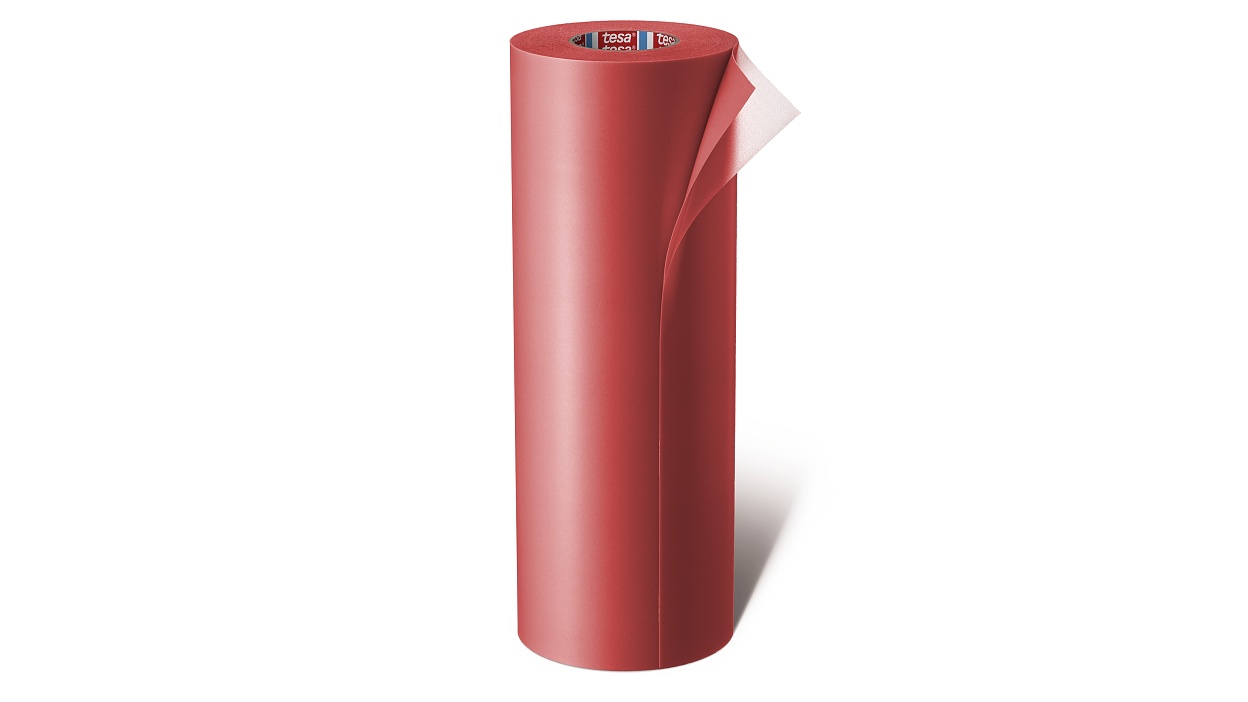

tesa® Softprint 73x22 EA red roll image
tesa® Softprint PP Flex Soft red
tesa® Softprint EA Flex Soft red on sleeve with open liner
FP&P_Flexographic-Printing_Plate-Mounting-104
Product Features
  • Foam properties: Long lasting, constant recovery characteristics. Low thickness tolerance.
  • Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
  • Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves.
Product description

Double-sided foam tape

Product details and specifications

Product Features

  • Foam properties: Long lasting, constant recovery characteristics. Low thickness tolerance.
  • Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
  • Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves.

Application Fields

Mounting of 1.14 mm (0.045'') and 1.70 mm (0.067'') flexographic printing plates onto steel /alu /PU and glassine cylinders

Product Construction

Adhesive Type tackified acrylic
Backing material PE foam with film lamination
Color red
Liner Type PP
Total thickness 550 µm

Properties / Performance Values

Color of foam red
Hardness soft
Thickness category 500

Additional Info
Available liner options:
  • PV0: White embossed PP-liner
  • PV21: Transparent structured easy application (EA) PET liner for excellent air removal during plate and tape mounting
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® Softprint 73322_en 60.5 kB
