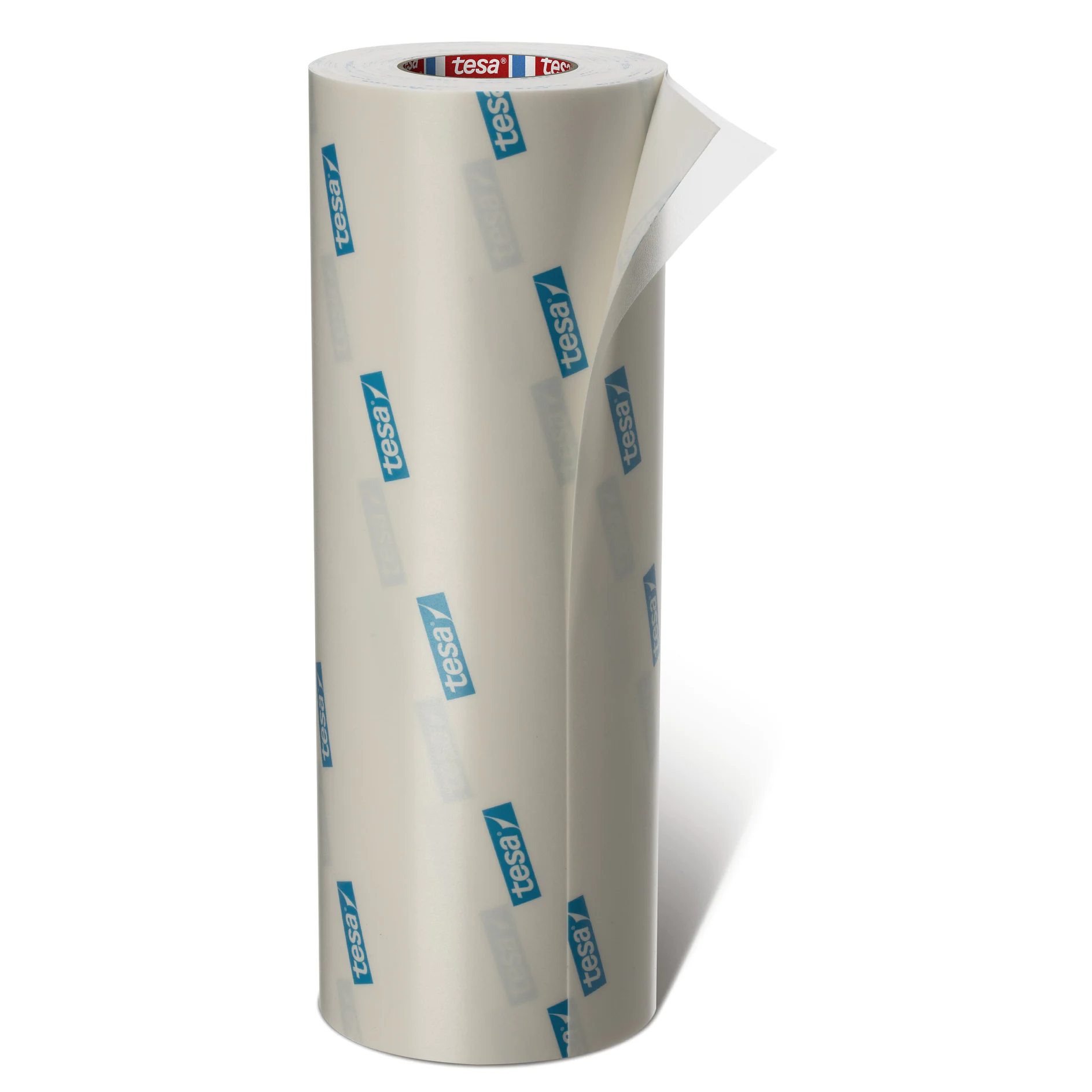

tesa® Softprint 72526 FE-X (EA)

Foam plate mounting tape: CLASSIC Product Design

Product Features
  • Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
  • Adhesive properties: Low tack surface characteristics. Best plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
  • PET reinforcement film for stable tape design and easy tape demounting.

Product description

Double-sided foam tape

Product Features

  • Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
  • Adhesive properties: Low tack surface characteristics. Best plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
  • PET reinforcement film for stable tape design and easy tape demounting.

Application Fields

Mounting of 1,14 mm (0,045'') and 1,70 mm (0,067'') flexographic printing plates onto steel /alu /PU and glassine cylinders

Product Construction

Backing material PE foam with film lamination
Color white
Total thickness 550 µm
Type of adhesive tackified acrylic
Type of liner PP

Properties / Performance Values

Color of foam white
Color of logo blue
Hardness medium-hard
Thickness category 500

Additional Info

Available liner options:
  • PV0: White embossed PP-liner
  • PV21: Transparent structured easy application (EA) PET liner for excellent air removal during plate and tape mounting
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
72526_inpiw_en-US
72526_inpiw_en-US PDF 1.4 MB
