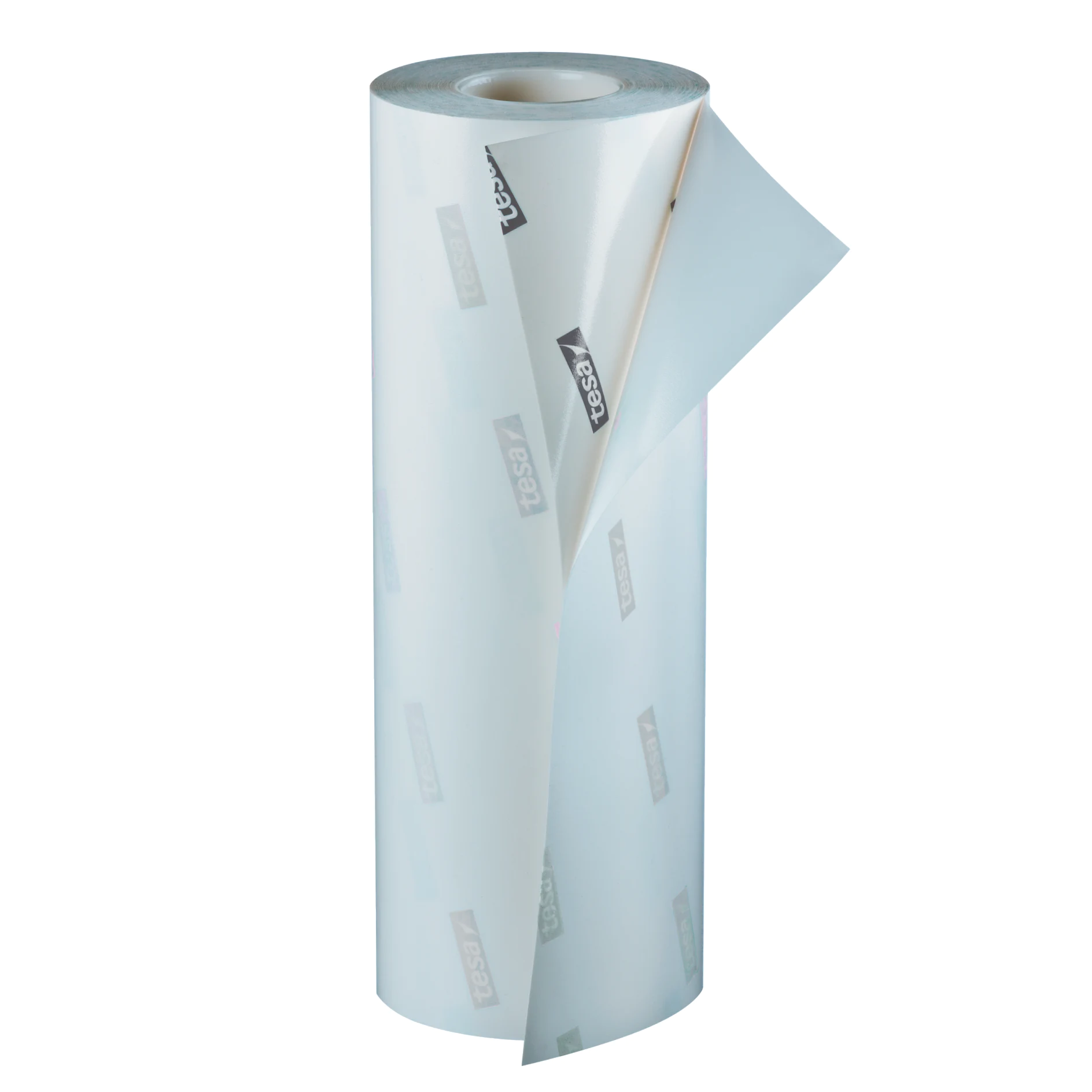

tesa® Softprint 72129
Foam plate mounting tape: CLASSIC Product Design
Product Features
- Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
- Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Sufficient tape bonding towards sleeve side.
- Addtional property: Structured PP-liner to prevent formation of air pockets when the plate is mounted.
Product description
Double-sided foam tape
Product details and specifications
Product Features
- Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
- Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Sufficient tape bonding towards sleeve side.
- Addtional property: Structured PP-liner to prevent formation of air pockets when the plate is mounted.
Application Fields
Mounting of 1.14 mm (0.045'') and 1.70 mm (0.067'') flexographic printing plates onto steel /alu /PU and glassine cylinders
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PE foam with film lamination |
| Liner Type | PP |
| Total thickness | 550 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PE foam with film lamination |
| Liner Type | PP |
| Total thickness | 550 µm |
Properties / Performance Values
| Hardness | extra-hard |
|---|---|
| Color of logo | grey |
| Thickness category | 500 |
Properties / Performance Values
| Hardness | extra-hard |
|---|---|
| Color of logo | grey |
| Thickness category | 500 |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
