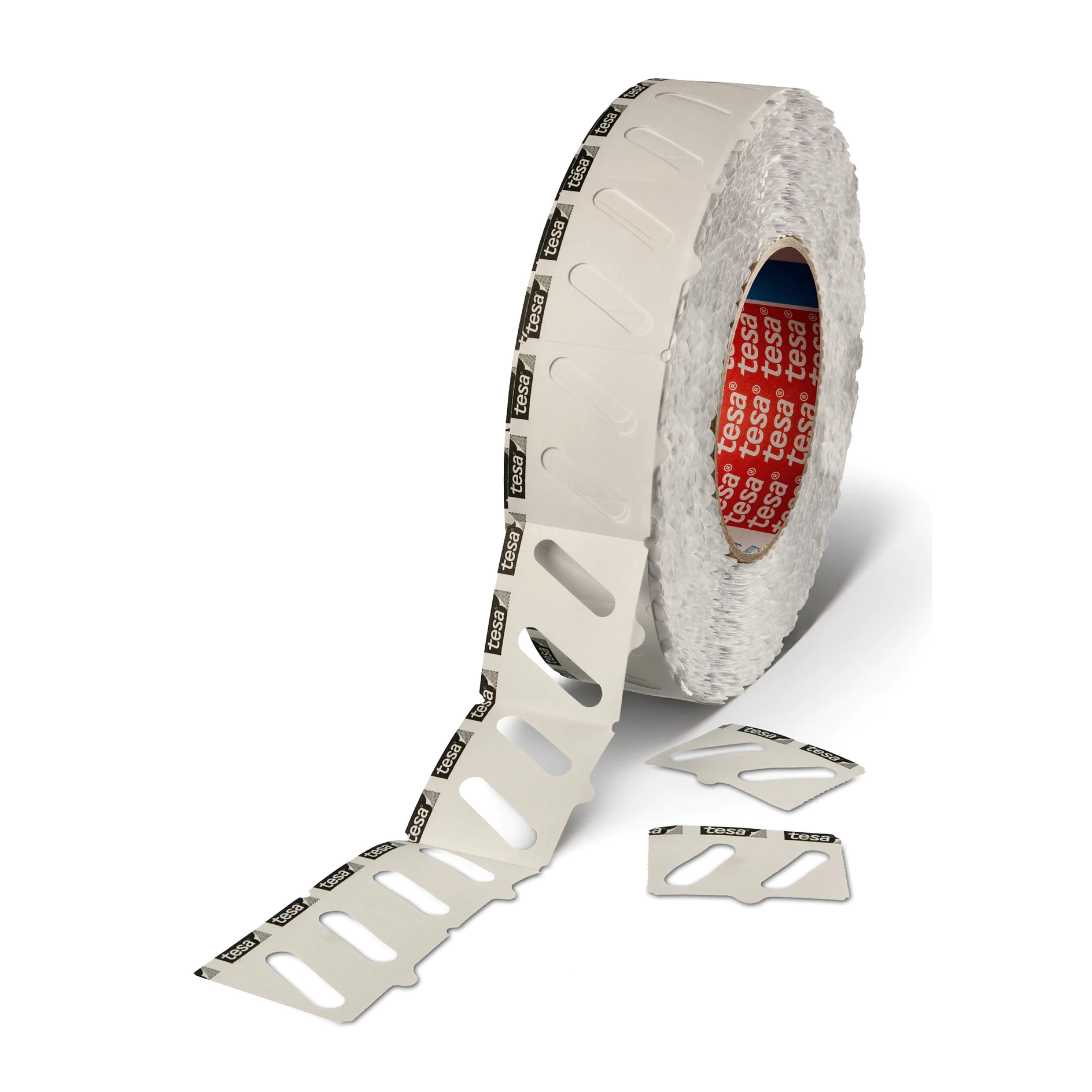

tesa® EasyBridge 51722
Slotted bridging label for belt-driven splicers
Product Features
- Noses of 3 mm length to ensure exact positioning
- Diagonal slots for perfect contact of the splice in the belt area
- Crosswise perforation to allow tear off pieces of suitable length for most common belt widths
Product description
tesa® 51722 EasyBridge is a die-cut paper label for belt area coverage on belt driven reel stands in the printing industry. It is preferably used in combination with tesa® EasySplice 51780 PV16 PrintLine Plus.
Colour: White
Product details and specifications
Product Features
- Noses of 3 mm length to ensure exact positioning
- Diagonal slots for perfect contact of the splice in the belt area
- Crosswise perforation to allow tear off pieces of suitable length for most common belt widths
Application Fields
tesa® 51722 is particularly suitable for:
- Belt area covering for flying splice applications in the printing industry
Product Construction
| Backing material | flat paper |
|---|---|
| Color | white |
| Total thickness | 92 µm |
Product Construction
| Backing material | flat paper |
|---|---|
| Color | white |
| Total thickness | 92 µm |
Properties / Performance Values
| Paper weight | 79 g/m² |
|---|
Properties / Performance Values
| Paper weight | 79 g/m² |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
