tesa® CaRes 51455 PV11

Repulpable single-sided splicing tape

Product Features

The patented calcium resistant adhesive (CaRes) for a maximised life time of permanent splices on papers containing calcium carbonate (CaCO3)
Slit liner for easier manual splice application
Thin but strong backing to allow a low total splice thickness

All product features

Product description

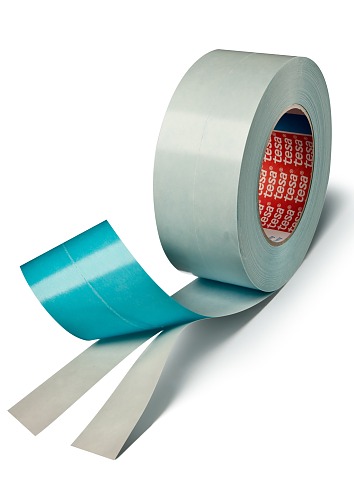

tesa® CaRes 51455 is a single-sided repulpable splicing tape, with a liner consisting of a flat-back paper and a modified water soluble acrylic adhesive.

Product details and specifications

Product Features

The patented calcium resistant adhesive (CaRes) for a maximised life time of permanent splices on papers containing calcium carbonate (CaCO3)
Slit liner for easier manual splice application
Thin but strong backing to allow a low total splice thickness
Printable and coatable backing for easy further processing
Very high shear strength
Very high heat resistance
Very good adhesion values on most paper grades
tesa® CaRes 51455 is certified by independent laboratories for: Repulpability according to TAPPI UM-213 over full pH-range (pH3 – pH9)
Paper from well-managed certified forests and other controlled sources

Application Fields

tesa® CaRes 51455 is particularly suitable for:

Manual permanent butt-splicing

Adhesive Type	repulpable tackified acrylic
Backing material	flat paper
Color	blue
Liner Type	repulpable siliconised paper
Total thickness	80 µm

Adhesive Type	repulpable tackified acrylic
Backing material	flat paper
Color	blue
Liner Type	repulpable siliconised paper
Total thickness	80 µm

Elongation at break	6 %
Shelf life time (packed) < 25°C	12 months
Tensile strength (crosswise)	30 N/cm
Tack	medium
Static shear resistance	very good

Elongation at break	6 %
Shelf life time (packed) < 25°C	12 months
Tensile strength (crosswise)	30 N/cm
Tack	medium
Static shear resistance	very good

Other products for butt-splicing:

tesa® 51444 - reduced thickness for thinner splices
tesa® 51445 - stronger backing for higher splice security
tesa® 51465 - slit liner and splitting strip for secure tape fixation during the manual splice preparation
tesa® 61445 - black backing for optical detection

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® CaRes 51455_en 62.5 kB
