Product Construction
| Backing material | foamed acrylic |
| Color | gray |
| Total thickness | 1500 µm |
| Type of adhesive | type: tackified acrylic |
88215
1.5 mm double-sided acrylic foam tape for mounting of automotive exterior parts
Product description
tesa® ACXplus 88215 is a 1.5 mm double-sided acrylic foam tape with an unique double layer product design, coated with low surface energy (LSE) adhesive on the covered side. Its high-performance LSE adhesive has excellent initial adhesive properties when it comes to different types of OEM clear coats and can reach near ultimate performance right after the application. Even at temperatures down to 5°C, tesa® ACXplus 88215 shows excellent bonding strength on clear coat.
tesa® ACXplus 88215 is specially recommended for mounting of primer-treated attachment parts including ribbed surfaces to difficult to bond clear coats. Thanks to its viscoelastic acrylic foam core, tesa® ACXplus 88215 has the ability to absorb and dissipate dynamic and static loads.
Also available in thicknesses of 0.8 mm and 1.1 mm.
Main features
- Superior peel-adhesion level right after application
- Excellent bonding stability at an application temperature as low as 5°C to the clear coat side
- PFAS / PFOS free Product
- Efficient and robust application at OEM
- Viscoelastic acrylic foam core to compensate for different thermal elongation of bonded parts
- Outstanding wet-out property
- High humidity and UV resistance
Product details and specifications
Application Fields
tesa® ACXplus 88215 is suitable for a wide range of permanent exterior mounting applications like:

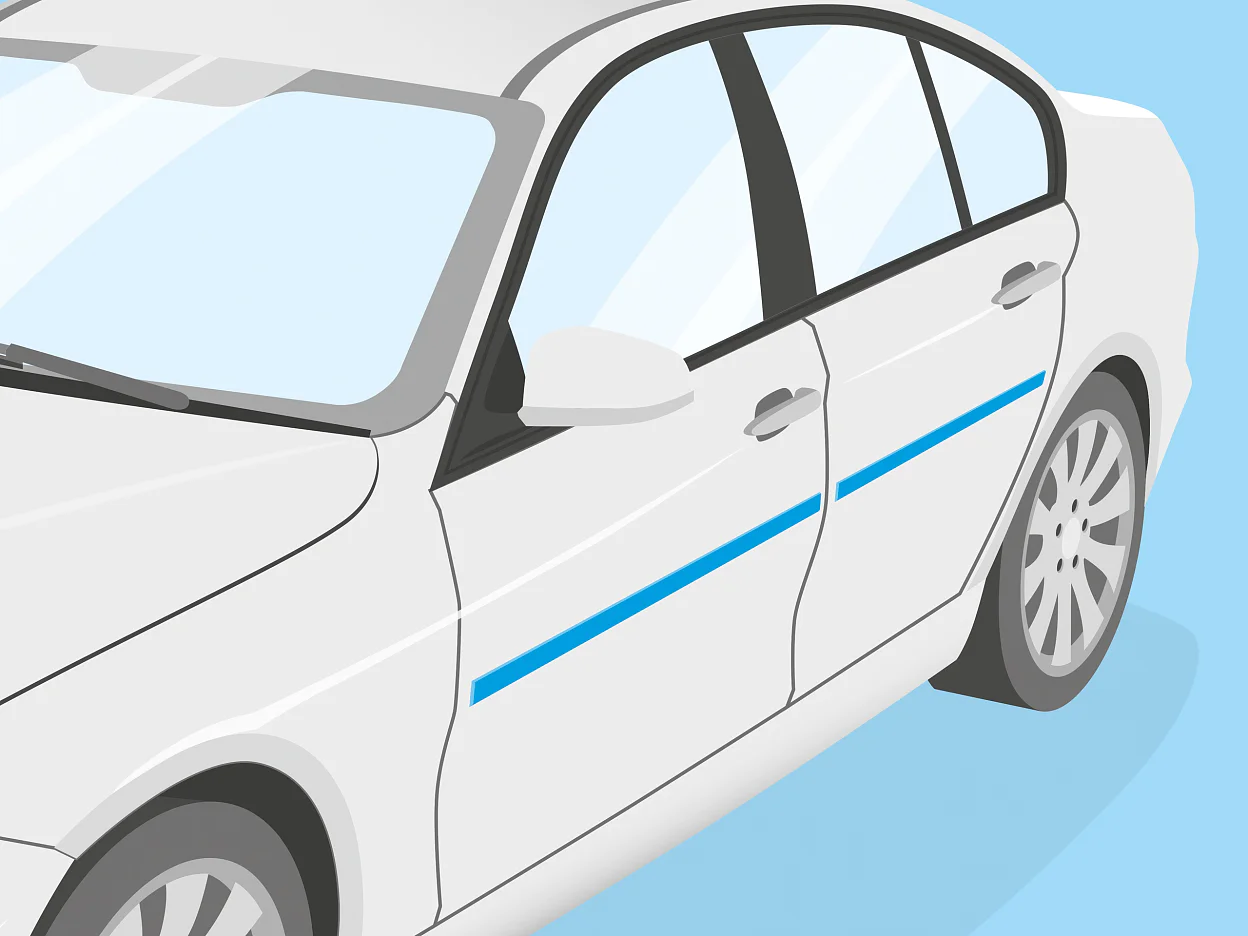

- Body side moldings and decorative trims

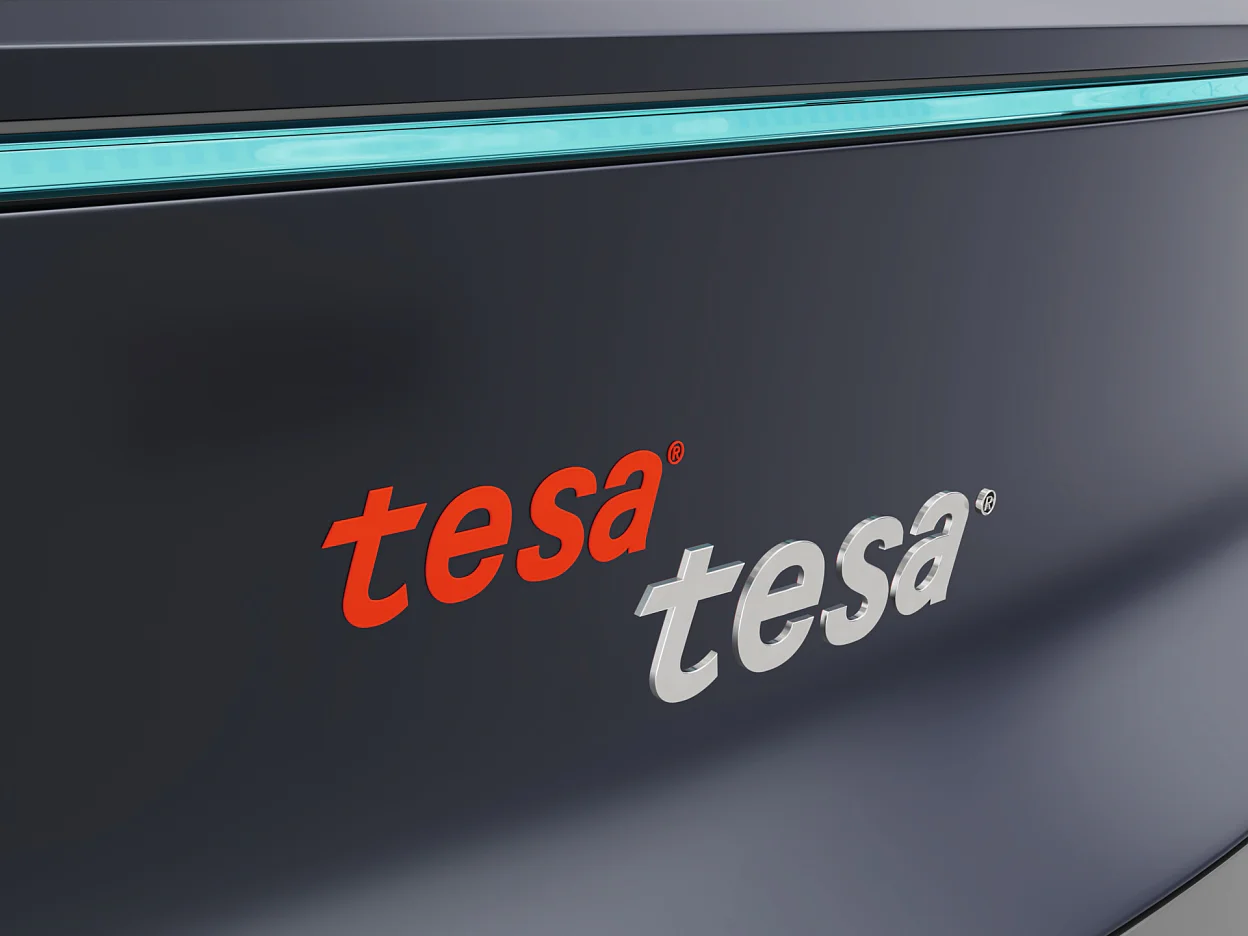

- Emblems

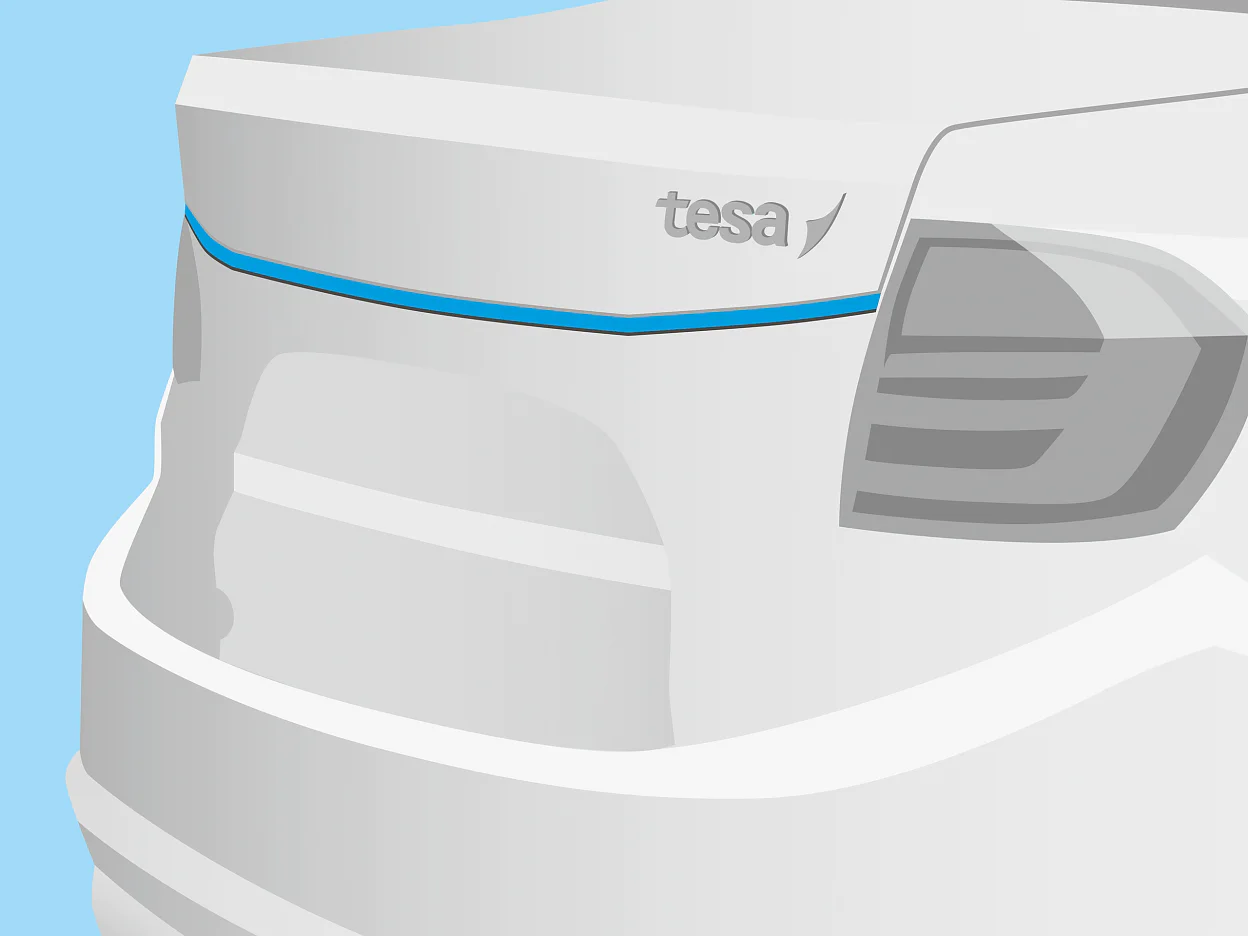

- Spoilers

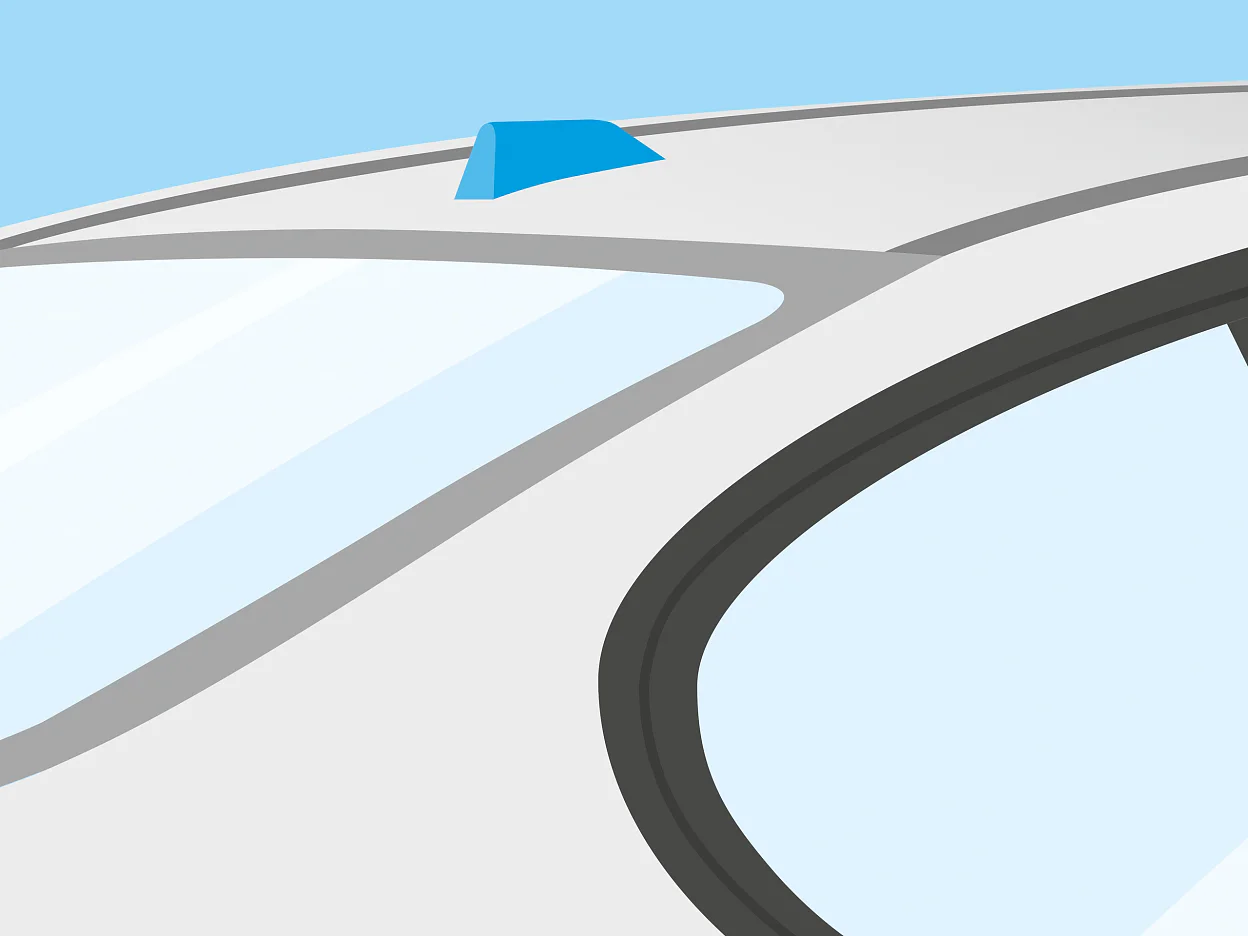

- Antennas

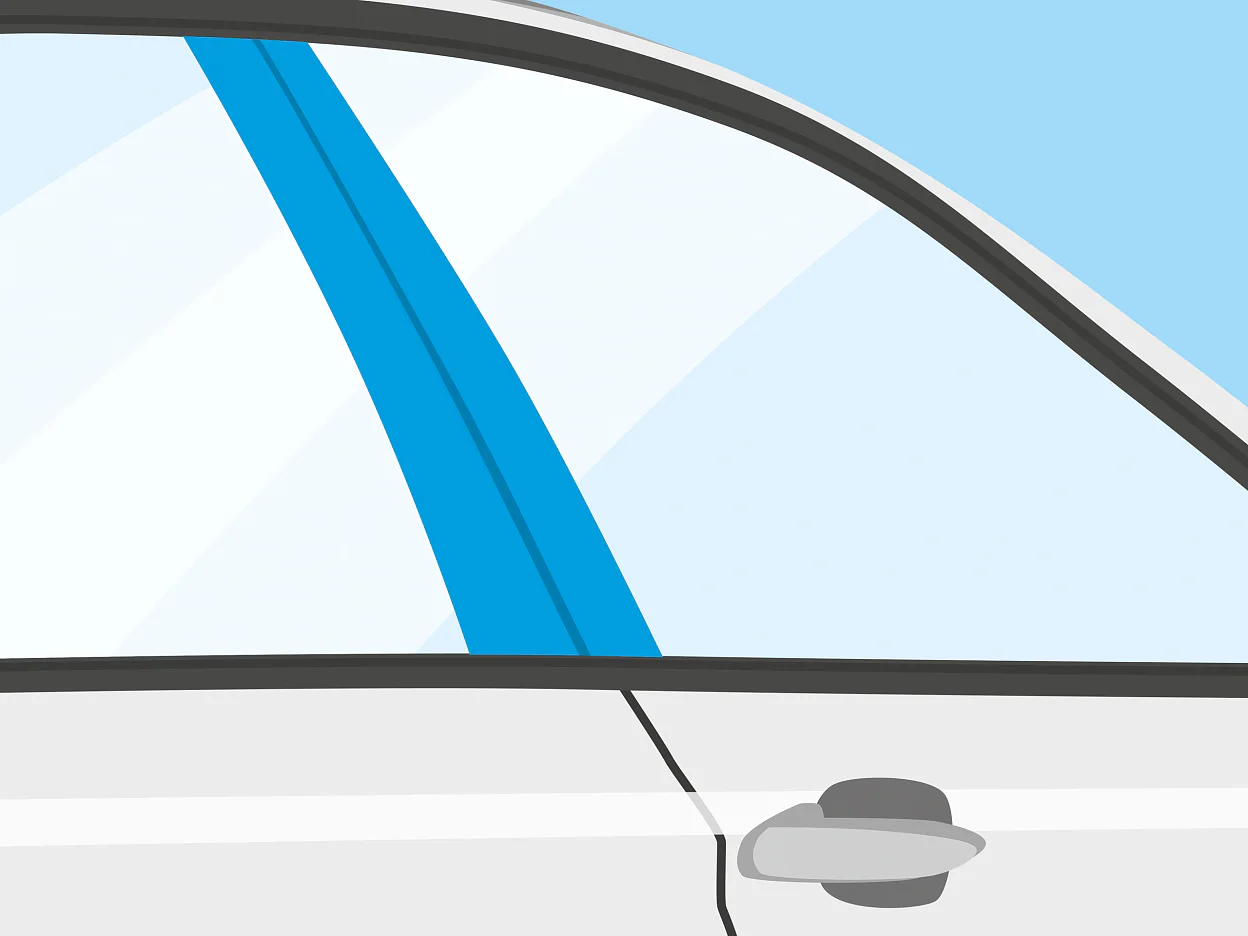

- Pillar appliqués
Product Construction
| Backing material | foamed acrylic |
| Color | gray |
| Total thickness | 1500 µm |
| Type of adhesive | type: tackified acrylic |
Properties / Performance Values
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Temperature range | -40 to +80 |
| Humidity resistance | very good |
| Temperature resistance short term | 120 °C |
Properties / Performance Values
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Temperature range | -40 to +80 |
| Humidity resistance | very good |
| Temperature resistance short term | 120 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
| Adhesion to ABS (covered side, after 3 days) | 33 N/cm |
| Adhesion to ABS (covered side, initial) | 27 N/cm |
| Adhesion to ABS (after 3 days) | 13 N/cm |
| Adhesion to Clear coat (after 24 hrs.) | 31 N/cm |
| Adhesion to Clear coat (after 20 min) | 28 N/cm |
| Adhesion to Steel (initial) | 12 N/cm |
| Adhesion to Steel (covered side, after 3 days) | 37 N/cm |
| Adhesion to Steel (covered side, initial) | 31 N/cm |
| Adhesion to Steel (after 3 days) | 26 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
| Adhesion to ABS (covered side, after 3 days) | 33 N/cm |
| Adhesion to ABS (covered side, initial) | 27 N/cm |
| Adhesion to ABS (after 3 days) | 13 N/cm |
| Adhesion to Clear coat (after 24 hrs.) | 31 N/cm |
| Adhesion to Clear coat (after 20 min) | 28 N/cm |
| Adhesion to Steel (initial) | 12 N/cm |
| Adhesion to Steel (covered side, after 3 days) | 37 N/cm |
| Adhesion to Steel (covered side, initial) | 31 N/cm |
| Adhesion to Steel (after 3 days) | 26 N/cm |
Additional Info
- Static shear resistance tested with 25 mm x 25 mm tape on steel, 200 g weight
- PV 15 = royal blue siliconized HDPE film liner
- Temperature range: values are load dependent
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
