tesa ® ACXplus 77212 Base Line

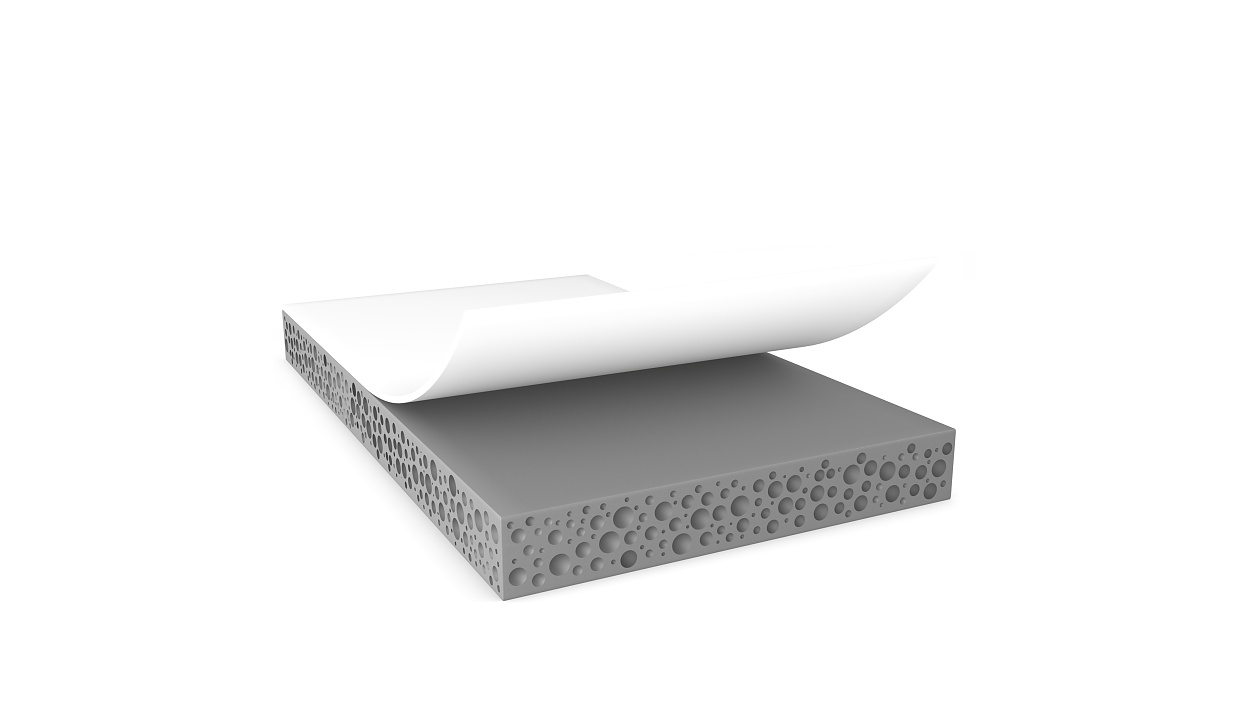

1.2mm double-sided acrylic foam tape



Product description

tesa ® ACXplus 77212 is a single layer acrylic foam tape designed for automotive attachment parts. Its viscoelastic acrylic foam core achieves reliable and high bonding performance on a variety of substrates and can withstand changing environmental conditions throughout the lifetime of a vehicle.

Features:
  • Visco-elastic acrylic foam core compensates stress caused by different thermal elongation of bonded parts
  • Good dynamic and static shear resistance over a wide temperature range
  • High UV resistance
  • Good converting properties

Main applications

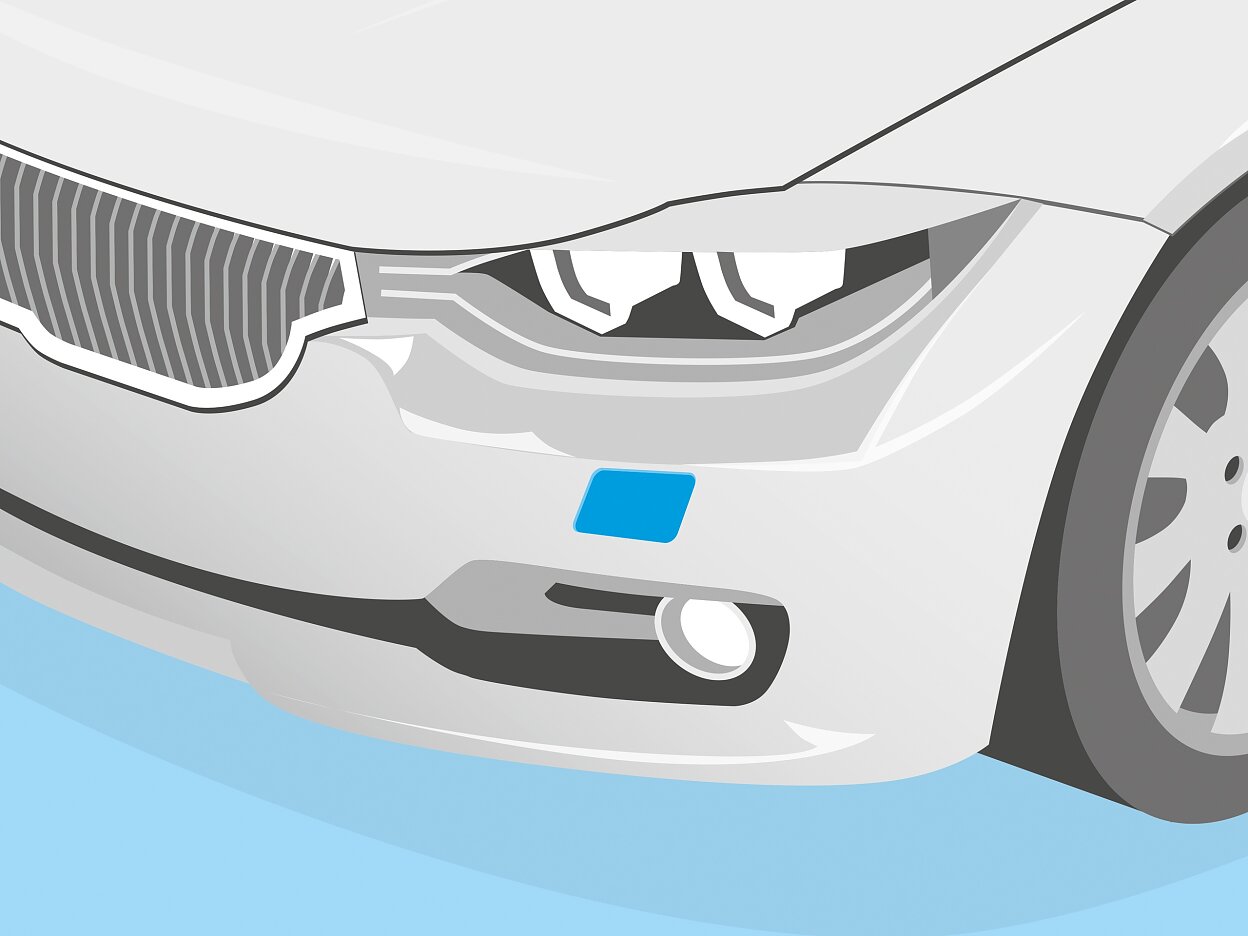

Permanent exterior mounting:

  • Body side moldings and decorative trims
  • Emblems
  • Spoilers
  • Antennas
  • Pillar appliques

Technical properties

Backing material

foamed acrylic

Color

gray

Total thickness (mm)

1.2 mm

Type of adhesive

modified acrylic

Adhesion properties

Adhesion to ABS (after 3 days)

12 N/cm

Adhesion to Steel (after 3 days)

27 N/cm

Rating properties

Ageing resistance (UV)

++

Humidity resistance

+

Cold-shock resistance

++

L-jig

++

T-block

++

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
