Additional Info
- Standard widths: 19, 25 mm
- Standard lengths: 25 m
- Further dimensions available upon request
- Color: orange and black

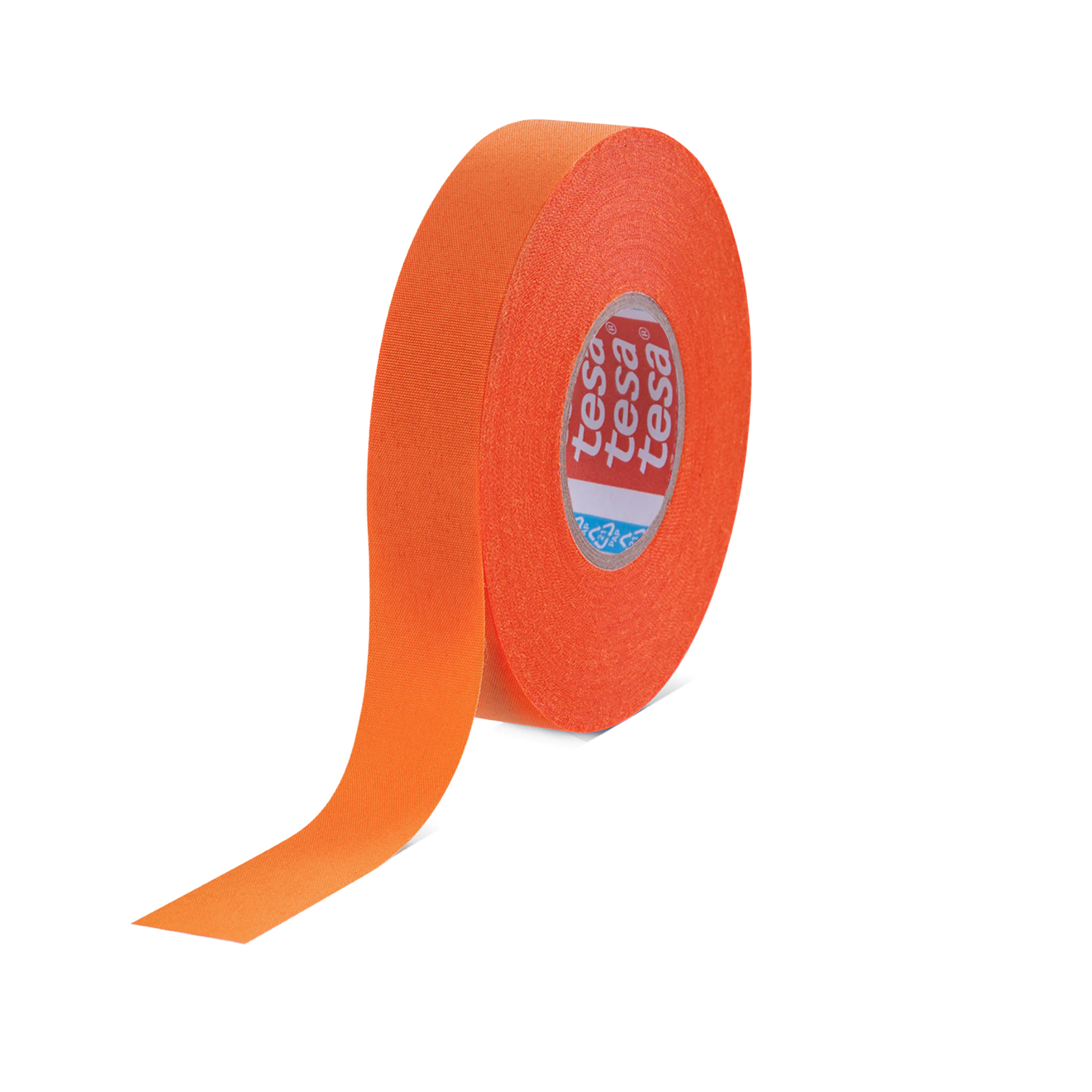

tesa® 88102 Abrasion Protection Tape for Visual Warning & Identification
Orange PET cloth tape with waterborne acrylic adhesive for high voltage cable protection.
Product Features
- Orange color for high-voltage applications and identification
- High abrasion resistance
- Temperature resistance of up to 125°C
Product description
tesa® 88102 is a PET cloth tape with a waterborne acrylic adhesive for wire harness protection. It provides excellent abrasion protection of automotive harnesses and withstands the demanding environmental conditions with Low Odor and Low VOC properties. The orange version is designed for high voltage harness protection.
Product details and specifications
Product Features
- Orange color for high-voltage applications and identification
- High abrasion resistance
- Temperature resistance of up to 125°C
- Very good Low temperature resistance (-40°C)
- Good flagging resistance
- Low odor & Low VOC
- Constants unwind force
- Tear resistant for secure bundling of harnesses
Application Fields
As a PET cloth tape, tesa® 88102 is designed for the wire harness protection to provide high level abrasion resistance, and suitable to be applied for the areas with high requirements on odor and VOC.
Product Construction
| Adhesive Type | water-based acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 230 µm |
Product Construction
| Adhesive Type | water-based acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 230 µm |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 270 N/cm |
| Noise damping (LV312) | Class A |
| Temperature resistance max. | 125 °C |
| Temperature resistance min. | -40 °C |
| Unwind force at 30m/min | 4.7 N/cm |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 270 N/cm |
| Noise damping (LV312) | Class A |
| Temperature resistance max. | 125 °C |
| Temperature resistance min. | -40 °C |
| Unwind force at 30m/min | 4.7 N/cm |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Adhesion to Values
| Adhesion to Steel | 2.5 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
