Additional Info
- Standard widths: 19, 25 mm
- Standard lengths: 25 m
- Further dimensions available upon request

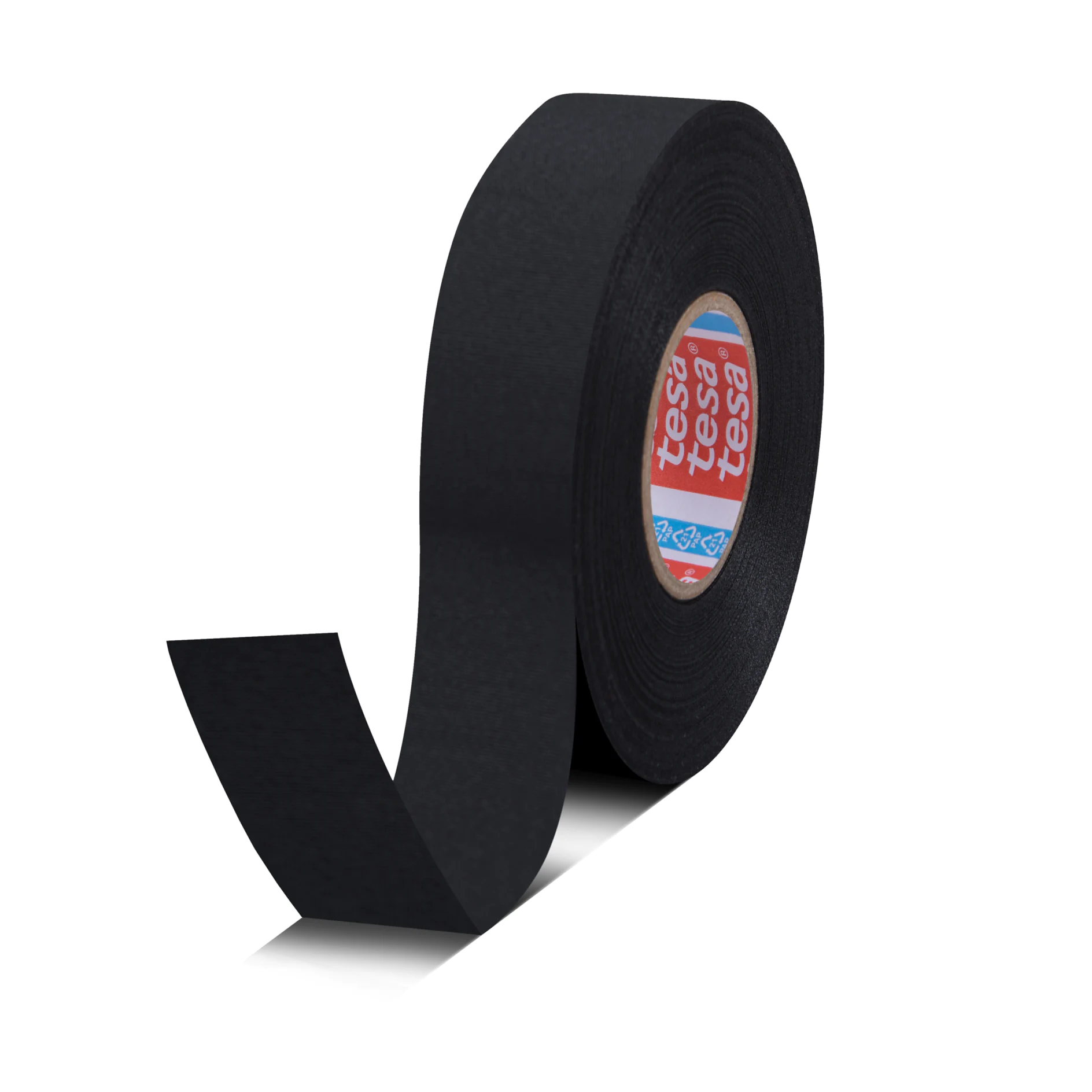

tesa® 88101 Abrasion protection
PET cloth tape with waterborne acrylic adhesive for cable protection.
Product Features
- High abrasion resistance and demanding temperature level
- Good flagging resistance
- Stable unwind force when applying
Product description
tesa® 88101 is a PET cloth tape with a waterborne acrylic adhesive for wire harness covering. Enabled with the new adhesive formula, tesa® 88101 provides good abrasion protection for automotive harnesses and withstands demanding temperatures together with Low Odor and Low VOC properties.
Product details and specifications
Product Features
- High abrasion resistance and demanding temperature level
- Good flagging resistance
- Stable unwind force when applying
- Superior ageing resistance performance
- Low odor and low VOC properties
- Tear resistant for secure bundling of harnesses
Application Fields
As a PET cloth tape, tesa® 88101 is designed for the wire harness protection for both electric vehicles and petrol vehicles, especially for the areas with high requirements on odor and VOC.
Product Construction
| Adhesive Type | water-based acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 225 µm |
Product Construction
| Adhesive Type | water-based acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 225 µm |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 260 N/cm |
| Temperature resistance min. | -40 °C |
| Unwind force at 30m/min | 3.9 N/cm |
| Temperature resistance max. | 105 °C |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 260 N/cm |
| Temperature resistance min. | -40 °C |
| Unwind force at 30m/min | 3.9 N/cm |
| Temperature resistance max. | 105 °C |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Adhesion to Values
| Adhesion to Steel | 2.5 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
