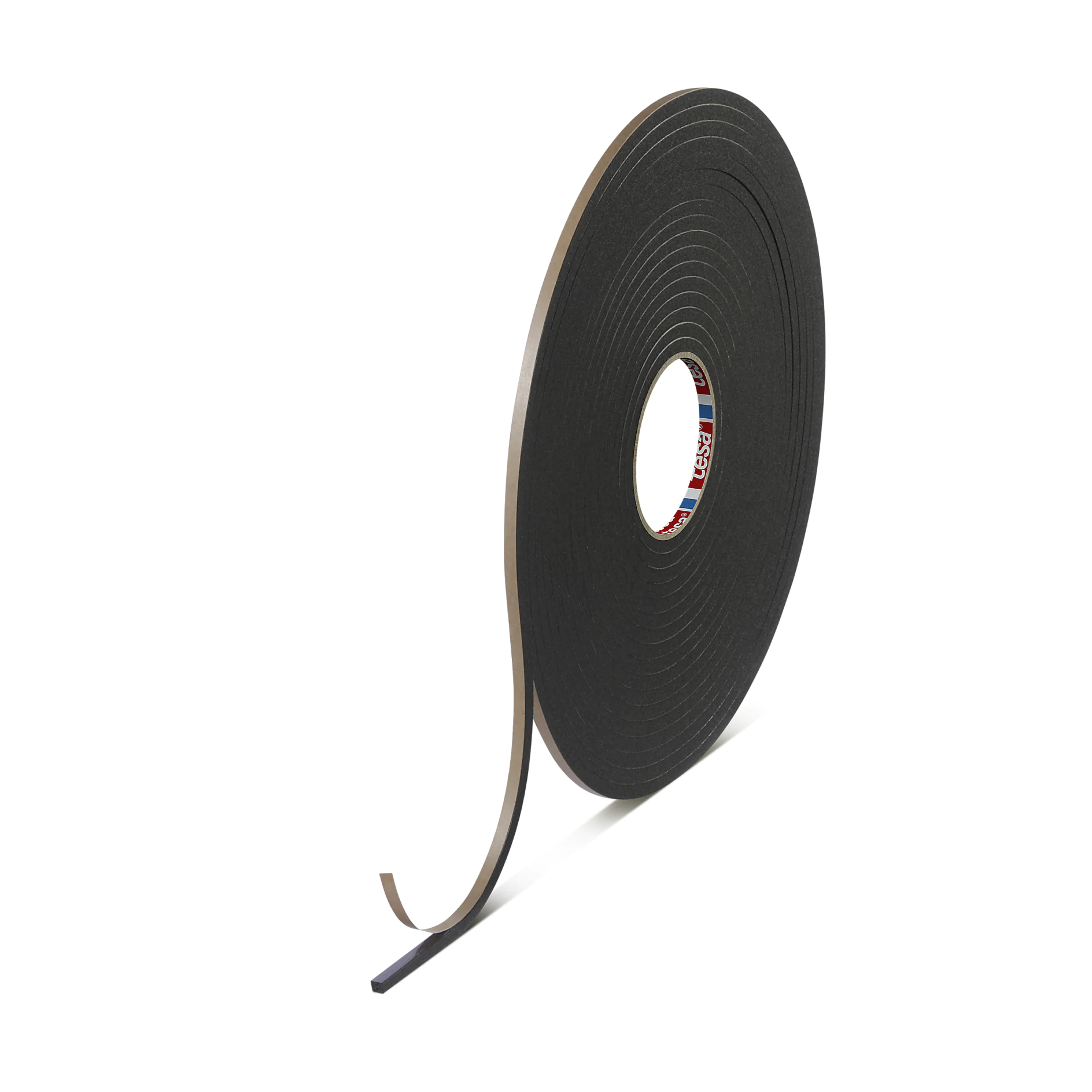

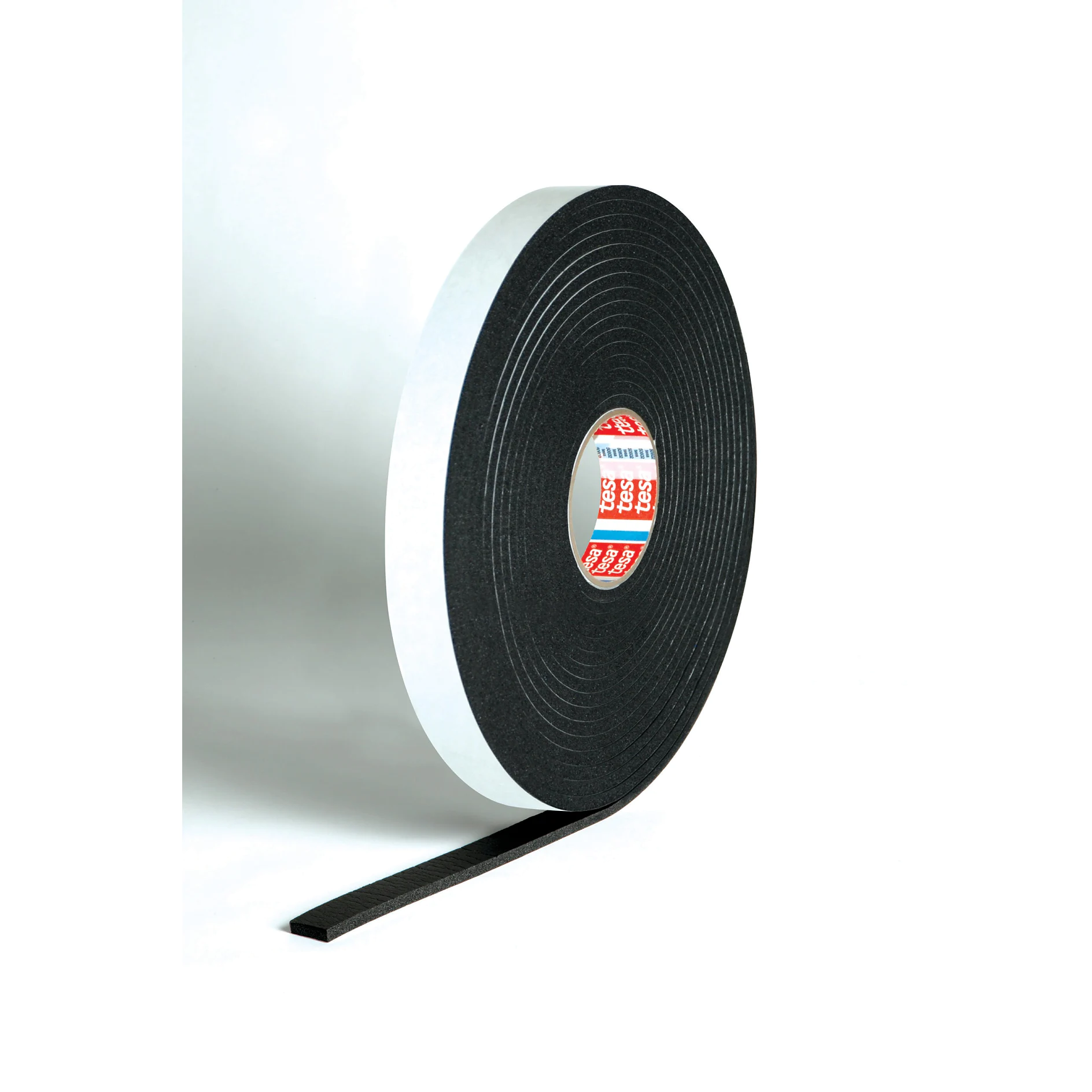

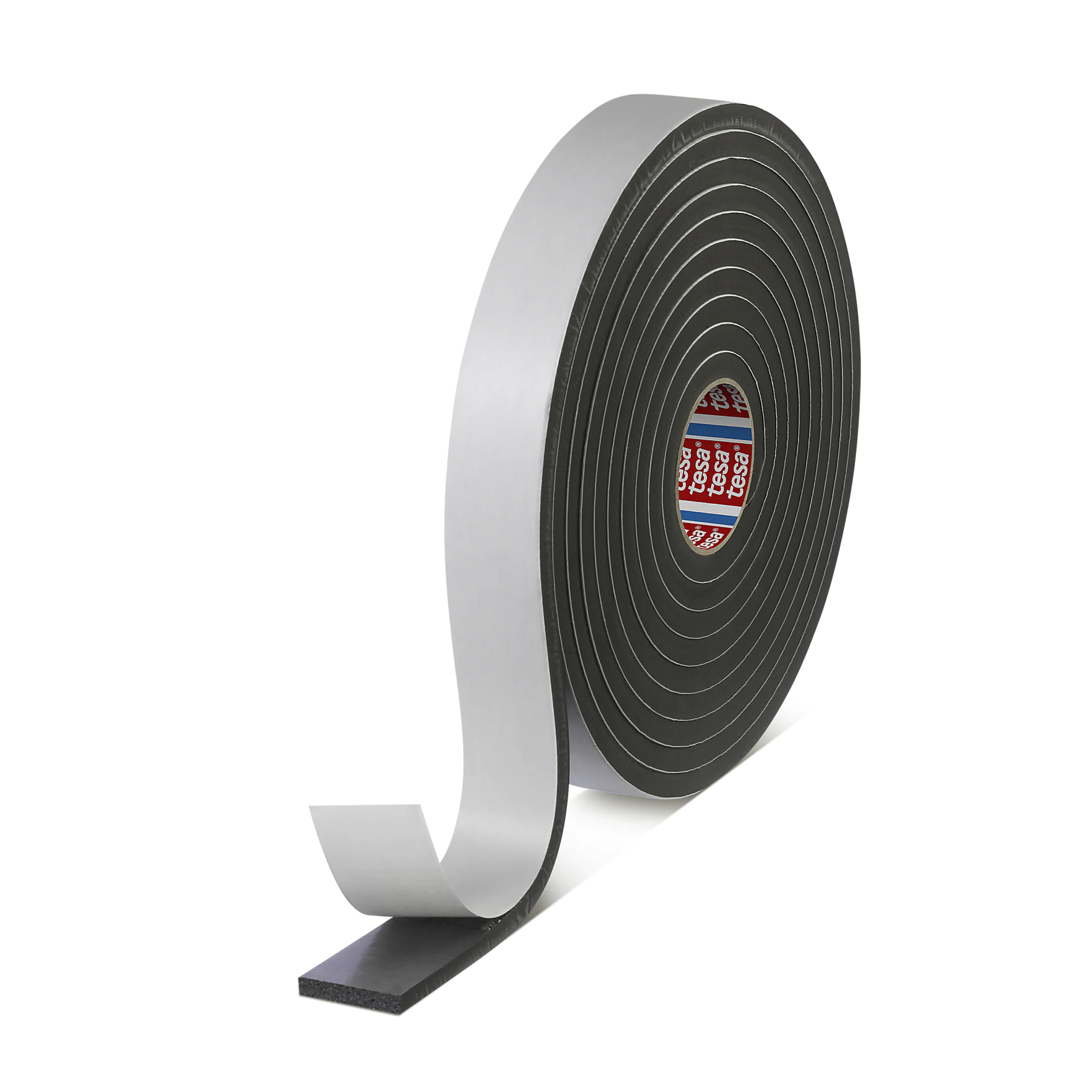

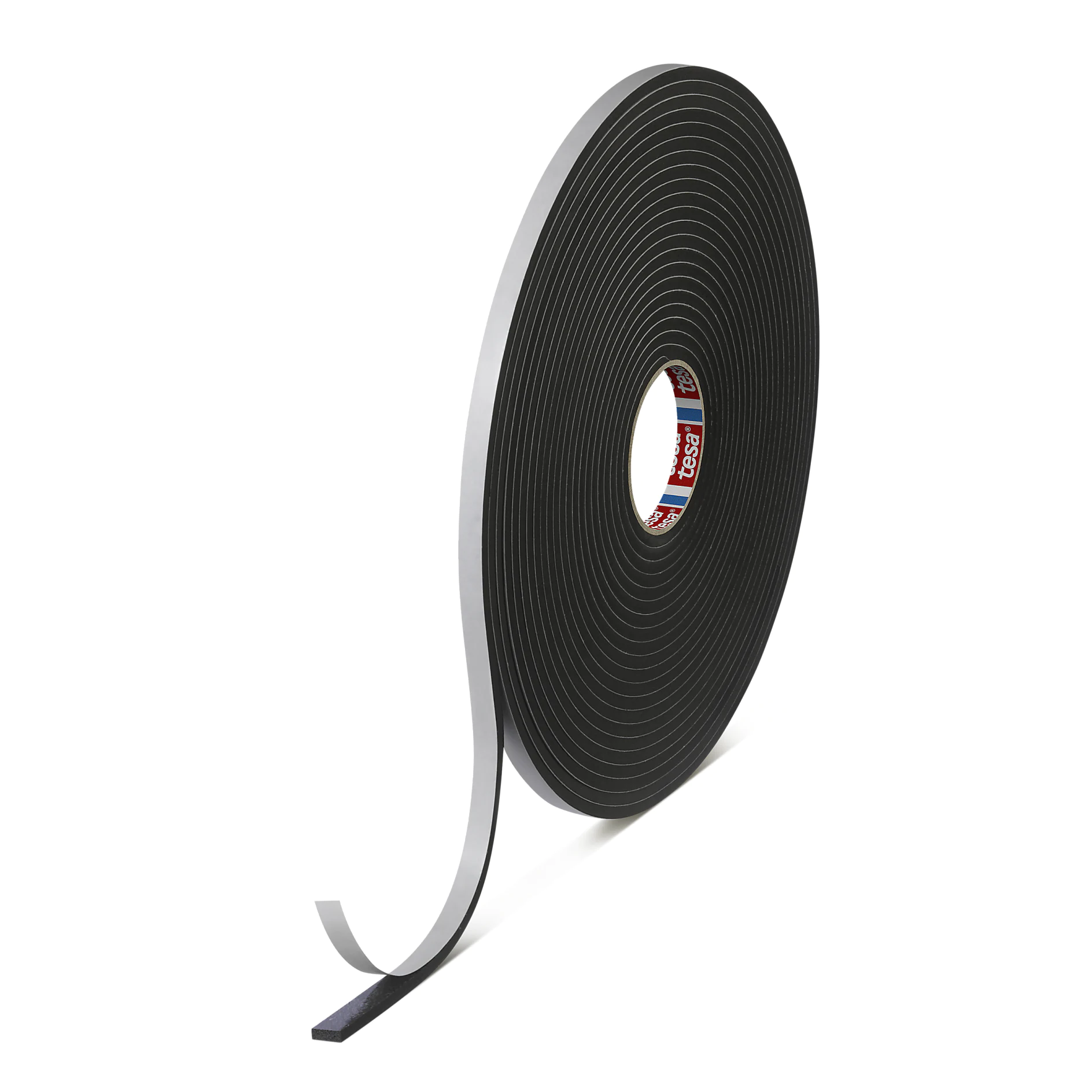

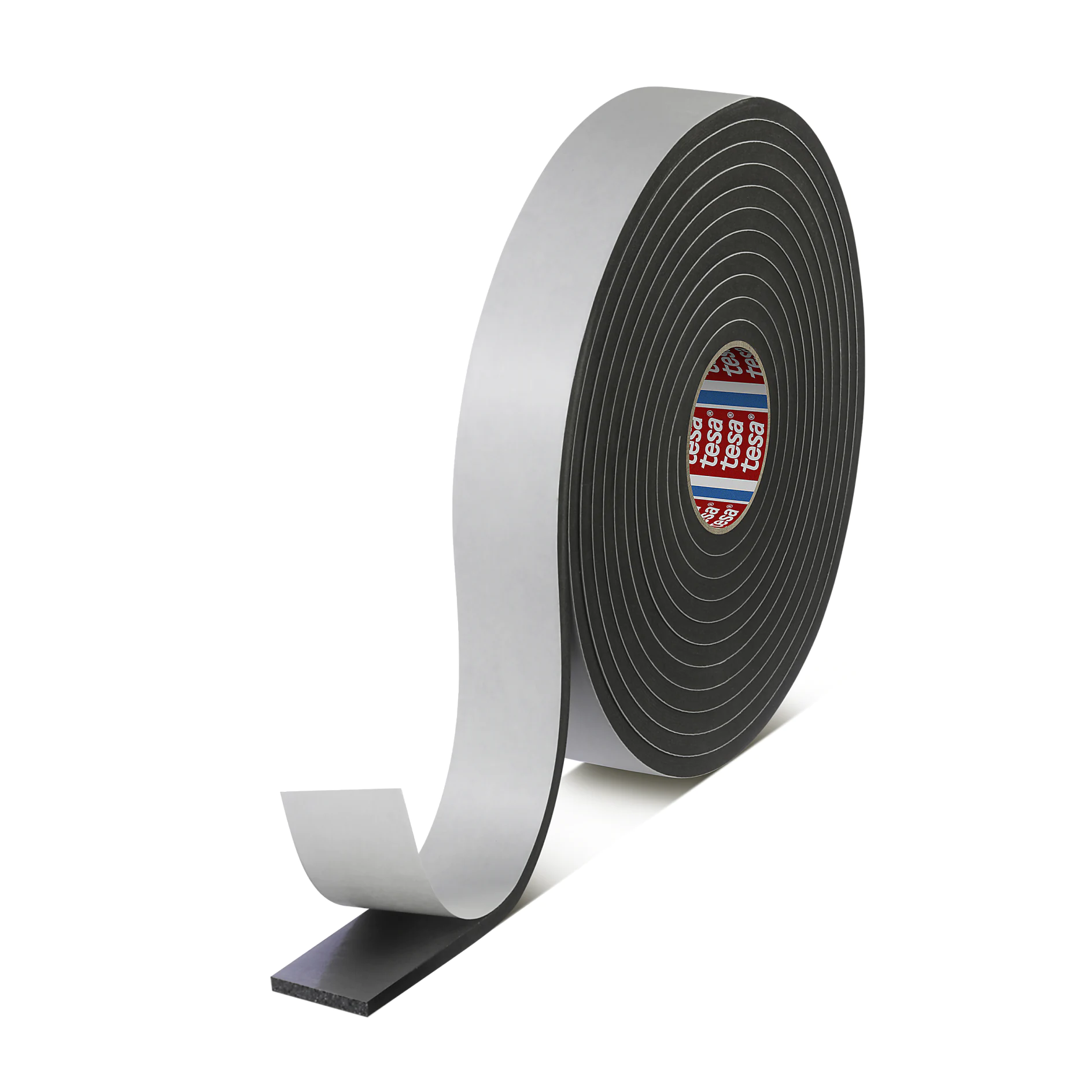

tesa® 66701
EPDM rubber closed cell single sided foam tape 1.6mm thick (black)
Product Features
- Non-staining, non-corrosive, non-conductive foam
- Resistant to moisture & UV
- Flame retardant to FMVSS 302
Product description
tesa® 66701 is a single sided closed-cell EPDM foam tape with an acrylic adhesive on one side
Product details and specifications
Product Features
- Non-staining, non-corrosive, non-conductive foam
- Resistant to moisture & UV
- Flame retardant to FMVSS 302
- Will not contaminate drinking water1
- REACH & RoHs compliant
- Plastic compatible
- EPDM foam backing tested according to FDA 21CFR 177.2600 (distilled water method)
Application Fields
- Sealing cladding joints
- Sealing for water tanks
- Sealing electrical enclosures and switch cabinets
- Sealing interior and exterior lighting
- Sealing industrial access doors and hatches
- Sealing domestic and commercial glazing systems
- Sealing externally mounted air conditioning equipment
- Gaskets and vibration dampening for automotive & transport applications
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | EPDM rubber foam |
| Color | black |
| Total thickness | 1,600 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | EPDM rubber foam |
| Color | black |
| Total thickness | 1,600 µm |
Properties / Performance Values
| Tensile strength | 16 N/cm |
|---|---|
| Thermal conductivity z-direction | 0.03 W/mK |
| Temperature resistance min. | -40 °C |
| Water resistance | very good |
| Temperature resistance max. | 115 °C |
| Hardness - Shore 00 | 34 STK |
Properties / Performance Values
| Tensile strength | 16 N/cm |
|---|---|
| Thermal conductivity z-direction | 0.03 W/mK |
| Temperature resistance min. | -40 °C |
| Water resistance | very good |
| Temperature resistance max. | 115 °C |
| Hardness - Shore 00 | 34 STK |
Adhesion to Values
| Adhesion to Steel | 5.5 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 5.5 N/cm |
Adhesion to Values
| Adhesion to Steel | 5.5 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 5.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
