tesa® 61361
100µm high performance light-blocking mounting tape
Product Features- Thickness: 100µm
- Very high bonding strength
- Superior push out resistance
Product description
tesa® 61361 is a black, double-sided self-adhesive tape consisting of a black PET backing and a tackified, black acrylic adhesive.
Product Features
- Thickness: 100µm
- Very high bonding strength
- Superior push out resistance
- Excellent resistance to demanding environmental conditions
- Black color for easy detection or design purposes
- High shock resistance
- Extra black color of the acrylic adhesive for very good light-blocking properties
Application Fields
- Lens mounting in mobile phones and tablets
- Component Mounting
- Touch panel mounting

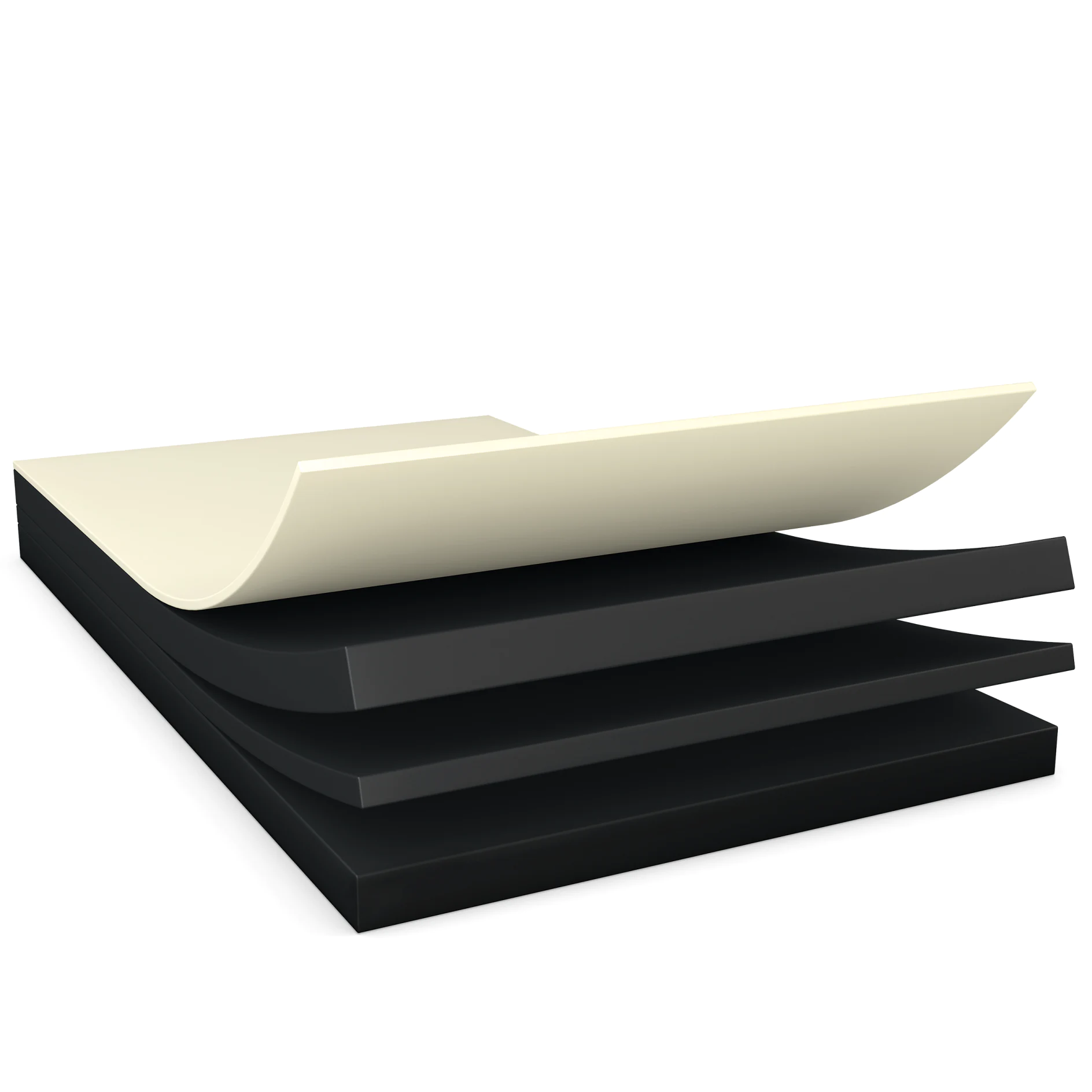

Product Construction
| Backing material | PET film |
| Color | black |
| Color of liner | white with tesa logo |
| Thickness of liner | 71 µm |
| Total thickness | 100 µm |
| Type of adhesive | modified acrylic |
| Type of adhesive (covered side) | tackified acrylic |
| Type of liner | glassine |
| Weight of liner | 80 g/m² |
Properties / Performance Values
| Elongation at break | 50 % |
| Tensile strength | 20 N/cm |
| Ageing resistance (UV) | very good |
| Humidity resistance | very good |
| Static shear resistance at 23°C | good |
| Static shear resistance at 40°C | good |
| Tack | medium |
| Temperature resistance long term | 100 °C |
| Temperature resistance short term | 200 °C |
Adhesion to Values
| Adhesion to Glass (initial) | 10.6 N/cm |
| Adhesion to Glass (after 14 days) | 13.1 N/cm |
| Adhesion to PC (initial) | 9.3 N/cm |
| Adhesion to PC (after 14 days) | 16.9 N/cm |
| Adhesion to Steel (initial) | 12.7 N/cm |
| Adhesion to Steel (after 14 days) | 16.6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
