![[Master PI]](/en/files/images/201905/22/6068-master-pi,151988_fixedwidth_1.jpg "6068 [Master PI]")
6068 [Master PI]
[Master PI]
PDF – 43.3 kB
Product description

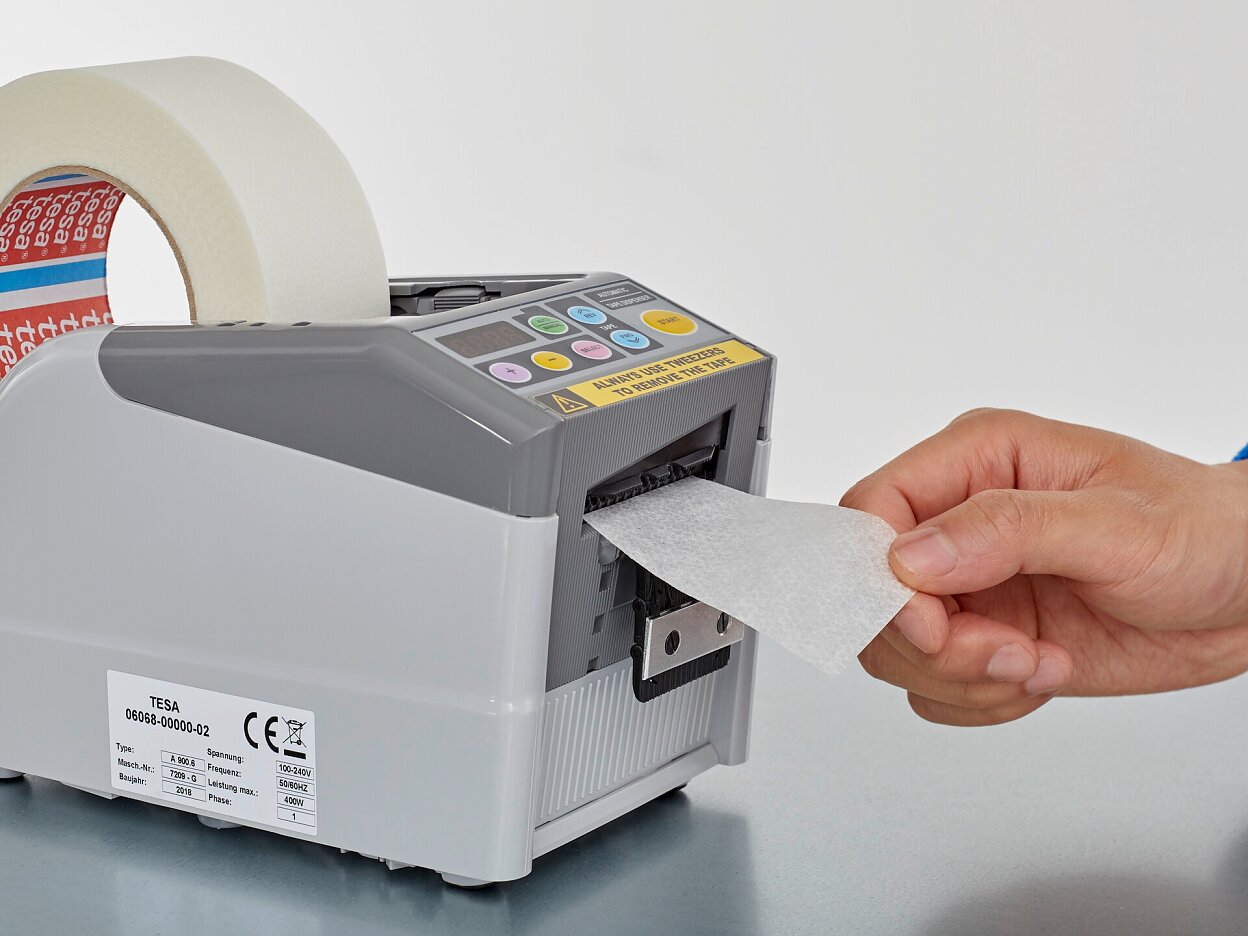

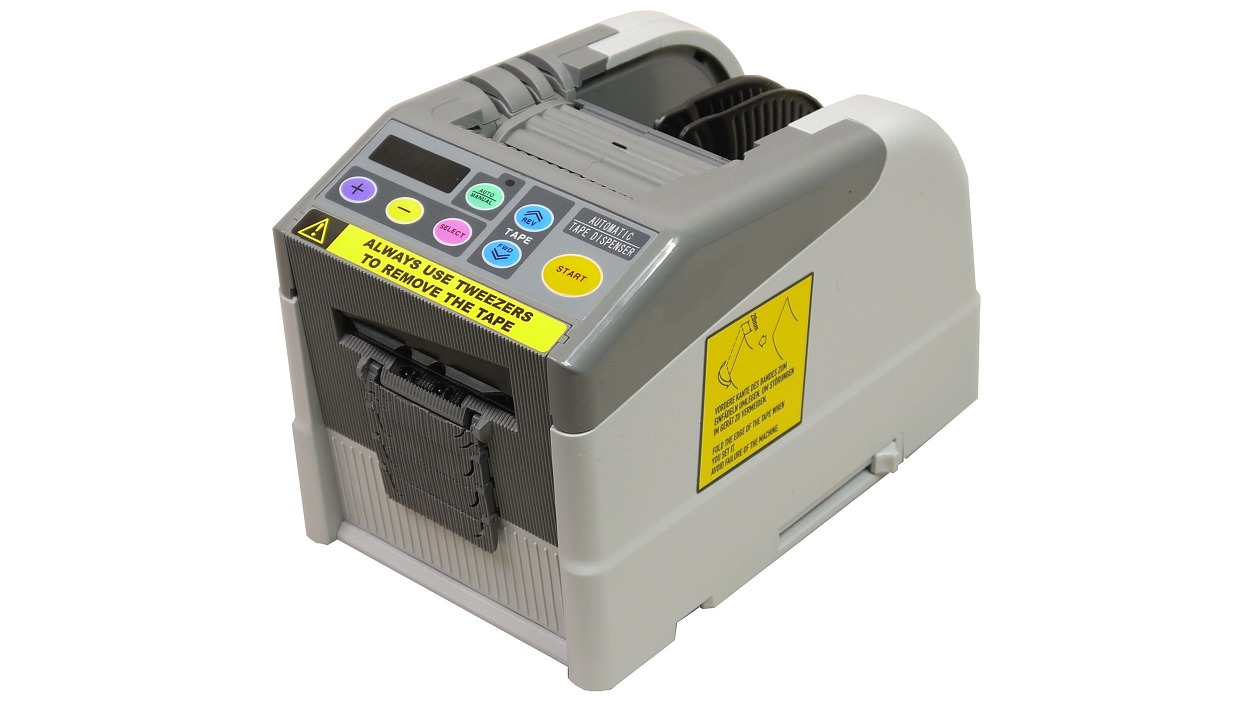

tesa® 6068 is a fully-automatic dispenser with preset length, piece control and photo sensor cutter. It is universally applicable for nearly all kinds of tesa® self-adhesive tapes up to 60 mm width, particularly TPP-, filaments- and cloth-tapes. This dispener has a digital display, a storage of the preset length and a counter for the number of cut pieces. This dispenser can be used for s/s as well as d/s-tapes including liner up to approximately 1,5mm thickness. In case of dispensing d/s-tapes, the liner needs to be manually removed afterwards.
Main applications
Release the roller lock lever and put the tesa® tape into the adjustable tape holder. Feed the tape by using the FORWARD button and fix it afterwards with the hold down roller unit and the tape holder. The desired tape length is set by the SET A- and SET B- button in a range from 5 to 999 mm. The desired number of pieces is set by the SELECT button. Press the START button to deliver the tape.
Technical properties
Core diameter
3 inch
Type of tape
single-sided
Application purpose
multifunctional
Length
213 mm
Width
116 mm
Height
140 mm
Mode of drive
automatic
Weight
2500 g
Max. roll diameter
300 mm
Type of applicator
machine
Max. roll width
6-60 mm
Feeding speed
200 m/min
Length presetting up to
5-999 mm
Connections
100-240V
Power supply
25 watt
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
