tesa® 58385
120µm double sided translucent non-woven tape
Product Features
- Excellent bonding performance on various types of substrates
- Very good reliability according to Automotive industry specification
- Excellent temperature resistance performance
Product description
tesa® 58385 is a 120µm double-sided translucent non-woven tape. It equipped with tackified acrylic adhesive to ensure an excellent bonding performance on various types of substrates. Its PE-coated paper liner has very good humidity resistance. Non-woven backing offers friendly convertibility and comformity during applications.
Product details and specifications
Product Features
- Excellent bonding performance on various types of substrates
- Very good reliability according to Automotive industry specification
- Excellent temperature resistance performance
- Friendly to converting process
Application Fields
- mounting of components
- lamination on foams or other demanding materials

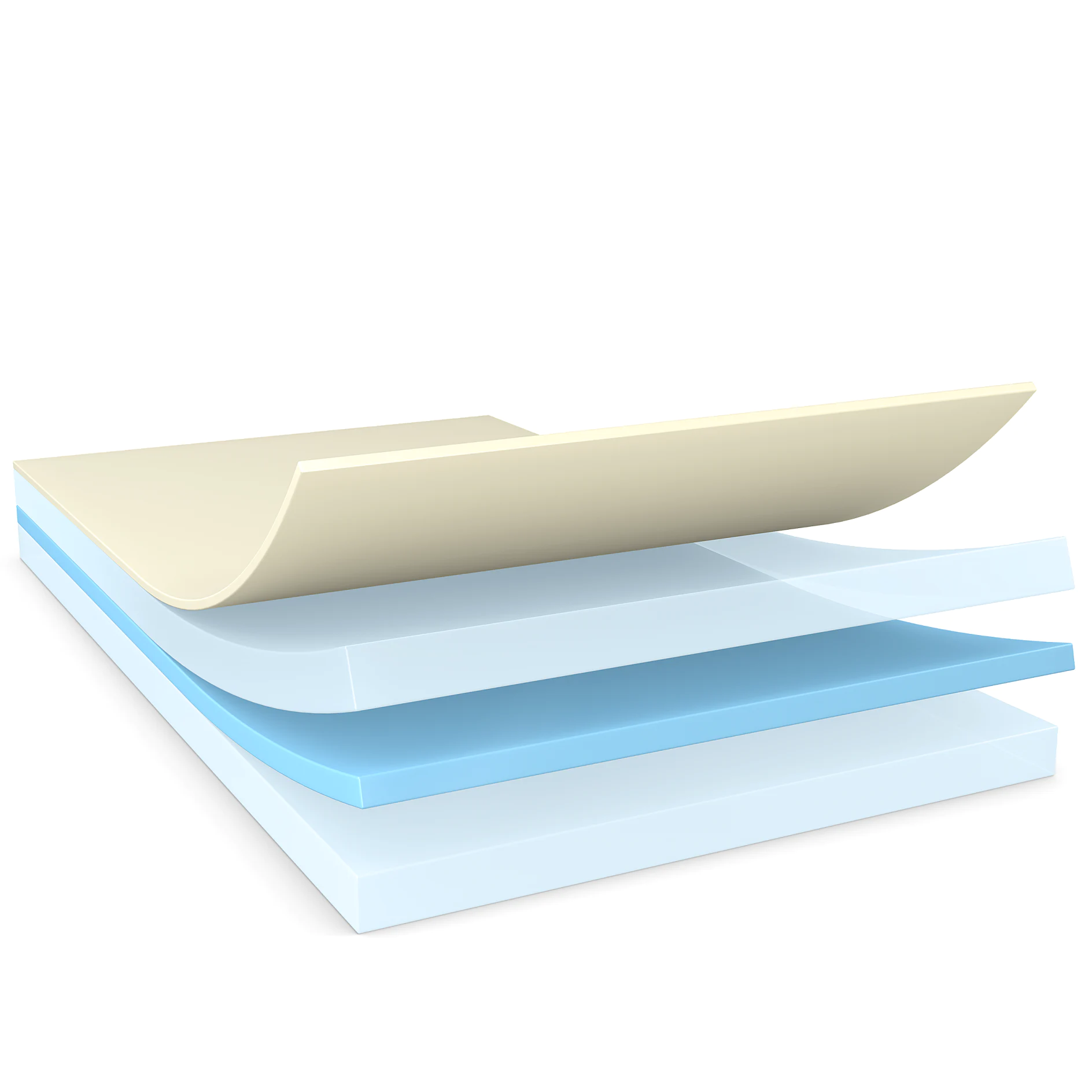

Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 125 µm |
| Total thickness | 120 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 125 µm |
| Total thickness | 120 µm |
Properties / Performance Values
| Static shear resistance | good |
|---|---|
| Temperature resistance max. | 125 °C |
| Temperature resistance min. | -40 °C |
| Temperature resistance | very good |
| Temperature resistance long term | 125 °C |
Properties / Performance Values
| Static shear resistance | good |
|---|---|
| Temperature resistance max. | 125 °C |
| Temperature resistance min. | -40 °C |
| Temperature resistance | very good |
| Temperature resistance long term | 125 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 7.9 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 8.4 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 3 days) | 9 N/cm |
| Adhesion to PE (initial) | 3.7 N/cm |
| Adhesion to PE (after 14 days) | 4.1 N/cm |
| Adhesion to PET (initial) | 7.4 N/cm |
| Adhesion to PET (after 3 days) | 8.1 N/cm |
| Adhesion to PI (initial) | 7.1 N/cm |
| Adhesion to PI (after 3 days) | 7.7 N/cm |
| Adhesion to Steel (initial) | 6.5 N/cm |
| Adhesion to Steel (after 14 days) | 9 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 7.9 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 8.4 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 3 days) | 9 N/cm |
| Adhesion to PE (initial) | 3.7 N/cm |
| Adhesion to PE (after 14 days) | 4.1 N/cm |
| Adhesion to PET (initial) | 7.4 N/cm |
| Adhesion to PET (after 3 days) | 8.1 N/cm |
| Adhesion to PI (initial) | 7.1 N/cm |
| Adhesion to PI (after 3 days) | 7.7 N/cm |
| Adhesion to Steel (initial) | 6.5 N/cm |
| Adhesion to Steel (after 14 days) | 9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
