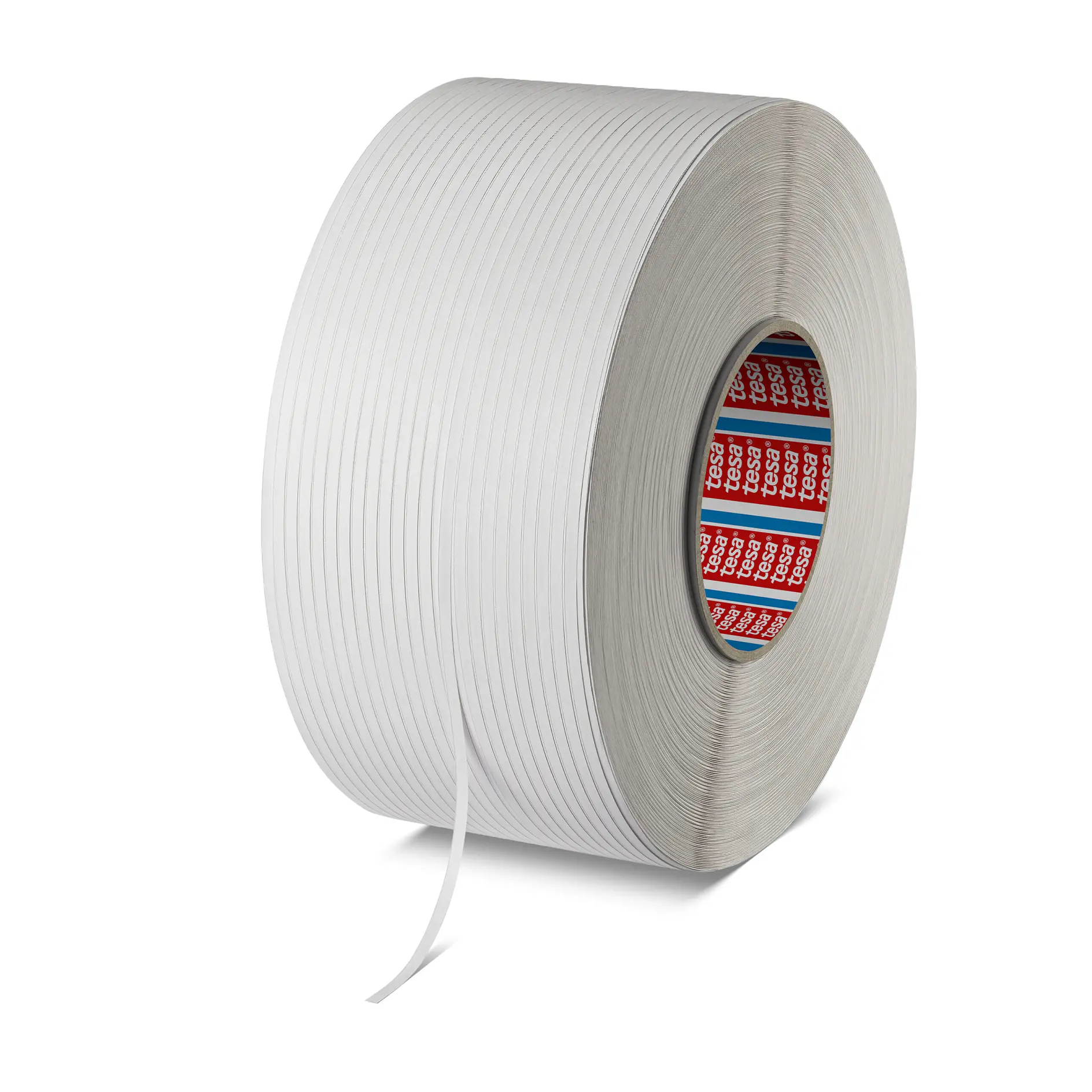

tesa® 51230 PV1
Sturdy tear tape
Product Features
- Excellent tack
- Excellent adhesion and shear resistance on a variety of corrugated and solid cardboard surfaces
- Robust backing
Product description
tesa® 51230 PV1 is a self-adhesive tensilised polypropylene tear strip with a synthetic rubber adhesive system.
The product is recommended for high unwinding speeds in automatic production.
Product details and specifications
Product Features
- Excellent tack
- Excellent adhesion and shear resistance on a variety of corrugated and solid cardboard surfaces
- Robust backing
- Due to a co-extruded PP/PE backing tesa® 51230 PV1 exhibits an excellent and unique tear performance despite its relatively low thickness.
Application Fields
- for medium grades of solid board and double-wall corrugated cardboard
- use on detergent and consumer cartons, padded shipping envelopes, express delivery and courier envelopes
Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | MOPP |
| Total thickness | 90 µm |
Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | MOPP |
| Total thickness | 90 µm |
Properties / Performance Values
| Elongation at break | 25 % |
|---|---|
| Tensile strength | 165 N/cm |
Properties / Performance Values
| Elongation at break | 25 % |
|---|---|
| Tensile strength | 165 N/cm |
Adhesion to Values
| Adhesion to Steel | 5.5 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 5.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
