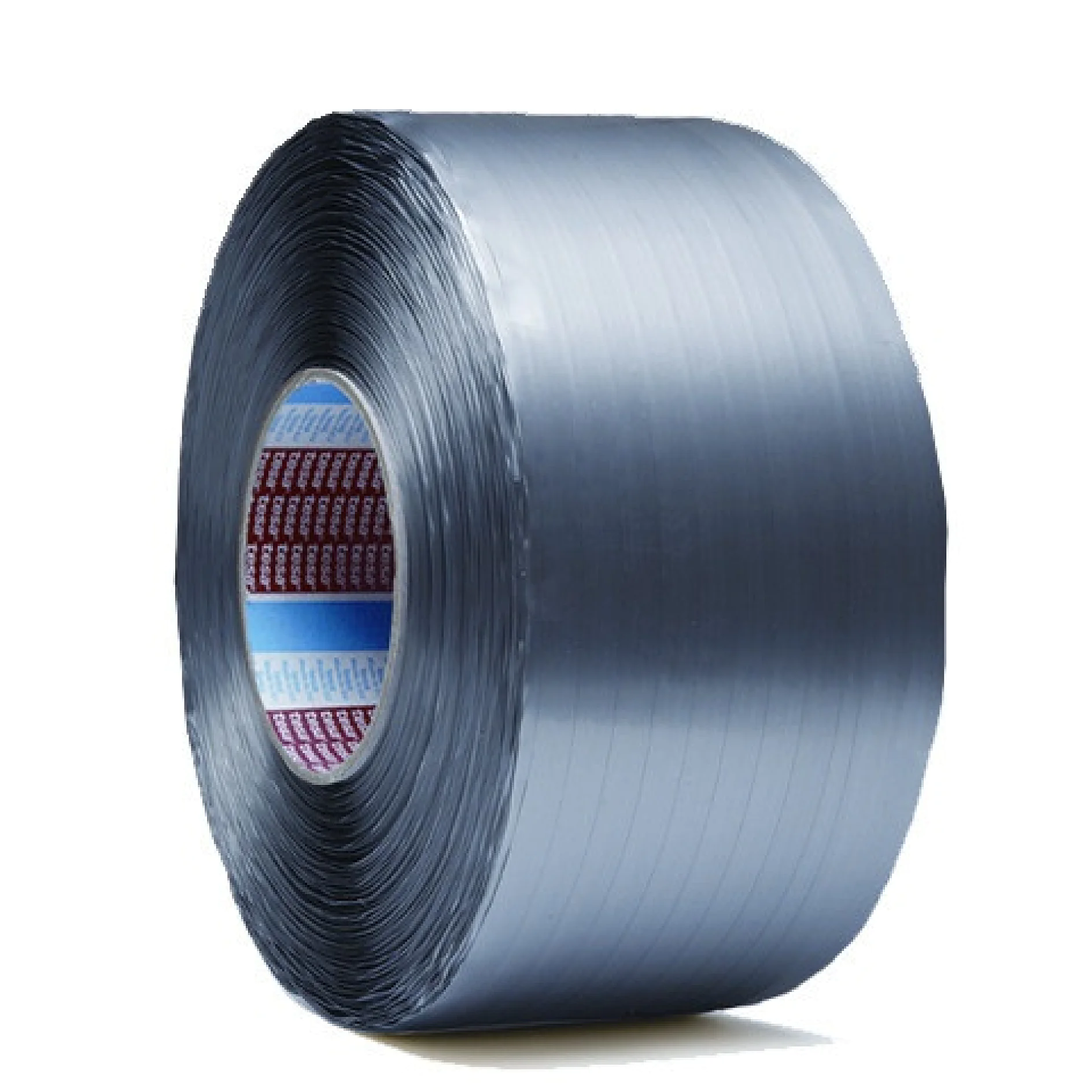

tesa® 50060 Flexible

Bidirectional polyester filament reinforcement tape


Product Features
  • Its flexible fibres show a very good longitudinal and transverse tensile strength including resistance against bending or tearing.

Product description

tesa® 50060 Flexible is a bidirectional filament tape based on a polypropylene film laminated to polyester filaments.

Ideal applications include inner or outer reinforcement of cardboard boxes against tearing or bursting.

The product is especially recommended for the inner reinforcement of side and top hole handles.


Product details and specifications

Product Features

  • Its flexible fibres show a very good longitudinal and transverse tensile strength including resistance against bending or tearing.

Application Fields

Ideal applications include inner or outer reinforcement of cardboard boxes against tearing or bursting.

The product is especially recommended for the inner reinforcement of side and top hole handles.
Adhesive Type synthetic rubber
Backing material PET-fibre / BOPP
Total thickness 175 µm
Elongation at break 20 %
Tensile strength 230 N/cm
Can be cut/punched yes
Adhesion to Steel 8 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 50060 Flexible tesa® 4591 tesa® 53314 tesa® 4590 tesa® 53327 tesa® 4578 tesa® 64285 EU PV10 tesa® 50020PV12 tesa® 53027 PV10 tesa® 53021 PV10 tesa® 53499 PV10
Total thickness
175 µm
115 µm
220 µm
105 µm
95 µm
175 µm
85 µm
155 µm
150 µm
180 µm
Adhesive Type
synthetic rubber
synthetic rubber
natural rubber
synthetic rubber
synthetic rubber
synthetic rubber
synthetic rubber
synthetic rubber
synthetic rubber
synthetic rubber
synthetic rubber
Backing material
PET-fibre / BOPP
glassfibre / PET film
glassfibre / PET film
glassfibre / PET film
glassfibre / BOPP
PET-fibre / BOPP
MOPP
MOPP
MOPP
MOPP
MOPP
Adhesion to Steel
8 N/cm
9.5 N/cm
5 N/cm
9 N/cm
6 N/cm
8 N/cm
6 N/cm
6 N/cm
9 N/cm
6.5 N/cm
9 N/cm
Elongation at break
20 %
4 %
5 %
4 %
35 %
35 %
35 %
35 %
35 %
Color
transparent
transparent
orange
black
white
white
Residue-free removability
yes
