Additional Info
tesa® 4330 is also available for converting/die-cutting with a paper liner (4330 PV1).

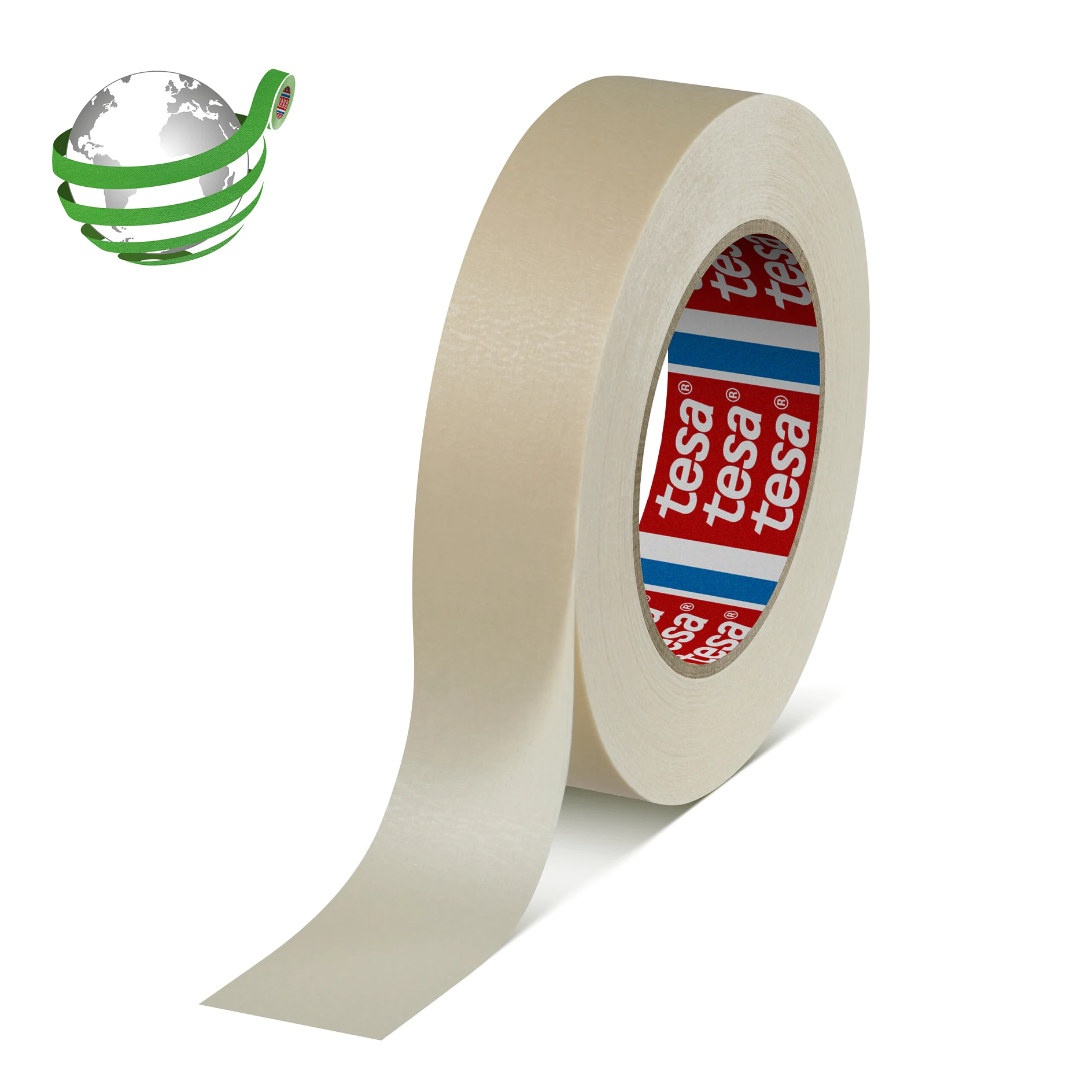

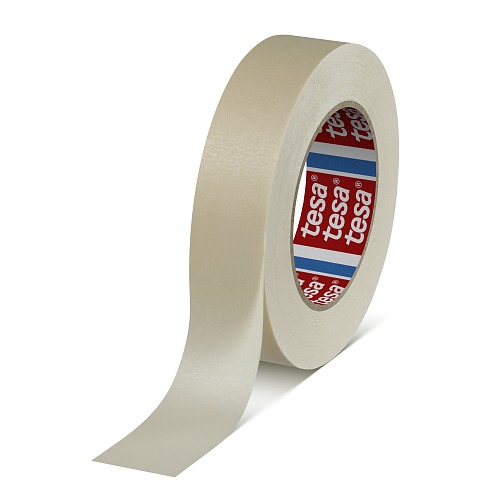

tesa® 4330
High performance paper masking tape for paintworks with oven drying up to 140 °C
Sustainable Aspects
- 48% bio-based content in total product excluding liner (by weight)
- tesa® 4330 is a fine crepe paper masking tape combined with a high adhesion and temperature resistant natural rubber adhesive.
- It is the ideal solution for high demanding automotive paint jobs (water- or solvent based paints) with subsequent oven-drying up to 140°C.
- The natural rubber adhesive provides high tack and high adhesion and to a variety of surfaces like paint, metal, glass, rubber and plastic.
Product description
Product details and specifications
Product Features
- tesa® 4330 is a fine crepe paper masking tape combined with a high adhesion and temperature resistant natural rubber adhesive.
- It is the ideal solution for high demanding automotive paint jobs (water- or solvent based paints) with subsequent oven-drying up to 140°C.
- The natural rubber adhesive provides high tack and high adhesion and to a variety of surfaces like paint, metal, glass, rubber and plastic.
- Paint and filler systems adhere excellent to the reverse side avoiding any kind of flaking.
- The fine crepe paper backing has an excellent conformability and enables good cornering.
Application Fields
- ideal for the high requirements in automotive paint jobs
- excellent adhesion to a variety surfaces like paint, metal, glass, rubber and plastic
- the conformable tape enables excellent cornering and paint / filler anchorage on reverse side
- also suited for masking of circuit boards before plating
Sustainable Aspects
- 48% bio-based content in total product excluding liner (by weight)
Product Construction
| Adhesive Type | natural rubber |
|---|---|
| Backing material | slightly-creped paper |
| Total sustainable product content excluding liners | Total sustainable product excl. liners by weight (acc. EN 16785): 48 % |
| Total thickness | 175 µm |
Product Construction
| Adhesive Type | natural rubber |
|---|---|
| Backing material | slightly-creped paper |
| Total sustainable product content excluding liners | Total sustainable product excl. liners by weight (acc. EN 16785): 48 % |
| Total thickness | 175 µm |
Properties / Performance Values
| Elongation at break | 12 % |
|---|---|
| Tensile strength | 42 N/cm |
| Temperature resistance (30 min) | 160 °C |
| Temperature resistance (60 min) | 140 °C |
| Easy to remove | yes |
| Hand tearability | very good |
Properties / Performance Values
| Elongation at break | 12 % |
|---|---|
| Tensile strength | 42 N/cm |
| Temperature resistance (30 min) | 160 °C |
| Temperature resistance (60 min) | 140 °C |
| Easy to remove | yes |
| Hand tearability | very good |
Adhesion to Values
| Adhesion to Steel | 4.8 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 4.8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
