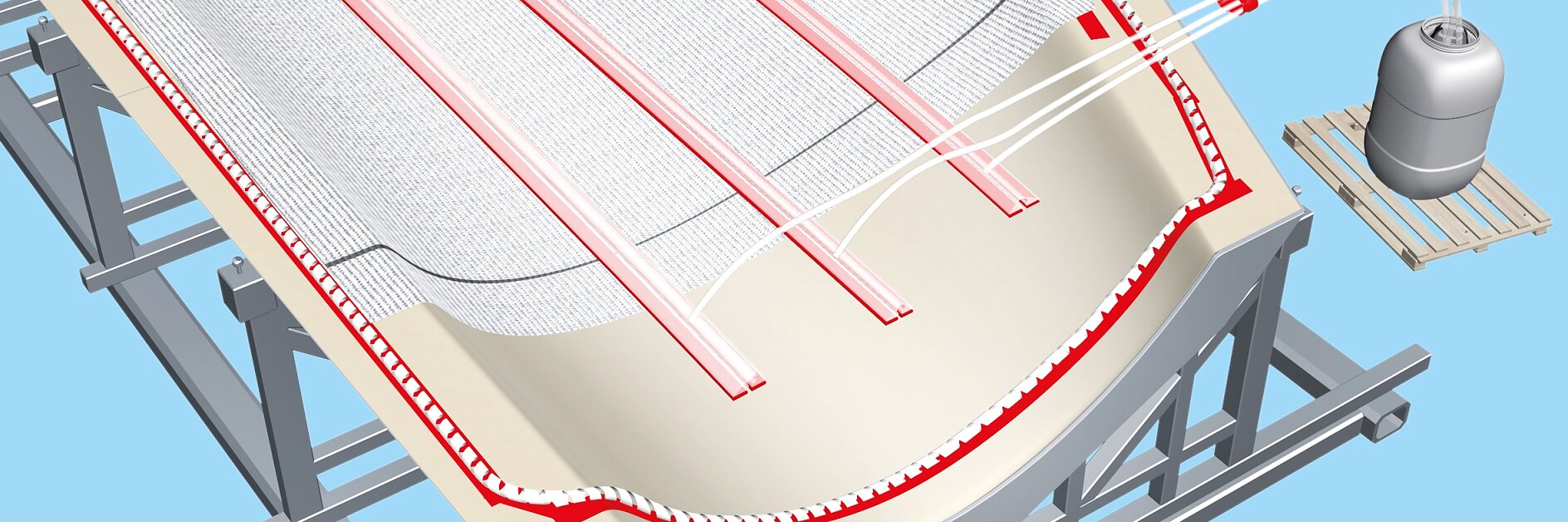

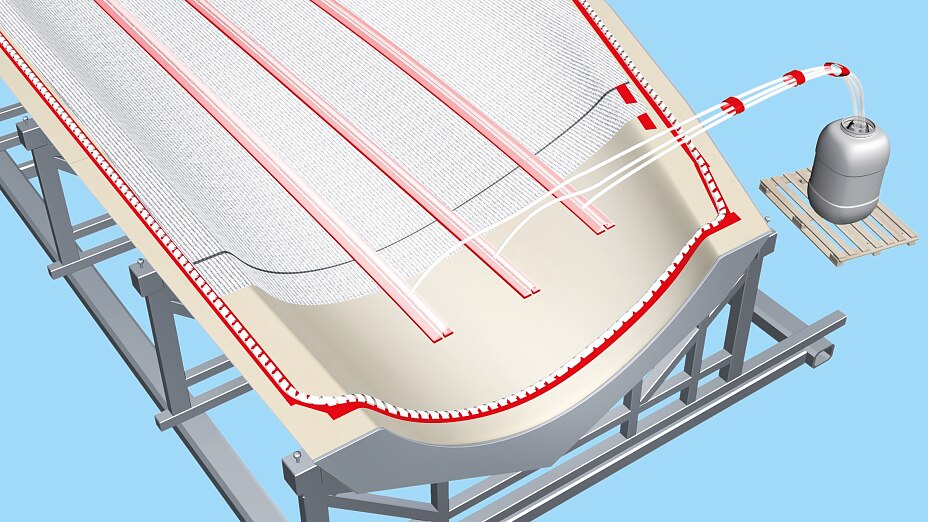

Lay-Up and Infusion Process
The lay-up and infusion process is at the core of blade production – make your processes fast and reliable.

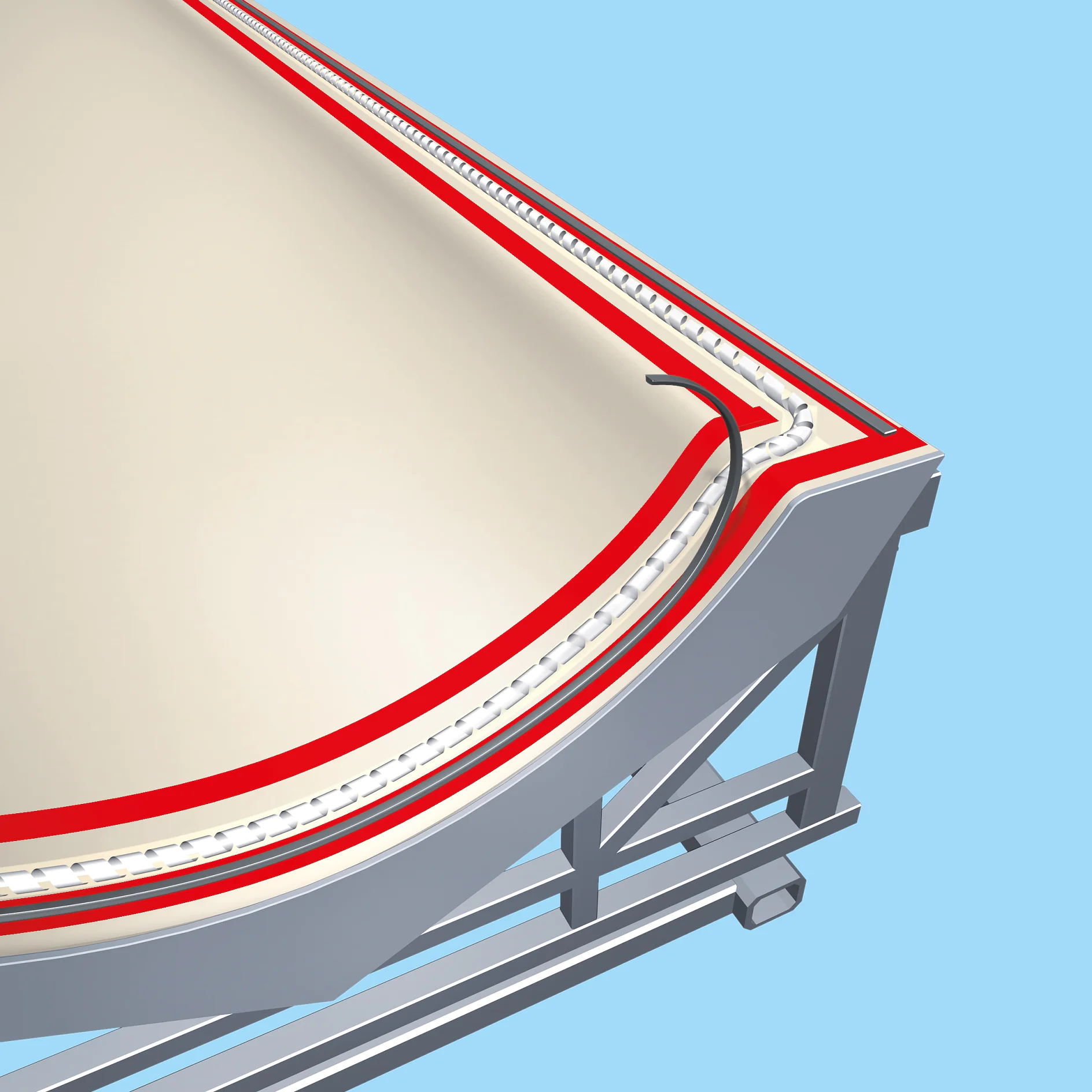

Flash Breaker Tapes
Our range of single-sided PET tapes with silicone adhesive are designed for masking applications around the mold during resin infusion. They adhere well to molds treated with release coats, can be removed without tearing, and protect the mold from flashed resin. They are available in various colors and thicknesses for either higher conformability or greater tensile strength.
- Excellent adhesion on mold surface, even with release coat applied
- Temperature resistant up to 220 °C
- Easy removal without residue

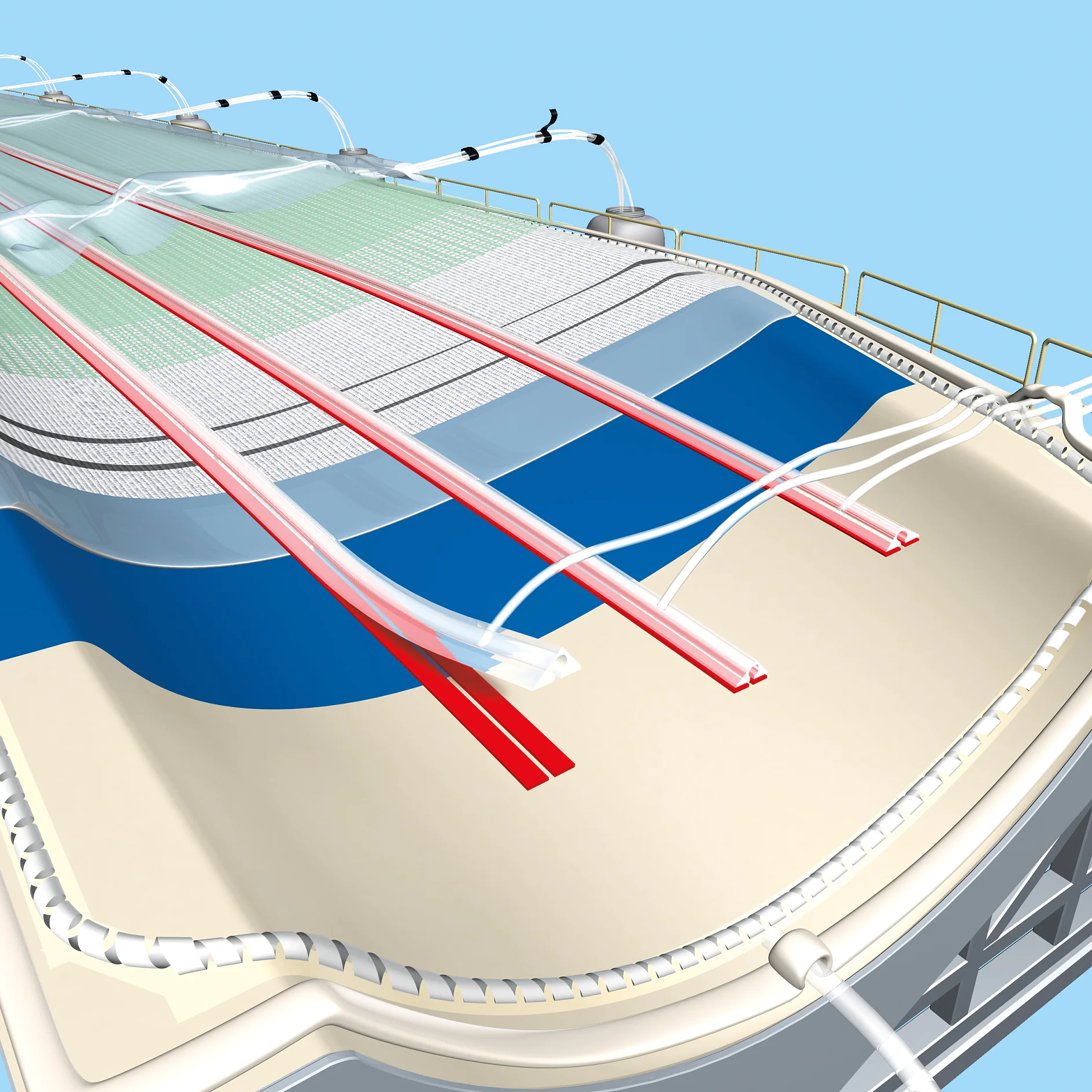

Fixation of Resin Infusion Channels
Our selected double-sided tapes are a trusted solution for fixing plastic resin infusion channels to the resin distribution net. They can be applied quickly and reliably, which leads to a more homogenous resin distribution. We have tapes with different levels of adhesive on each side for better removability.
Good immediate adhesion
Trusted solution for blade production

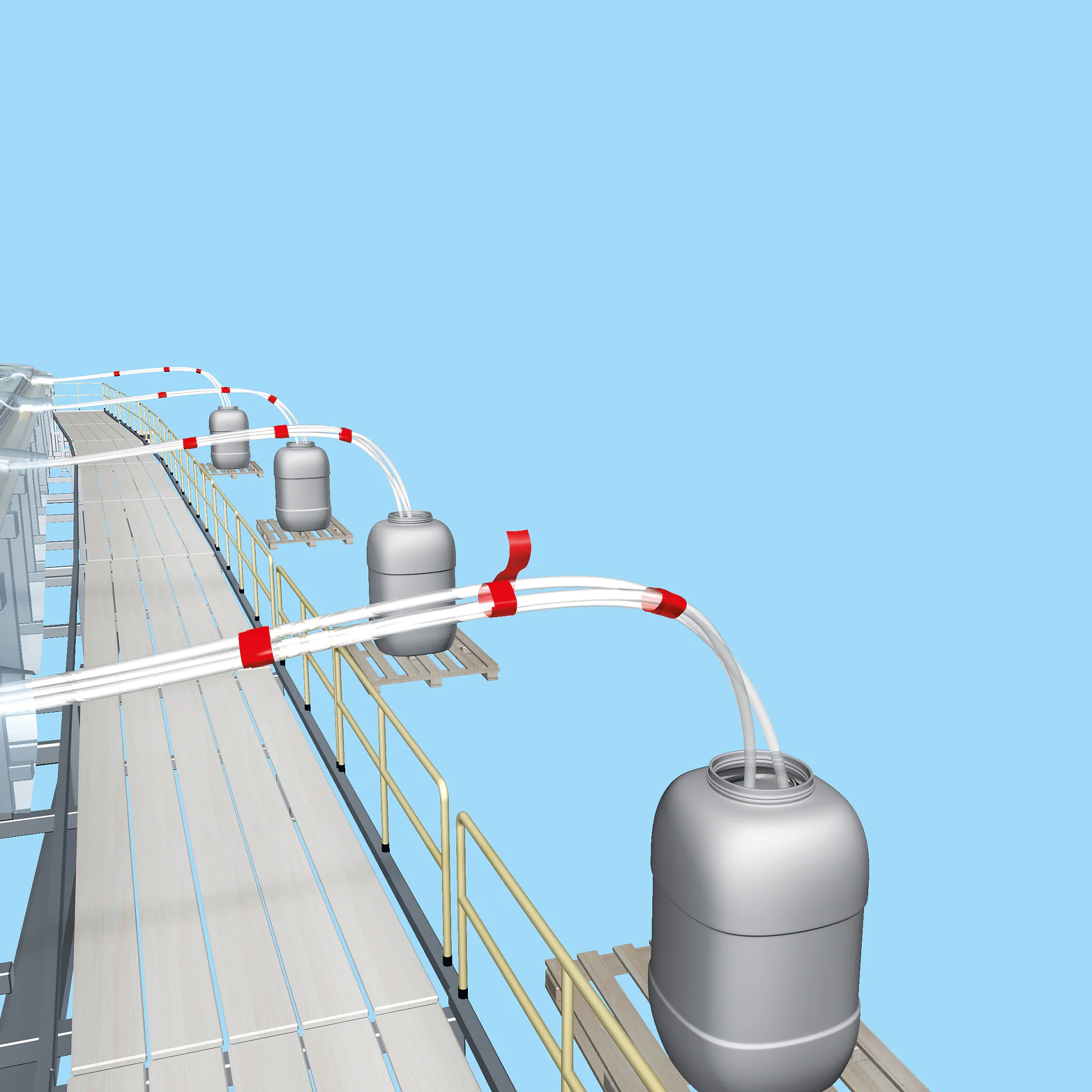

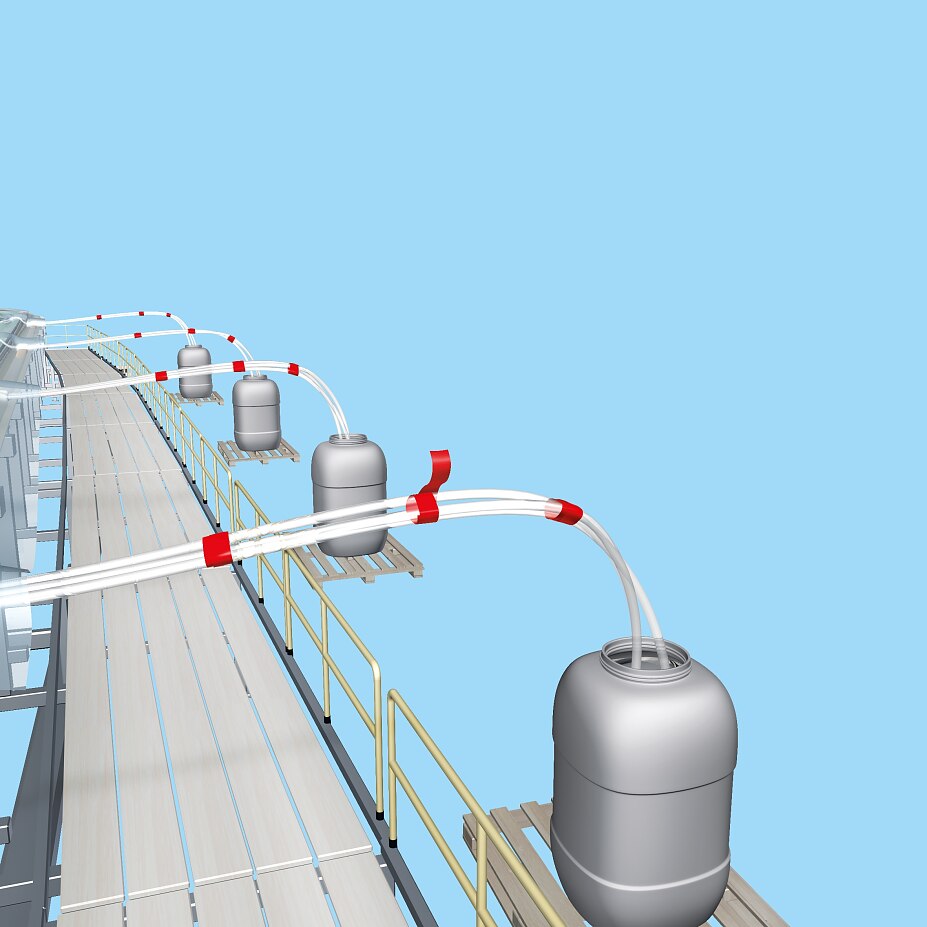

Bundling of Tubes
Our single-sided duct tapes feature an aggressive tack even on rough surfaces. They are easy to tear by hand and can be used for a wide range of fixing and bundling applications on the shop floor.

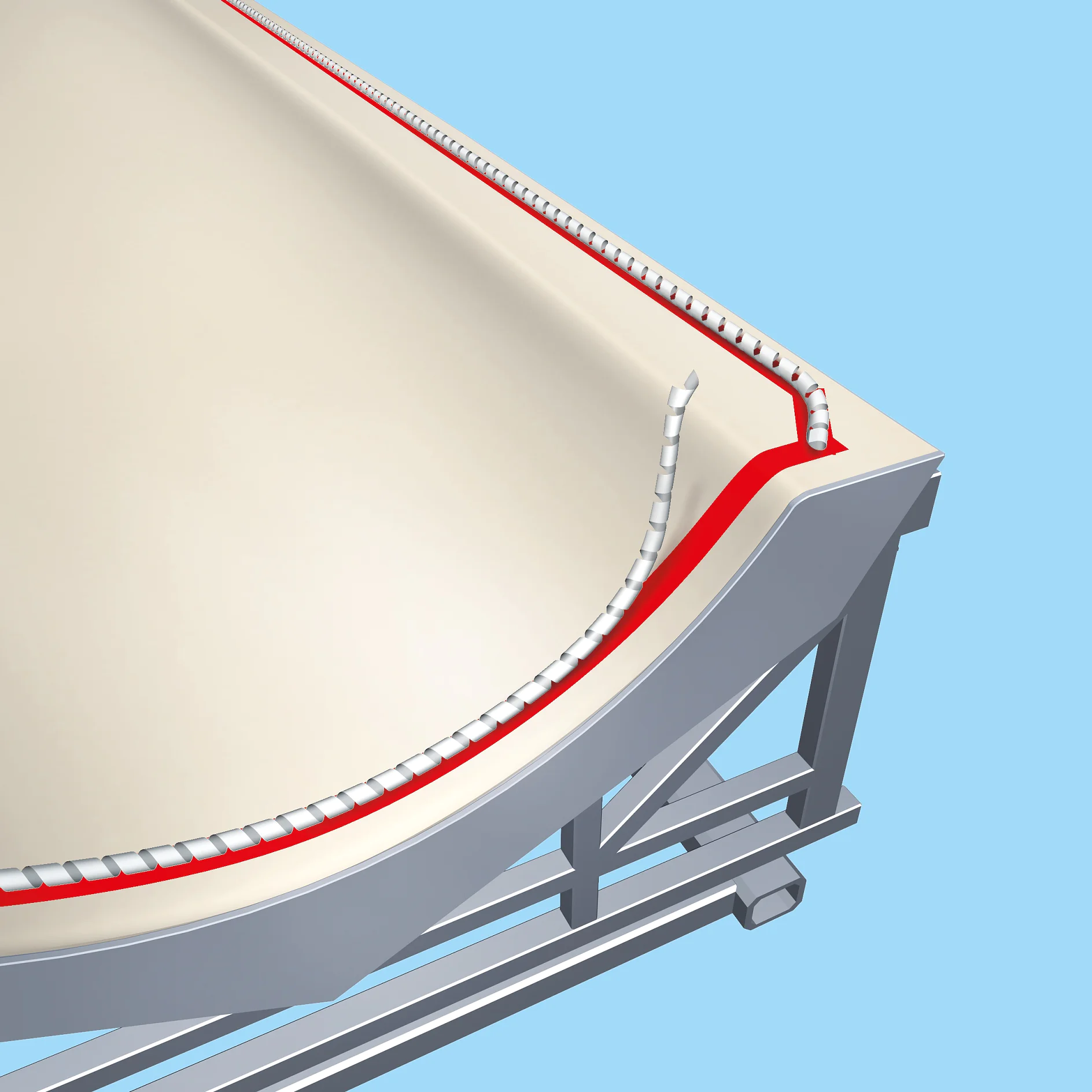

Holding of Vacuum Spirals
There are several methods to form the vacuum channels. If you want to fixate vacuum spirals to the mold, then choose one of our double-sided tapes. The tape will need to bond well to the mold as well as the vacuum spiral so that there is no displacement during mold preparation and resin infusion. Using a tape that can be removed without leaving any residue reduces the time needed for the next mold preparation cycle.
High immediate adhesion

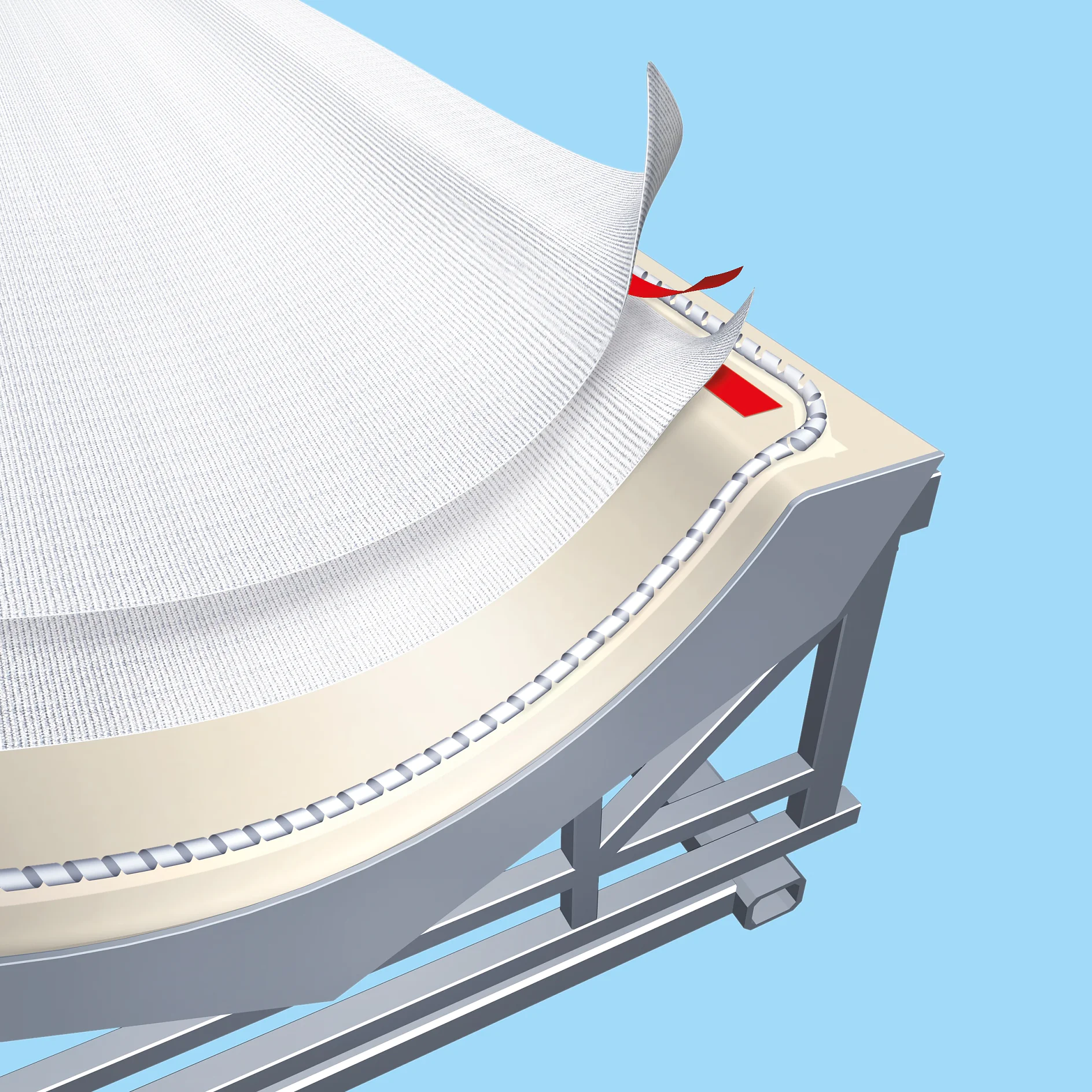

The blade consists of numerous layers of glass fiber. Our customers use different methods in order to prevent the web from slipping into the mold during layup. At the edge of the mold, tesa double-sided adhesive tapes can be used to fix the first layer as well as the following layers to each other. Which product is used depends on requirements for removability and temperature resistance. Please contact us for more information.
- Very good tack
- tesa® 51960: Residue-free removable
- tesa® 51960: Temperature-resistant adhesive
