Acrylic Foam Tapes

For Applications with Extreme Requirements



The bonding of components in electronic devices can be very challenging. For many applications high-tech materials with special structures and properties are used. The components are characterized by complex geometries to meet the latest design requirements of the consumer. Our acrylic foam tape assortment is especially designed for demanding applications in the electronics industry and is distinguished by its very special bonding capabilities. The high bonding performance is based on its viscoelasticity: elastic and viscous characteristics providing inner strength as well as relaxation of mechanical stresses. The use of highly innovative technologies and special acrylic adhesive systems together with the viscoelastic nature of acrylic foams create multiple benefits like impact resistance, high bonding strength, and waterproofing for electronic devices for the entire life cycle of the product.

Typical applications of our ACF assortment

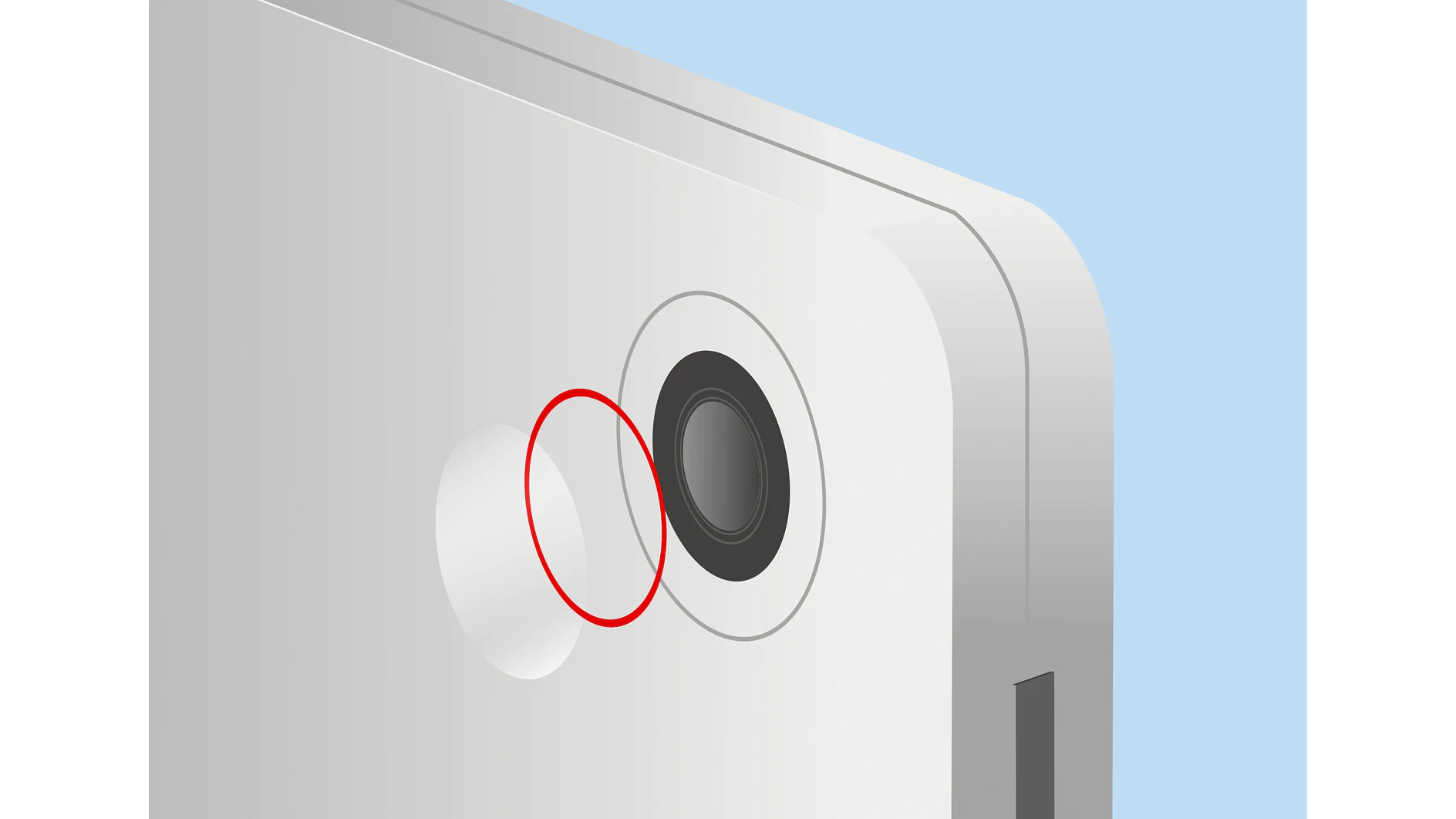

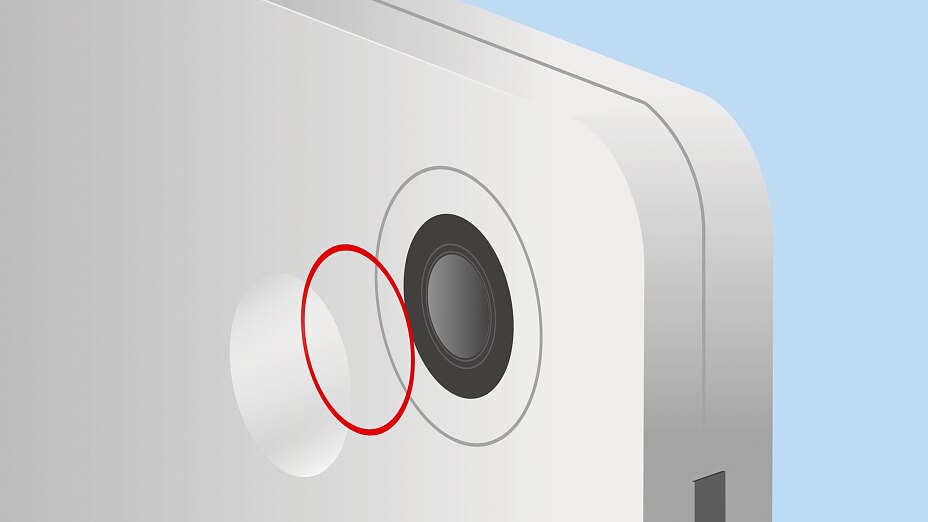

Electronics: Component Mounting Applications for Lenses
Component mounting with special demands

Ultra-slim bezel design requirements (e.g., superior bonding strength, processability). Need for chemical-resistant solutions.

Read more
tesa-electronics-smartphone-display-mounting-bottom-illustration

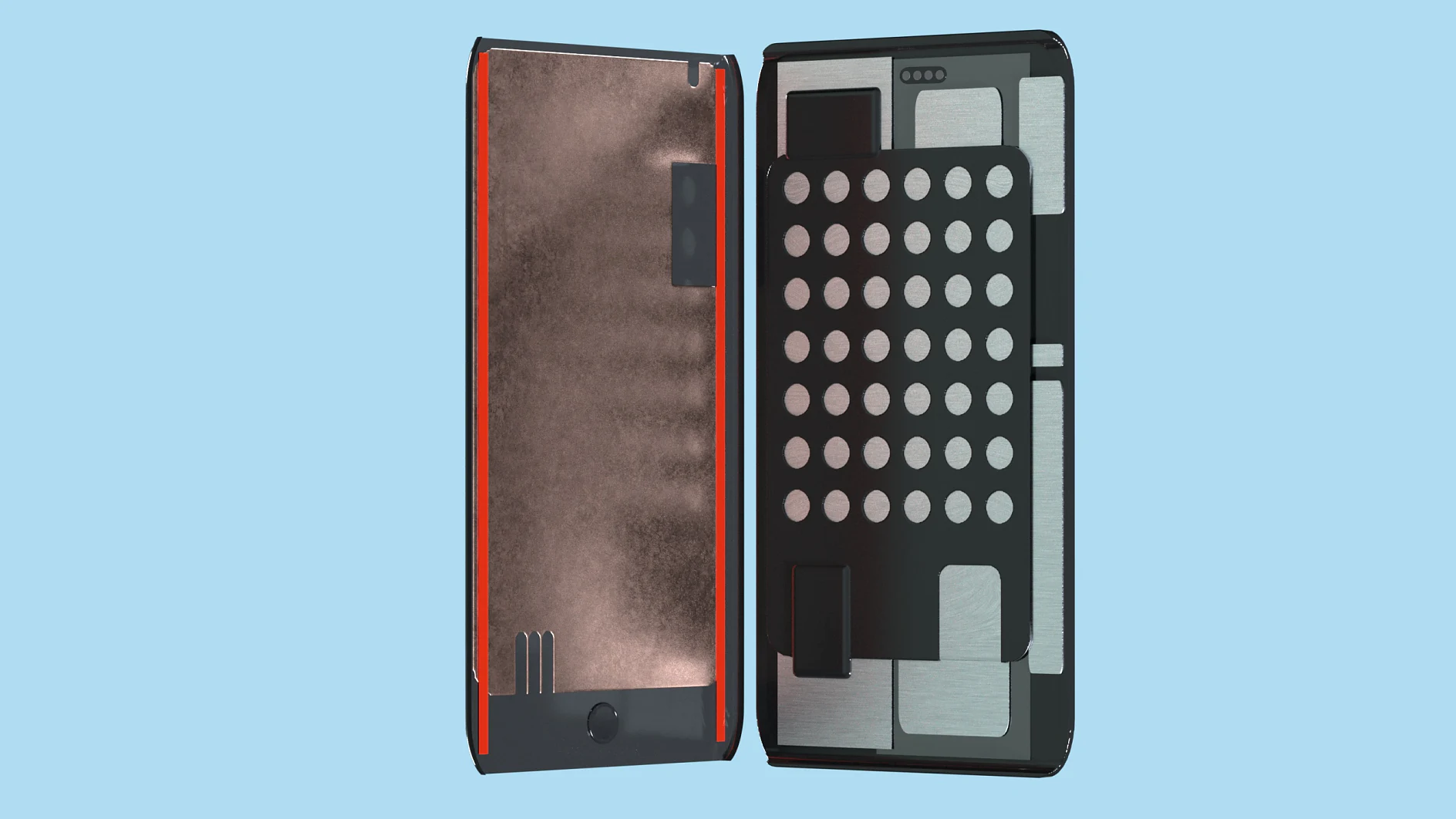

Display bottom

Demand for high´bonding strength and impact resistance

Read more
tesa-electronics-smartphone-back-cover-mounting-illustration
Back cover mounting

Requiring superior bonding strength and anti-repulsion properties. Outstanding sealing performance.

Read more
tesa-electronics-smartphone-lens-mounting-curved-edge-illustration

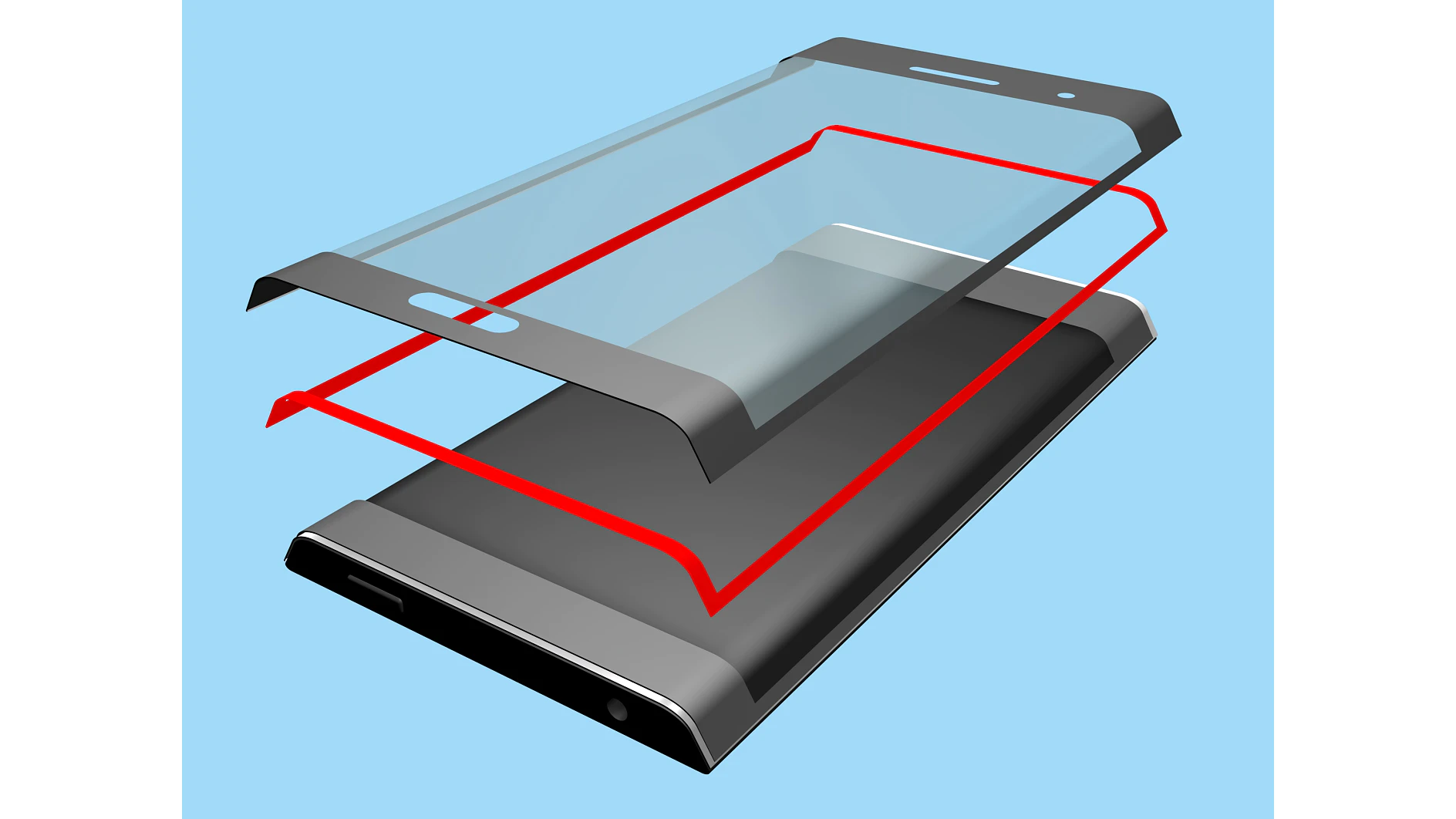

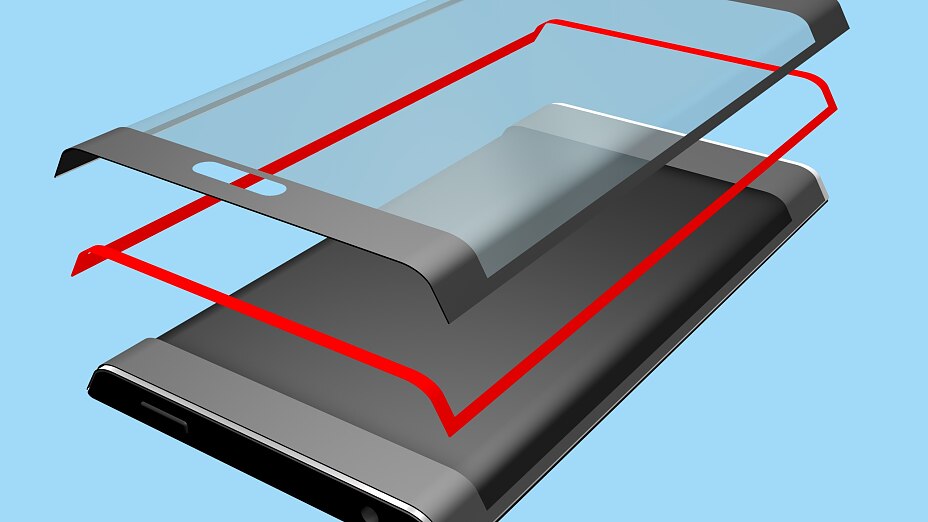

Lens mounting

High demands on bonding and shock performance. Challenging new designs. Special requirements (e.g., chemical resistance).

Read more

tesa® ACF 756xx

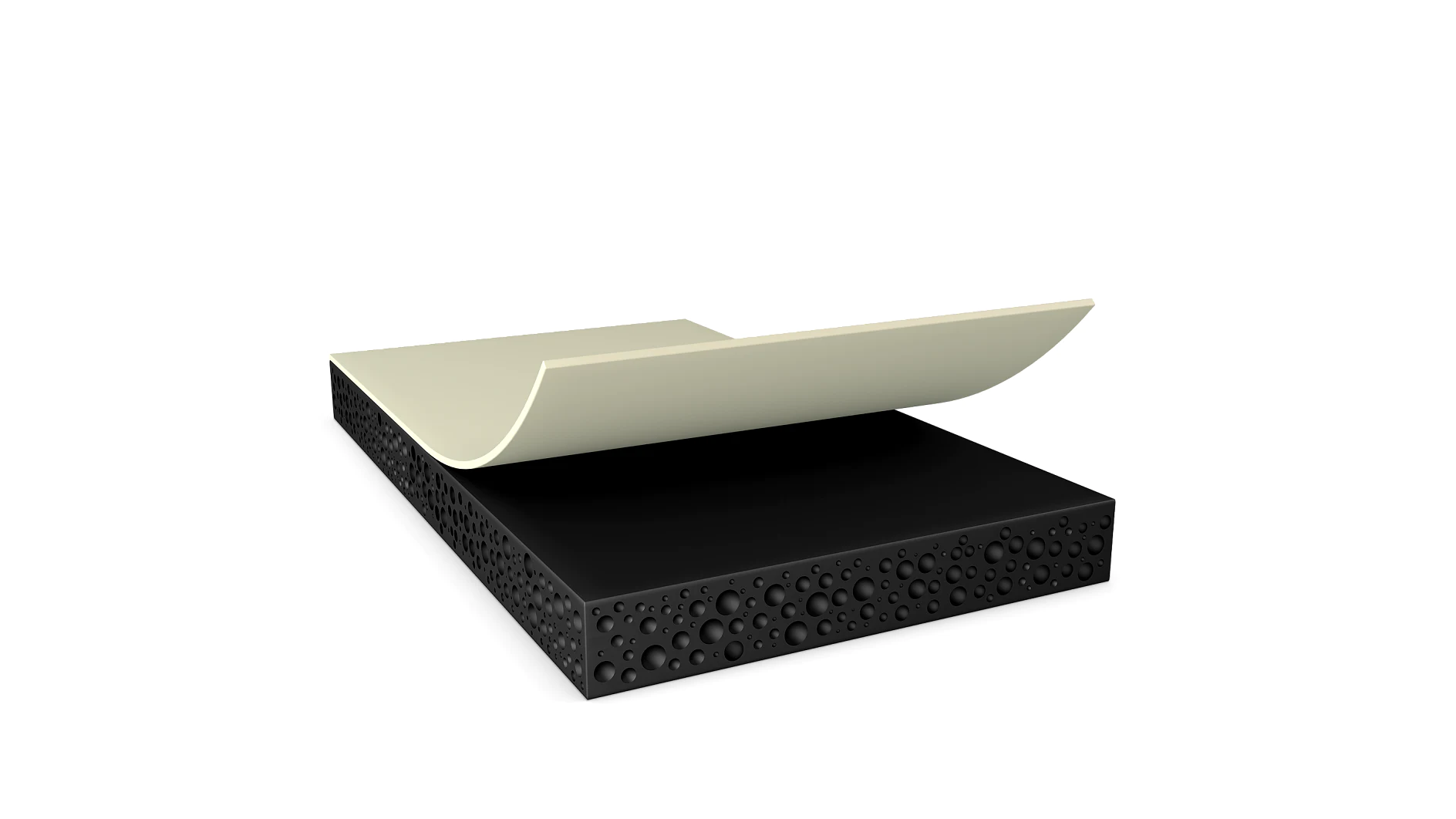

ACF 756xx is our product family that combines outstanding adhesion properties on a wide range of surfaces and a high level of conformability. This allows perfect attachment to the curves and corners of the electronic device and provides a permanent seal against water and dust. 754xx is a thickness extension of 756xx, and offers the thinnest foam tape (50 μm) available in the market.

Product-Illustration_acrylic-foam_756xx_300dpi
Product-Illustration_acrylic-foam_756xx_300dpi

Structure

Read more
Icon-bonding-power-3
Icon-bonding-power-3

Best bonding

Read more

tesa® ACF 757xx

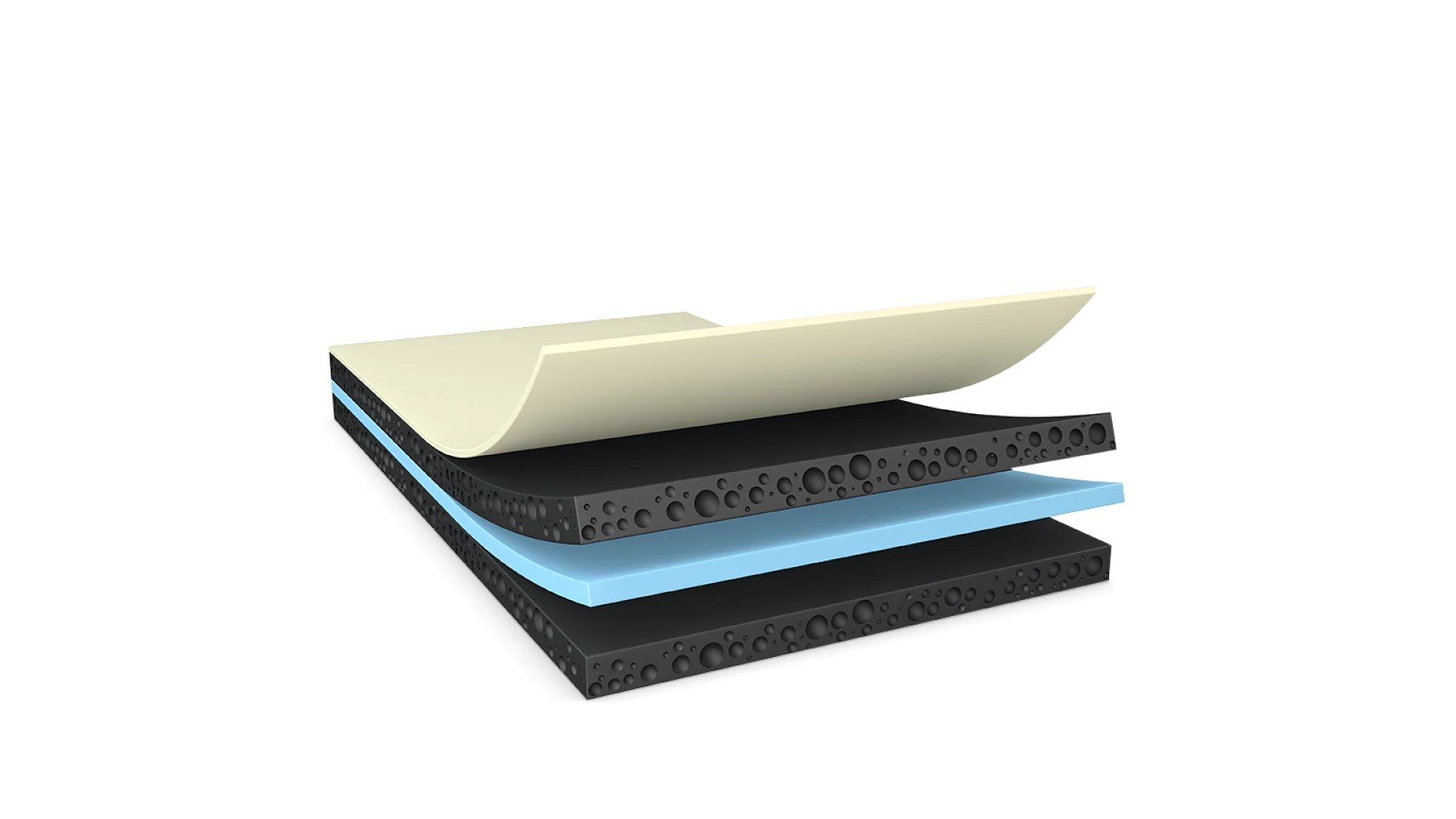

Besides the ACF-technology-related impact resistance and bonding strength the acrylic adhesive system used for our ACF 757xx family enables a good wetting, which creates a powerful bond on materials with different surface characteristics. This product family is equipped with a film (PET) reinforcement allowing excellent reworkability and die-cuttability.

Product-Illustration_acrylic-foam_PET_757xx_72dpi
Product-Illustration_acrylic-foam_PET_757xx_72dpi

Structure

Read more

tesa® ACF 759xx

Whether in business, vacation, or sports, devices are challenged to survive from chemicals such as perfume, sun spray or sweat. Normally, pressure-sensitive adhesive tapes face huge problems when they come in contact with chemicals due to a significant loss of bonding strength. Where other tape technologies fail, our ACF 759xx family shows an impressive performance against a variety of different chemicals. This superior chemical resistance is a result of this product’s unique adhesive formulation. Of course, this series also provides the standard features of the viscoelastic acrylic foam technology.

Product-Illustration_acrylic-foam_PET_757xx_72dpi
Product-Illustration_acrylic-foam_PET_757xx_72dpi

Structure

Read more
tesa icon-chemical-resistance_2
tesa icon-chemical-resistance_2

Chemical resistance

Read more
tesa_Icon-Business Solution-001_72dpi

Can´t find the right solution?

We have more options available in our portfolio and by partnering with you we can create unique and specialized products that meet your individual demands.

Simply write to us or contact your local representative.

electronics@tesa.com

Assortment overview

Show filters
tesa® 75620
Specifications
acrylic
modified acrylic
200 µm
tesa® 75625
Specifications
acrylic
modified acrylic
250 µm
tesa® 75630
Specifications
acrylic
modified acrylic
300 µm
tesa® 75635
Specifications
acrylic
modified acrylic
350 µm
tesa® 75640
Specifications
acrylic
modified acrylic
400 µm
tesa® 75710
Specifications
PETP
modified acrylic
100 µm
100 %
tesa® 75715 H
Specifications
PETP
modified acrylic
150 µm
100 %
tesa® 75720
Specifications
PETP
modified acrylic
200 µm
100 %
tesa® 75723
Specifications
PETP
modified acrylic
230 µm
100 %
tesa® 75725
Specifications
PETP
modified acrylic
250 µm
100 %
tesa® 75730
Specifications
PETP
modified acrylic
300 µm
100 %
tesa® 75735
Specifications
PETP
modified acrylic
350 µm
100 %
tesa® 75745
Specifications
PETP
modified acrylic
250 µm
100 %
