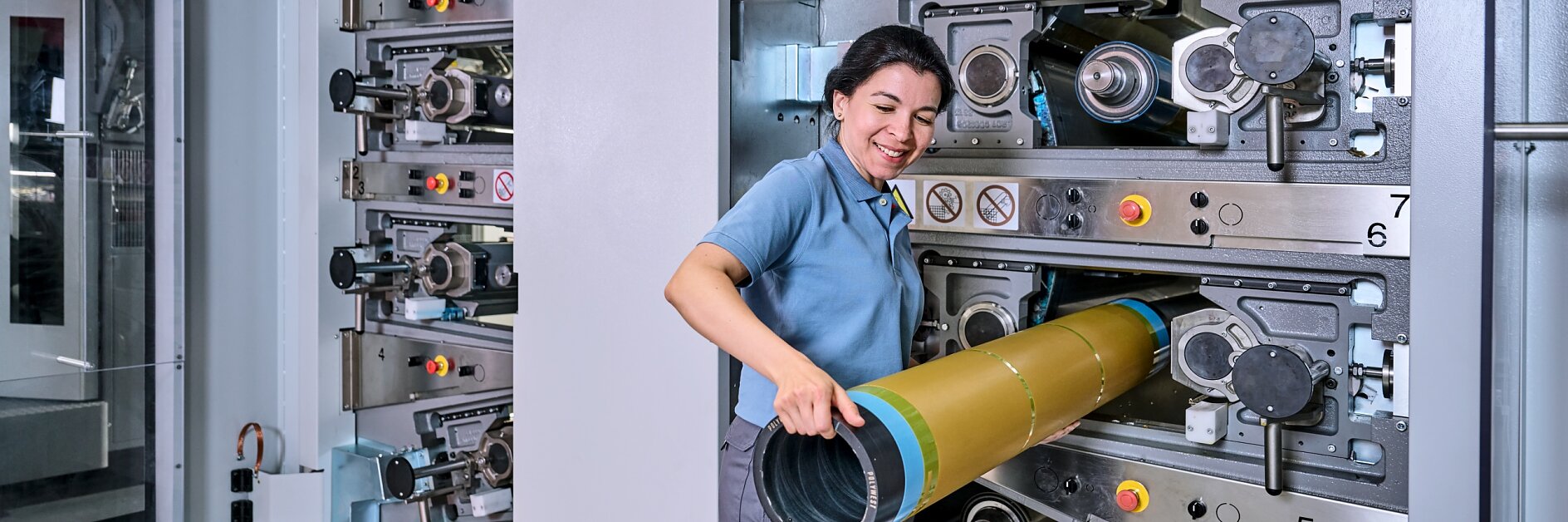

A woman in a blue polo shirt and gray pants is inserting a cylindrical part into a large industrial machine with multiple numbered sections, using tesa tape. The setting appears to be a factory or manufacturing facility. (This text has been generated by AI)

Introducing
tesa® Softprint 7332x
TP-X EA Flex

Technologies

Our structured 'easy application' liner is now available with one more of our most popular adhesive systems

Based on customer requests, with this product launch we are combining three market-proven components:

tesa® Softprint Flex EA liner open blue_cropped

01Our structured easy application (EA) liner

  • Unique structure creates microchannels in the adhesives of both plate and sleeve side
  • Channels avoid air accumulation beneath plate - ensuring trouble-free mounting and printing
  • Smooth liner surface enables easy and low friction tape mounting by hand, reducing waste and saving time in the mounting department
  • Transparency of the liner for easily visible color coding of the tape's hardness

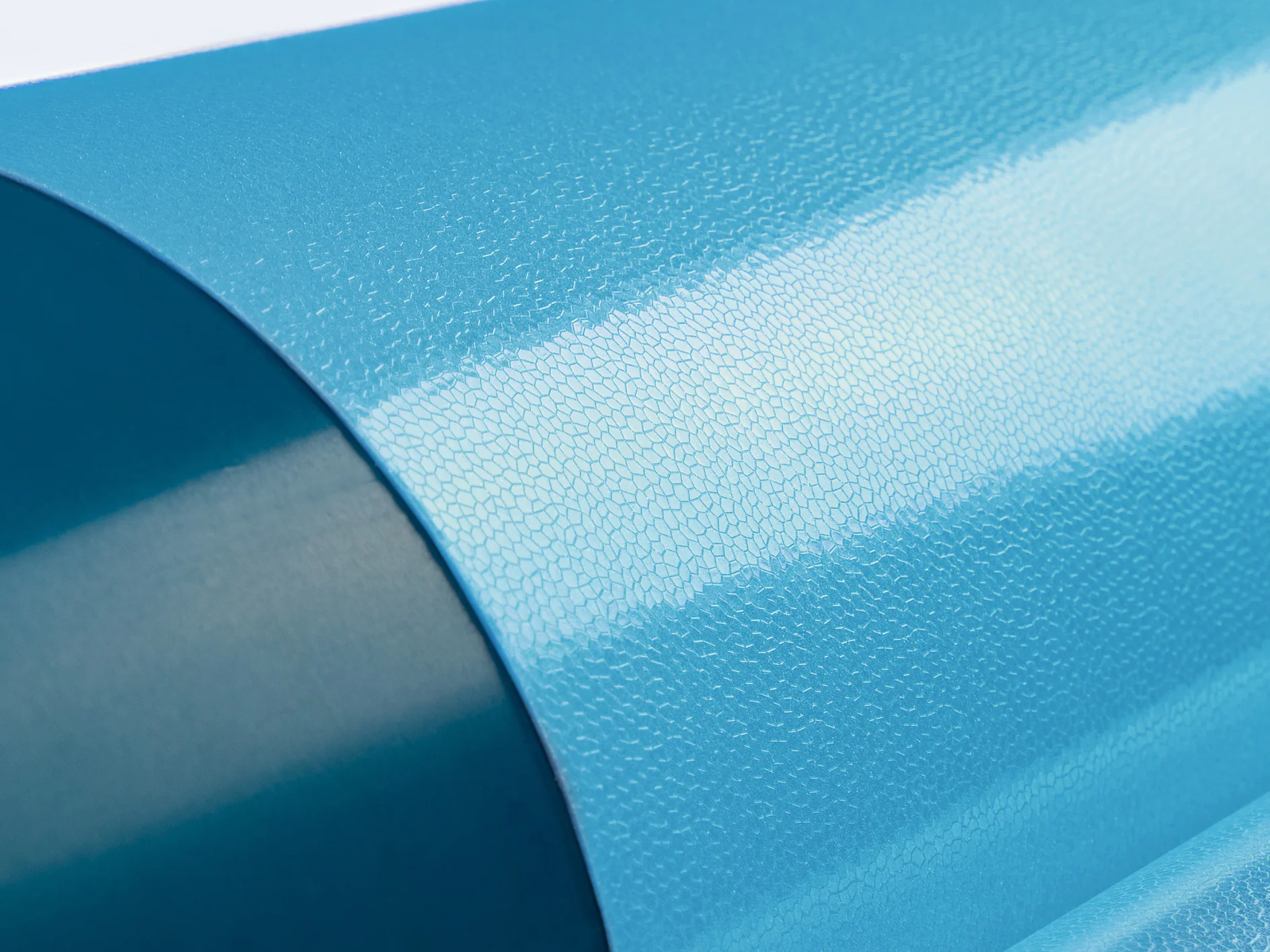

Close-up of a shiny, textured blue surface displaying a subtle crackle pattern. The surface appears to be metallic with a reflection of light, enhancing its glossy appearance, held together seamlessly with tesa tape. (This text has been generated by AI)

02Our well-known 'TP-X' adhesive package

  • Offers medium tack on the plate side, especially designed to work even in warm and very humid conditions
  • Large bonding area between the tape's adhesive and the printing plate will securely keep those plate edges down also during long print runs, avoiding machine down time
  • Is ink-resistant on the plate side for easy demounting after printing even in case of ink residues on the plate's back side
  • Has a strong bond to the sleeve

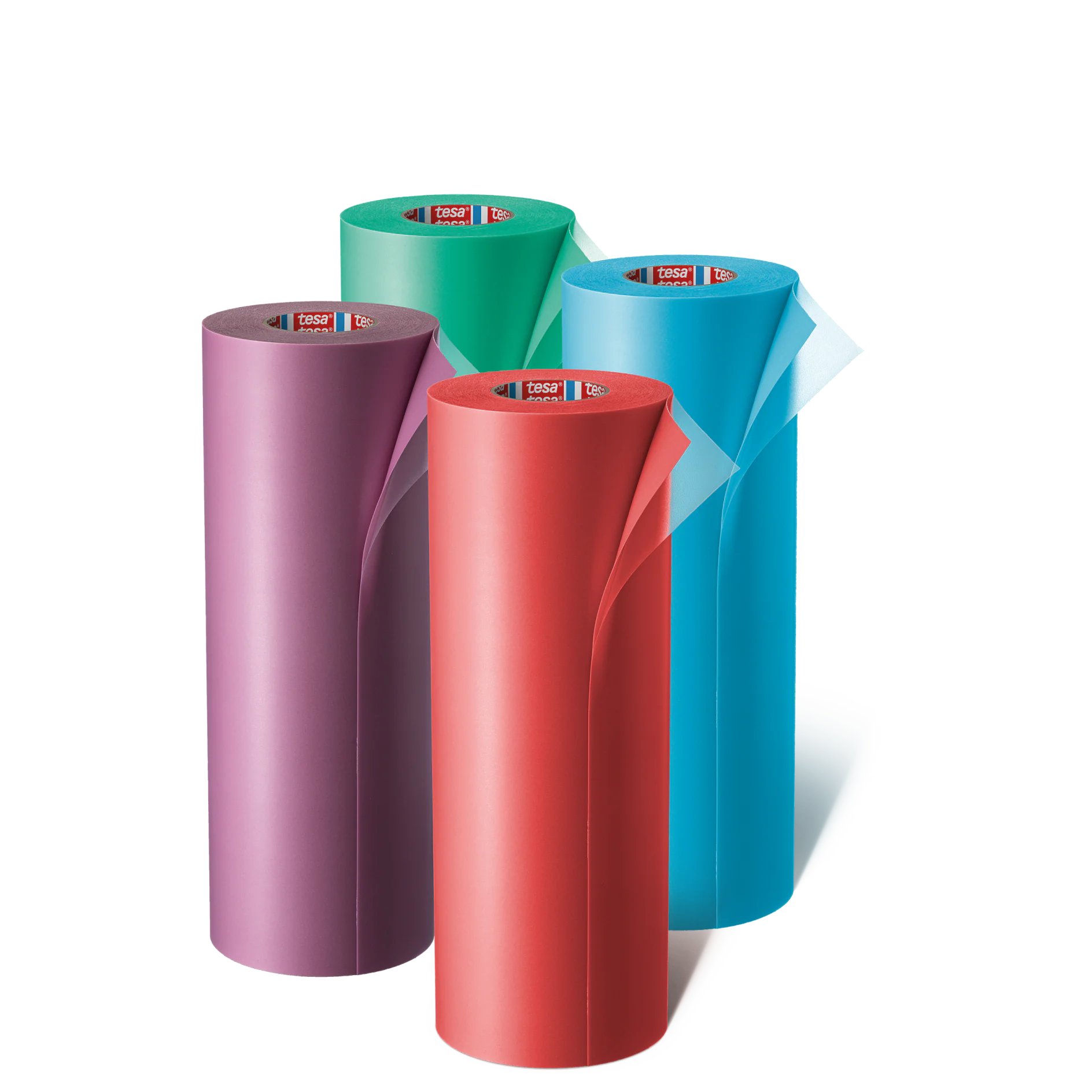

Four rolls of colorful tesa tape are shown standing upright. From left to right, the colors are purple, red, turquoise, and blue. Each roll is slightly unrolled, revealing the adhesive side. (This text has been generated by AI)

03Our tesa® Softprint 'Flex' product design

Ready to test?

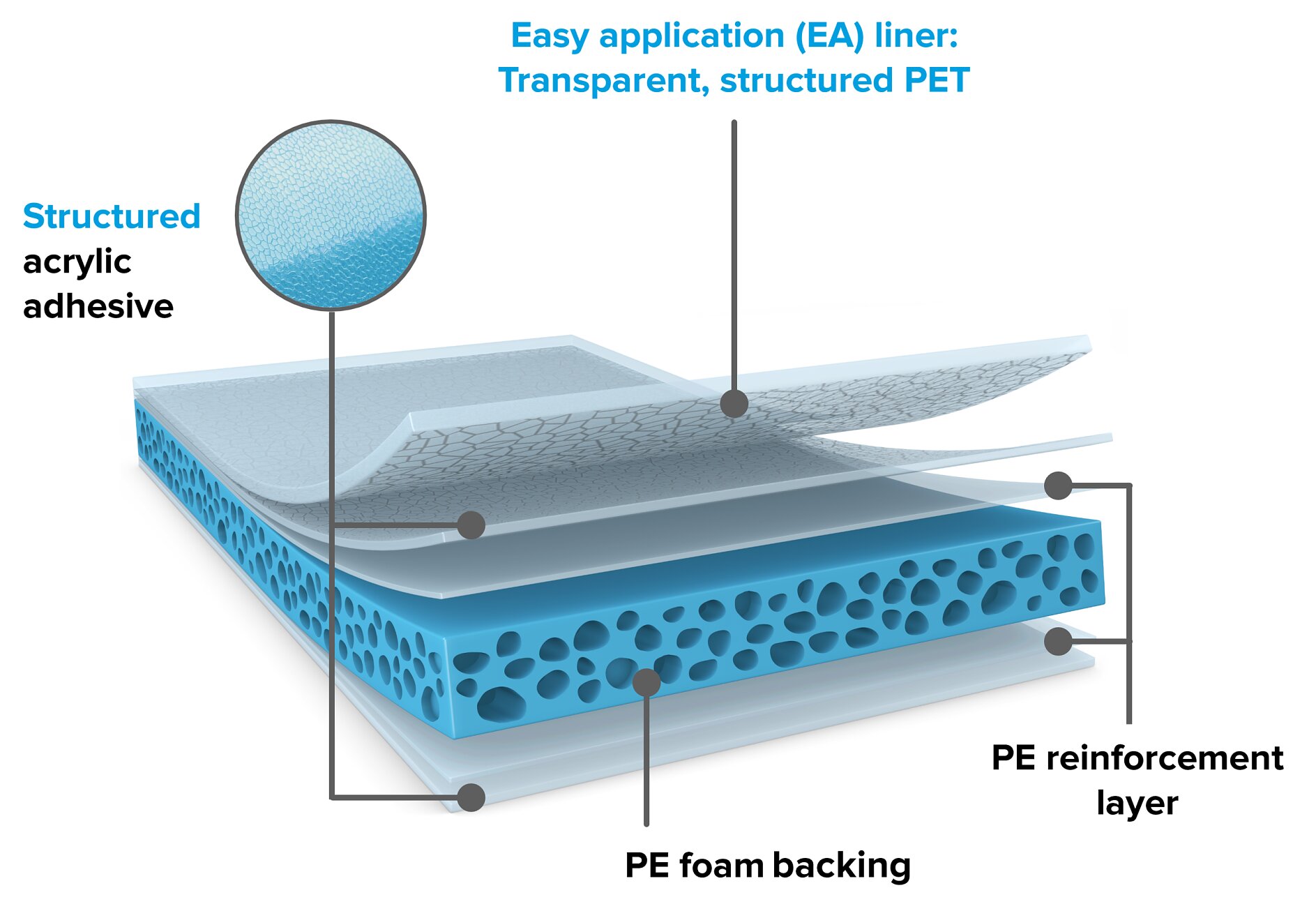

Diagram showing layers of a structured material. The top layer is labeled Easy application (EA) liner: Transparent, structured PET. Below, layers include a tesa tape surface and a blue porous section, with labels pointing to each part. (This text has been generated by AI)

At tesa, we are driven by the mission to simplify operations in the plate mounting industry through cutting-edge adhesive technologies and a team of flexographic specialists spanning the globe. By fostering collaboration and developing new products based on customer feedback, we strive to enhance your production line's efficiency, ultimately delivering significant savings in terms of time, finances, and resources.

Our new tesa® Softprint 7332x TP-X EA Flex complements our EA liner assortment after originally launching tesa® Softprint 7352x FE-X EA Flex (featuring a different adhesive system). Based on customer input, we plan to further extend our assortment in the upcoming months to offer best-fitting adhesives and product designs combined with this state-of-the-art liner technology.

tesa® Softprint 7332x TP-X EA Flex has been successfully tested by customers also in warm and especially humid conditions. If you want to go ahead and put it to the test in your production line, contact your local tesa representative or use our contact form.

Contact us today
