Secure Mounting of Attachment Parts to Car Bodies

tesa® ACXplus – our double sided acrylic foam tapes for attachment solutions withstand all external influences throughout the lifetime of the car.



Bonding Power – tesa® ACXplus for Automotive Attachment Parts

During the lifetime of a vehicle, static and dynamic stresses act upon the constructive bond between the car body and the attachment part. tesa® ACXplus creates a powerful even bond between automotive materials with different surface characteristics, such as plastic parts and clear coats.

tesa® ACXplus is a range of high performance acrylic foam double-sided adhesive tapes. These automotive tapes securely mount attachment parts to the car body and at the same time provide reliable sealing and vibration damping. The unique tapes also compensate for thermal expansion and ensure excellent stress dissipation. Their high level of adaptability allows perfect attachment to the car body’s curves and corners. Due to its deep black colour, tesa® ACXplus 78XX Black Line is practically invisible when used between the attachment part and the car body.

Read more

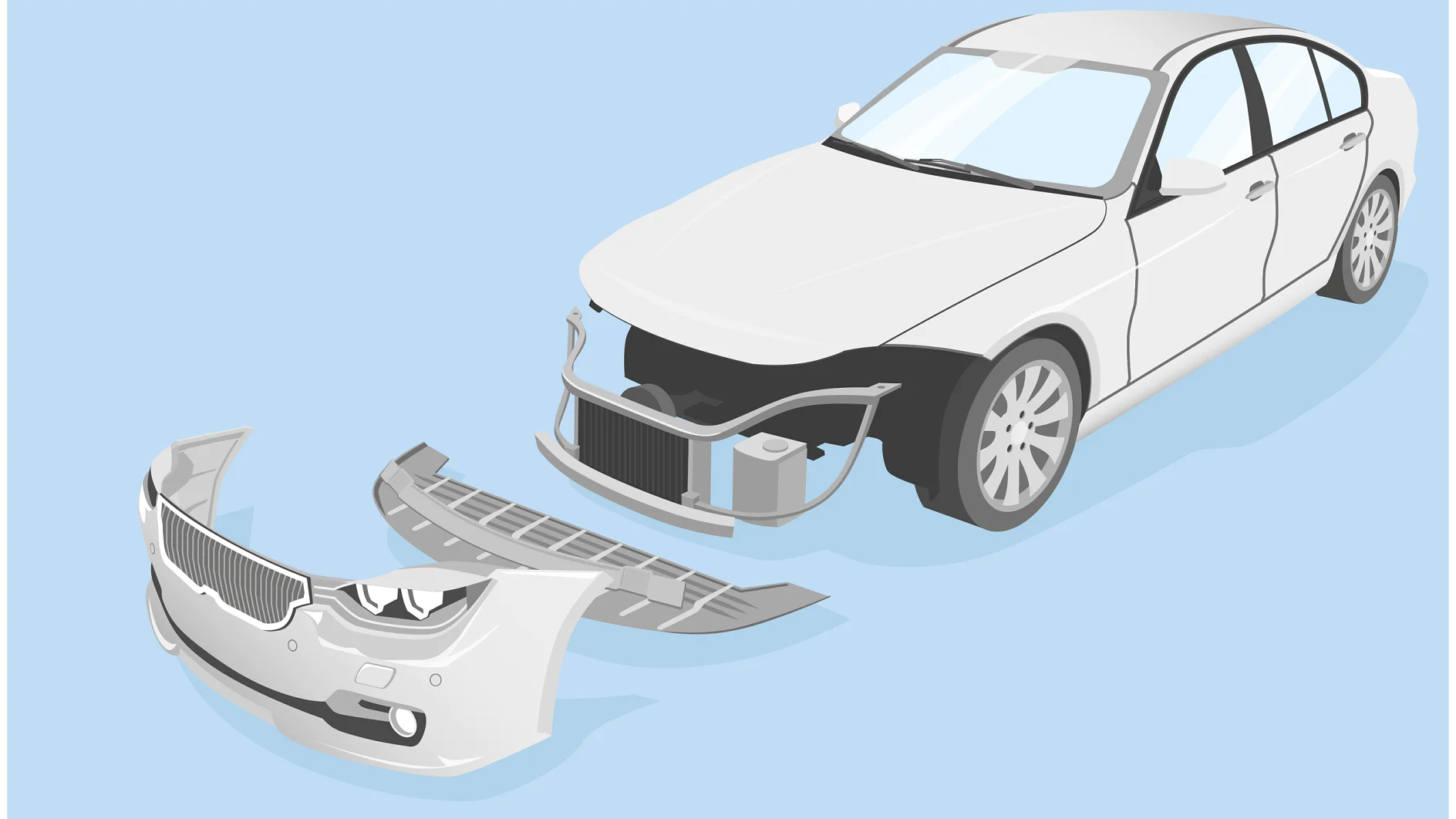

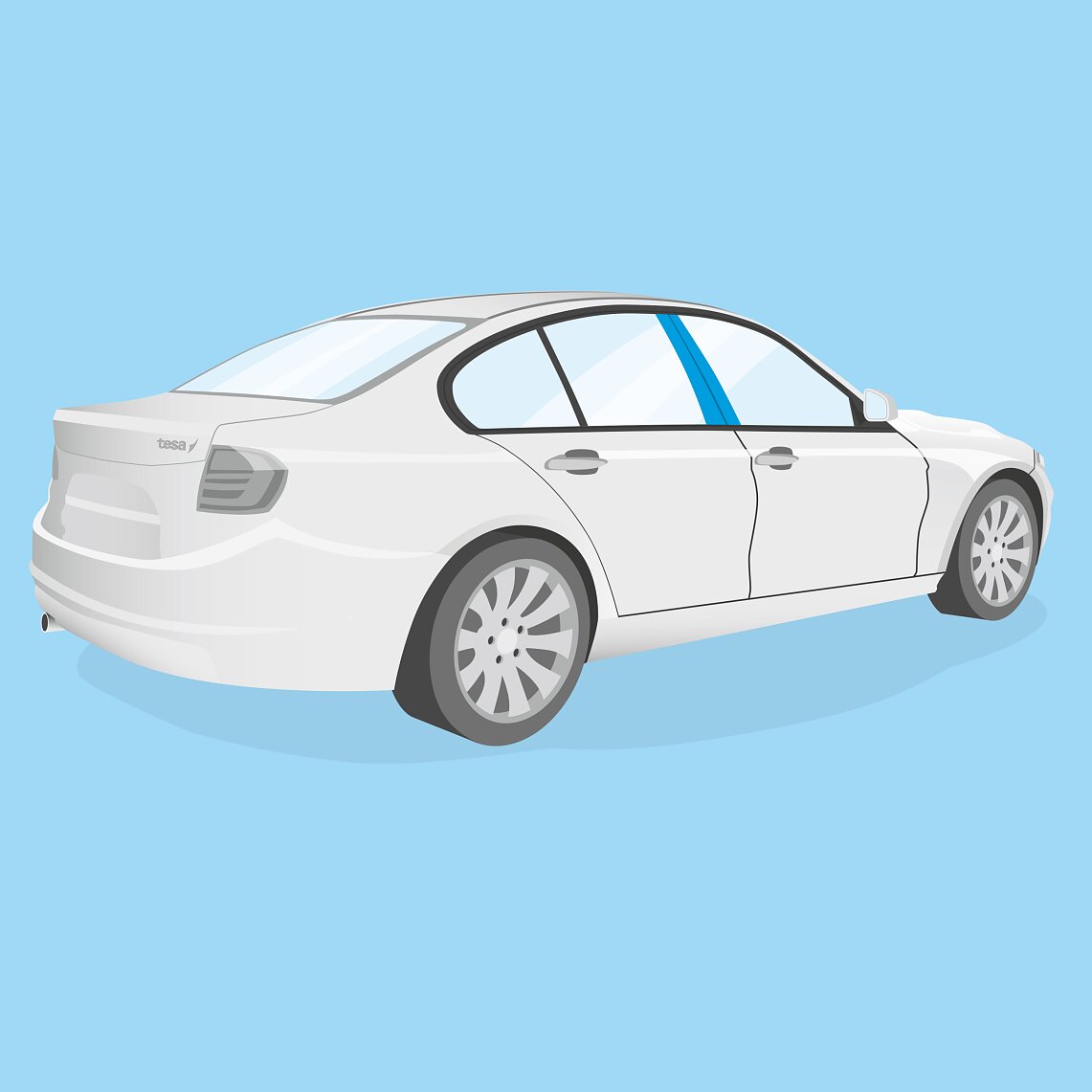

Areas of Application

load more

Precise die-cut production

Automotive Attachment Part Mounting
Die-cut technology allows precise production of letters

We have the technology to die-cut tesa® ACXplus with a high degree of accuracy to any form, in any digits or letters, and in any combination for your required attachment part. We offer support in finding the best and most efficient solution. We can produce die-cuts  with or without a customer liner, on rolls, on sheets or any shape. A range of complementary products such as adhesion promoters, application tools and tabbing tapes completes our assortment. Our dispensers offer a high level of process stability and cost savings.

Downloads

Products

Show filters

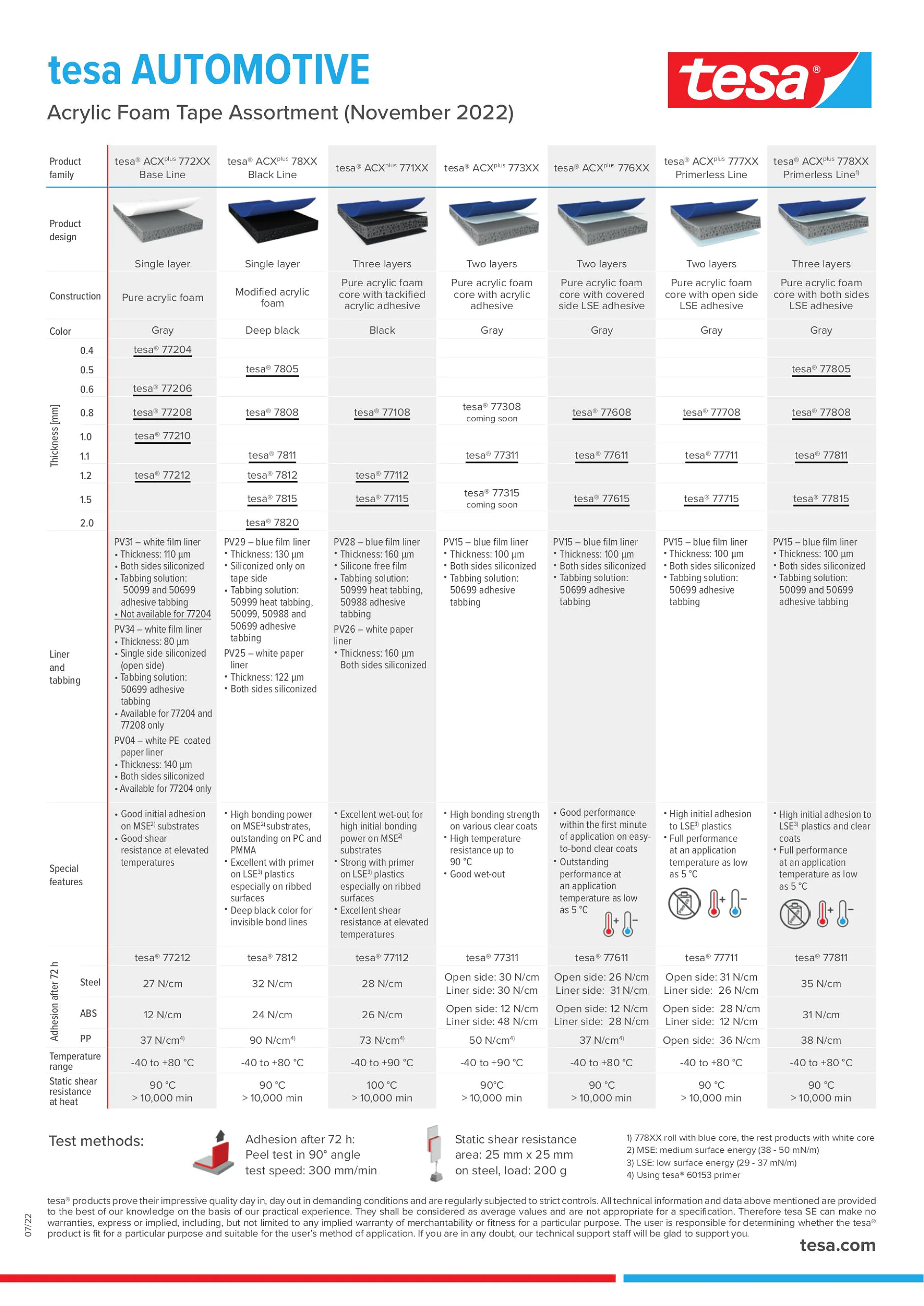

tesa® ACXplus 7805 Black Line
Specifications
deep black
500 µm
21 N/cm
foamed acrylic
tesa® ACXplus Black Line 7808 Black Line
Specifications
deep black
800 µm
26 N/cm
foamed acrylic
tesa® ACXplus 7811 Black Line
Specifications
deep black
1100 µm
32 N/cm
foamed acrylic
tesa® ACXplus 7812 Black Line
Specifications
deep black
_NULL µm
32 N/cm
foamed acrylic
tesa® ACXplus Black Line 7815 Black Line
Specifications
deep black
1500 µm
35 N/cm
foamed acrylic

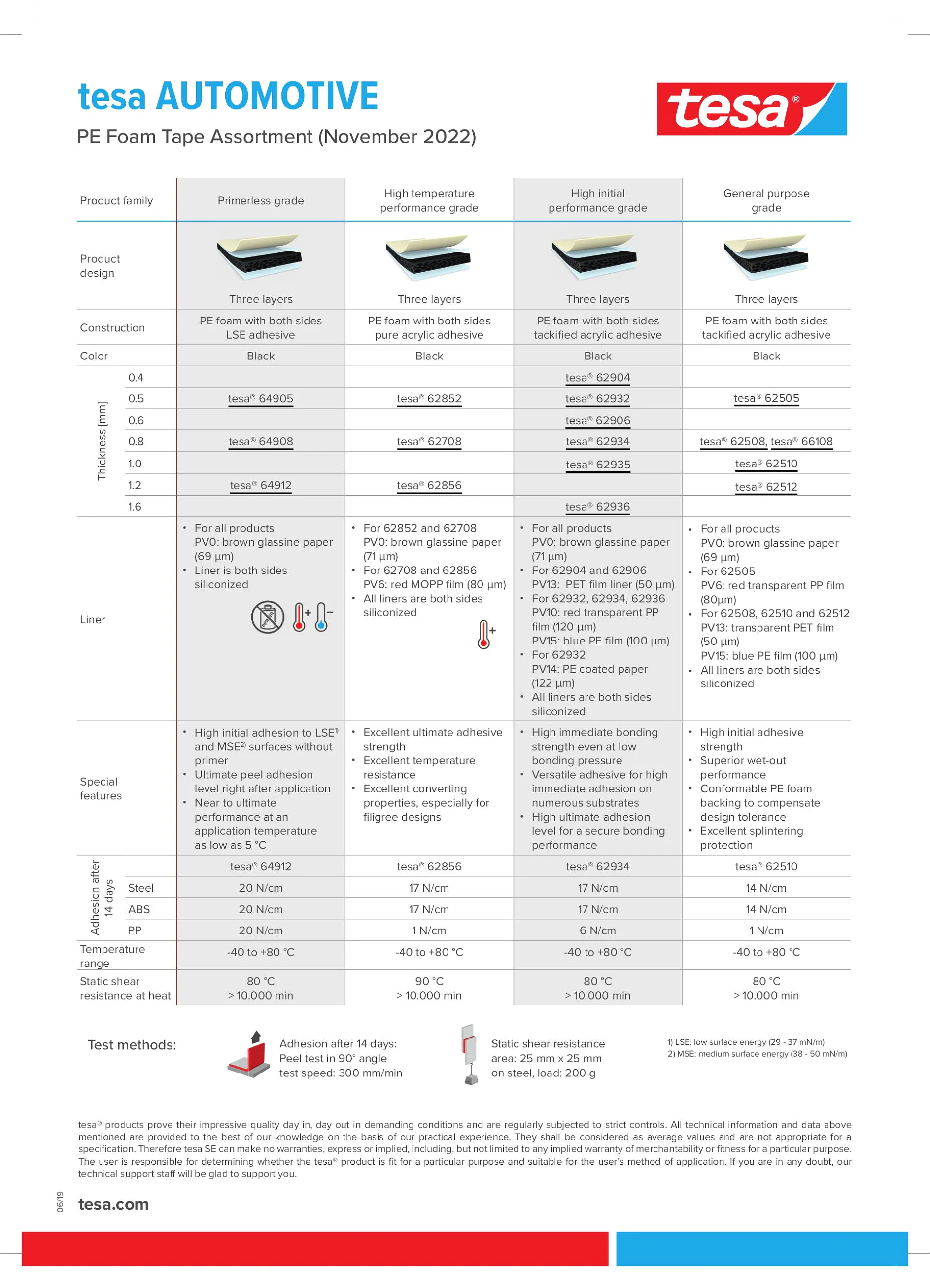

tesa® 60151 Adhesion Promoter Glass tesa® 60153 Adhesion Promoter Fast Cure tesa® 62855
Specifications
black
900 µm
PE foam
tesa® 62906
Specifications
black
600 µm
PE foam
tesa® 64905
Specifications
black
PE foam
tesa® 64908
Specifications
black
PE foam
tesa® 64912
Specifications
black
1200 µm
PE foam

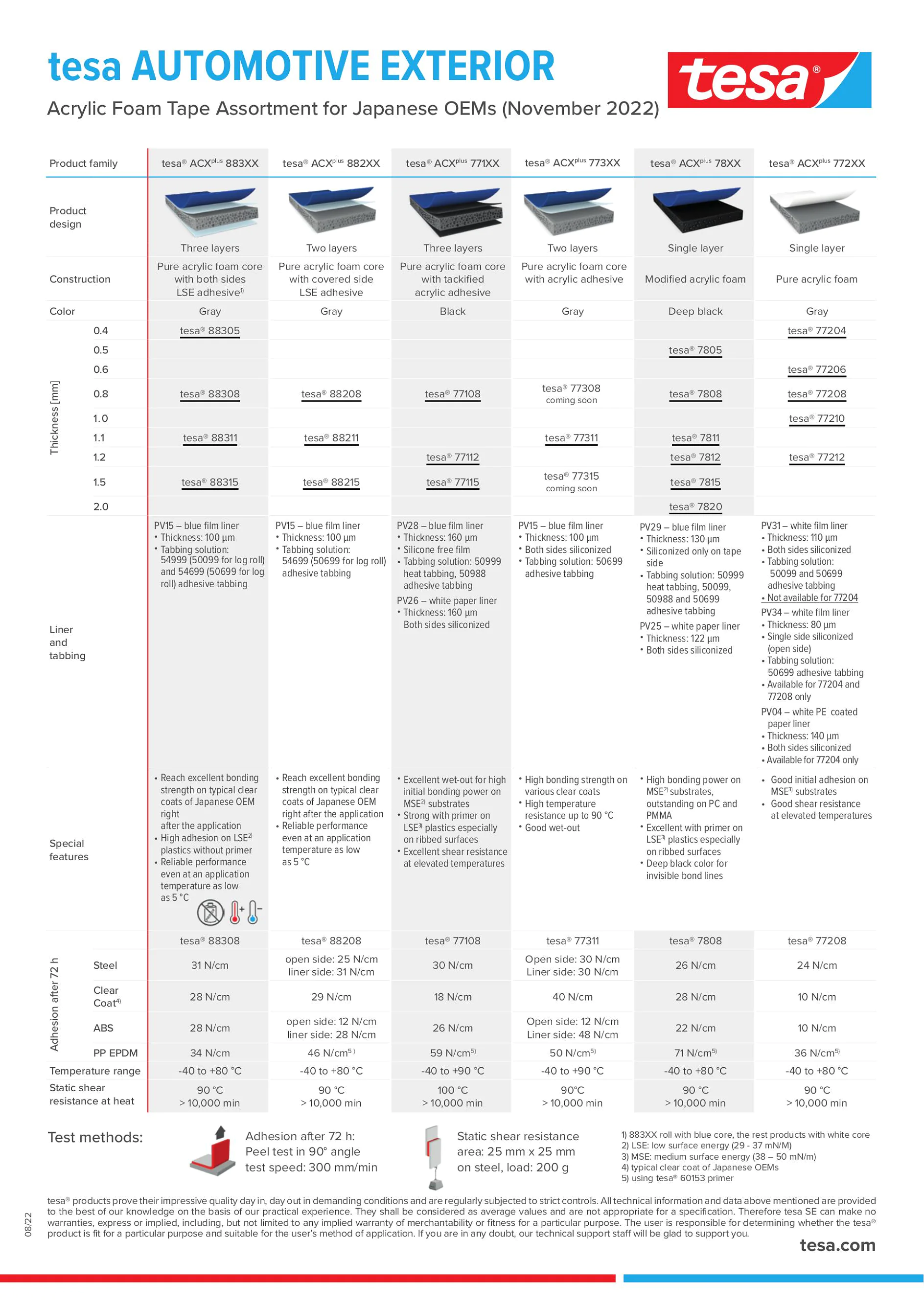

tesa® ACXplus 77108
Specifications
black
800 µm
29 N/cm
foamed acrylic
tesa® ACXplus 77112
Specifications
black
1200 µm
30 N/cm
foamed acrylic
tesa® ACXplus 77115
Specifications
black
1500 µm
34 N/cm
foamed acrylic
tesa® ACXplus 77708 Primerless Line
Specifications
grey
31 N/cm
foamed acrylic
tesa® ACXplus 77711 Primerless Line
Specifications
grey
1100 µm
31 N/cm
foamed acrylic
tesa® ACXplus 77808 Primerless Line
Specifications
grey
800 µm
31 N/cm
foamed acrylic
tesa® ACXplus 77811 Primerless Line
Specifications
grey
1100 µm
35 N/cm
foamed acrylic
tesa® 62852
Specifications
black
510 µm
PE foam
