tesa® 66214
200µm d/s black high shock PE foam tape
Product Features
- Outstanding shock performance
- Outstanding anti-repulsion properties to prevent lifting issue
- Superior push-out resistance
Product description
tesa® 66214 is a black double-sided tape consisting of a shock absorbing PE-foam backing equipped with a novel shock resistance adhesive.
Product details and specifications
Product Features
- Outstanding shock performance
- Outstanding anti-repulsion properties to prevent lifting issue
- Superior push-out resistance
- Good rework ability
- Waterproofness
Application Fields
- Screen, back cover & touch panel mounting for smart phone, watch, tablet, touch laptop, etc
- Camera lens mounting and deco mounting
- Display bottom for phone device

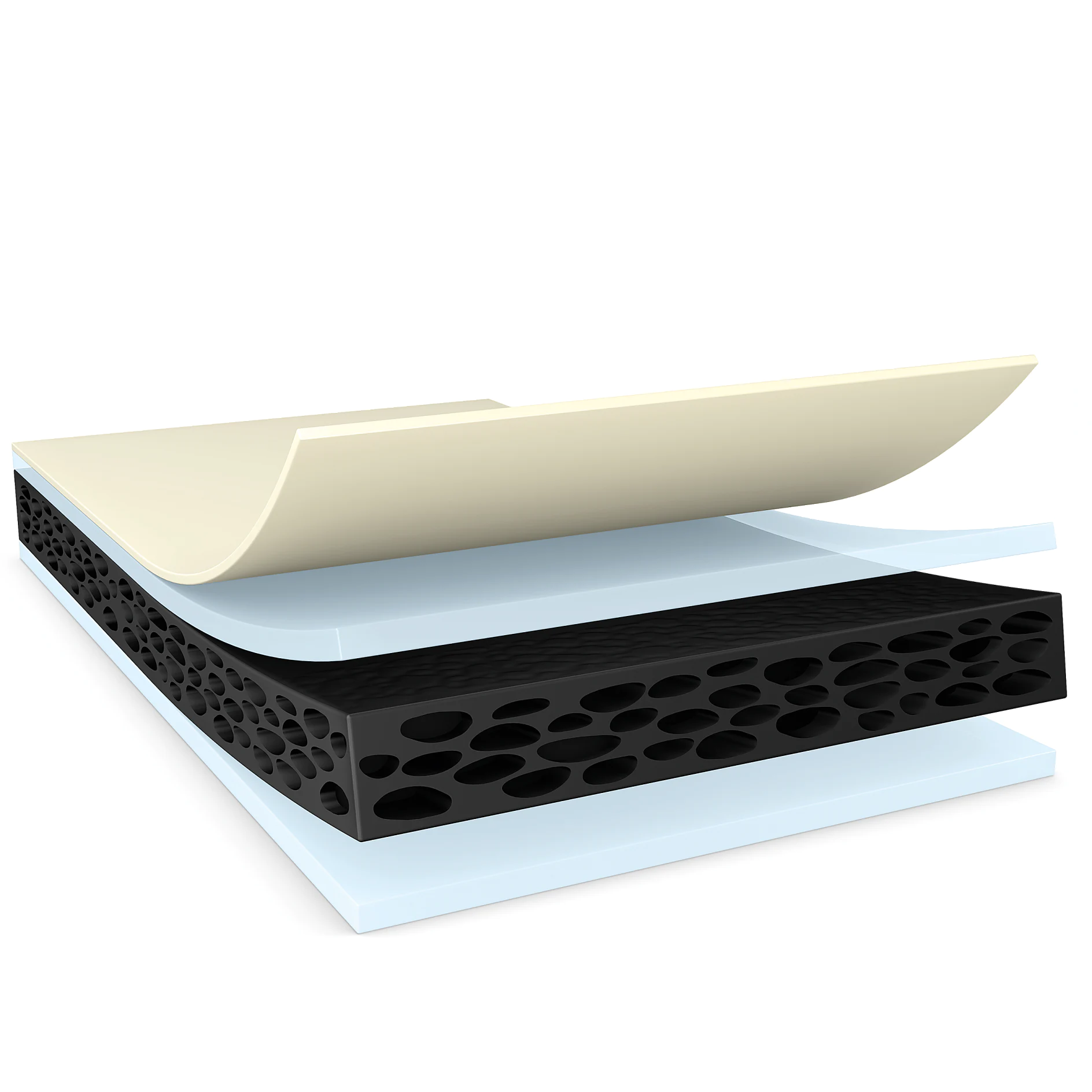

Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PE foam |
| Color | black |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 200 µm |
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PE foam |
| Color | black |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 200 µm |
Properties / Performance Values
| Elongation at break | 190 % |
|---|---|
| Tensile strength | 9.3 N/cm |
| Static shear resistance at 23°C | very good |
| Static shear resistance at 40°C | good |
Properties / Performance Values
| Elongation at break | 190 % |
|---|---|
| Tensile strength | 9.3 N/cm |
| Static shear resistance at 23°C | very good |
| Static shear resistance at 40°C | good |
Adhesion to Values
| Adhesion to ABS (initial) | 8.1 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 9.9 N/cm |
| Adhesion to Glass (initial) | 12.3 N/cm |
| Adhesion to Glass (after 14 days) | 13 N/cm |
| Adhesion to PC (initial) | 12.1 N/cm |
| Adhesion to PC (after 14 days) | 14.9 N/cm |
| Adhesion to PE (initial) | 5 N/cm |
| Adhesion to PE (after 14 days) | 5.8 N/cm |
| Adhesion to PMMA (initial) | 12.7 N/cm |
| Adhesion to PMMA (after 14 days) | 16 N/cm |
| Adhesion to Steel (initial) | 11 N/cm |
| Adhesion to Steel (after 14 days) | 14 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 8.1 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 9.9 N/cm |
| Adhesion to Glass (initial) | 12.3 N/cm |
| Adhesion to Glass (after 14 days) | 13 N/cm |
| Adhesion to PC (initial) | 12.1 N/cm |
| Adhesion to PC (after 14 days) | 14.9 N/cm |
| Adhesion to PE (initial) | 5 N/cm |
| Adhesion to PE (after 14 days) | 5.8 N/cm |
| Adhesion to PMMA (initial) | 12.7 N/cm |
| Adhesion to PMMA (after 14 days) | 16 N/cm |
| Adhesion to Steel (initial) | 11 N/cm |
| Adhesion to Steel (after 14 days) | 14 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
