Product description

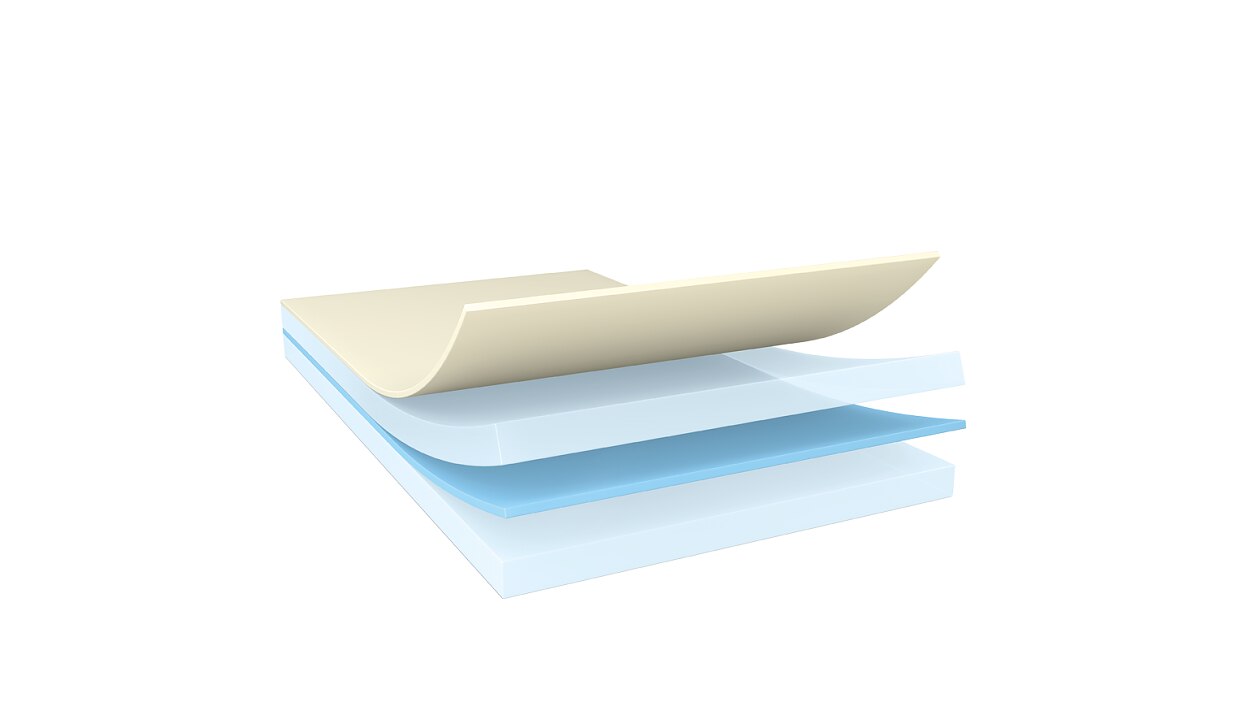

tesa® 61370 is a double sided self-adhesive tape consisting of a transparent PET backing and a tackified acrylic adhesive.
Special features:
- Thickness: 125µm
- Very high bonding strength
- Superior push out resistance
- High shock resistance
- Excellent resistance to demanding environmental conditions
Main applications
- Lens mounting in mobile phones
- Touch panel mounting
Technical properties
Backing material
PET film
Color
transparent
Total thickness
125 µm
Type of adhesive
tackified acrylic
Elongation at break
50 %
Tensile strength
20 N/cm
Type of liner
glassine
Colour of liner
white with tesa logo
Thickness of liner
71 µm
Weight of liner
80 g/m²
Adhesion properties
Adhesion to ABS (after 14 days)
12.8 N/cm
Adhesion to ABS (initial)
8.7 N/cm
Adhesion to Glass (after 14 days)
15.2 N/cm
Adhesion to Glass (initial)
12.8 N/cm
Adhesion to PC (after 14 days)
17.9 N/cm
Adhesion to PC (initial)
11.2 N/cm
Adhesion to PMMA (after 14 days)
16.8 N/cm
Adhesion to PMMA (initial)
13 N/cm
Adhesion to Steel (after 14 days)
15.2 N/cm
Adhesion to Steel (initial)
12.5 N/cm
Rating properties
Temperature resistance short term
200 °C
Temperature resistance long term
100 °C
Tack
o
Ageing resistance (UV)
++
Humidity resistance
++
Static shear resistance at 23°C
+
Static shear resistance at 40°C
+
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
