Additional Info
- Standard widths: 19, 25, 38 mm
- Standard length: 140 m
- Standard core diameter: 76 mm
- Max. outer diameter: 220 mm
- Further dimensions are available upon request

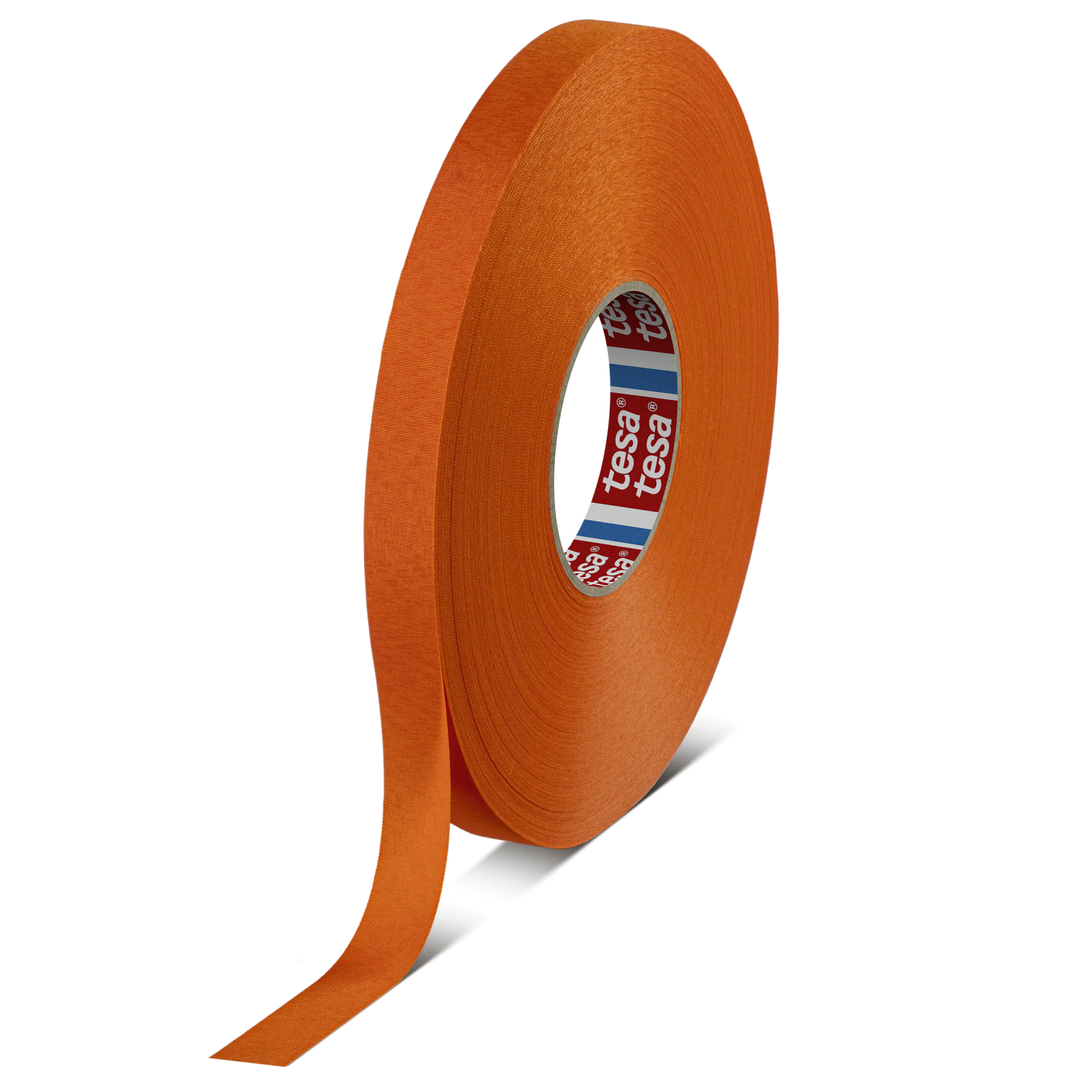

tesa® 51036 AT01 OR
PET cloth tape for automated taping in e-mobility applications
Product Features
- High abrasion resistance
- High temperature resistance
- Excellent cable compatibility
Product description
tesa® 51036 AT01 is a flag-resistant PET cloth wire harness tape with a solvent-free advanced acrylic adhesive. tesa® 51036 is highly resistant to flagging and ensures secure closure. It provides excellent abrasion protection of automotive harnesses and withstands high temperatures and demanding environmental conditions such as e-mobility applications. It's specifically designed for semi- and full-automated taping enabling higher efficiency and reduced setup times in wire harness production through high roll lengths.
Product details and specifications
Product Features
- High abrasion resistance
- High temperature resistance
- Excellent cable compatibility
- Stable unwinding force
- No fraying during unwinding
- Conformity with DIN 72036
Application Fields
- Designed for abrasion protection in e-mobility applications
- Optimized for semi- and full-automated taping
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 260 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 260 µm |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 275 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Temperature resistance max. | 150 °C |
| Unwind force (roll width < 9mm) | 11 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Hand tearability | no |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 275 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Temperature resistance max. | 150 °C |
| Unwind force (roll width < 9mm) | 11 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Hand tearability | no |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Adhesion to Values
| Adhesion to Steel | 3 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 3 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
