Component Mounting

Small Parts with Big Impact.

Specific Mounting Applications

The general term component mounting covers a multitude of different applications, whose requirements for adhesive systems can differ significantly. In the following we provide you with a small overview of important component mounting applications, their general requirements and our proposed solutions. To ensure that you have the best possible solution for your unique project, please contact our local representatives.

Flexible Printed Circuit (FPC)

tesa-electronics-fpc-mounting-grounding-illustration

FPC mounting

Due to the limited space and small size of FPCs in electronic devices thin tapes with high adhesive strength are often used. These should be easy to cut. As FPCs are often bended up to 180° within the device anti-repulsion/anti-lifting properties may be needed.

Antenna

tesa-electronics-smartphone-antenna-mounting-illustration

Antenna mounting

To mount the antenna it is critical for the tape solution to have a high adhesive strengths, epecially on LSE substrates as these are often used for antennas. A good repulsion resistance is needed as well. Depending on the specific antenna heat resistant or heat managing tapes should be preferred. Thin tapes are frequently used here.

Fingerprint sensor

tesa-electronics-smartphone-fingerprint-sensor-illustration

Fingerprint sensor mounting

Different fingerprint sensor systems are currently used in the electronics industry.  They all require good wetting properties to ensure shadow and bubble-free lamination. Furthermore, the tapes used should be reworkable. Ultrasonic fingerprint sensors have the additional requirement for EMI shielding.

Speaker mesh

Electronics: Component Mounting Applications for Speakers

Speaker mesh mounting

A very high bonding strength is crucial for this application, even on various substrates since the speaker mesh and the housing are often made out of different materials. Good sealing properties are required as well. A good die-cuttability and low oozing is recommended to avoid difficulties during the assembly process.

Trackpad

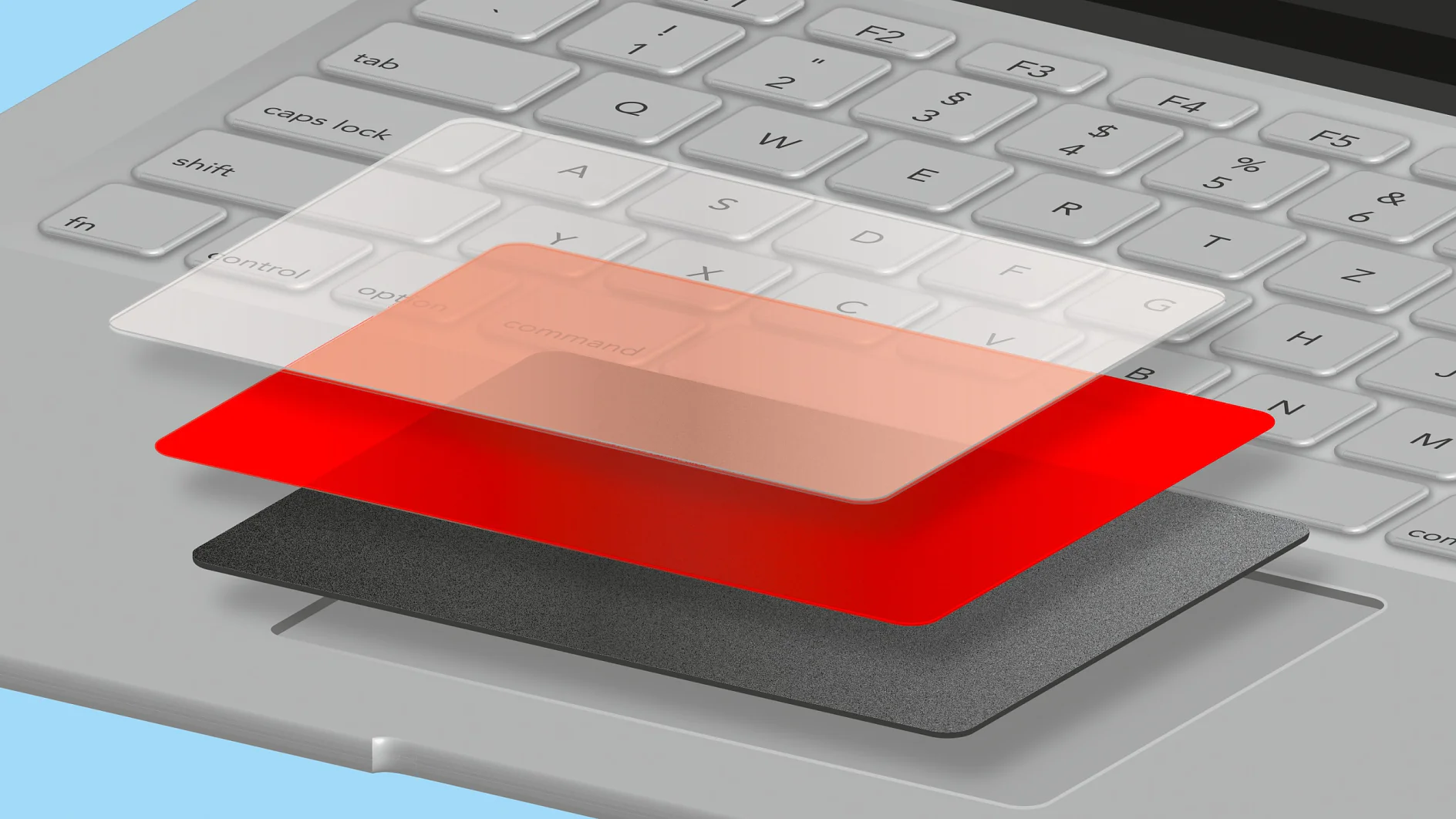

EAF_Trackpad_300dpi

Trackpad mounting

A regular bonding must be ensured to support the optimal function of the trackpad. Therefore, bubble formation during processing should be prevented by good wetting properties. Once the trackpad is in place, a high stiffness of the full stack is advantageous.

Graphite Sheet

tesa-electronics-smartphone-foam-lamination-illustration

Graphite Sheet mounting

Especially important for graphite sheet lamination are good wetting properties to ensure bubble-free lamination. Furthermore, high initial adhesive strength is beneficial. Tapes used should be ultra-thin and meet economic aspects.

Rubber Foot

tesa-electronics-speaker-component-mounting-illustration

Rubber foot mounting

For the bonding of a rubber foot mainly high adhesive forces are required, especially on low surface energy (LSE) substrates like silicone. In addition, good shear resistance is often part of the requirement profile.

Component mounting solutions - Adhesive Systems for Your Success

Assortment Thickness
range [μm]
Color Exemplary series used Case studies Use this assortment
when your main
requirements are

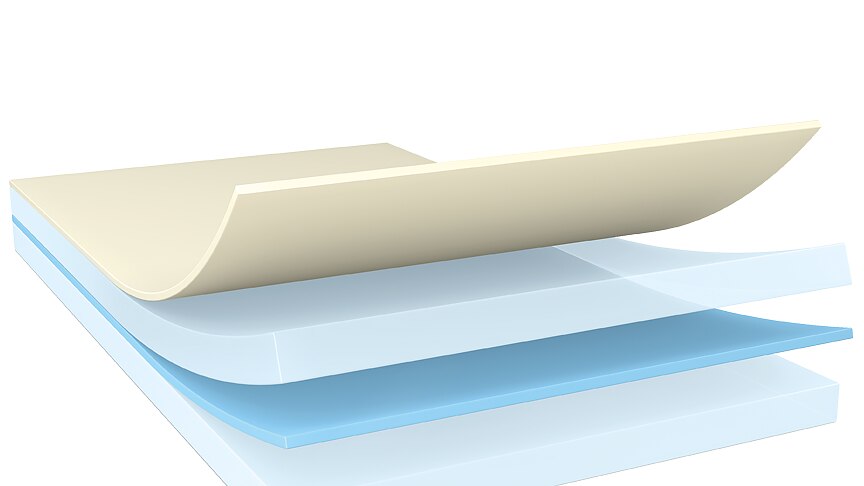

Double-sided Film Tapes 5 - 300 Black
Transparent
tesa® 49xx/519xx
tesa® 613xx
tesa® 6896x
tesa® 615xx
tesa® 689xx /669xx
FPC
Antenna
Fingerprint
Speaker Mesh
Graphite Sheet
Trackpad
Rubber foot
and more
• Very good bonding
• Good wetting
• Efficient die-cuttability
• Specific properties (e.g., Anti-repulsion, Chemical resistant, Differential bonding properties, bonding on LSE substrates
and many more)
Structural Bonding Solutions 10 - 300 Black
White
Amber
Translucent
tesa HAF®
tesa® XPU
tesa® LTR
FPC
Speaker Mesh
Fingerprint
Trackpad
and more
• Superior bonding power, even on small bonding areas
• Superior sealing properties
• Anti-repulsion
• Heat resistance
Acrylic Foam Tapes 50 – 400 Black
White
tesa® ACF 756xx
tesa® ACF 757xx
Fingerprint
and more
• Superior bonding
• Superior impact resistance
• Very good sealing and waterproofing
PE Foam Tapes 150 - 500 Black
White
tesa® PEF 668xx
tesa® PEF 626xx
Fingerprint
and more
• Impact resistance
• Anti-repulsion
• Reworkability
Bond & Detach® 80 - 1000 Black
White
Transparent
tesa® 704xx/703xx /706xx FPC
and more
• Superior, residue-free removability
• Impact resistance

Note:

If you need electrical conductivity or shielding properties for your application, take a look at our Electrically Conductive Tape assortment!
