Reliable and automated sealing of EV batteries

Markets

Innovative solutions for battery sealing in electric vehicles

tesa® ACXplus Box Seal series

tesa-automotive-battery-sealing-tape-300dpi

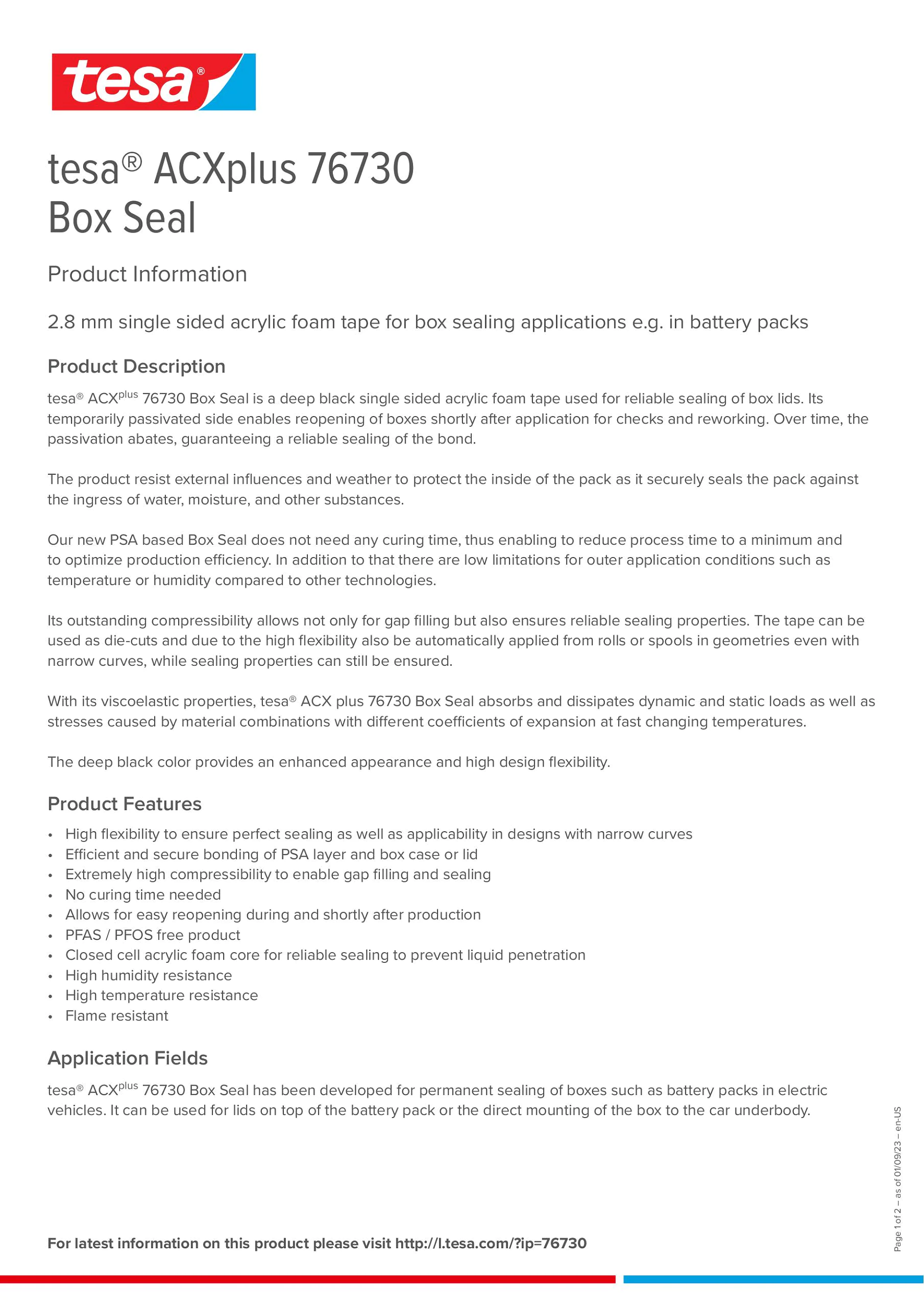

01tesa® ACXplus 76730

  • Acrylic foam core with PU passivation on open side
  • 2.8 mm thickness
  • Fills gaps from 0.9 mm to 2 mm
  • Suitable for sealing of smaller boxes or ECUs

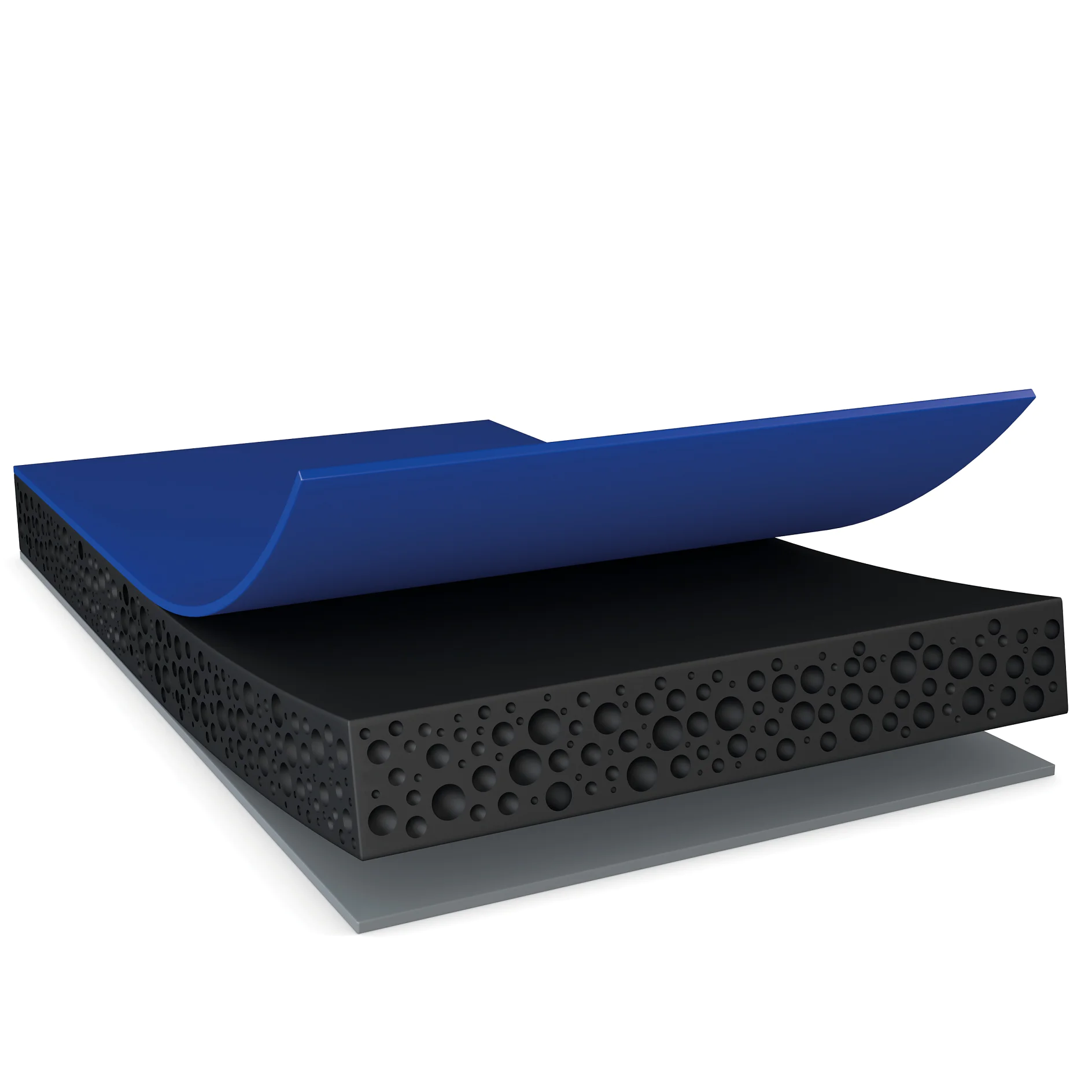

A 3D illustration of a layered material, showing a top blue sheet of tesa tape, a middle black layer with bubble-like texture, and a flat gray base underneath. The top layer of tesa tape is partially peeled back. (This text has been generated by AI)

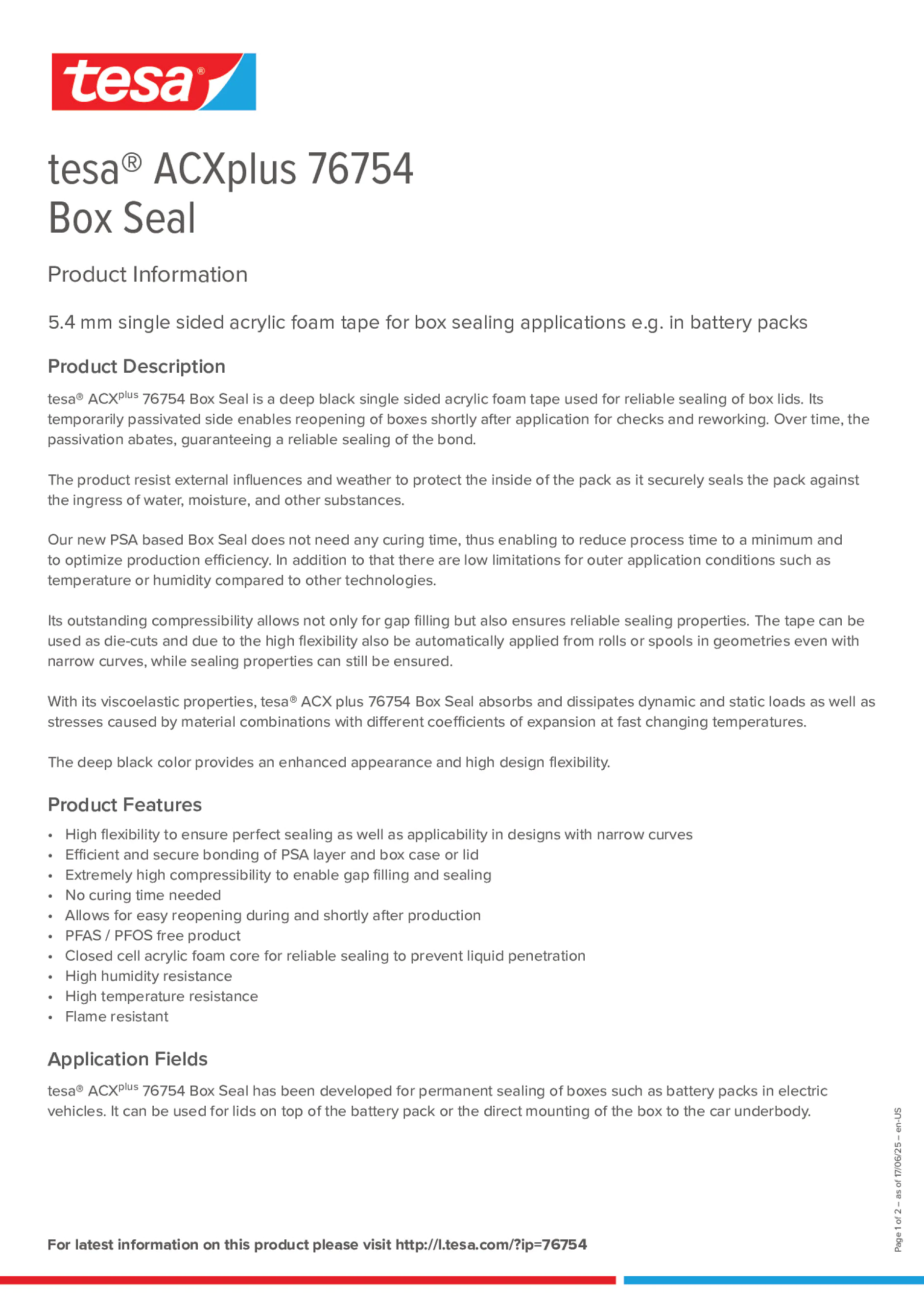

02tesa® ACXplus 76754

  • Acrylic foam core with PU passivation on open side
  • 5.4 mm thickness
  • Fills gaps from 1.7 mm to 4.1 mm
  • Suitable for sealing of battery boxes

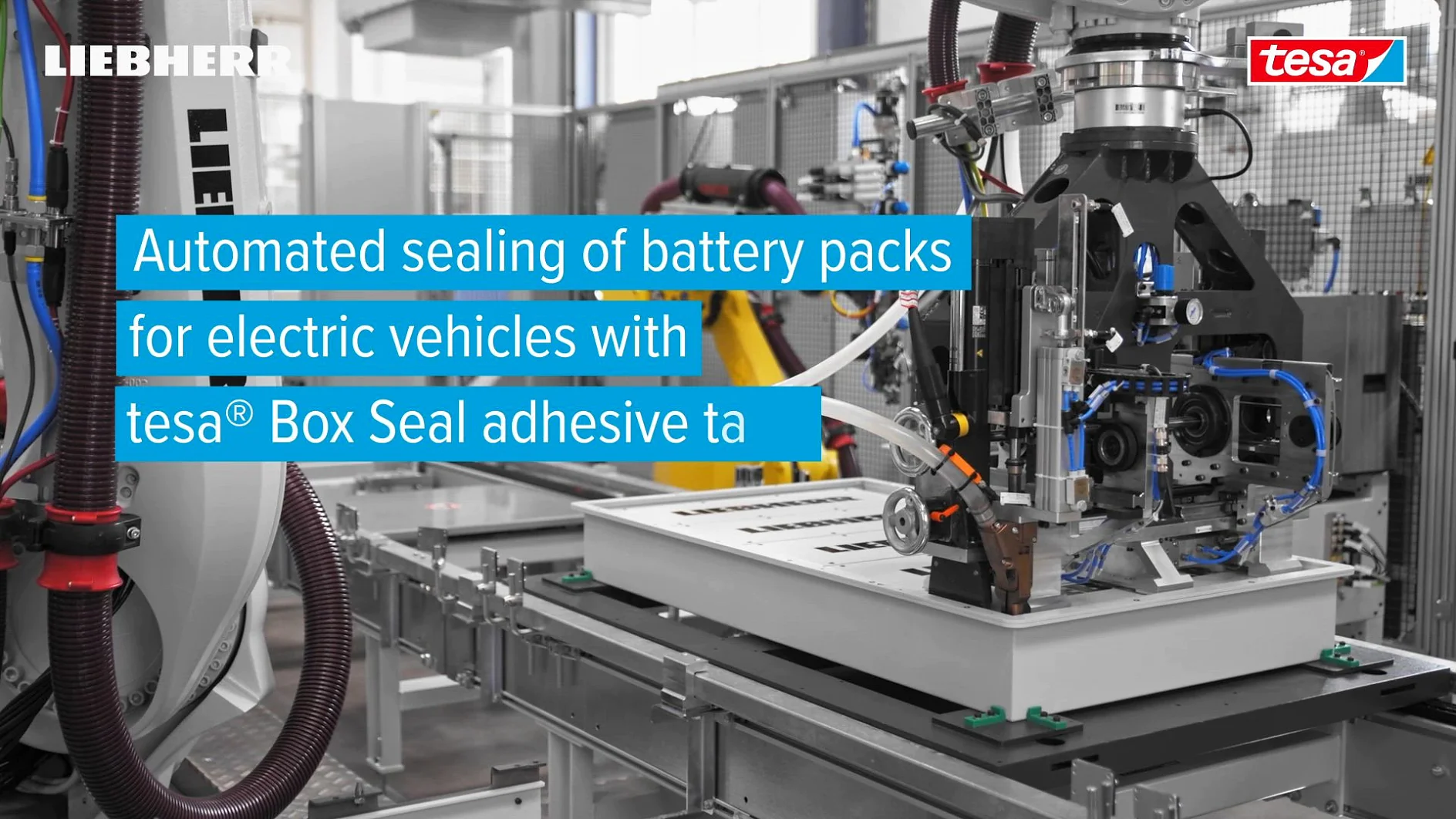

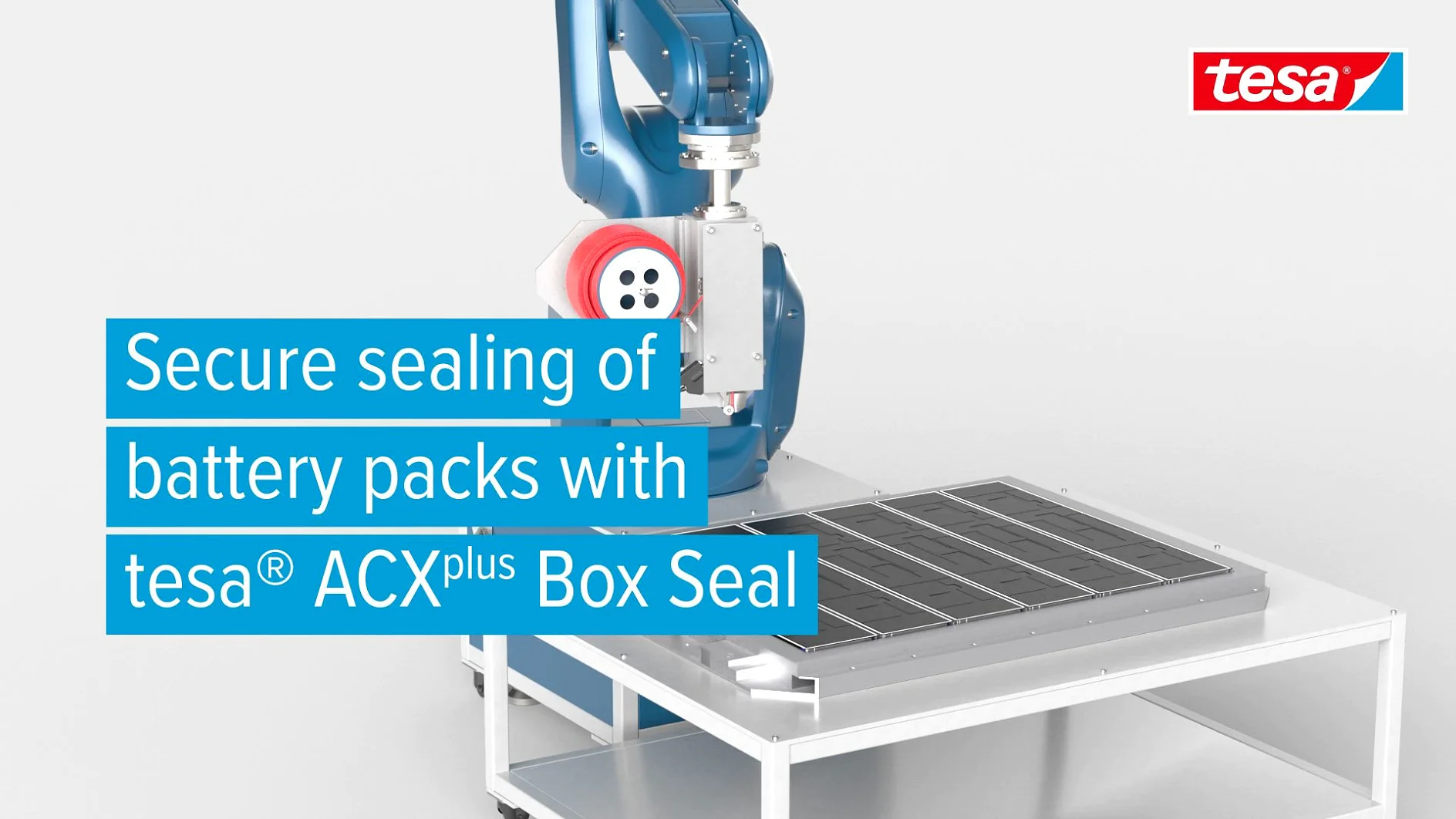

Automated application of tesa® Box Seal

Battery sealing with tesa® Box Seal

tesa® ACXplus Box Seal series

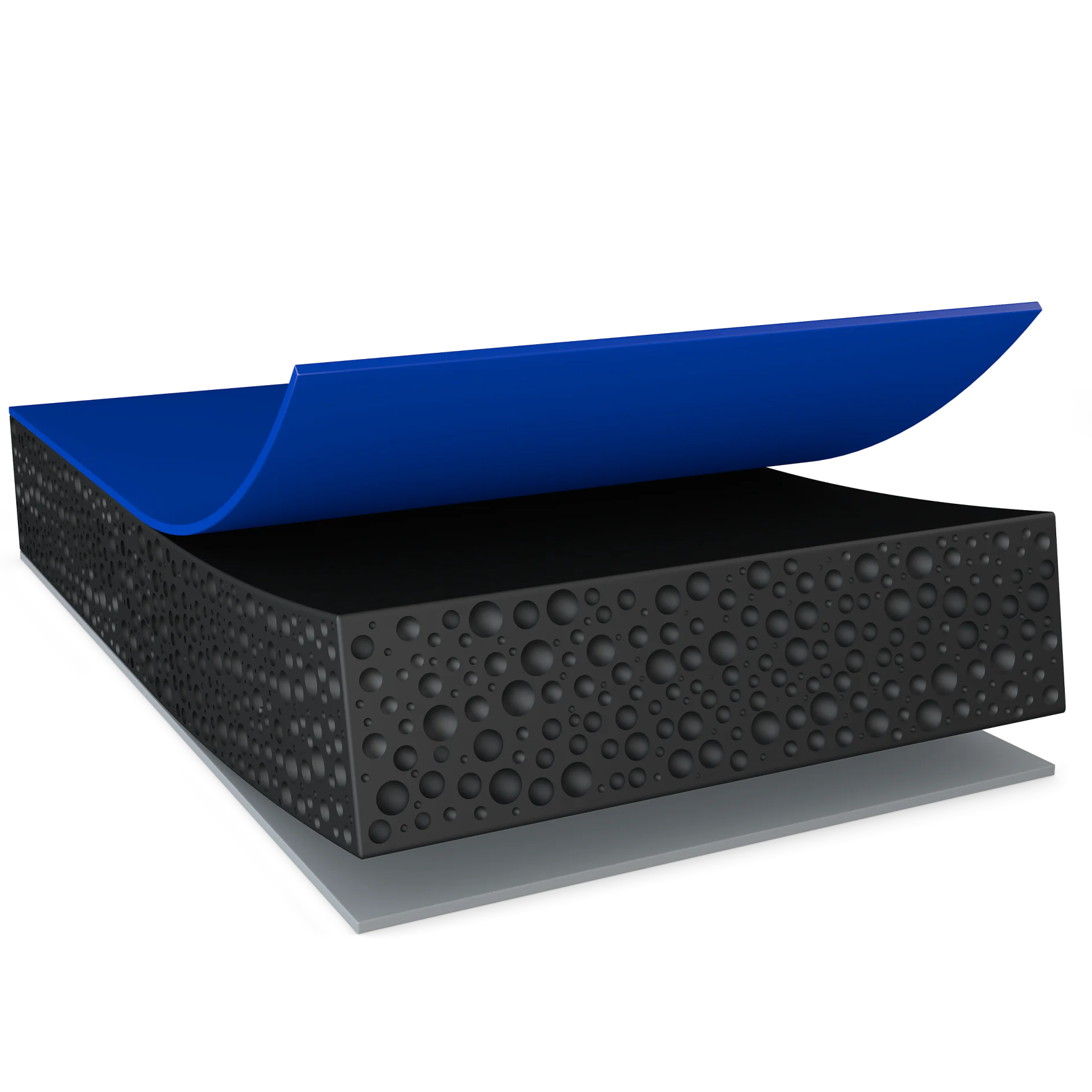

Illustration of a layered structure showing a blue flexible top layer, a black foam-like middle layer with bubble texture, and a solid gray base layer. The blue tesa tape layer is partially peeled away, revealing the black tesa tape layer beneath. (This text has been generated by AI)
- Can be attached to battery packs with lids and to battery packs that are directly mounted to the underbody
- 100% sealing with different gap dimensions from 0.9 to 4.1 mm (depending on product thickness)
- Does not require any curing time and can be applied easily and automatically
- Health and safety risks for users are minimized
- Battery pack can be reopened during production or after end-of-line testing for reworking


Reliable sealing via repulsion and adhesion

tesa® ACXplus Box Seal
