tesa® 76110
100µm d/s black quick bonding and residue free removable tape
Product Features
- Thickness: 100μm
- High tack and quick bonding even on LSE substrates
- Temperature sensitive removing with very fast and residue free removability especially at elevated temperatures
Product description
tesa® 76110 is a double-sided reinforced black mounting tape with a special quick bonding and easy removable adhesive
Product details and specifications
Product Features
- Thickness: 100μm
- High tack and quick bonding even on LSE substrates
- Temperature sensitive removing with very fast and residue free removability especially at elevated temperatures
- Outstanding shock resistance
- Good anti-repulsion properties to prevent lifting
- Light blocking
- Waterproofing (IPX8)
Application Fields
- Permanent battery mounting or wrapping
- Demanding mounting applications for components in electronic devices
- Other mounting applications on LSE substrates

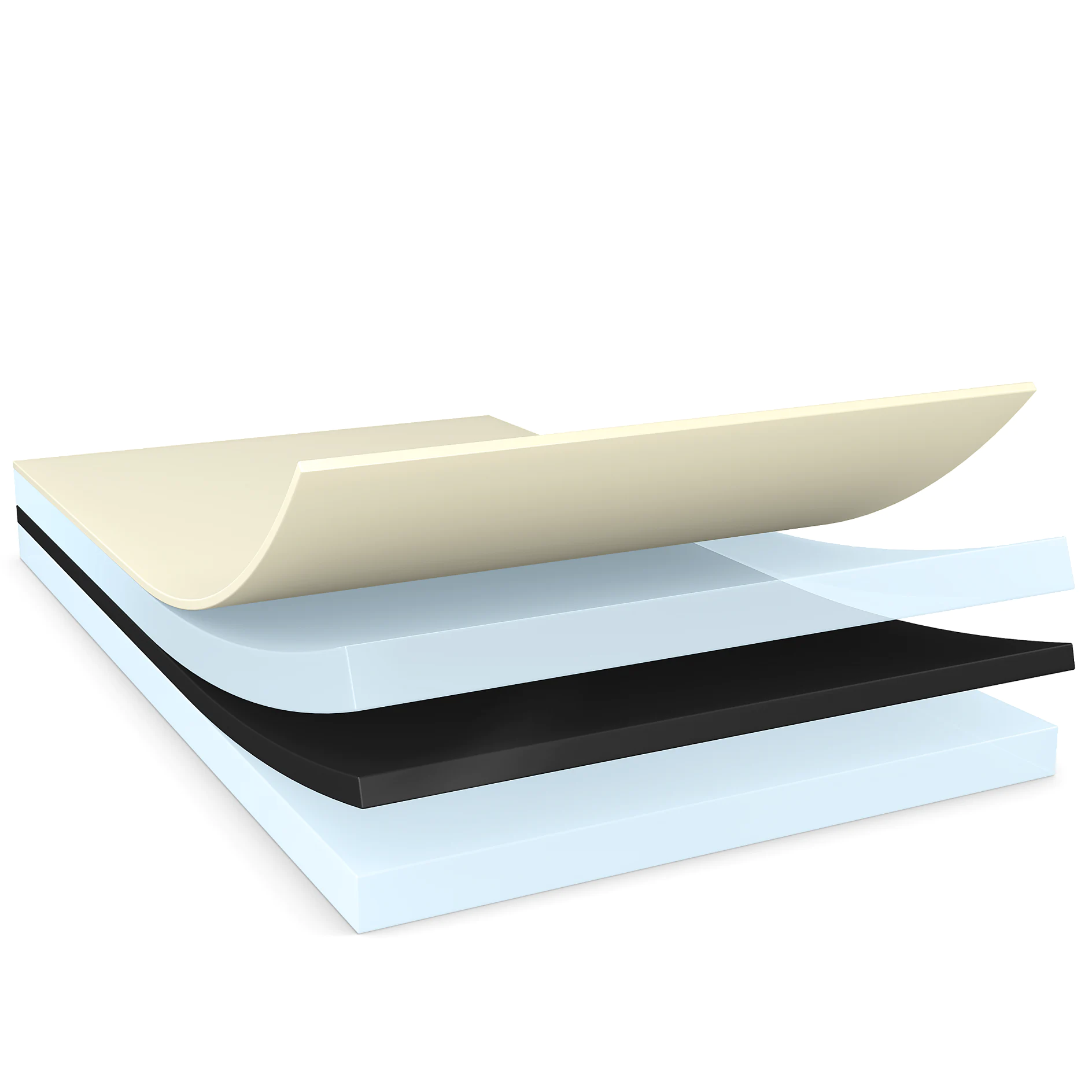

Product Construction
| Adhesive Type | specialty |
|---|---|
| Backing material | PETP |
| Color | black |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 100 µm |
Product Construction
| Adhesive Type | specialty |
|---|---|
| Backing material | PETP |
| Color | black |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 100 µm |
Properties / Performance Values
| Elongation at break | 100 % |
|---|---|
| Temperature resistance short term | 90 °C |
| Temperature resistance long term | 60 °C |
| Static shear resistance at 40°C | very good |
Properties / Performance Values
| Elongation at break | 100 % |
|---|---|
| Temperature resistance short term | 90 °C |
| Temperature resistance long term | 60 °C |
| Static shear resistance at 40°C | very good |
Adhesion to Values
| Adhesion to Aluminium (initial) | 8 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 8 N/cm |
| Adhesion to Glass (initial) | 9 N/cm |
| Adhesion to Glass (after 14 days) | 9 N/cm |
| Adhesion to PC (initial) | 8 N/cm |
| Adhesion to PC (after 14 days) | 8 N/cm |
| Adhesion to PE (initial) | 7 N/cm |
| Adhesion to PE (after 14 days) | 7 N/cm |
| Adhesion to Steel (initial) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 9 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 8 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 8 N/cm |
| Adhesion to Glass (initial) | 9 N/cm |
| Adhesion to Glass (after 14 days) | 9 N/cm |
| Adhesion to PC (initial) | 8 N/cm |
| Adhesion to PC (after 14 days) | 8 N/cm |
| Adhesion to PE (initial) | 7 N/cm |
| Adhesion to PE (after 14 days) | 7 N/cm |
| Adhesion to Steel (initial) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
