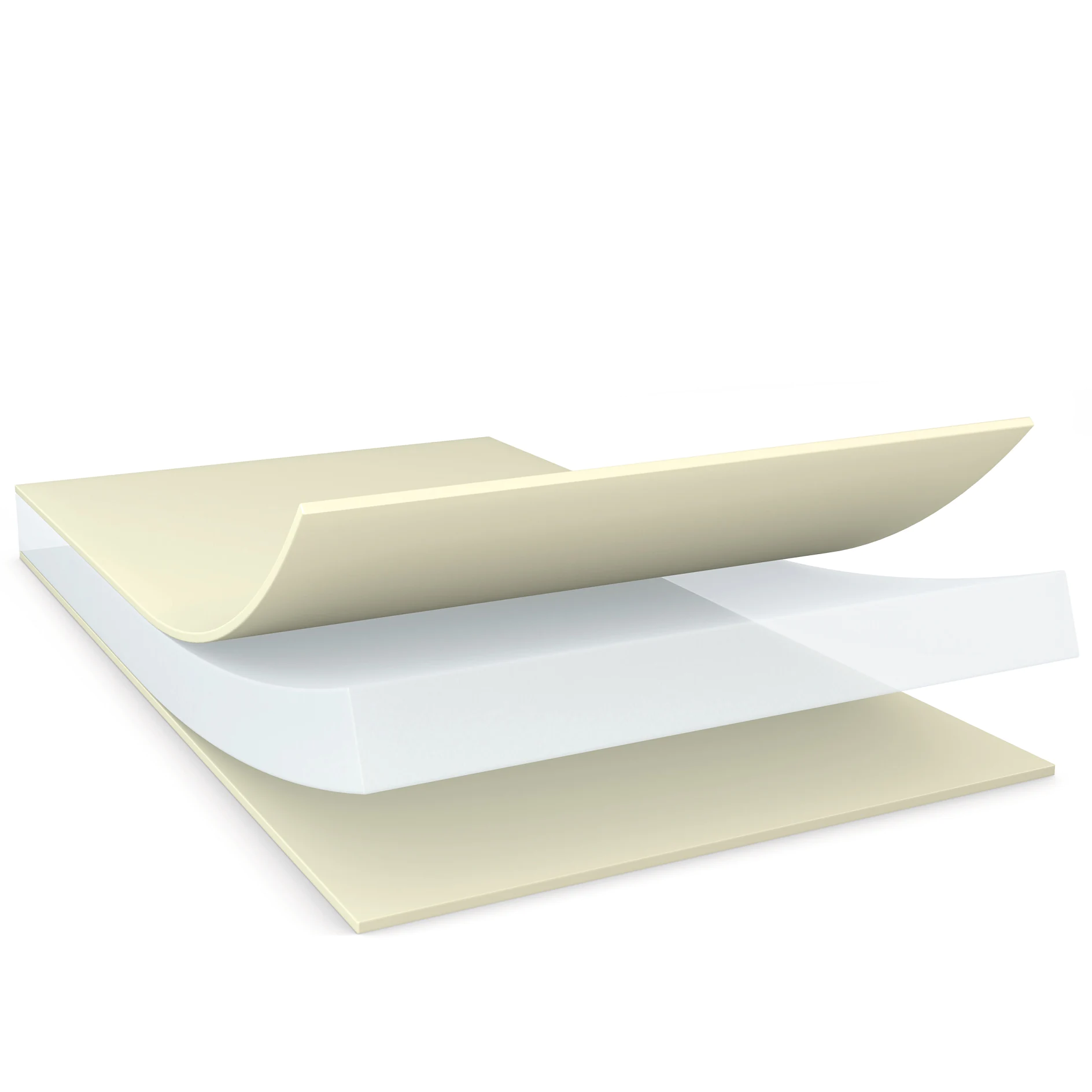

tesa double sided tmt white illustration
Product information

tesa® 60744

tesa® 60744 50 μm thermal management tape



Product description

tesa® 60744 is a thermal management transfer tape which is designed for high thermal conductivity with strong mounting on heat source or heat spreading material such as display, MLB, and components in electronics devices.


Special features
  • High thermal conductivity in z-direction
  • Strong bonding strength
  • Excellent surface wet-out
  • Easy handling
  • Thin design
  • Excellent electrical insulation

Main applications

  • Component mounting wherever heat transfer is needed
  • Heat dissipation from MLB / FPC to heat spreader
  • Display mounting and heat transfer to other substrate
  • Vapor chamber or heat pipe mounting
  • Antenna mounting
  • Graphite sheet mounting
tesa double sided tmt white illustration

tesa double sided tmt white illustration

Technical properties

Type of liner

PET film

Thermal conductivity z-direction

1 W/mK

Type of adhesive

acrylic

Adhesion to Steel (initial)

5 N/cm

Color of liner

transparent

Total thickness

50 µm

Backing material

none

Color

white

Breakdown voltage

2.9 KV

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
