Additional Info
- 1 Bio-based carbon content tested based on ASTM D6866
- 2 100% PCR: Global Recycle Standard
- 23µm easy release liner
- 75µm tight release liner

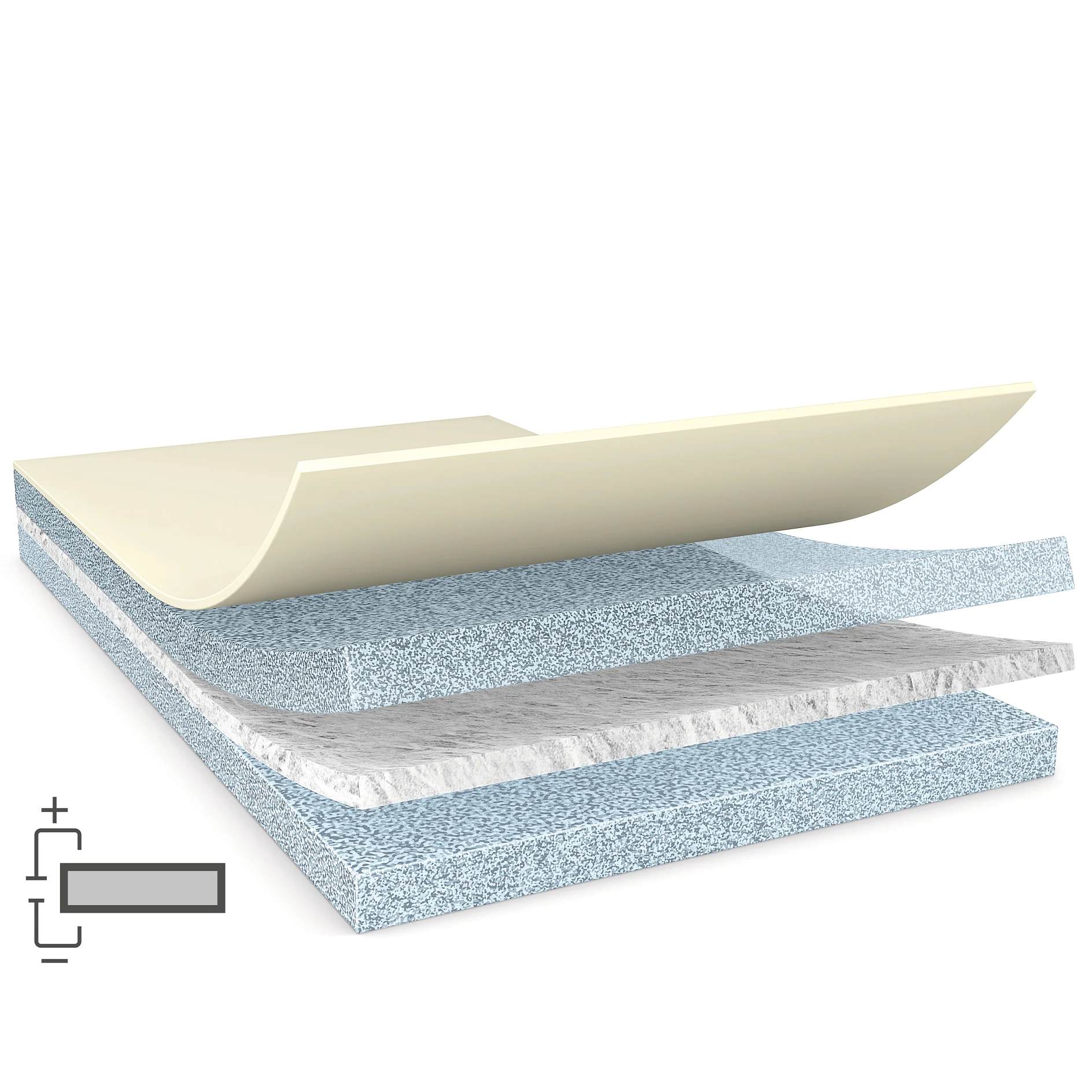

150 μm double sided bio-based electrically conductive fabric tape
tesa® 60668 is a gray double-sided electrically conductive tape made from bio-based materials. It contains 75% bio-based acrylic adhesive on both sides and features an electrically conductive fabric backing composed of 100% PCR recycled PET.
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 150 µm |
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 150 µm |
| Surface resistance x-y-direction | 0.2 Ohm / square |
|---|---|
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Surface resistance x-y-direction | 0.2 Ohm / square |
|---|---|
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Adhesion to Steel (initial) | 7.2 N/cm |
|---|
| Adhesion to Steel (initial) | 7.2 N/cm |
|---|
Download the files below for more technical details and information on this product.
