tesa® 52050
50µm s/s Protective Blue PET tape
Product Features
- Thickness: 50µm
- Reliable bonding strength
- Excellent anti-repulsion property
Product description
tesa® 52050 is blue single-sided self-adhesive tape consisting of a PET backing and a modified acrylic adhesive.
Product details and specifications
Product Features
- Thickness: 50µm
- Reliable bonding strength
- Excellent anti-repulsion property
- Good insulation property
- Good puncture resistance
Application Fields
- FPC covering
- Components protection

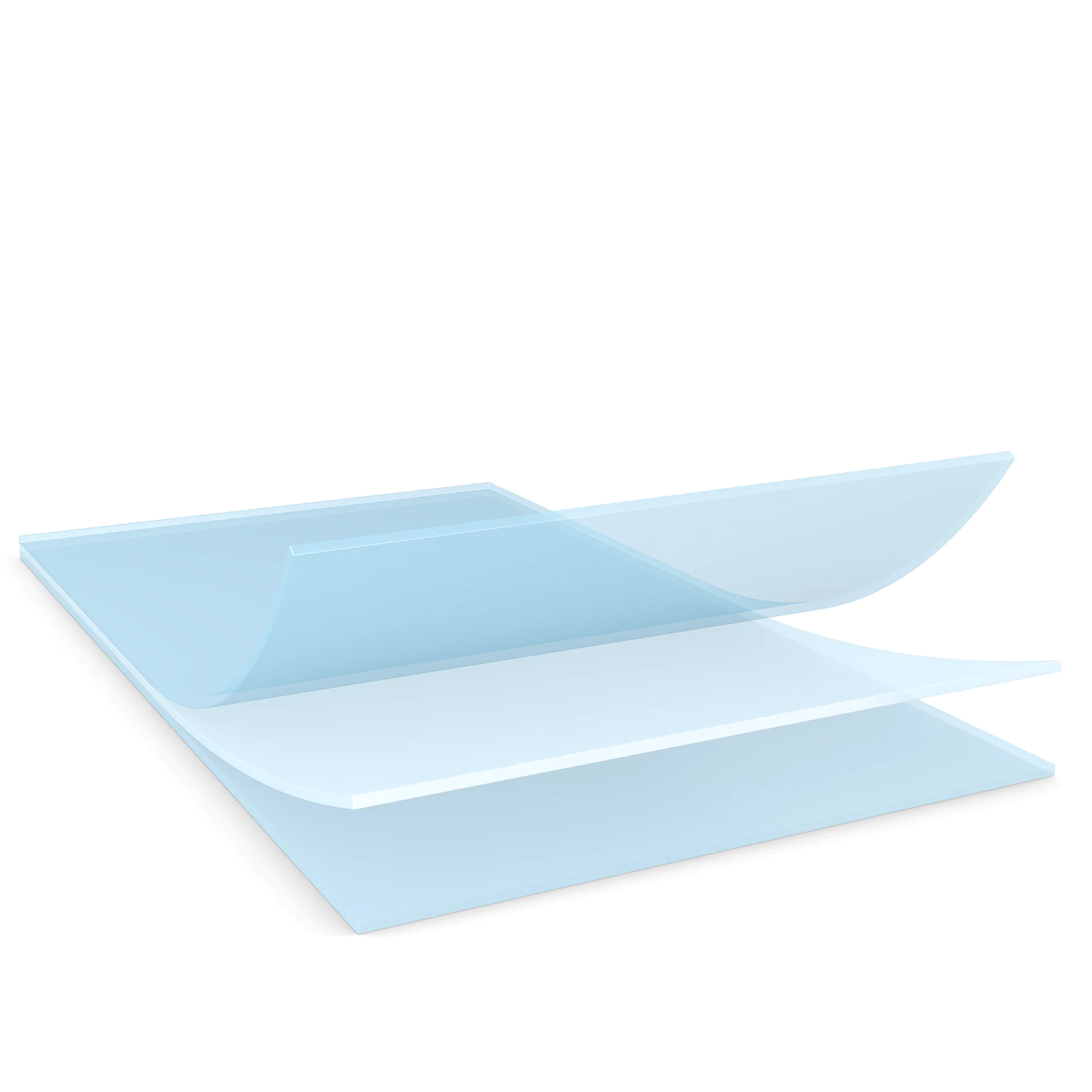

Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET film |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 50 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET film |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 50 µm |
Properties / Performance Values
| Elongation at break | 30 % |
|---|---|
| Tensile strength | 22 N/cm |
| Temperature resistance long term | 80 °C |
| Temperature resistance short term | 140 °C |
Properties / Performance Values
| Elongation at break | 30 % |
|---|---|
| Tensile strength | 22 N/cm |
| Temperature resistance long term | 80 °C |
| Temperature resistance short term | 140 °C |
Adhesion to Values
| Adhesion to PC (initial) | 4 N/cm |
|---|---|
| Adhesion to PC (after 14 days) | 5.2 N/cm |
| Adhesion to Steel (initial) | 4.2 N/cm |
| Adhesion to Steel (after 14 days) | 5.4 N/cm |
Adhesion to Values
| Adhesion to PC (initial) | 4 N/cm |
|---|---|
| Adhesion to PC (after 14 days) | 5.2 N/cm |
| Adhesion to Steel (initial) | 4.2 N/cm |
| Adhesion to Steel (after 14 days) | 5.4 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
