tesa 88103 PV6
Sleeve for high abrasion protection and enhanced flexibility of wire harnesses
Product description

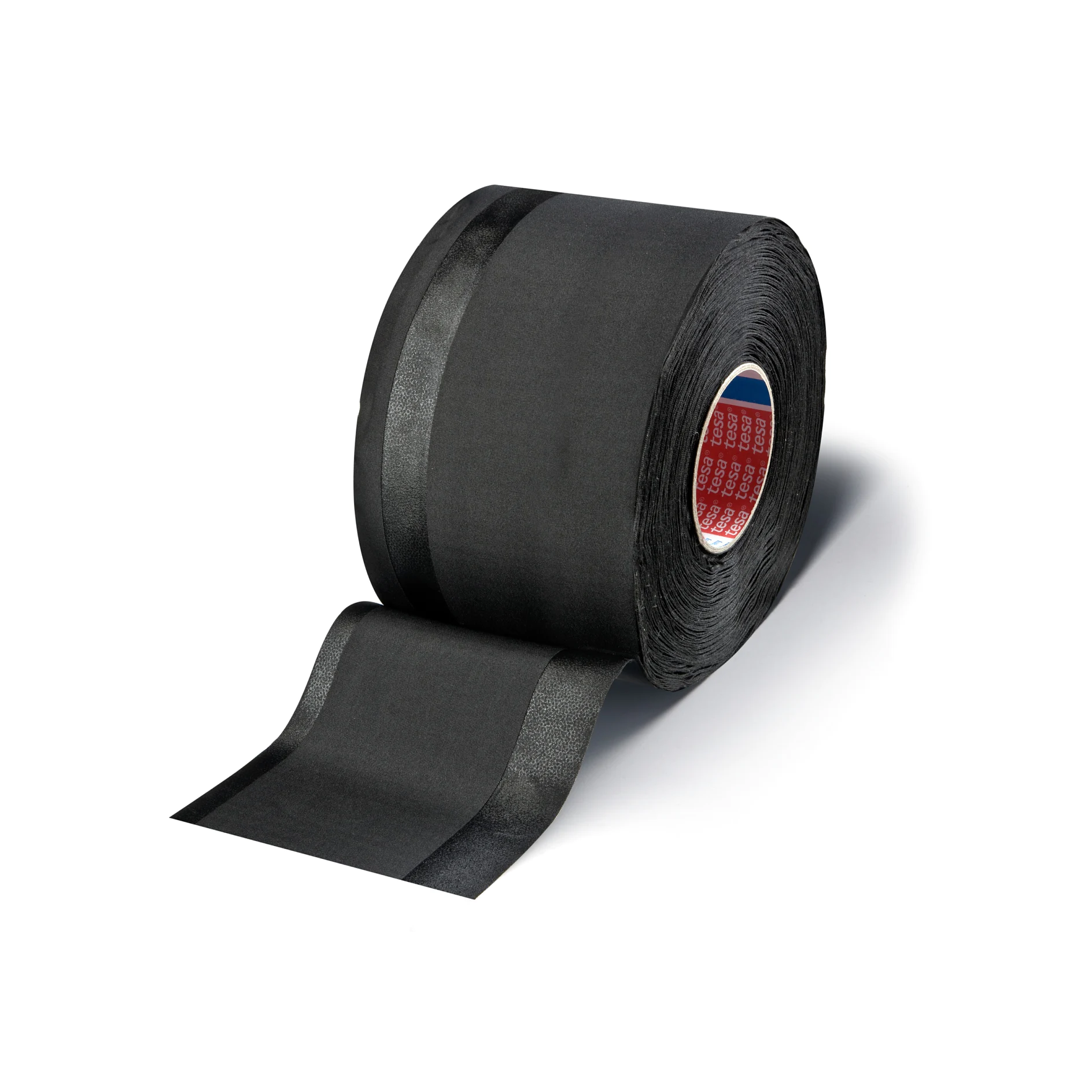

tesa Supersleeve® 88103 PV6 is a double-layer polyester (PET) cloth with an acrylic adhesive-coated edge for lengthwise application.
Features:
1 Superior abrasion protection
1 High flexibility and conformability
1 High temperature resistance
1 Easy and efficient lengthwise applications
1 Can be perforated to length
1 Excellent cable compatibility
1 Can withstand environmental influences
1 Color: Black/Orange
Features:
1 Superior abrasion protection
1 High flexibility and conformability
1 High temperature resistance
1 Easy and efficient lengthwise applications
1 Can be perforated to length
1 Excellent cable compatibility
1 Can withstand environmental influences
1 Color: Black/Orange
Application Fields
tesa Supersleeve® 88103 PV6 is designed for engine compartment wire harnessing providing excellent abrasion protection, temperature resistance and flexibility. Unique adhesive-to-adhesive closure system guarantees secure closure without additional spot wraps.
Product Construction
| Backing material | PET cloth |
| Type of adhesive | acrylic |
| Total thickness | 500 µm |
Properties / Performance Values
| Abrasion resistance (10mm mandrel) | Class E (acc. to ISO 6722) |
| Abrasion resistance (5mm mandrel) | Class D (acc. to ISO 6722) |
| Noise damping (LV312) | B |
| Temperature resistance (3000h) | 150 °C |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to Steel | 3.2 N/cm |
Additional Info
Standard widths: 67, 85, 100, 115, 130, 145, 160, 180, 195 mm
Standard lengths: 50 m
1 Most combinations of width and length are possible
1 Also available with customized perforation
1 Standard perforation length: 100-940 mm (in increments of 10 mm)
1 Further dimensions are available on request Harness diameter / tesa Supersleeve® width recommendation
< Ø 12 mm / 67 mm
Ø 12 mm – 16 mm / 85 mm
Ø 16 mm – 19 mm / 100 mm
Ø 19 mm – 24 mm / 115 mm
Ø 24 mm – 29 mm / 130 mm
Ø 29 mm – 33 mm / 145 mm
Ø 33 mm – 38 mm / 160 mm
Ø 38 mm – 45 mm / 180 mm
Ø 45 mm – 49 mm / 195 mm
Standard core diameter: 76 mm
Standard lengths: 50 m
1 Most combinations of width and length are possible
1 Also available with customized perforation
1 Standard perforation length: 100-940 mm (in increments of 10 mm)
1 Further dimensions are available on request Harness diameter / tesa Supersleeve® width recommendation
< Ø 12 mm / 67 mm
Ø 12 mm – 16 mm / 85 mm
Ø 16 mm – 19 mm / 100 mm
Ø 19 mm – 24 mm / 115 mm
Ø 24 mm – 29 mm / 130 mm
Ø 29 mm – 33 mm / 145 mm
Ø 33 mm – 38 mm / 160 mm
Ø 38 mm – 45 mm / 180 mm
Ø 45 mm – 49 mm / 195 mm
Standard core diameter: 76 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
