Additional Info
Liner variants:
PV20: brown/blue logo glassine paper (71μm; 82g/m²)

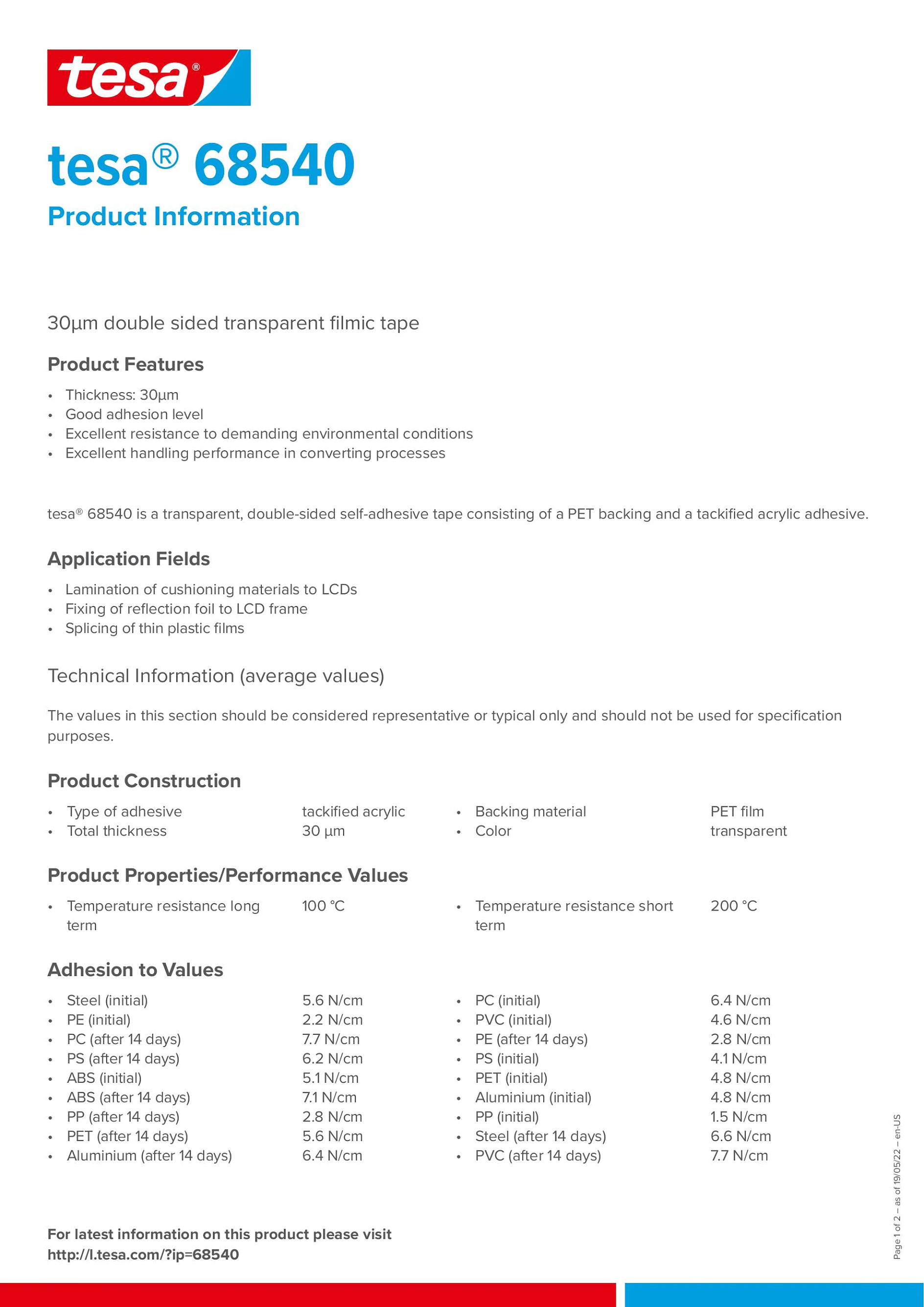

tesa® 68540
30µm double sided transparent filmic tape
Product Features
- Thickness: 30μm
- Good adhesion level
- Excellent resistance to demanding environmental conditions
Product description
tesa® 68540 is a transparent, double-sided self-adhesive tape consisting of a PET backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- Thickness: 30μm
- Good adhesion level
- Excellent resistance to demanding environmental conditions
- Excellent handling performance in converting processes
Application Fields
- Lamination of cushioning materials to LCDs
- Fixing of reflection foil to LCD frame
- Splicing of thin plastic films
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | transparent |
| Total thickness | 30 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | transparent |
| Total thickness | 30 µm |
Properties / Performance Values
| Chemical Resistance | good |
|---|---|
| Static shear resistance at 23°C | good |
| Temperature resistance long term | 100 °C |
| Softener resistance | good |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
| Static shear resistance at 40°C | good |
| Tack | low |
Properties / Performance Values
| Chemical Resistance | good |
|---|---|
| Static shear resistance at 23°C | good |
| Temperature resistance long term | 100 °C |
| Softener resistance | good |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
| Static shear resistance at 40°C | good |
| Tack | low |
Adhesion to Values
| Adhesion to ABS (initial) | 5.1 N/cm |
|---|---|
| Adhesion to Aluminium (initial) | 4.8 N/cm |
| Adhesion to Aluminium (after 14 days) | 6.4 N/cm |
| Adhesion to PC (initial) | 6.4 N/cm |
| Adhesion to PC (after 14 days) | 7.7 N/cm |
| Adhesion to PE (initial) | 2.2 N/cm |
| Adhesion to PE (after 14 days) | 2.8 N/cm |
| Adhesion to PET (initial) | 4.8 N/cm |
| Adhesion to PET (after 14 days) | 5.6 N/cm |
| Adhesion to PP (initial) | 2.8 N/cm |
| Adhesion to PP (after 14 days) | 1.5 N/cm |
| Adhesion to PS (initial) | 4.1 N/cm |
| Adhesion to PS (after 14 days) | 6.2 N/cm |
| Adhesion to PVC (initial) | 4.6 N/cm |
| Adhesion to PVC (after 14 days) | 7.7 N/cm |
| Adhesion to Steel (initial) | 5.6 N/cm |
| Adhesion to Steel (after 14 days) | 6.6 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 5.1 N/cm |
|---|---|
| Adhesion to Aluminium (initial) | 4.8 N/cm |
| Adhesion to Aluminium (after 14 days) | 6.4 N/cm |
| Adhesion to PC (initial) | 6.4 N/cm |
| Adhesion to PC (after 14 days) | 7.7 N/cm |
| Adhesion to PE (initial) | 2.2 N/cm |
| Adhesion to PE (after 14 days) | 2.8 N/cm |
| Adhesion to PET (initial) | 4.8 N/cm |
| Adhesion to PET (after 14 days) | 5.6 N/cm |
| Adhesion to PP (initial) | 2.8 N/cm |
| Adhesion to PP (after 14 days) | 1.5 N/cm |
| Adhesion to PS (initial) | 4.1 N/cm |
| Adhesion to PS (after 14 days) | 6.2 N/cm |
| Adhesion to PVC (initial) | 4.6 N/cm |
| Adhesion to PVC (after 14 days) | 7.7 N/cm |
| Adhesion to Steel (initial) | 5.6 N/cm |
| Adhesion to Steel (after 14 days) | 6.6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
