Additional Info
Liner variants:
PV20: brown/blue logo glassine paper (71μm; 82g/m²)
PV20: brown/blue logo glassine paper (71μm; 82g/m²)
tesa® 68942
50µm double sided white filmic tape
Product Features
- Thickness: 50µm
- High adhesion level
- White color for easy detection or design purpose
Product description
tesa® 68942 is a white, double-sided self-adhesive tape consisting of a white PET backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- Thickness: 50µm
- High adhesion level
- White color for easy detection or design purpose
- High resistance to demanding environmental conditions
- Good handling performance in converting processes
Application Fields
tesa® 68942 is used for general mounting and laminating applications especially in the electronics industry.

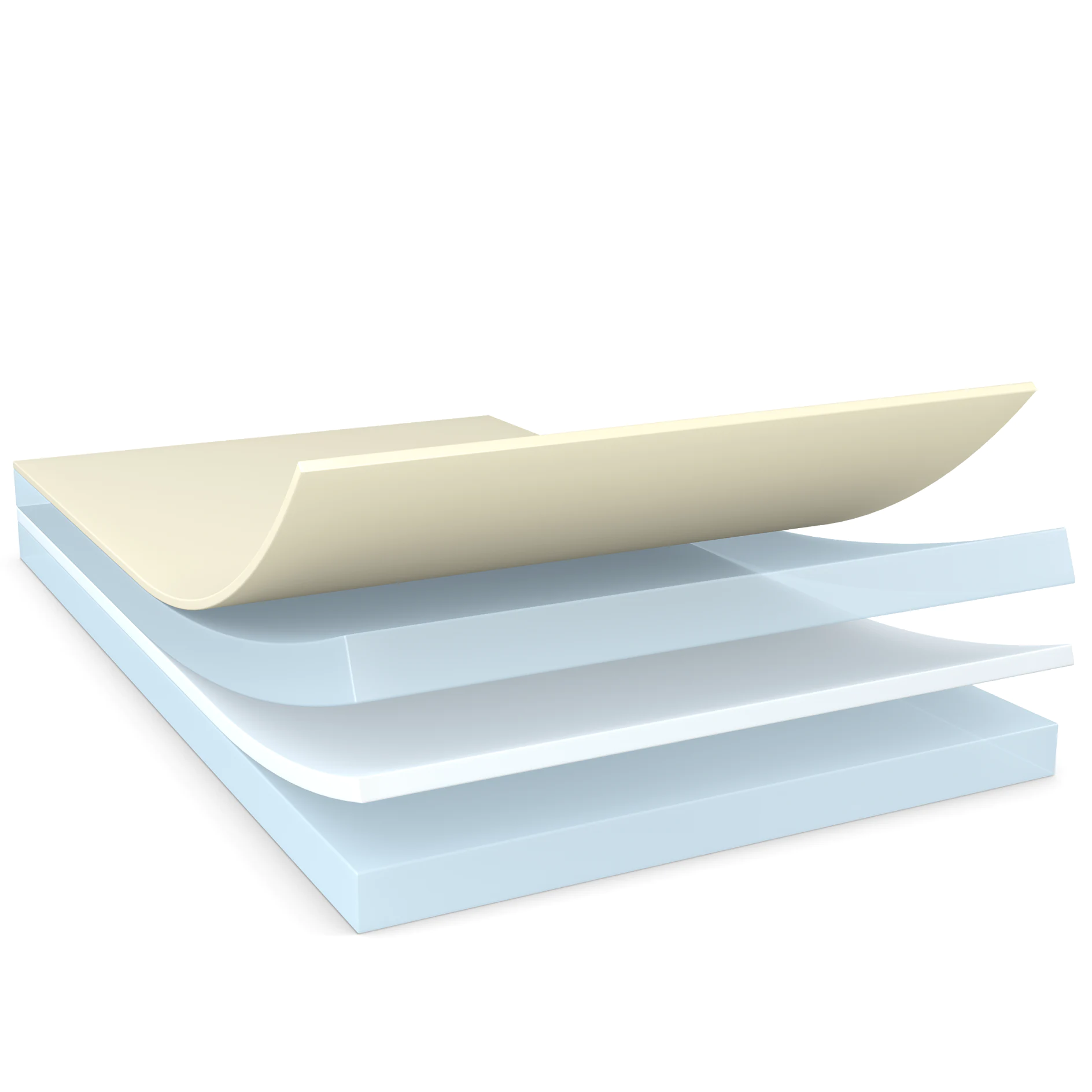

Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | white |
| Total thickness | 50 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | white |
| Total thickness | 50 µm |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 20 N/cm |
| Tack | good |
| Humidity resistance | very good |
| Static shear resistance at 23°C | medium |
| Softener resistance | very good |
| Temperature resistance short term | 200 °C |
| Temperature resistance long term | 100 °C |
| Ageing resistance (UV) | very good |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 20 N/cm |
| Tack | good |
| Humidity resistance | very good |
| Static shear resistance at 23°C | medium |
| Softener resistance | very good |
| Temperature resistance short term | 200 °C |
| Temperature resistance long term | 100 °C |
| Ageing resistance (UV) | very good |
Adhesion to Values
| Adhesion to ABS (initial) | 5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 6.1 N/cm |
| Adhesion to Aluminium (initial) | 5 N/cm |
| Adhesion to Aluminium (after 14 days) | 6 N/cm |
| Adhesion to PC (initial) | 5.3 N/cm |
| Adhesion to PC (after 14 days) | 6.4 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 7.3 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 6.1 N/cm |
| Adhesion to Aluminium (initial) | 5 N/cm |
| Adhesion to Aluminium (after 14 days) | 6 N/cm |
| Adhesion to PC (initial) | 5.3 N/cm |
| Adhesion to PC (after 14 days) | 6.4 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 7.3 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
