Product Construction
| Adhesive Type | tackified acrylic |
| Backing material | acrylic core with PET reinforcement |
| Color | black |
| Color of liner | transparent |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 400 µm |
tesa® 61076
400 µm double sided multi-layer acrylic foam tape
Product Features
- Thickness: 400µm
- Superior anti-repulsion properties to prevent lifting
- Quick wetting and reliable bonding performance
Product description

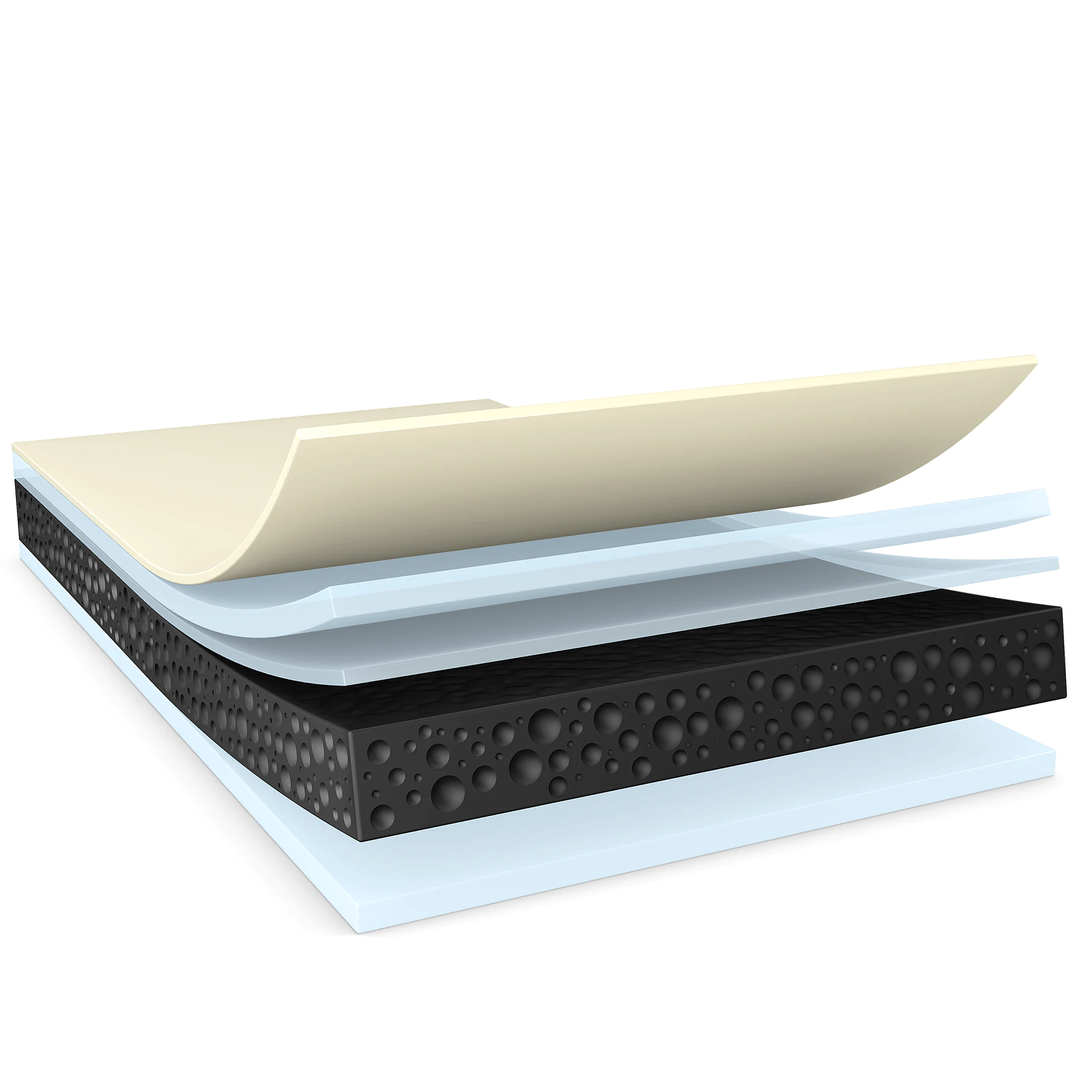

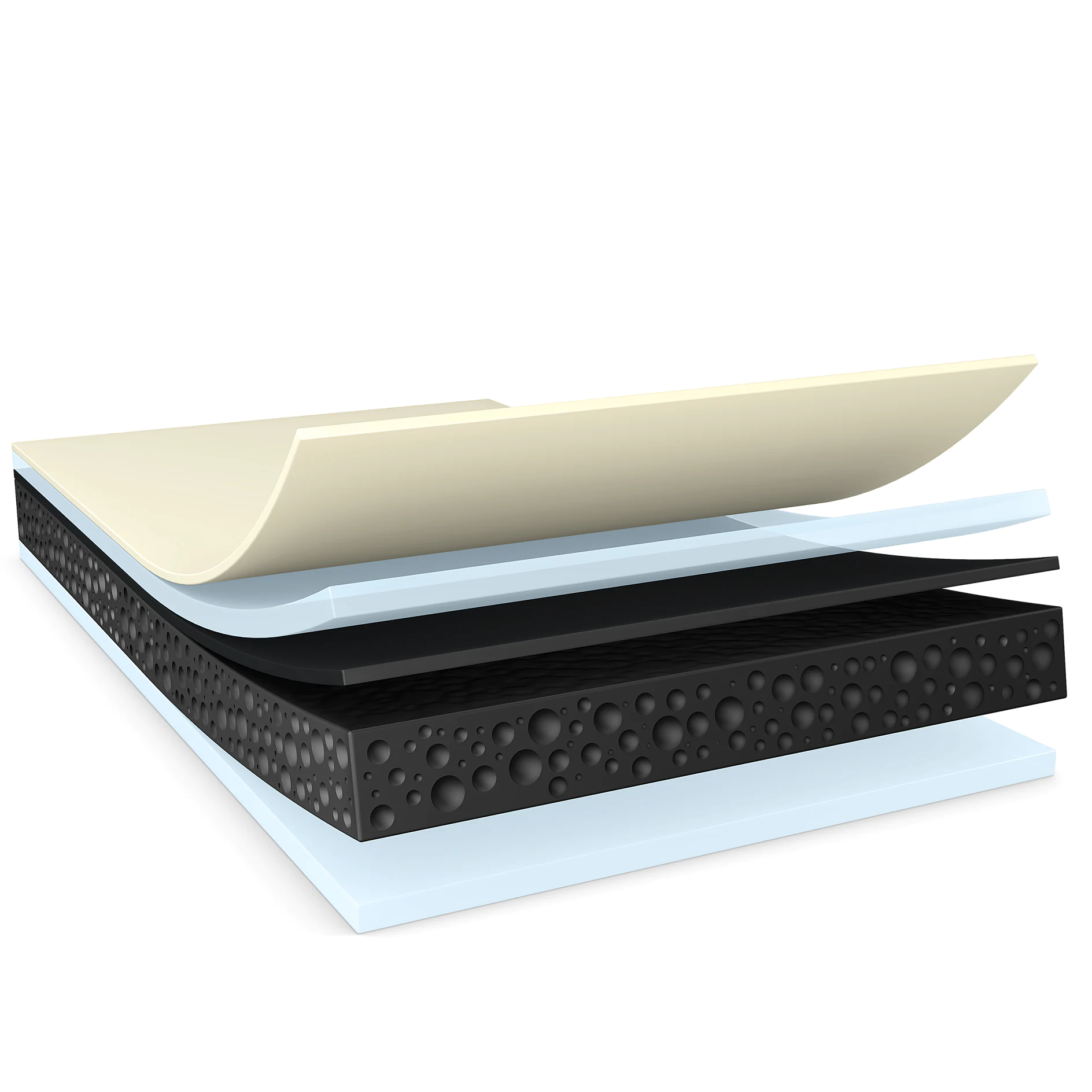

tesa® 61076 is a double-sided tape with multi-layer design. It consists of a reinforced acrylic foam backing and shear resistance adhesive on both sides.
Product details and specifications
Product Features
- Thickness: 400µm
- Superior anti-repulsion properties to prevent lifting
- Quick wetting and reliable bonding performance
- Very good reworkability and die-cut ability
- Very good impact resistance
- Superior watertightness (IPX8)
Application Fields
- Demanding cover glass and back cover mounting applications with high requirements for impact resistance
- Mounting of waterproof designs
- Mounting of 3D curved or ultra slim bezel designs
- Mounting of balancing bonding reliability and dismountability
Product Construction
| Adhesive Type | tackified acrylic |
| Backing material | acrylic core with PET reinforcement |
| Color | black |
| Color of liner | transparent |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 400 µm |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
| Static shear resistance at 40°C | very good |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
| Static shear resistance at 40°C | very good |
Adhesion to Values
| Adhesion to PC (initial) | 16.5 N/cm |
| Adhesion to PC (covered side, initial) | 7.3 N/cm |
| Adhesion to Steel (initial) | 17 N/cm |
| Adhesion to Steel (covered side, initial) | 8.8 N/cm |
Adhesion to Values
| Adhesion to PC (initial) | 16.5 N/cm |
| Adhesion to PC (covered side, initial) | 7.3 N/cm |
| Adhesion to Steel (initial) | 17 N/cm |
| Adhesion to Steel (covered side, initial) | 8.8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
